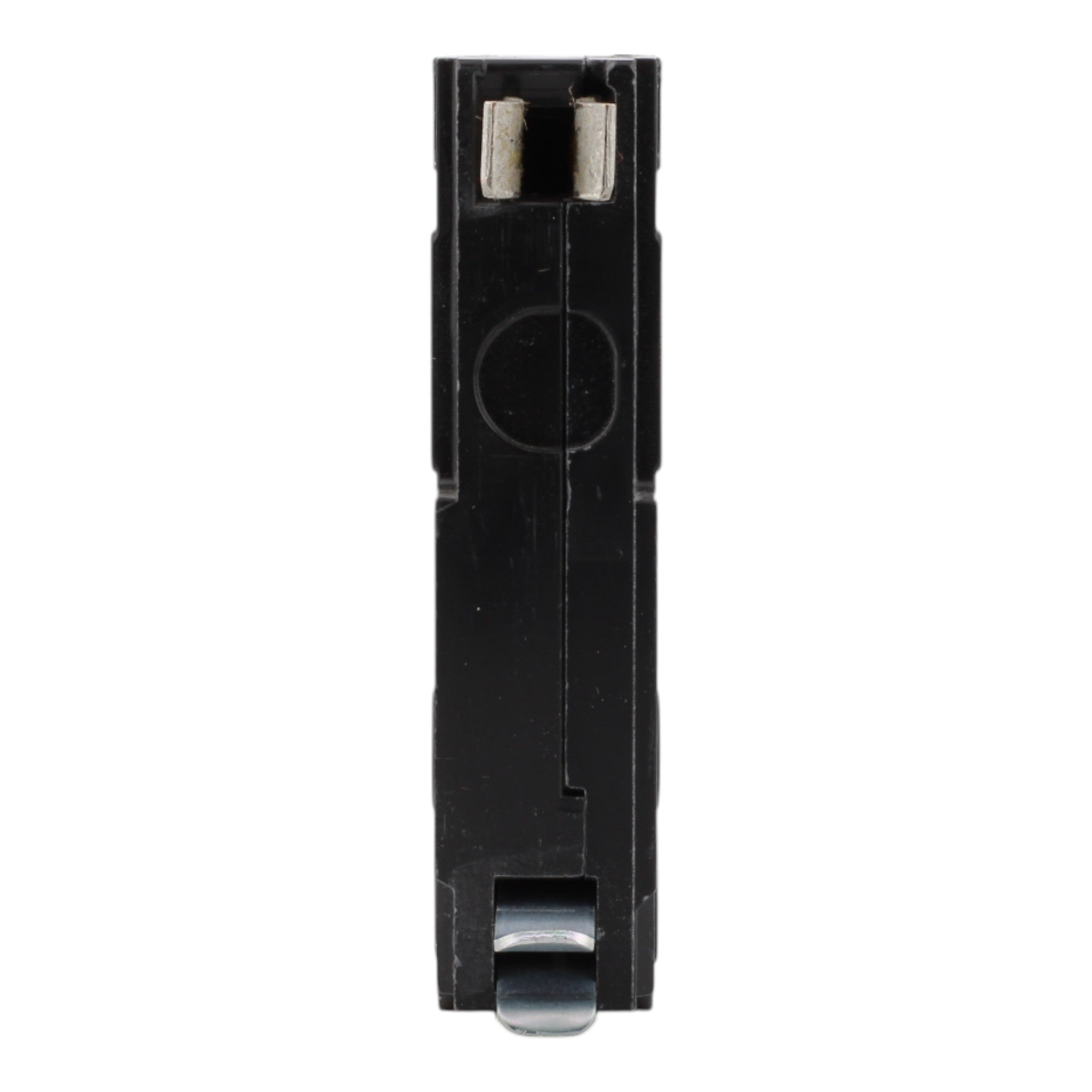

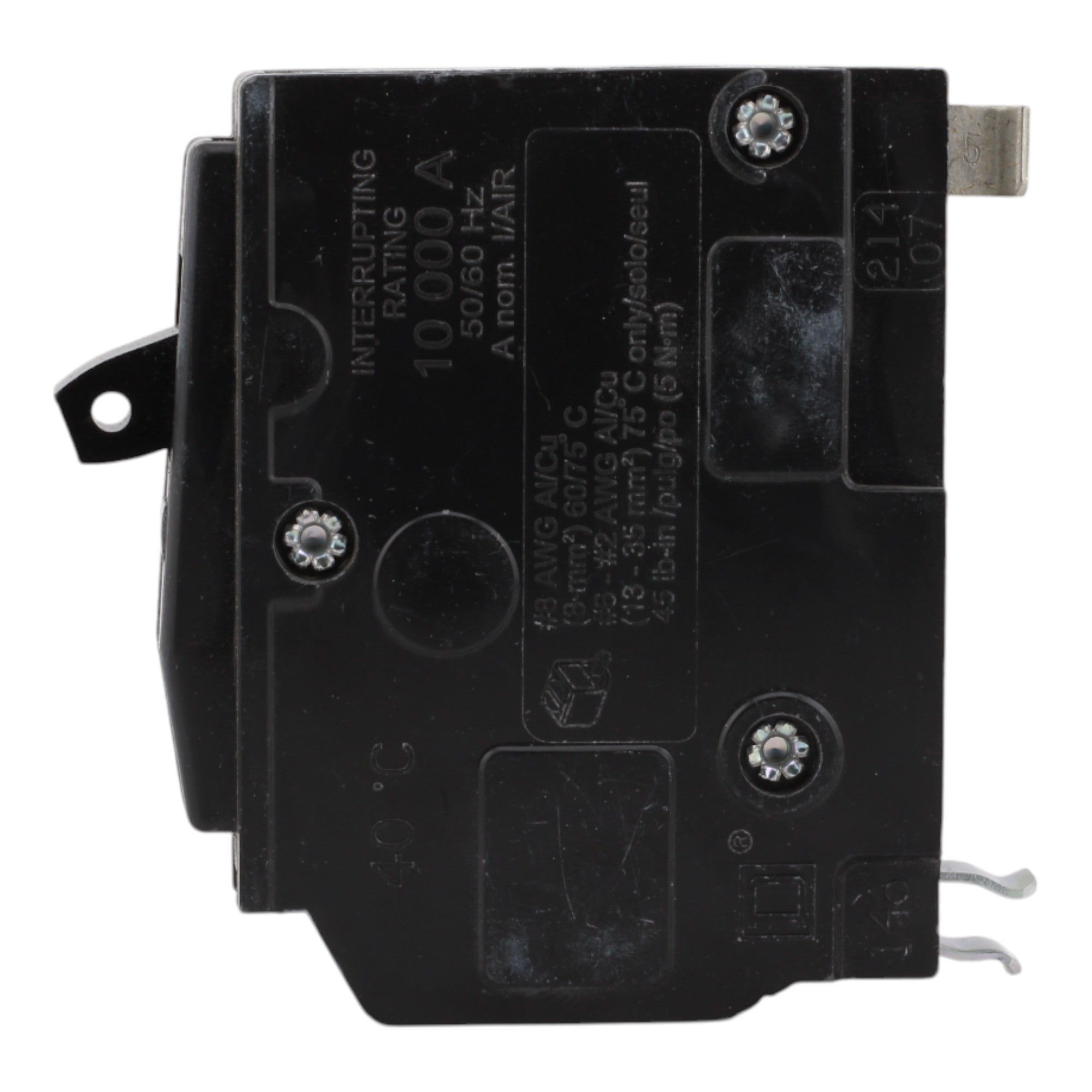

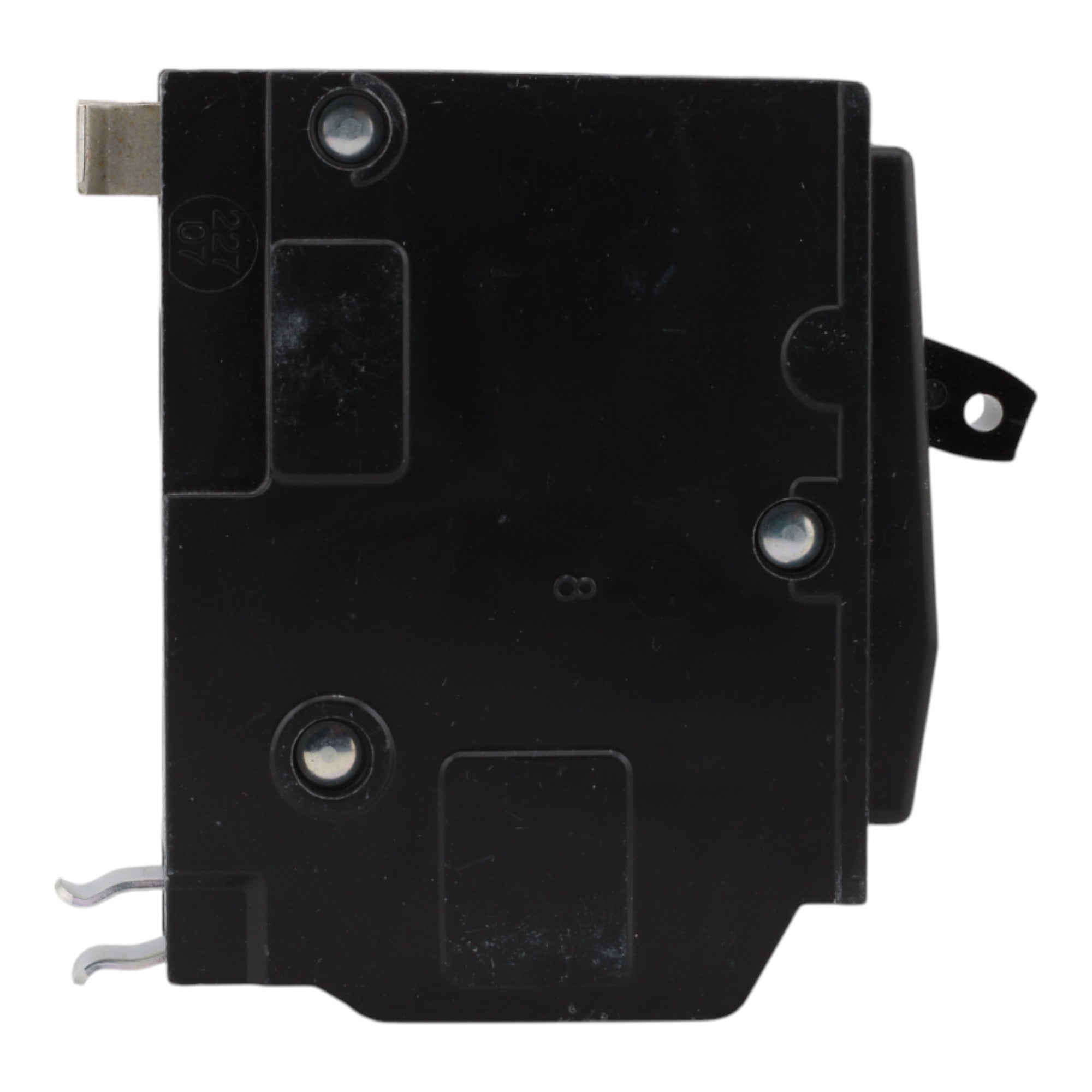

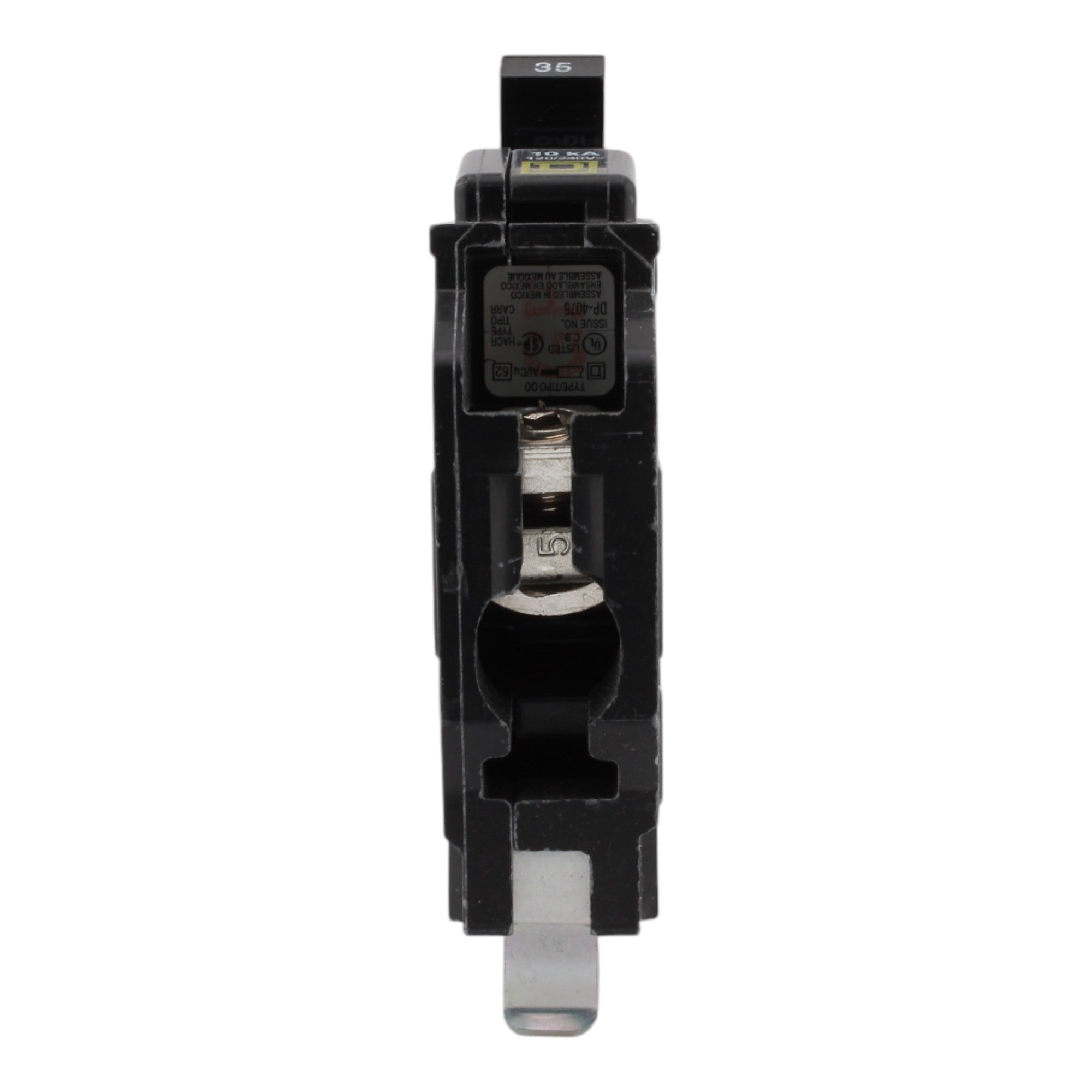

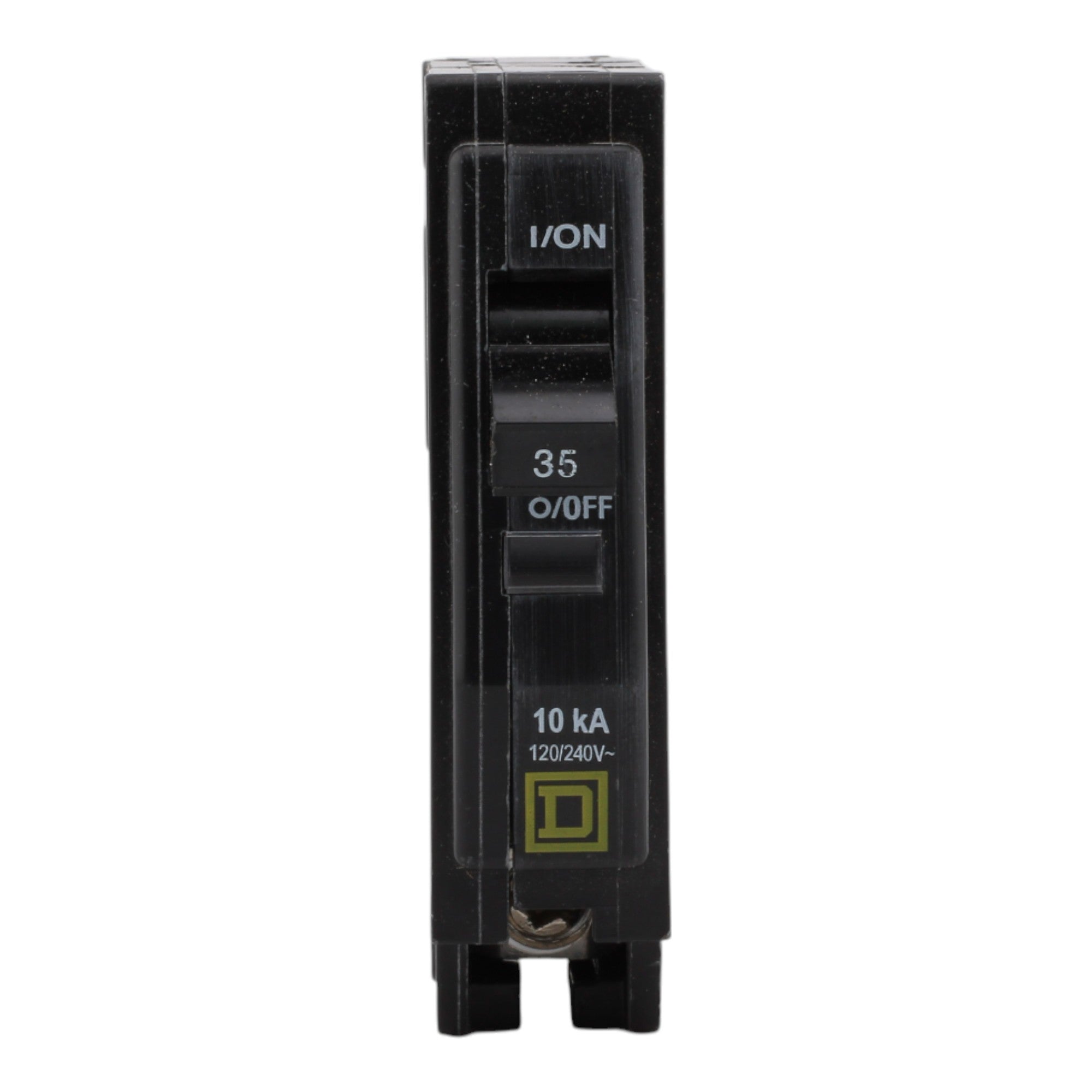

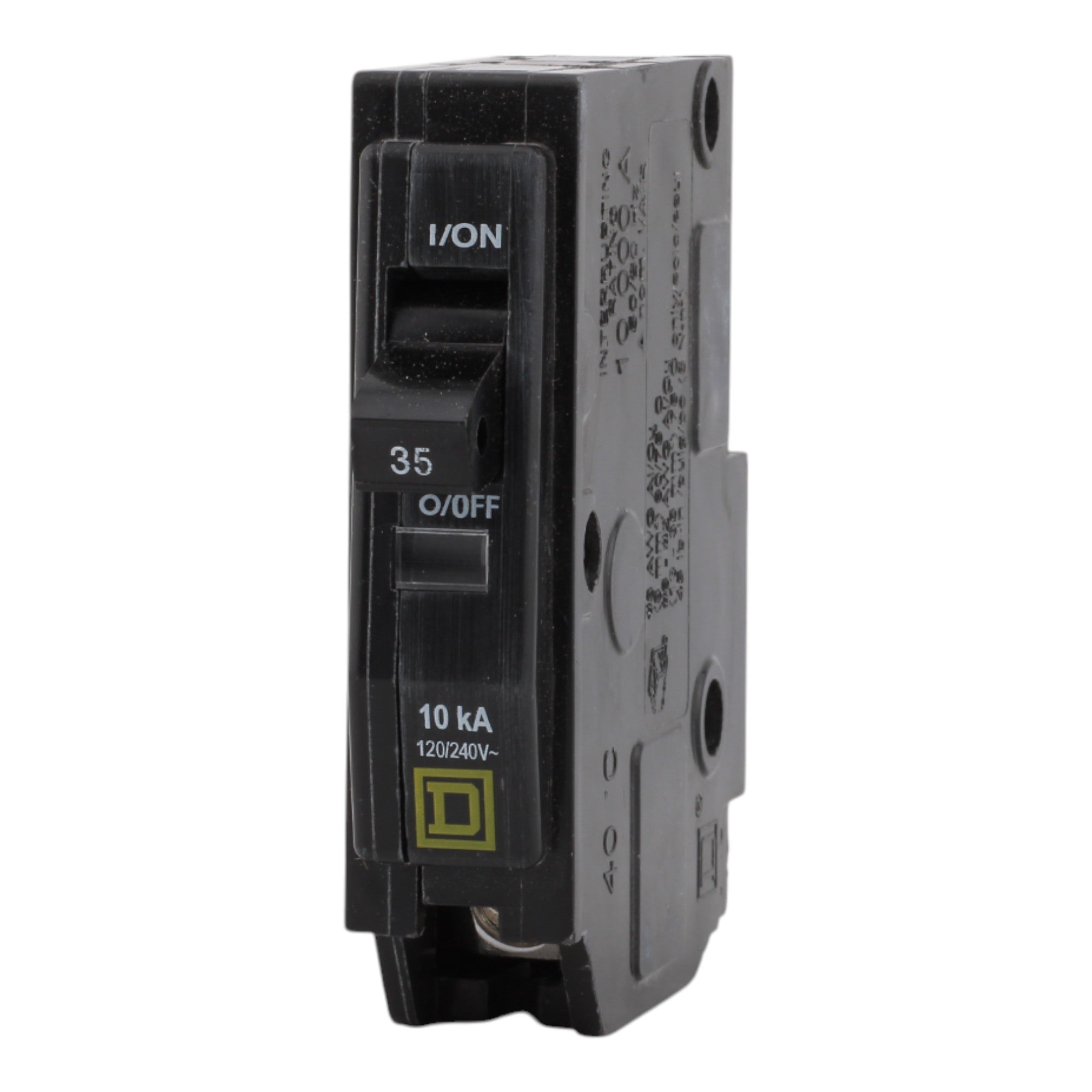

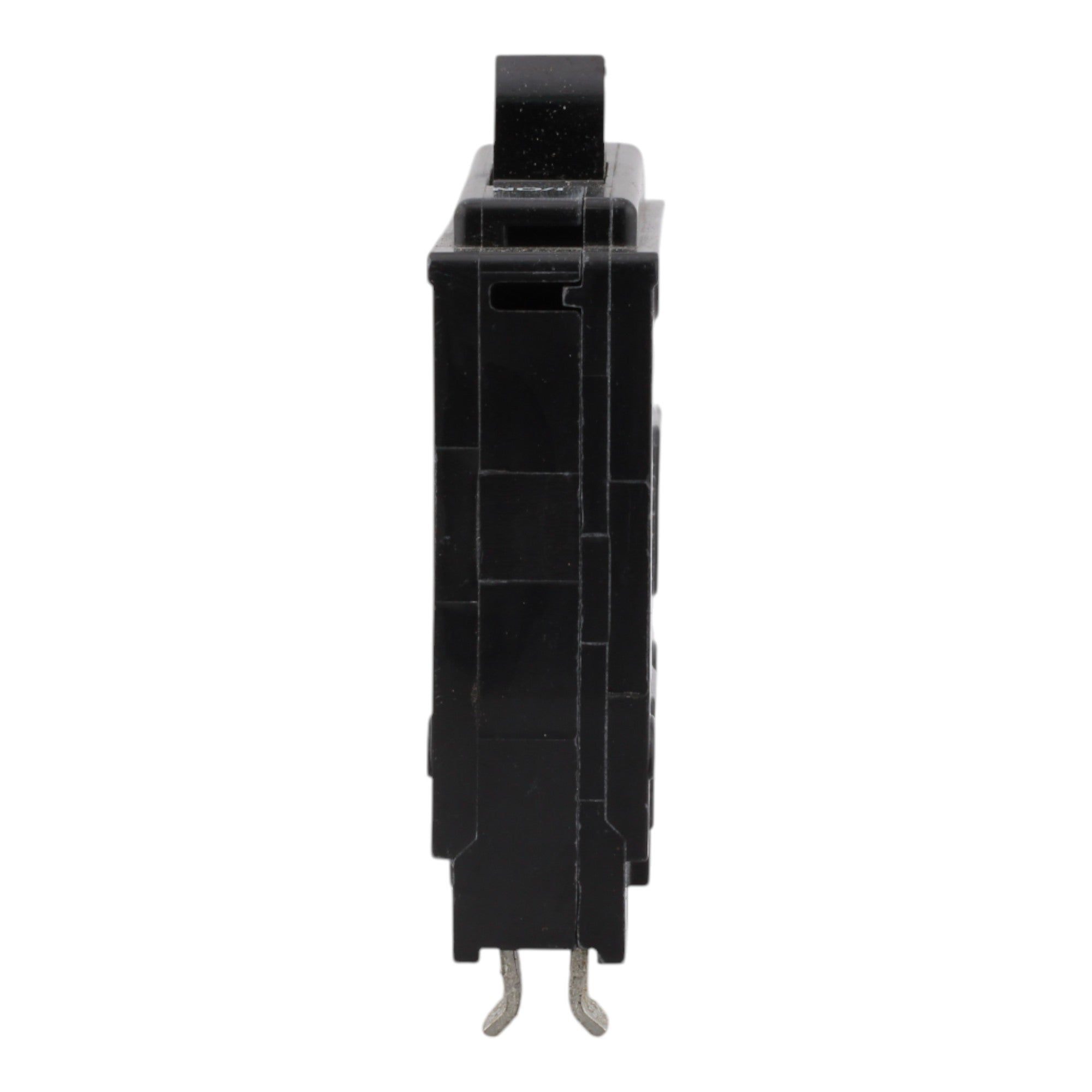

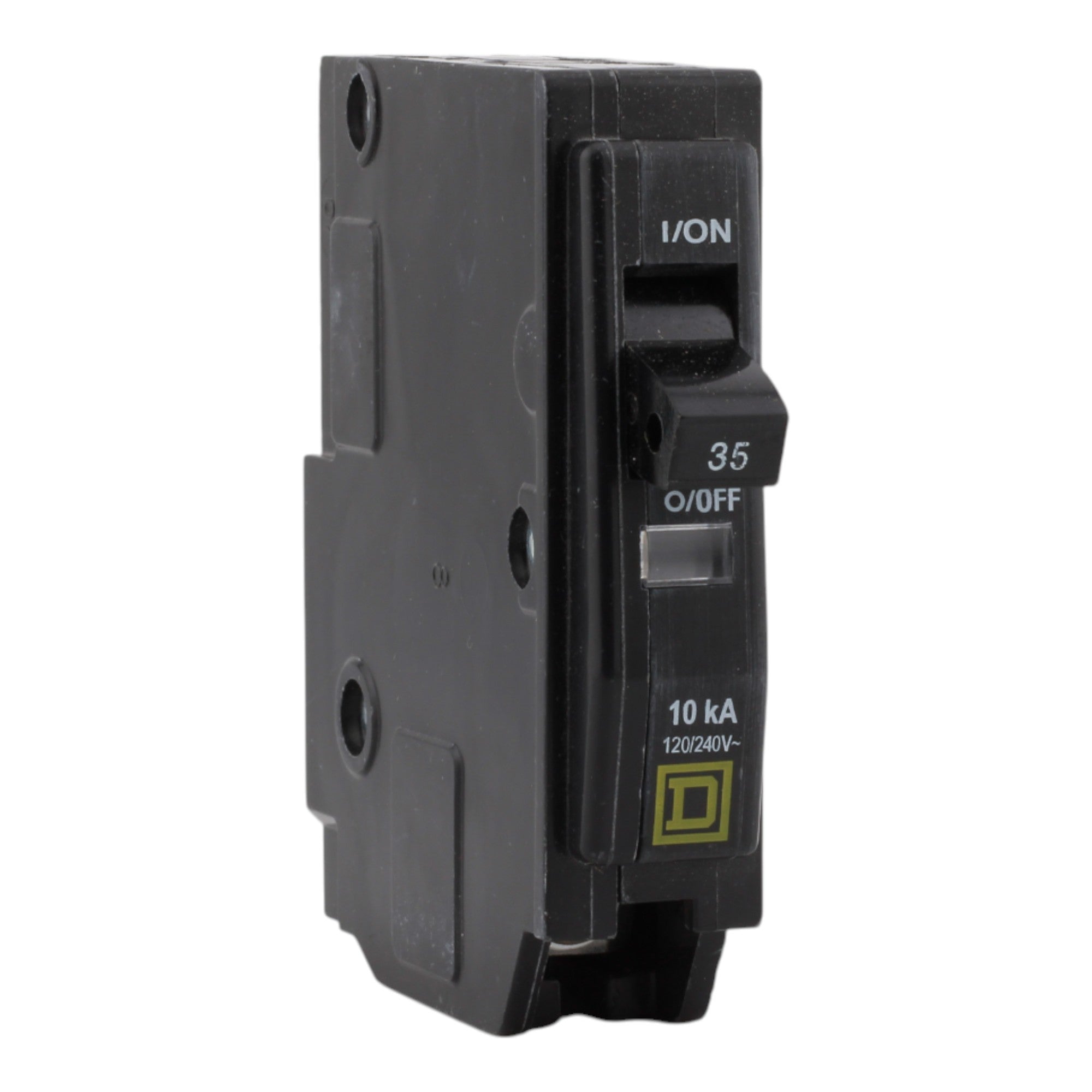

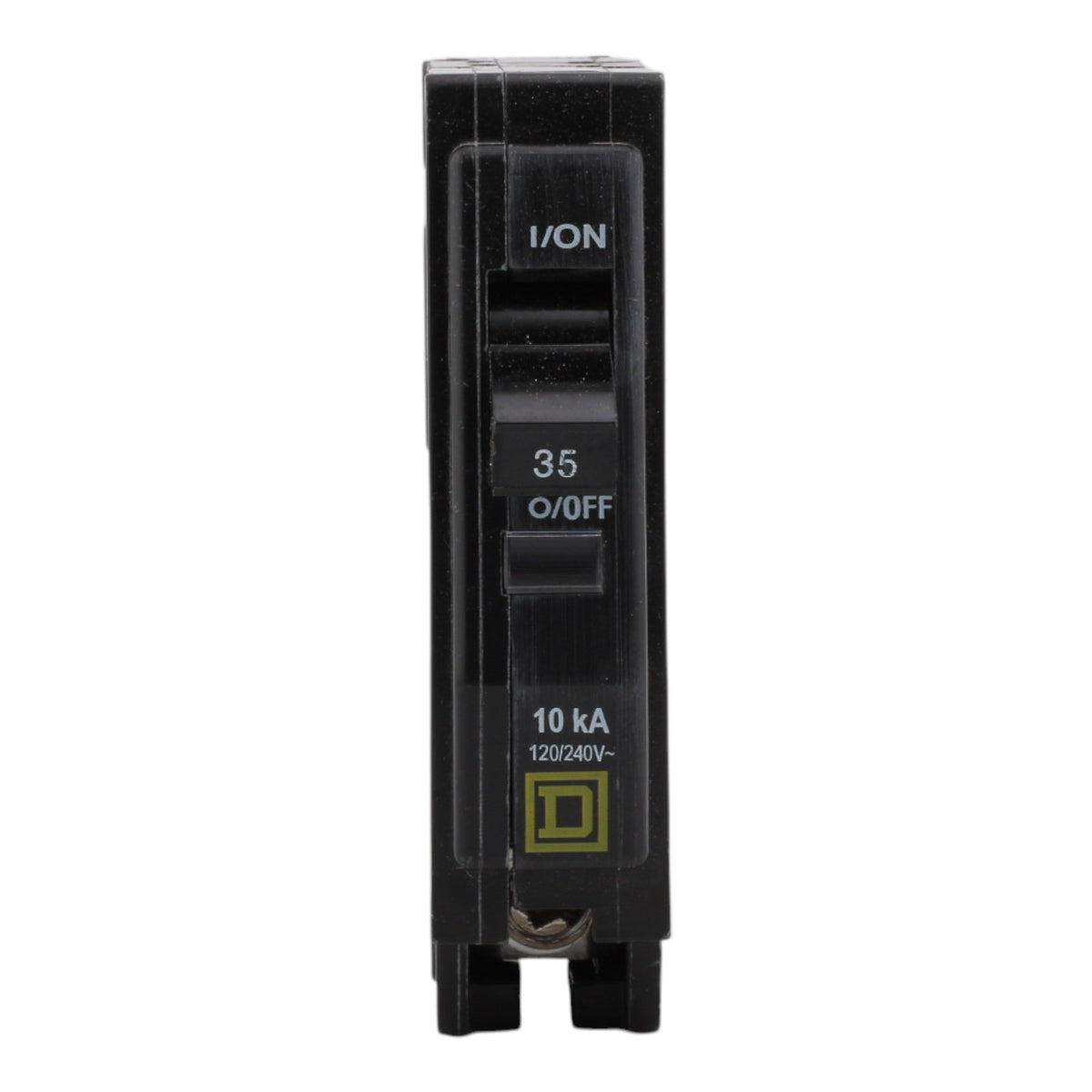

Square D QO135 35A 1P 120/240VAC Miniature Circuit Breaker

Square D QO135: 35A 1P thermal-magnetic circuit breaker, 120/240VAC, 10kA interrupt rating, plug-in mount, VisiTrip indication, HACR rated, UL listed, CSA certified."

Product Specifications

Product Identification:

• Manufacturer: Schneider Electric
• Brand: QO
• UPC: 785901010609
• Model Number: QO135

Technical Specifications:

• Circuit Breaker Type: QO Miniature Circuit Breaker
• Number of Poles: 1-Pole
• Amperage Rating: 35A
• Voltage Rating: 120/240VAC
• Interrupt Rating: 10kA at 120/240VAC
• Mounting Type: Plug-in
• Electrical Connection: Box lugs
• Wire Compatibility: 8-2 AWG copper or aluminum
• Tightening Torque: 44.3 lbf.in (5 N.m)
• Special Features: Over-center trip-free toggle mechanism, quick make/break action, VisiTrip trip indication
• Application Rating: HACR rated
• Panel Spaces Required: 1
• Certifications: UL Listed, CSA Certified
• Ambient Rating: 104°F (40°C)

Dimensions:

• Dimensions: Height: 3.1 in; Width: 0.7 in; Depth: 2.9 in
• Weight: 0.280 lb
