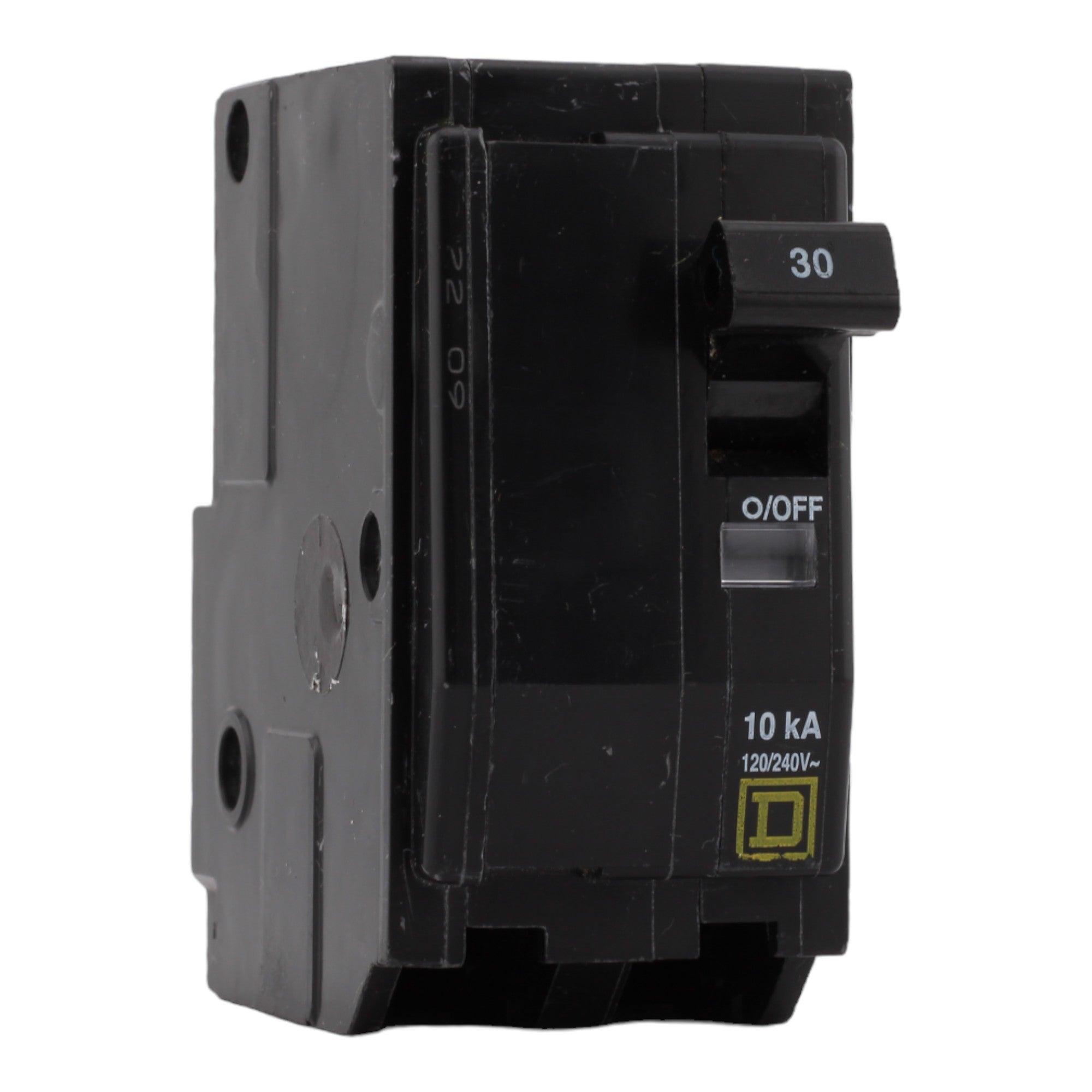

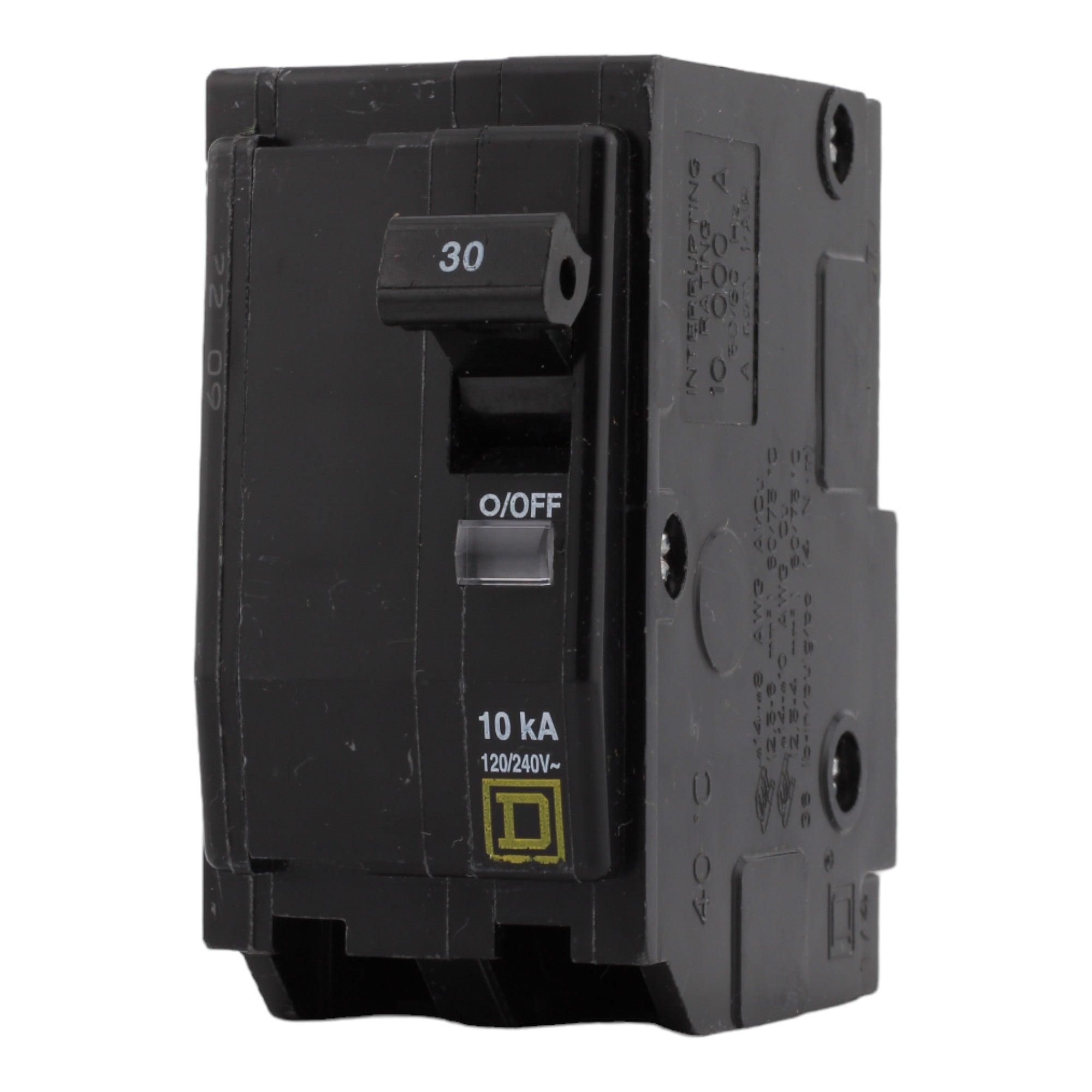

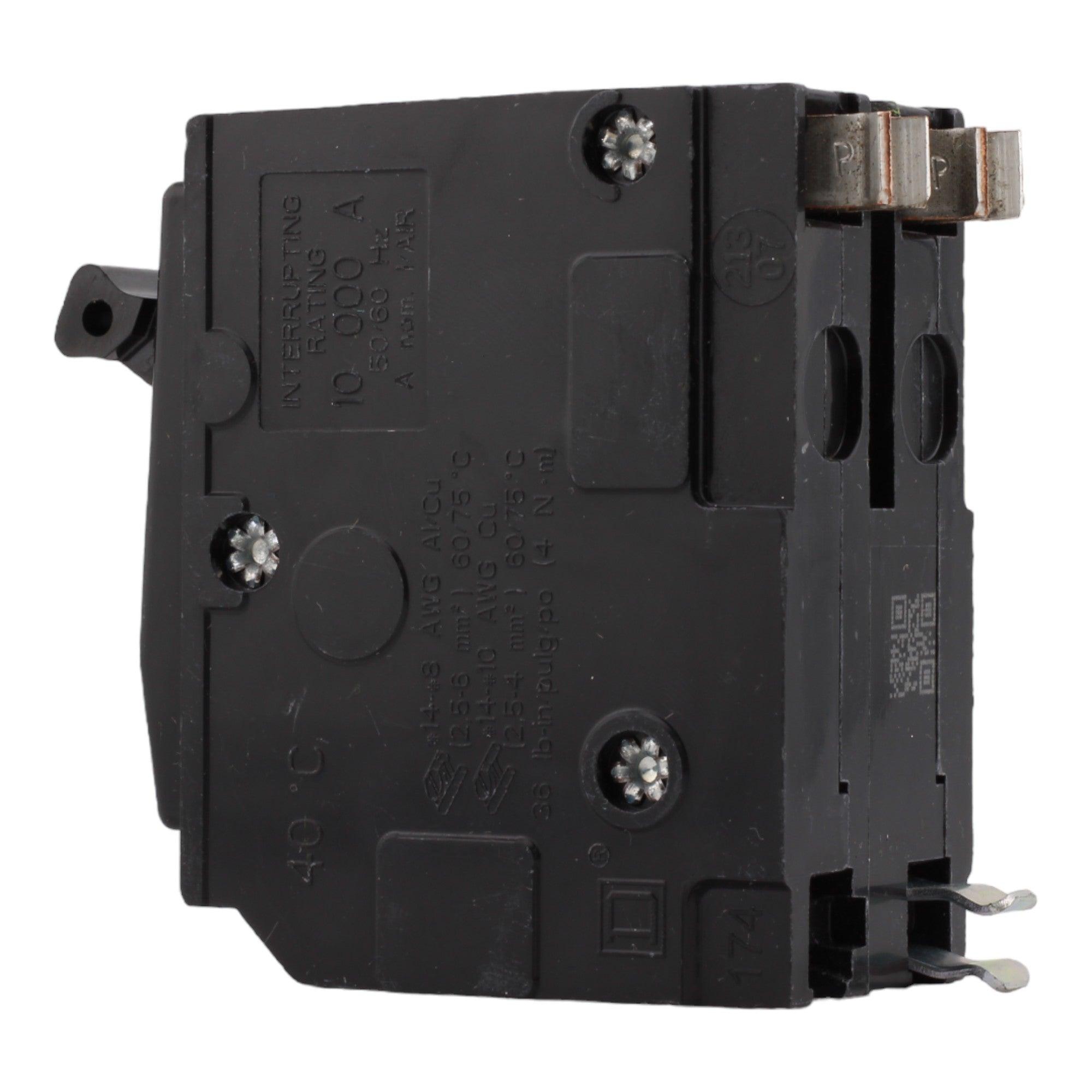

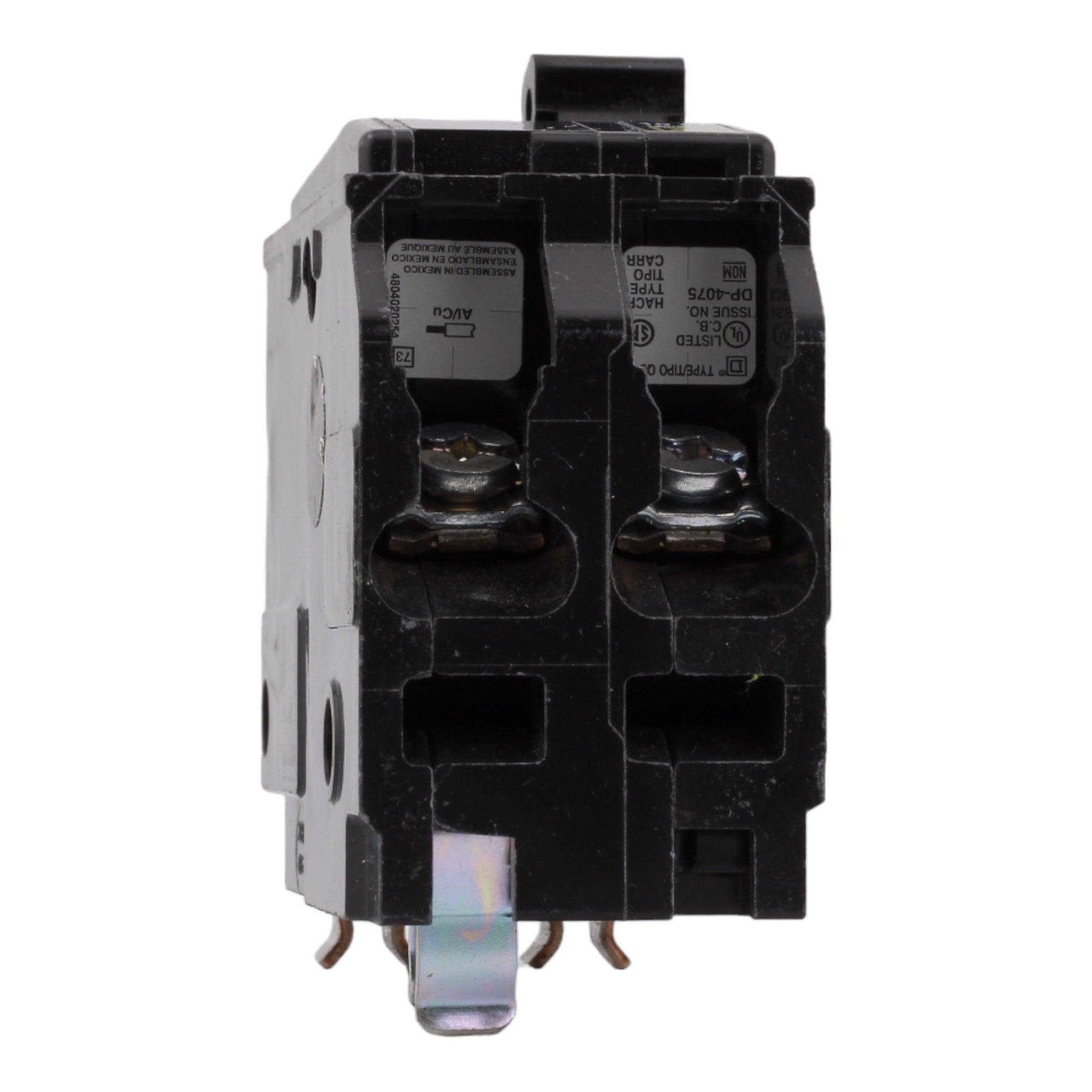

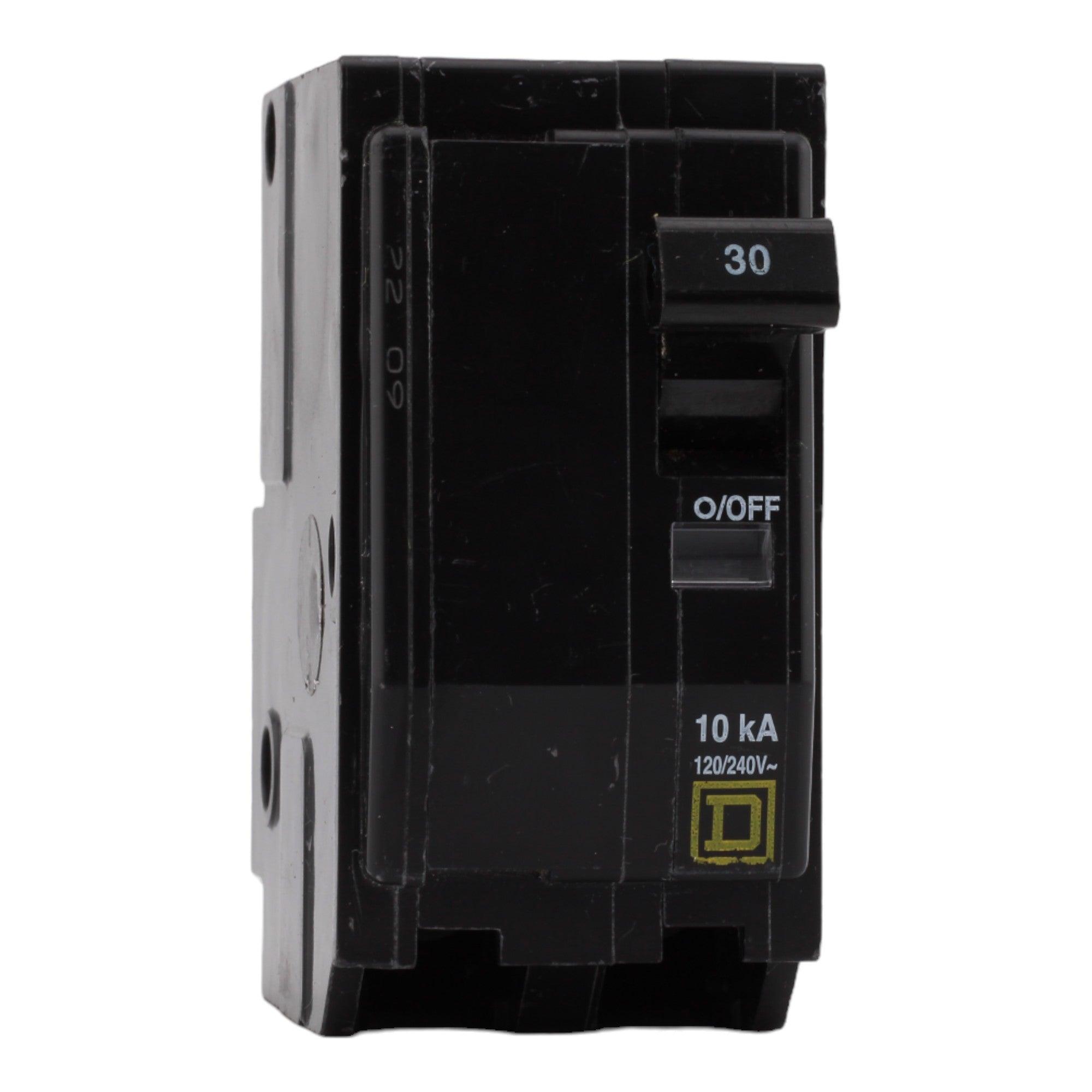

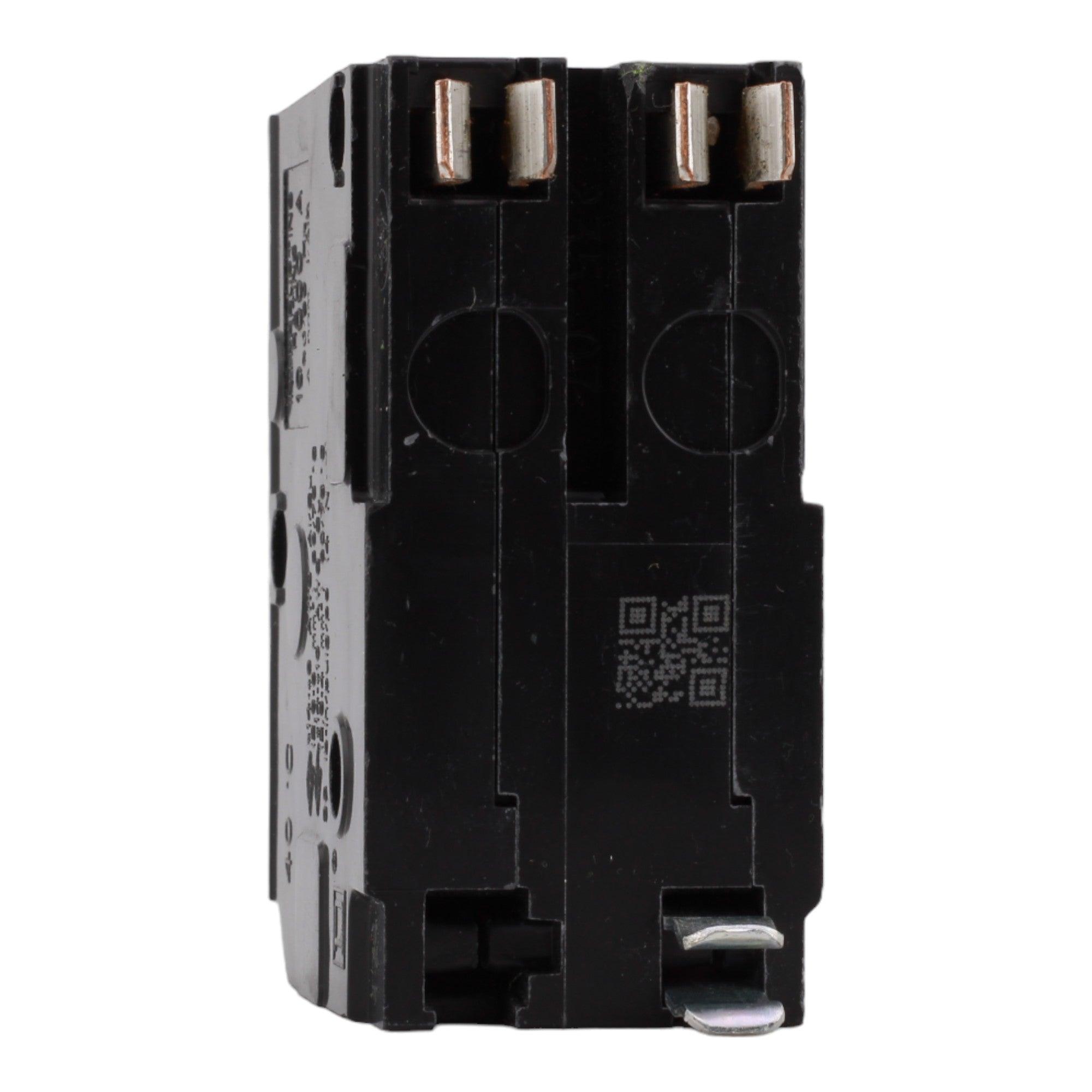

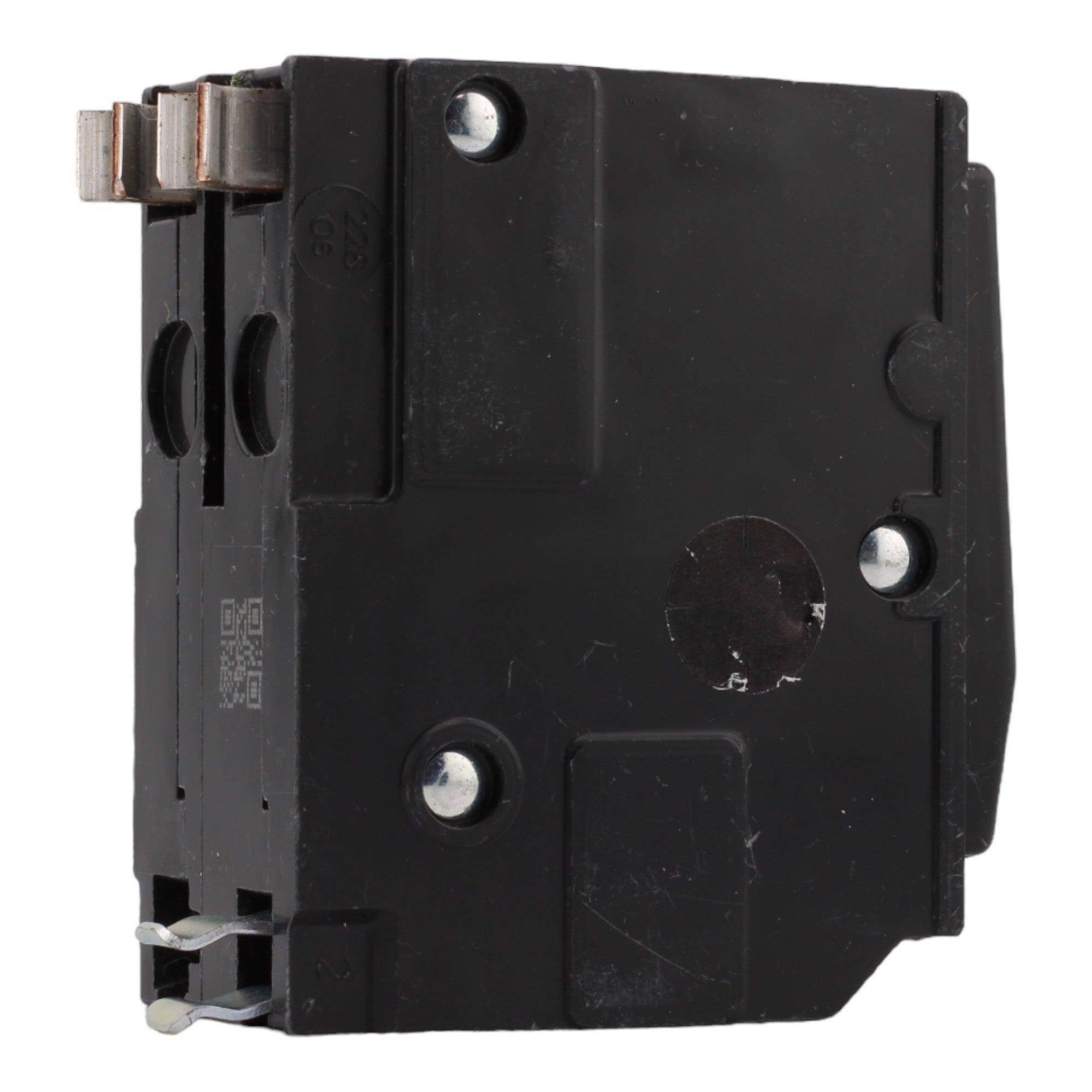

Square D QO QO230 30A 2P 120/240V Circuit Breaker
Square D QO QO230 30A 2P 120/240V Circuit Breaker - Image 2
Square D QO QO230 30A 2P 120/240V Circuit Breaker - Image 3
Square D QO QO230 30A 2P 120/240V Circuit Breaker - Image 4
Square D QO QO230 30A 2P 120/240V Circuit Breaker - Image 5
Square D QO QO230 30A 2P 120/240V Circuit Breaker - Image 6
Square D QO QO230 30A 2P 120/240V Circuit Breaker - Image 7
Square D QO QO230 30A 2P 120/240V Circuit Breaker
Square D QO QO230 30A 2P 120/240V Circuit Breaker - Image 2
Square D QO QO230 30A 2P 120/240V Circuit Breaker - Image 3
Square D QO QO230 30A 2P 120/240V Circuit Breaker - Image 4
Square D QO QO230 30A 2P 120/240V Circuit Breaker - Image 5
Square D QO QO230 30A 2P 120/240V Circuit Breaker - Image 6
Square D QO QO230 30A 2P 120/240V Circuit Breaker - Image 7

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Square D

Square D QO QO230 30A 2P 120/240V Circuit Breaker

In stock
SKU: QO230 UPC: 785901400424
(0)
$22.00
-8% $24.00 $22.00
In stock
Usually ships within 24 hours
Condition

QO230 is a standard two-pole breaker. Square D rates this QO model at 30A for 120/240V AC systems with a 10 kA interrupting rating. It uses the familiar QO plug-in mounting format and provides thermal-magnetic overload and short-circuit protection.

QO230 specifications

  • Model number: QO230
  • Series: Square D QO
  • Breaker type: Standard thermal-magnetic
  • Rating: 30A, 2 pole, 120/240V AC
  • Interrupt rating: 10 kA
  • Mounting mode: Plug-in
  • Fault electronics: No AFCI or GFCI function

No neutral feature is part of QO230

Unlike QO arc-fault and ground-fault products, QO230 has no test button, neutral pigtail, or plug-on-neutral connection. The two poles trip together for a correctly specified two-pole circuit. Calling this model “plug-on neutral” would be inaccurate.

Match more than 30 amps

Confirm QO230 is listed on the panel label and that the design requires 30A, two poles, 120/240V, and a 10 kA rating. Conductor size, load calculation, and equipment instructions determine whether 30A is appropriate; the breaker should never be upsized simply to prevent tripping. Selection and installation should be handled by a qualified person.
