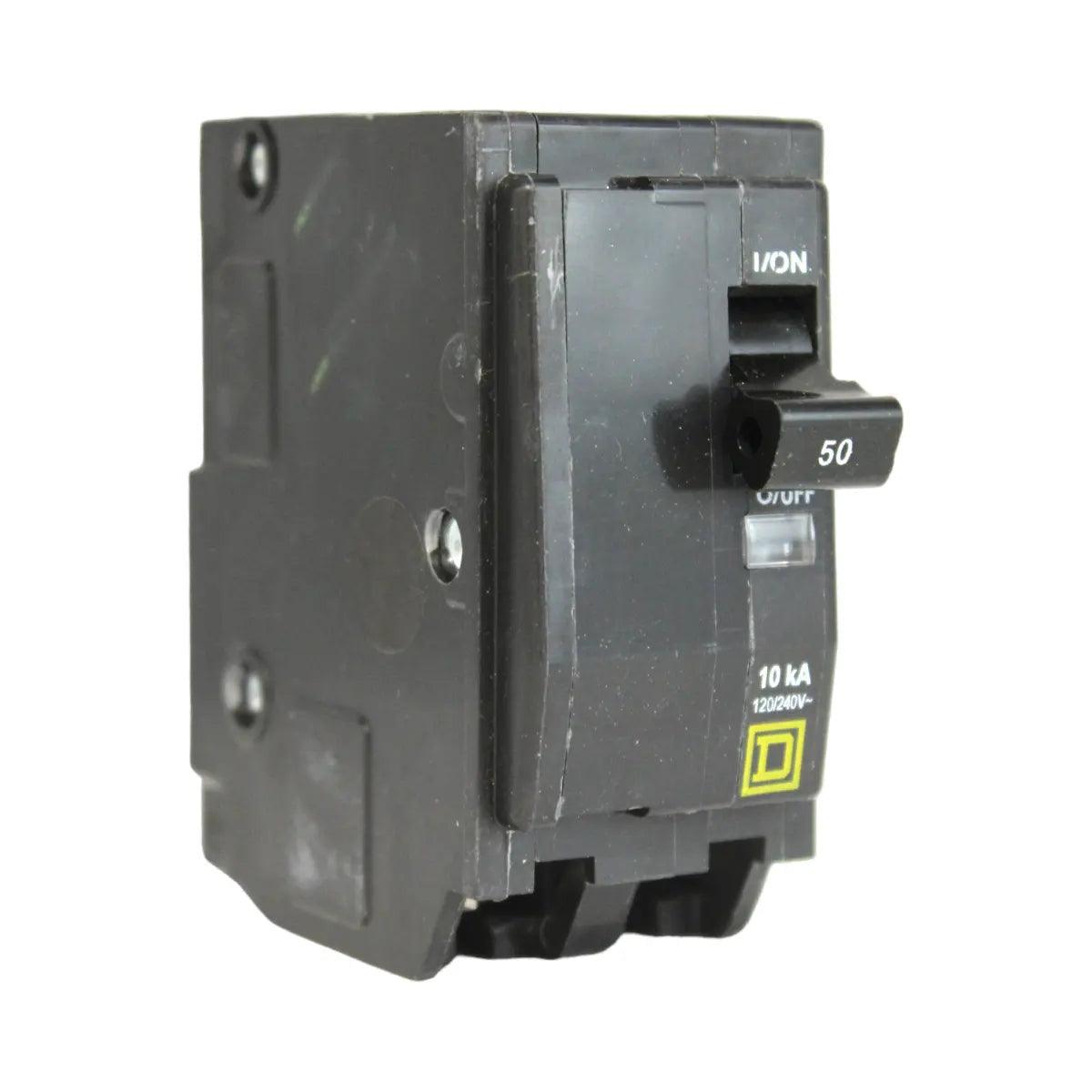

Square D QO QO250 50A 2P 120/240V Circuit Breaker

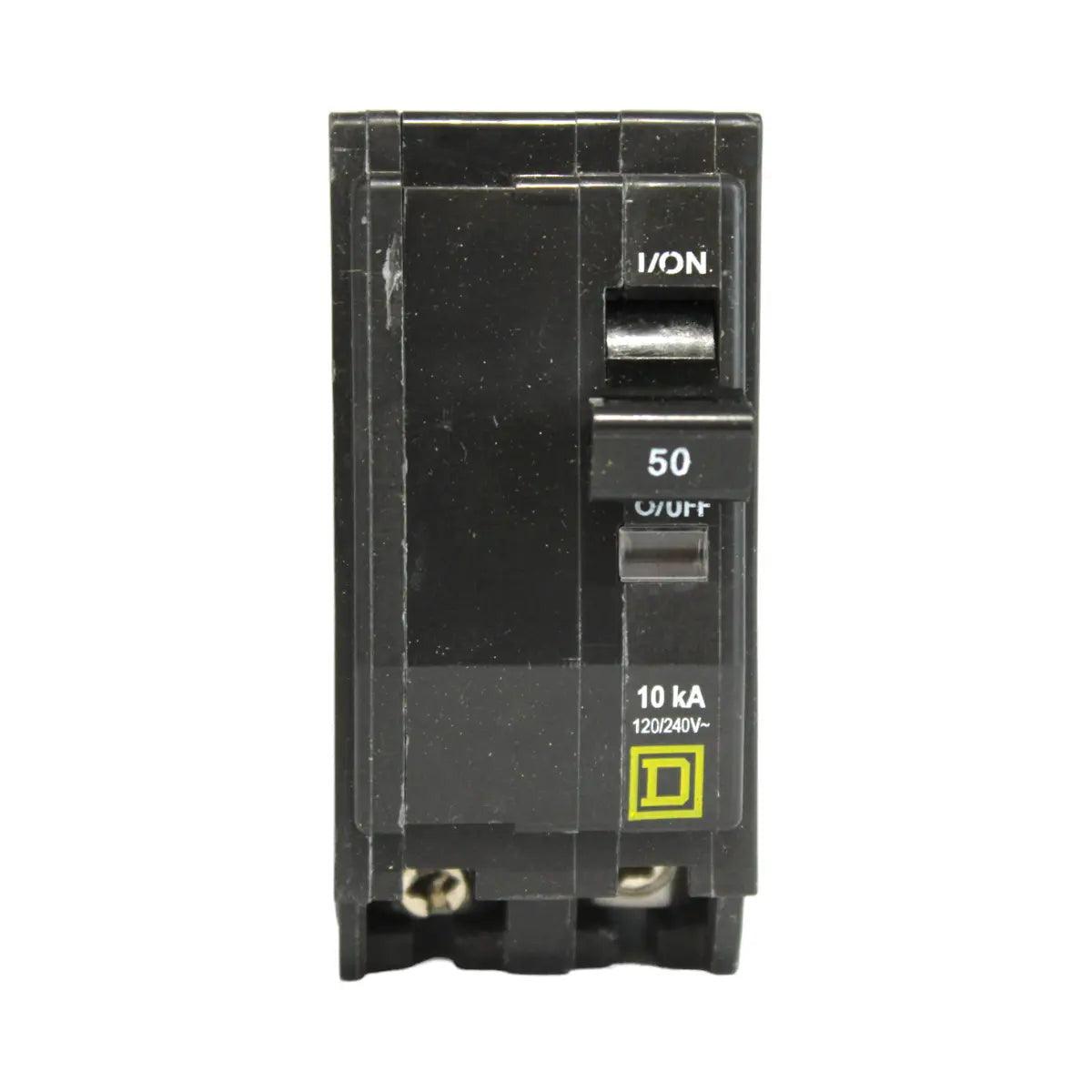

Square D QO QO250 50A 2P 120/240V Circuit Breaker - Image 2

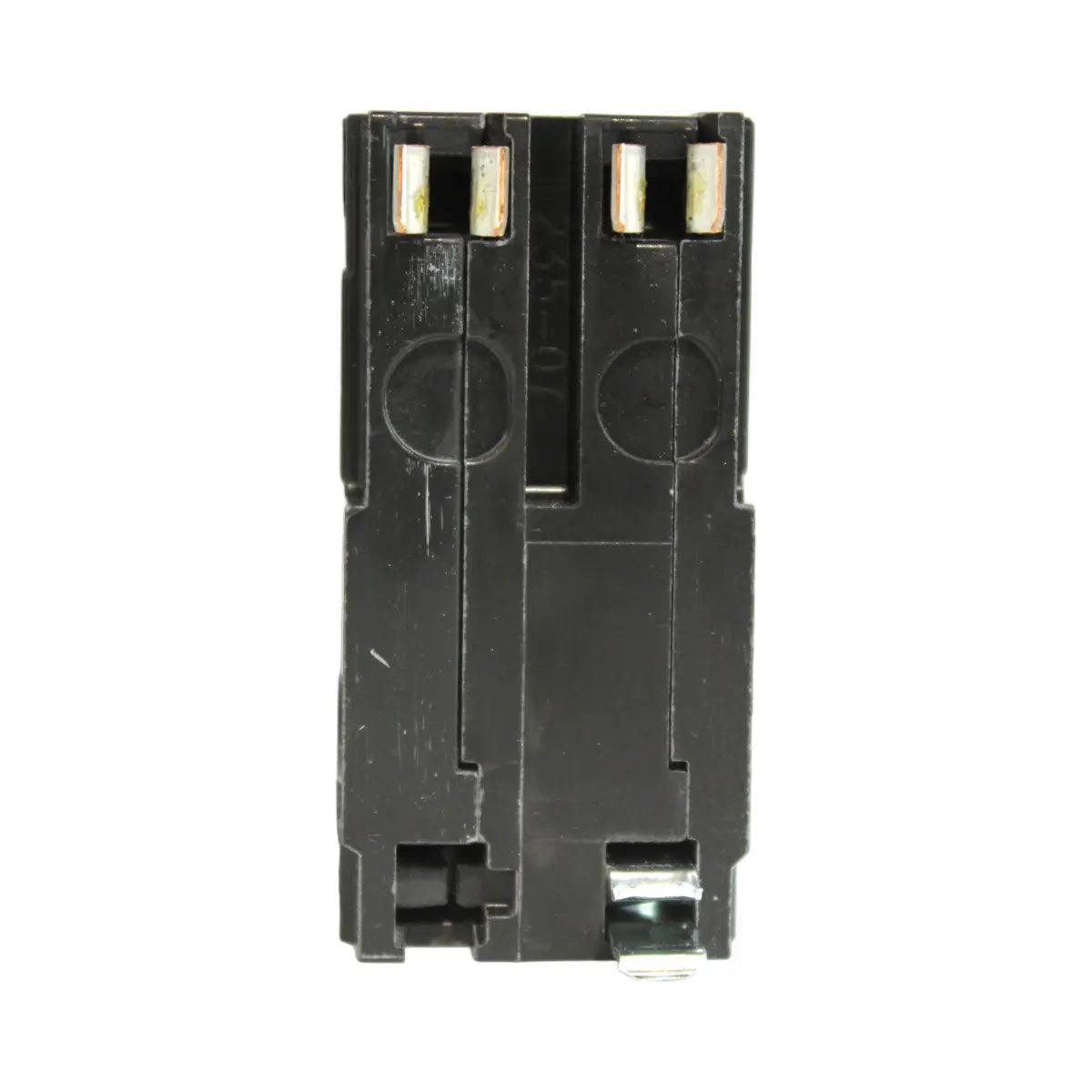

Square D QO QO250 50A 2P 120/240V Circuit Breaker - Image 3

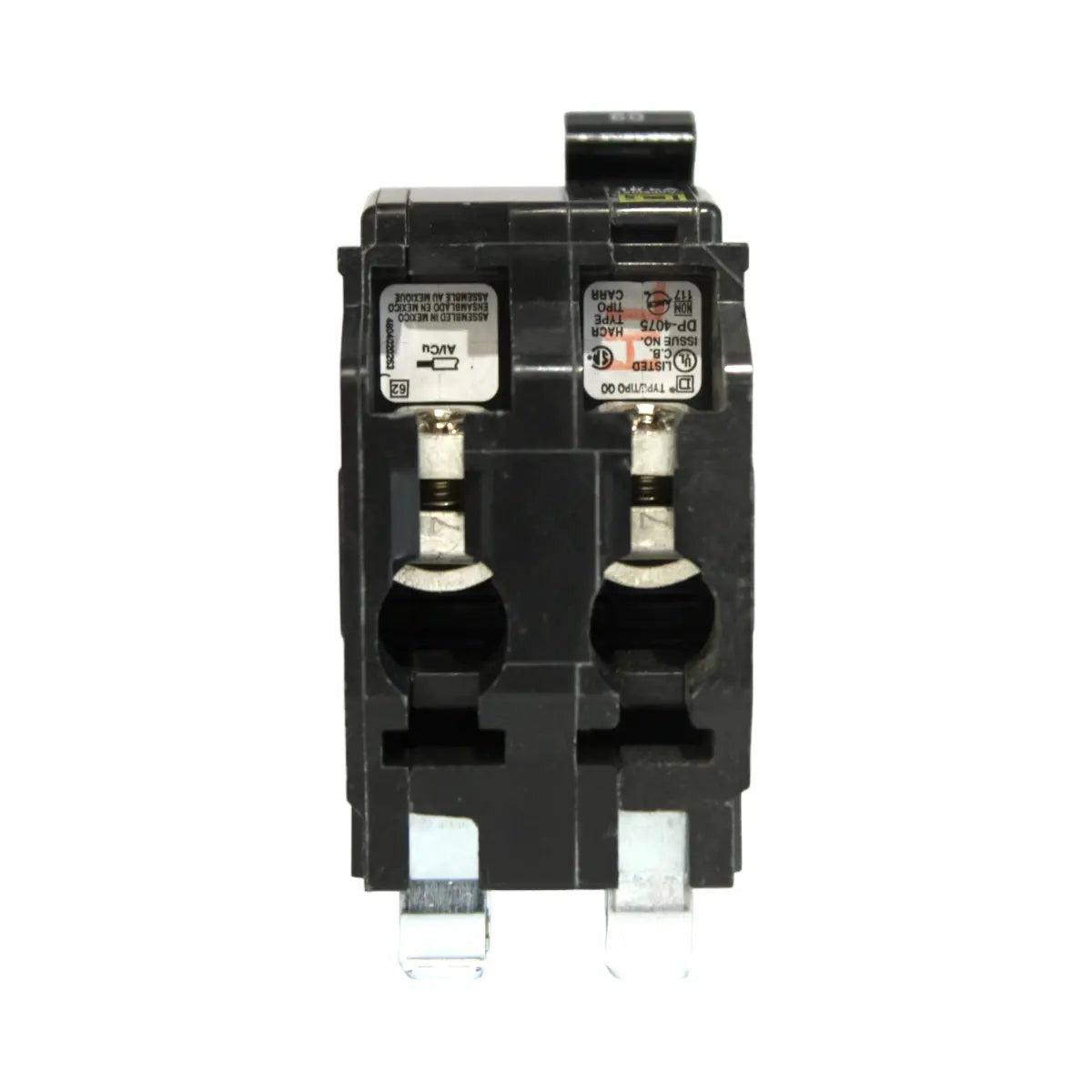

Square D QO QO250 50A 2P 120/240V Circuit Breaker - Image 4

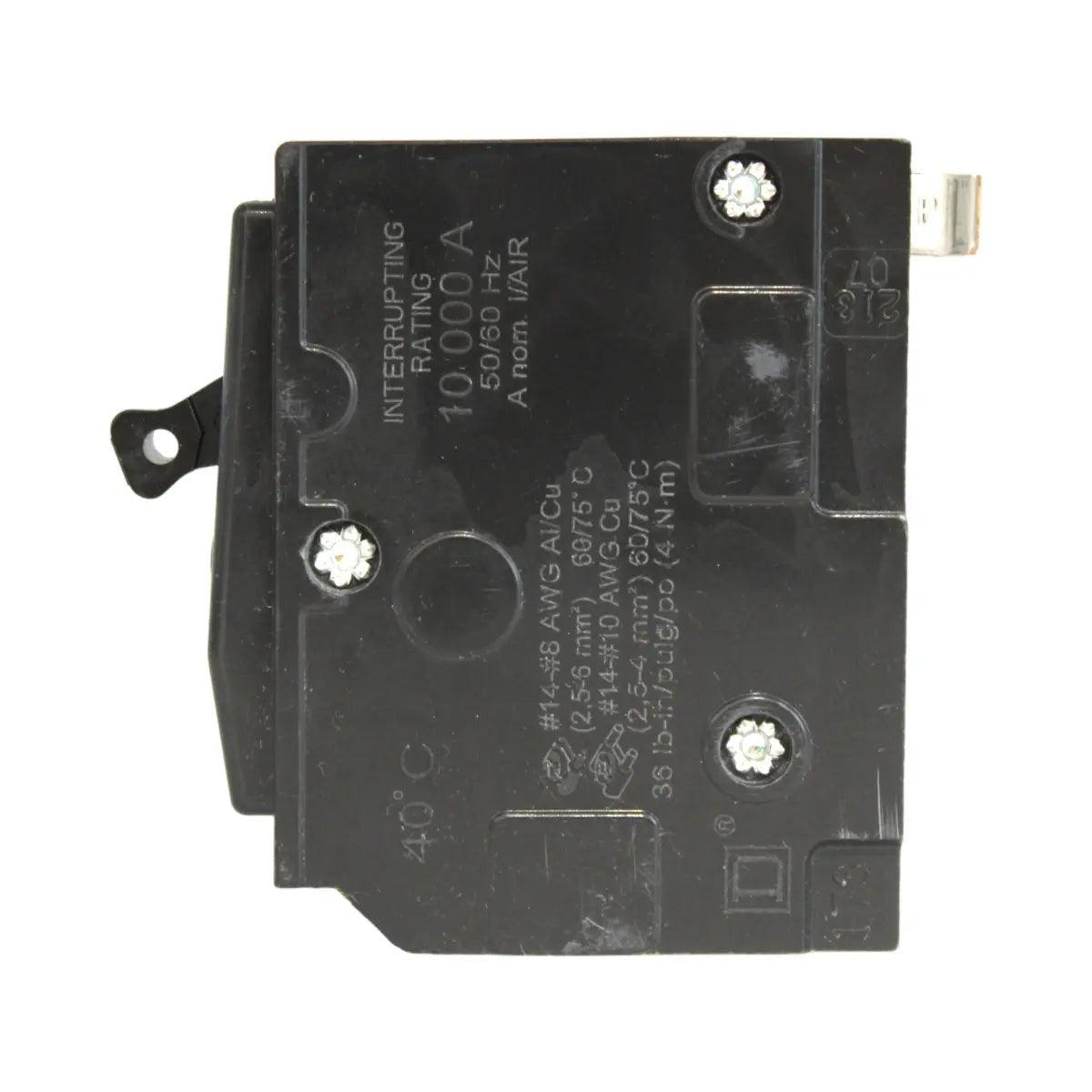

Square D QO QO250 50A 2P 120/240V Circuit Breaker - Image 5

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Square D

Square D QO QO250 50A 2P 120/240V Circuit Breaker

Out of stock
SKU: QO250 UPC: 785901400523
(0)
$19.95
-13% $23.00 $19.95
Out of stock
Condition

QO250 specifications

  • Manufacturer: Schneider Electric
  • Brand: Square D
  • Product Range: QO (for Square D QO load centers and equipment)
  • UPC: 785901400523
  • Model Number: QO250
  • Breaker Type: Miniature Circuit Breaker
  • Amperage: 50 Amps
  • Poles: 2-Pole
  • Voltage: 120/240 Volts AC
  • Interrupt Rating: 10kA
  • Mounting Mode: Plug-In
  • Connections Terminals: Plug-On Neutral
  • Wire Size: AWG 8 to AWG 2 (copper or aluminum)
  • Tightening Torque: 44.3 lbf.in (5 N.m)
  • Dimensions: Height: 3.1 in; Width: 1.5 in; Depth: 2.9 in
  • Weight: 0.571 lbs
  • Certifications: UL Listed, CSA Certified

This Square D QO250 miniature circuit breaker delivers reliable 50A, 2-pole protection for 120/240V circuits, featuring a plug-on neutral design for easy installation. With a 10kA interrupt rating, it’s ideal for residential and light commercial applications requiring robust overcurrent protection and compatibility with QO load centers.

There is a $15 charge for delivery. Additional charges will be imposed by our couriers for delivery to remote areas, a surcharge may be levied to cover carriage to these areas.

Warranty Coverage

We stand behind every product we sell. Coverage depends on the condition of the item at time of purchase:

  • New: 12-month warranty
  • New Open Box: 10-month warranty
  • Reconditioned: 90-day warranty

Warranty coverage begins on the date of delivery and covers manufacturing and functional defects under normal use. It does not cover damage from misuse, improper installation, or unauthorized repair. To make a warranty claim, contact us at support@breakersmart.com with your order number and a description of the issue.
