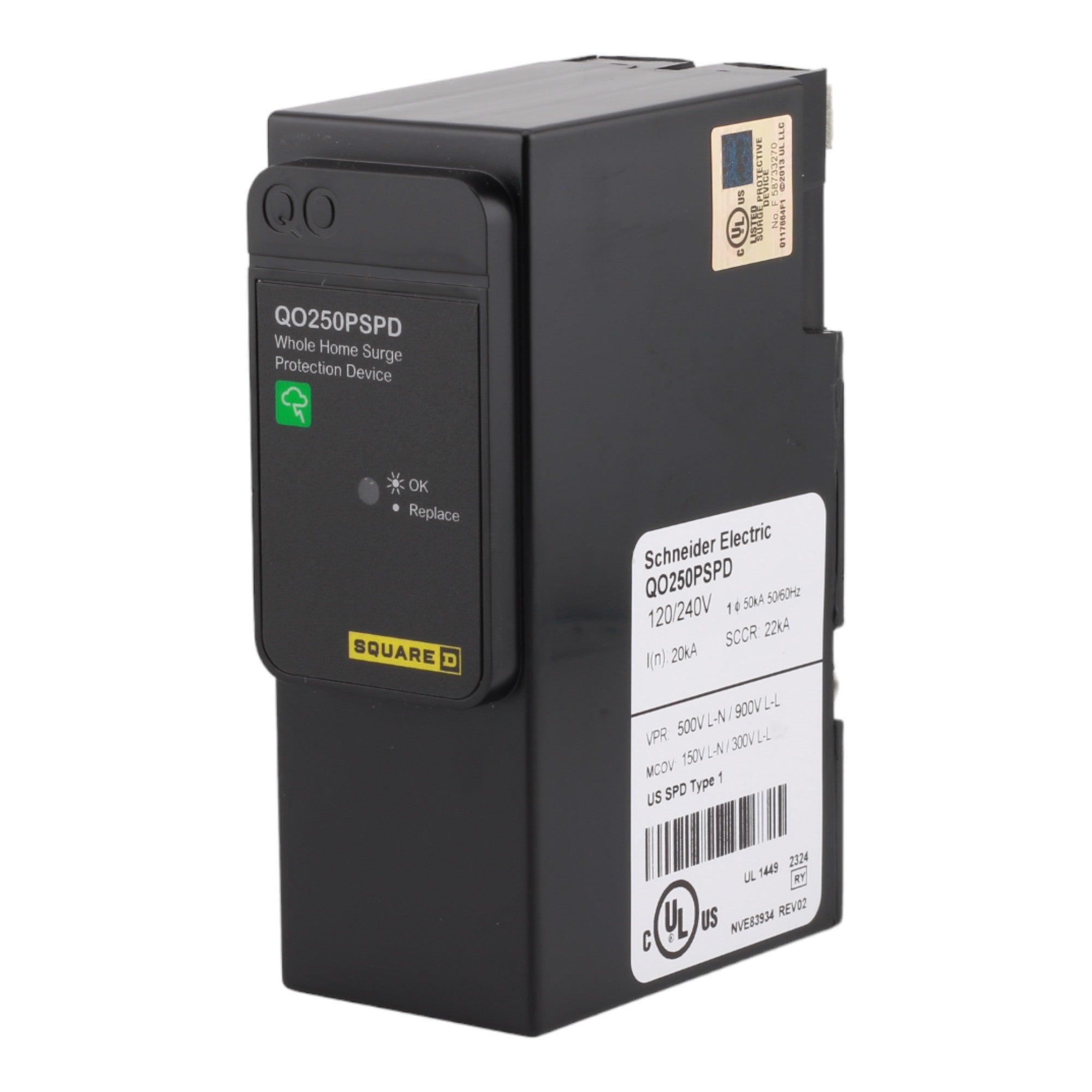

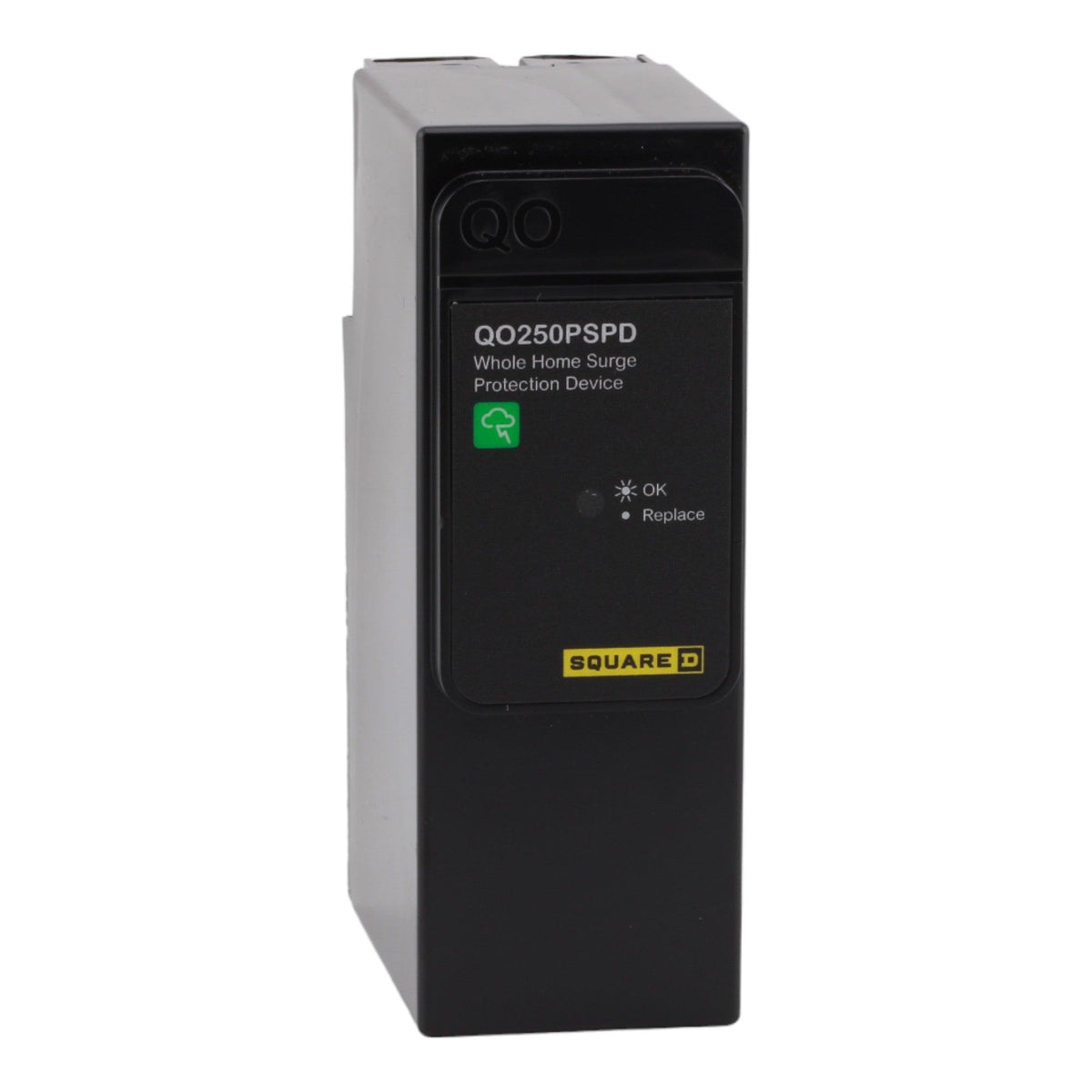

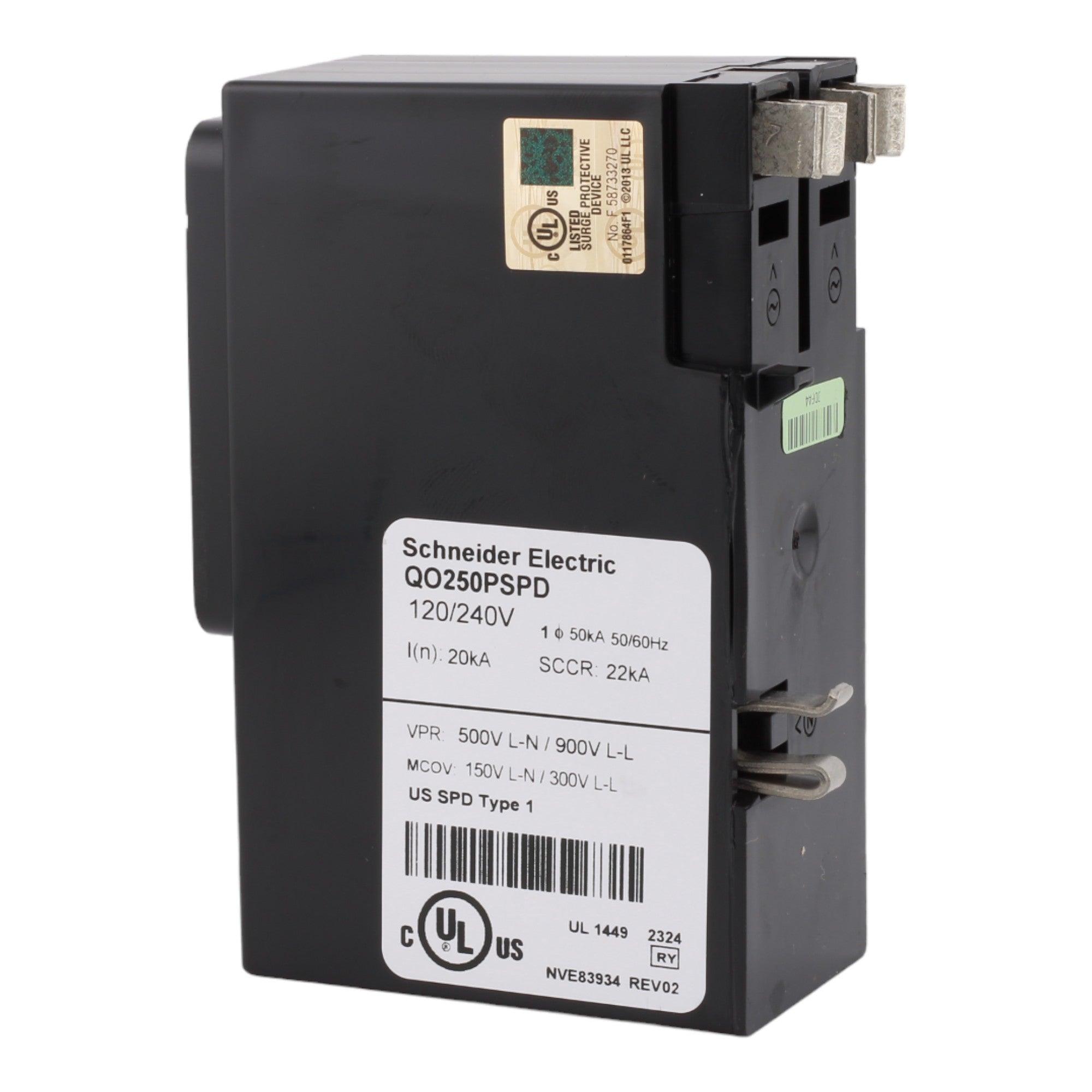

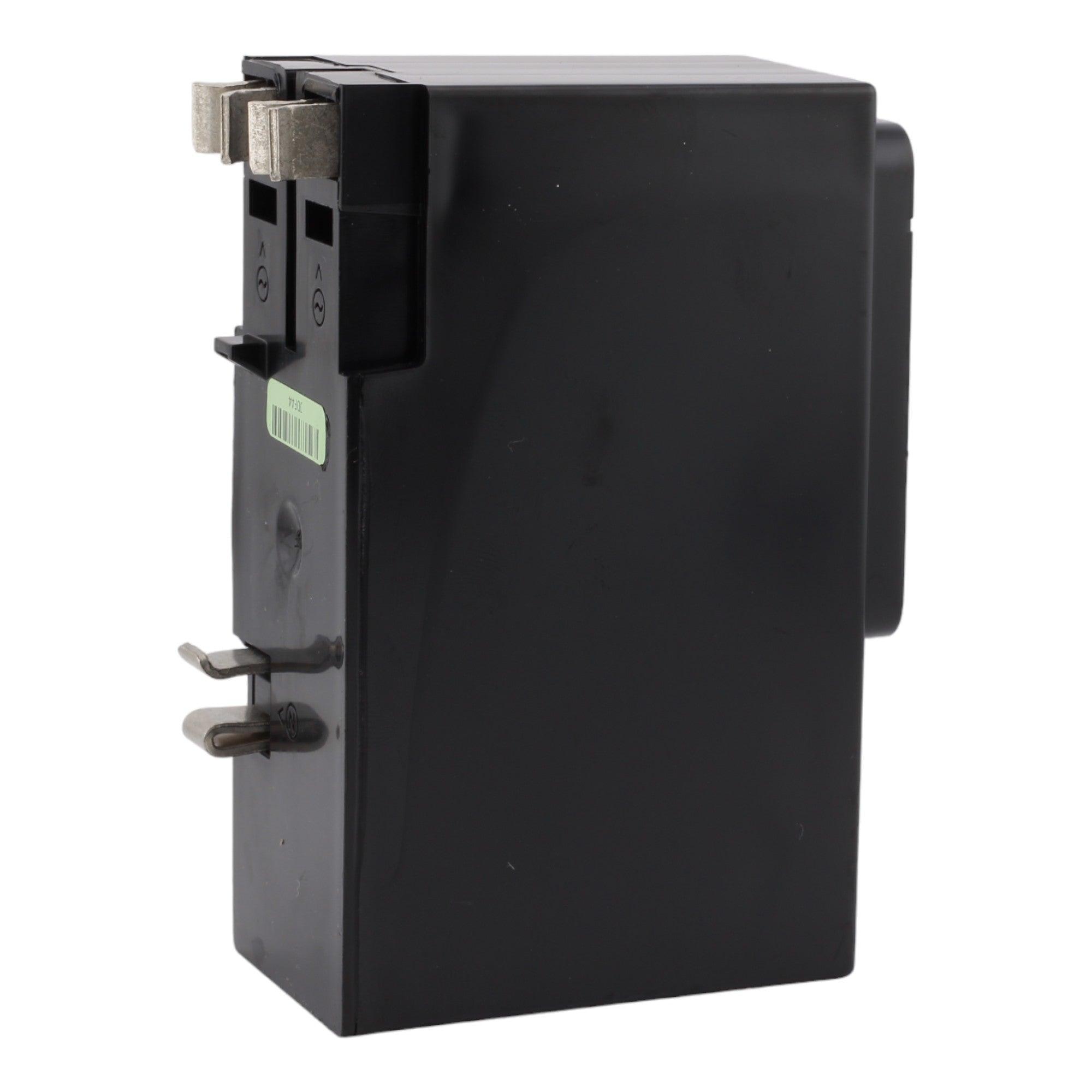

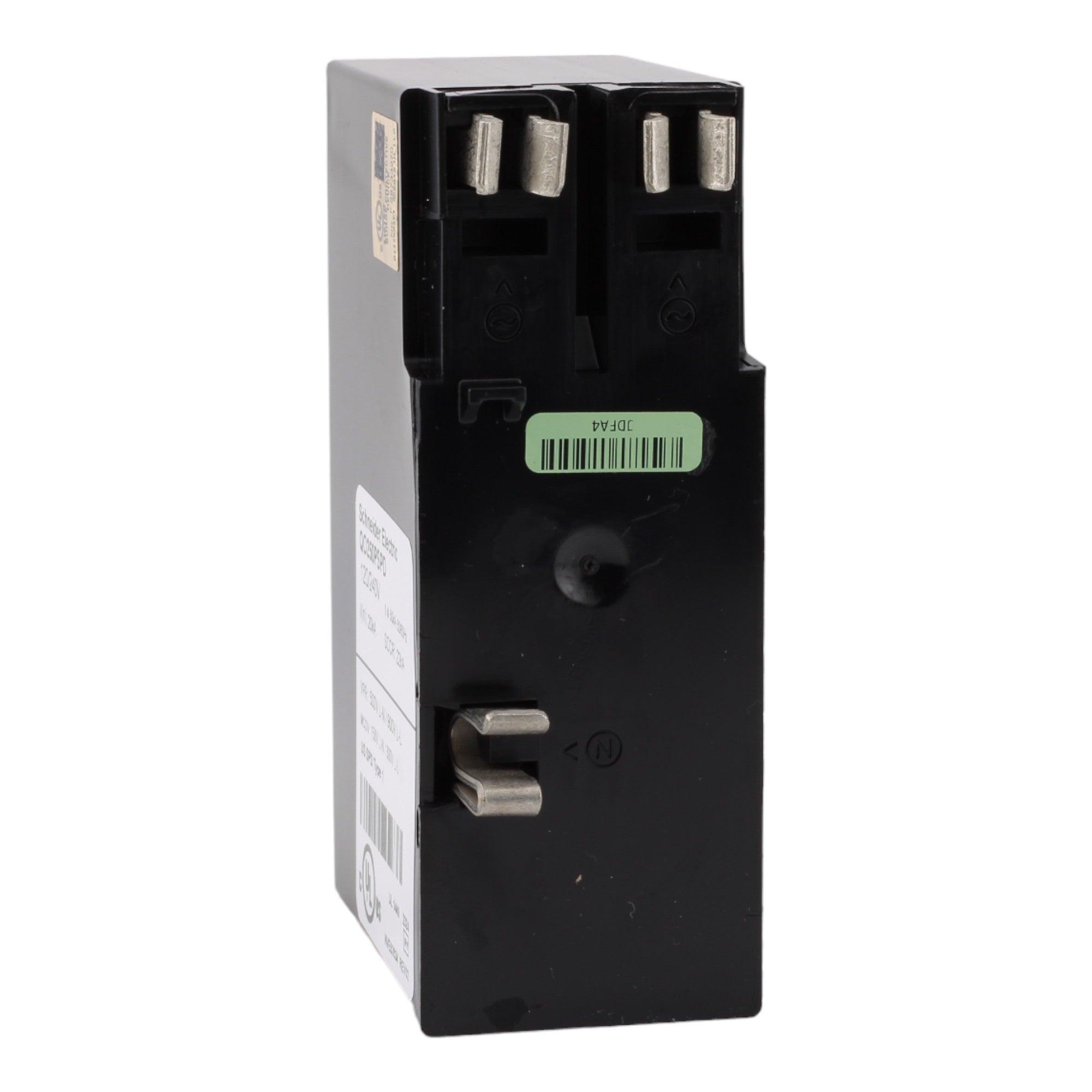

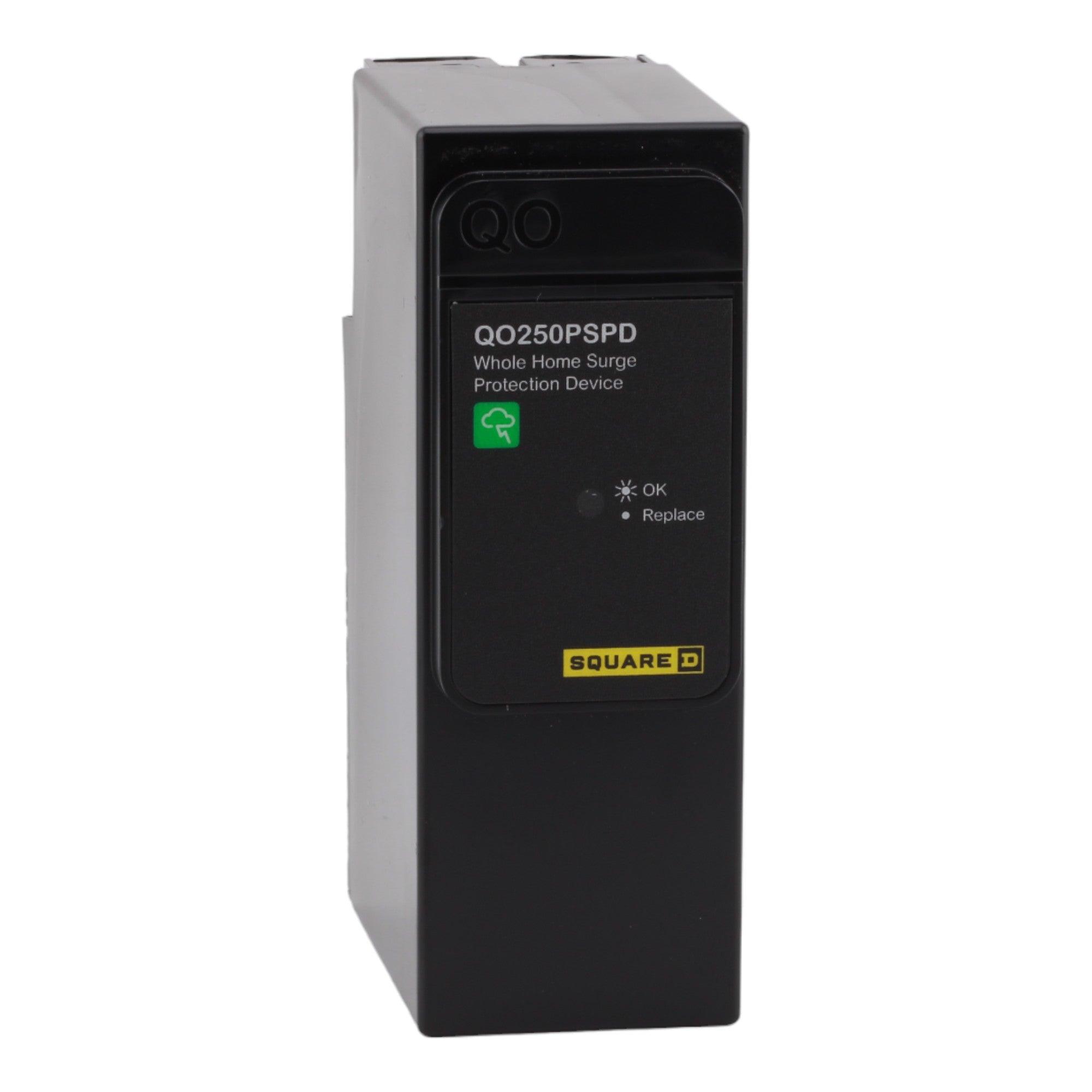

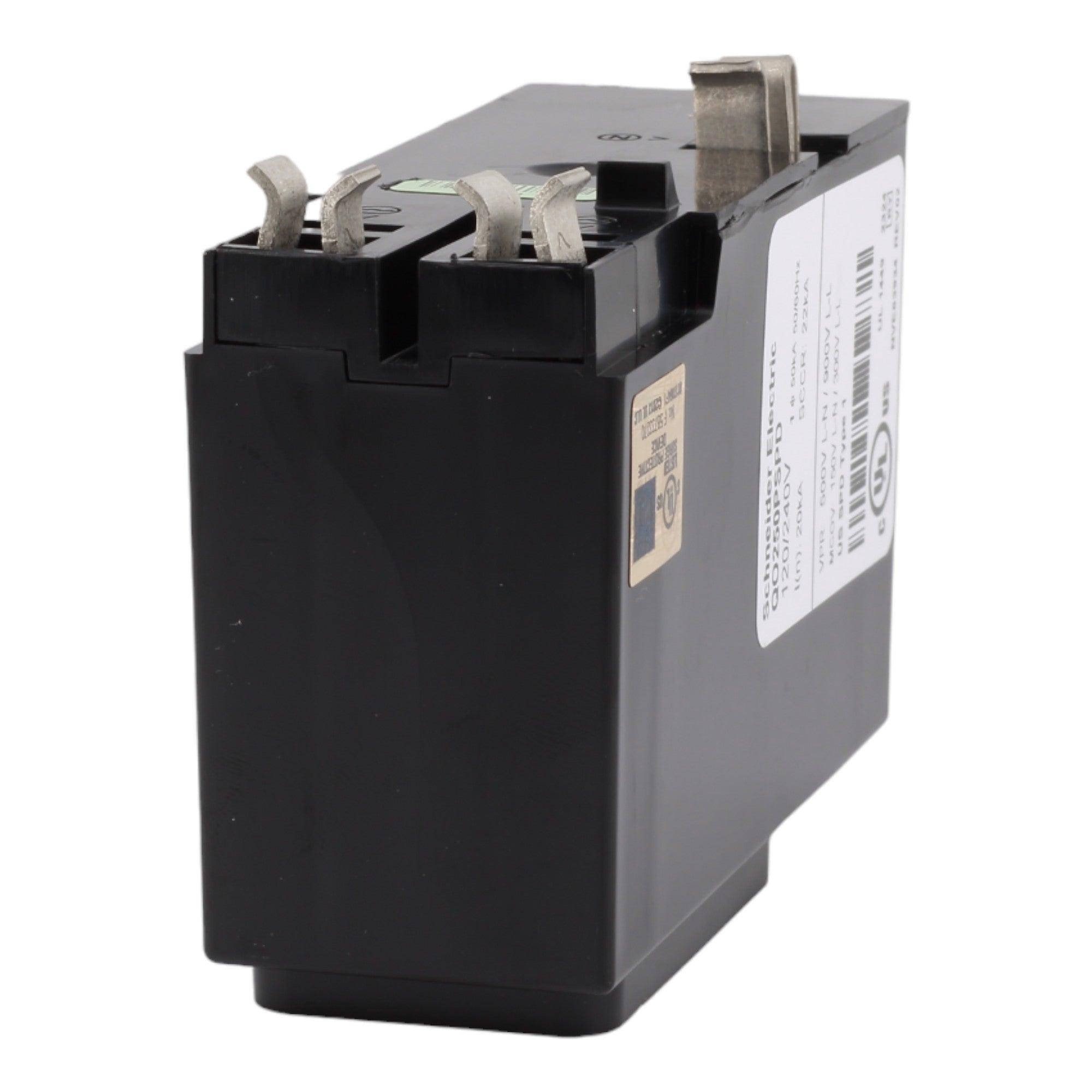

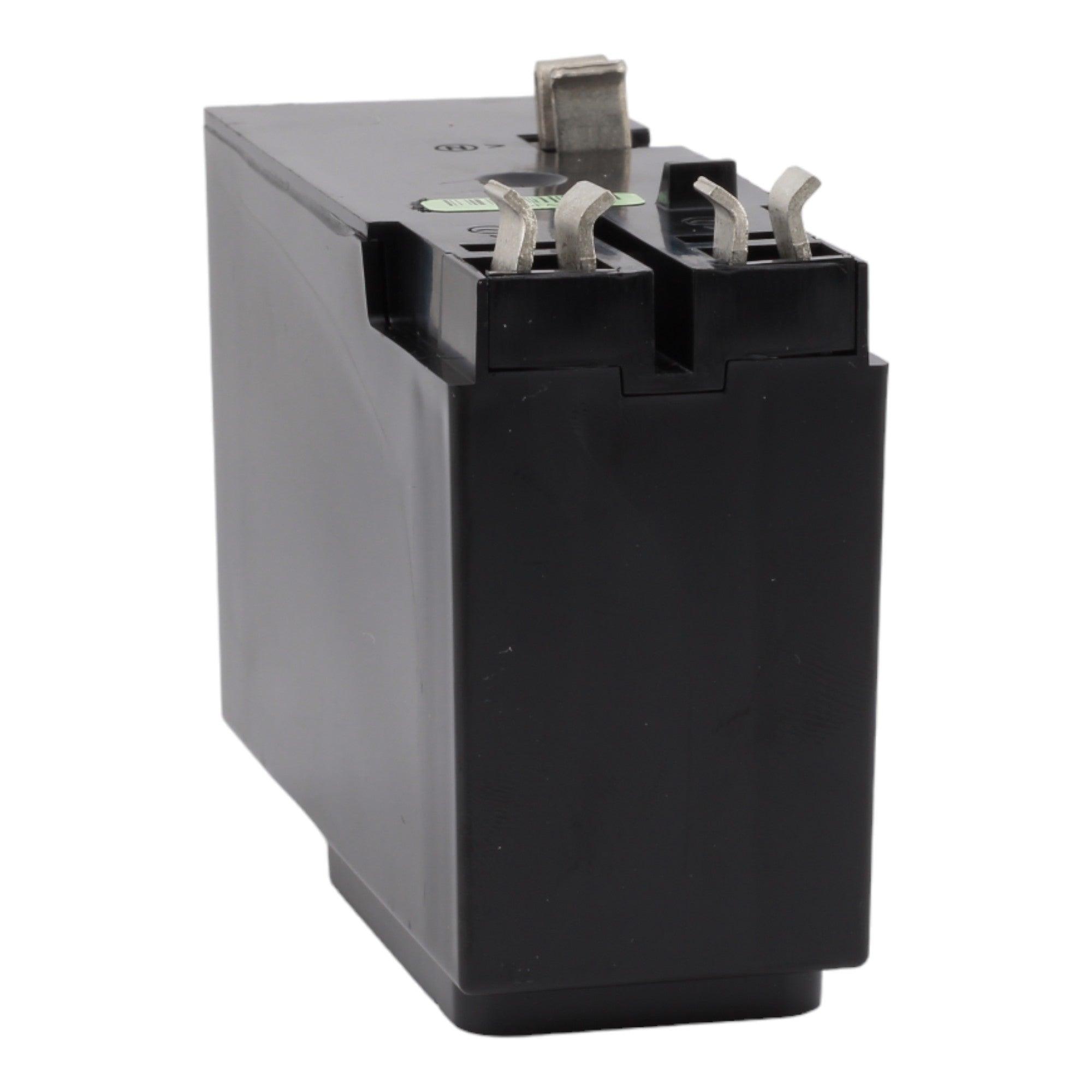

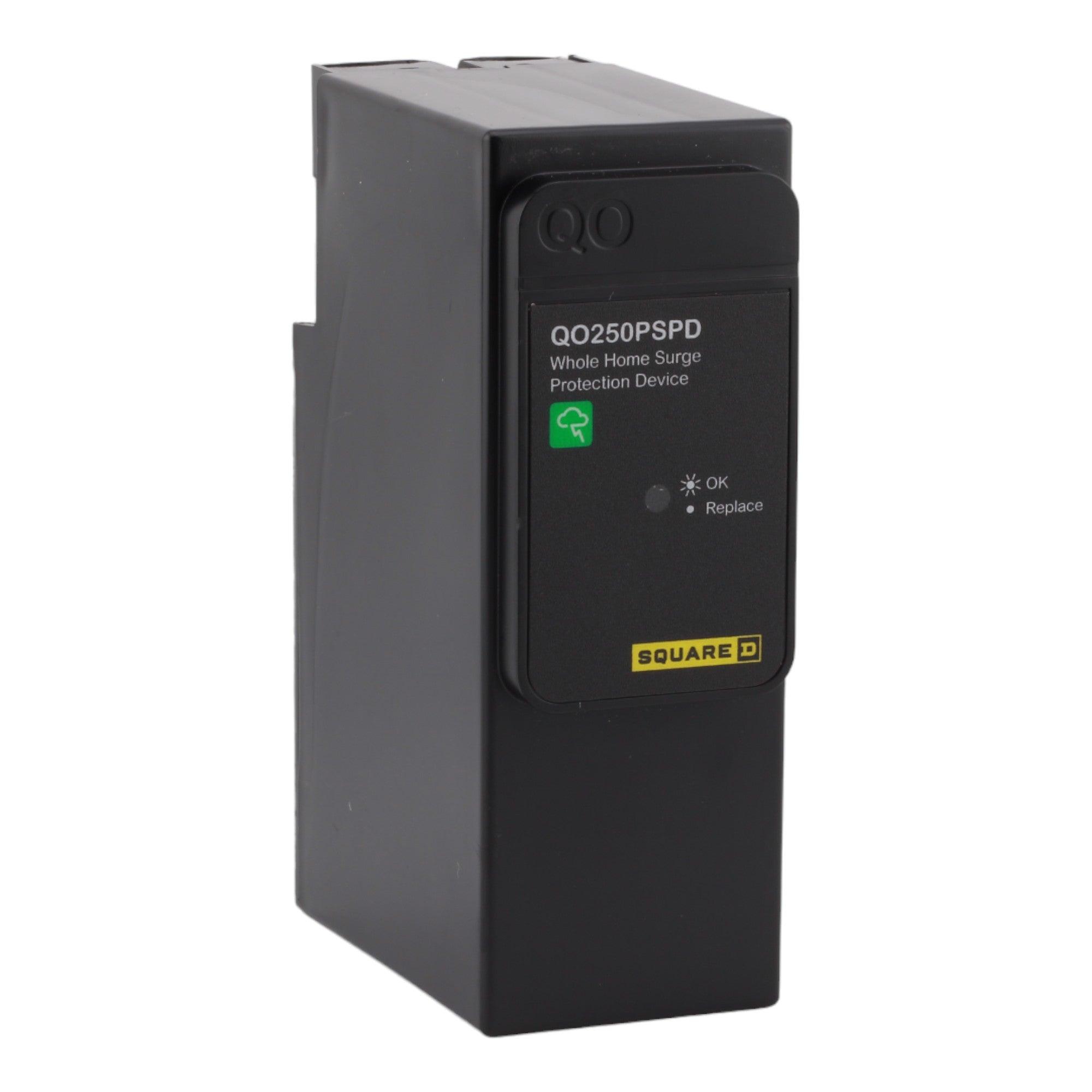

Square D QO QO250PSPD 50kA 120/240V SPD Surge Protector

Square D QO250PSPD: 50kA SPD, 120/240V, 1-phase, 20kA discharge, plug-on neutral for QO load centers, UL listed, NEMA 2.

Product Specifications

• Manufacturer: Schneider Electric
• Brand: Square D
• UPC: 785901475668
• Model Number: QO250PSPD
• Product Range: QO
• Product Type: Surge Protection Device (SPD)
• Voltage Rating: 120/240 Volts AC
• Number of Phases: 1-Phase
• Wiring Configuration: 3-Wire
• Surge Current: 50kA
• Nominal Discharge Current: 20kA
• Short Circuit Current Rating (SCCR): 22kA
• Maximum Continuous Operating Voltage (MCOV): 150V
• Mounting Type: Plug-in with Plug-on Neutral
• Connection: Plug-in Phase and Neutral
• Product Destination: QO Plug-on Neutral Load Centers
• Certifications: UL Listed
• Standards: UL 1449 (4th Edition), CSA C22.2 No 269.1
• Enclosure Rating: NEMA 2
• Enclosure Material: Black Plastic
• Ambient Operating Temperature: Up to 149°F
• Dimensions: Height: 4.0 in; Width: 1.5 in; Depth: 2.6 in
• Weight: 0.49 lbs
