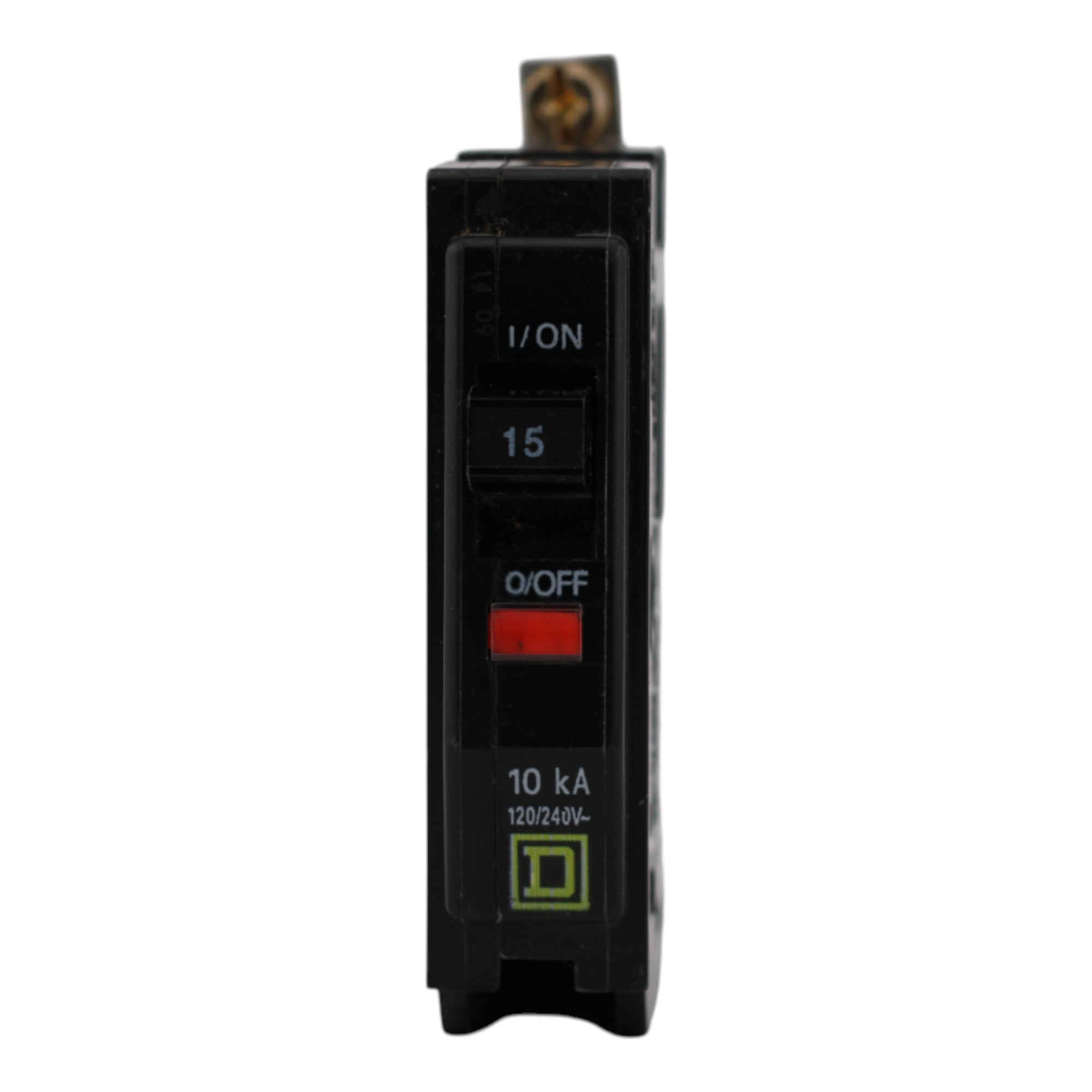

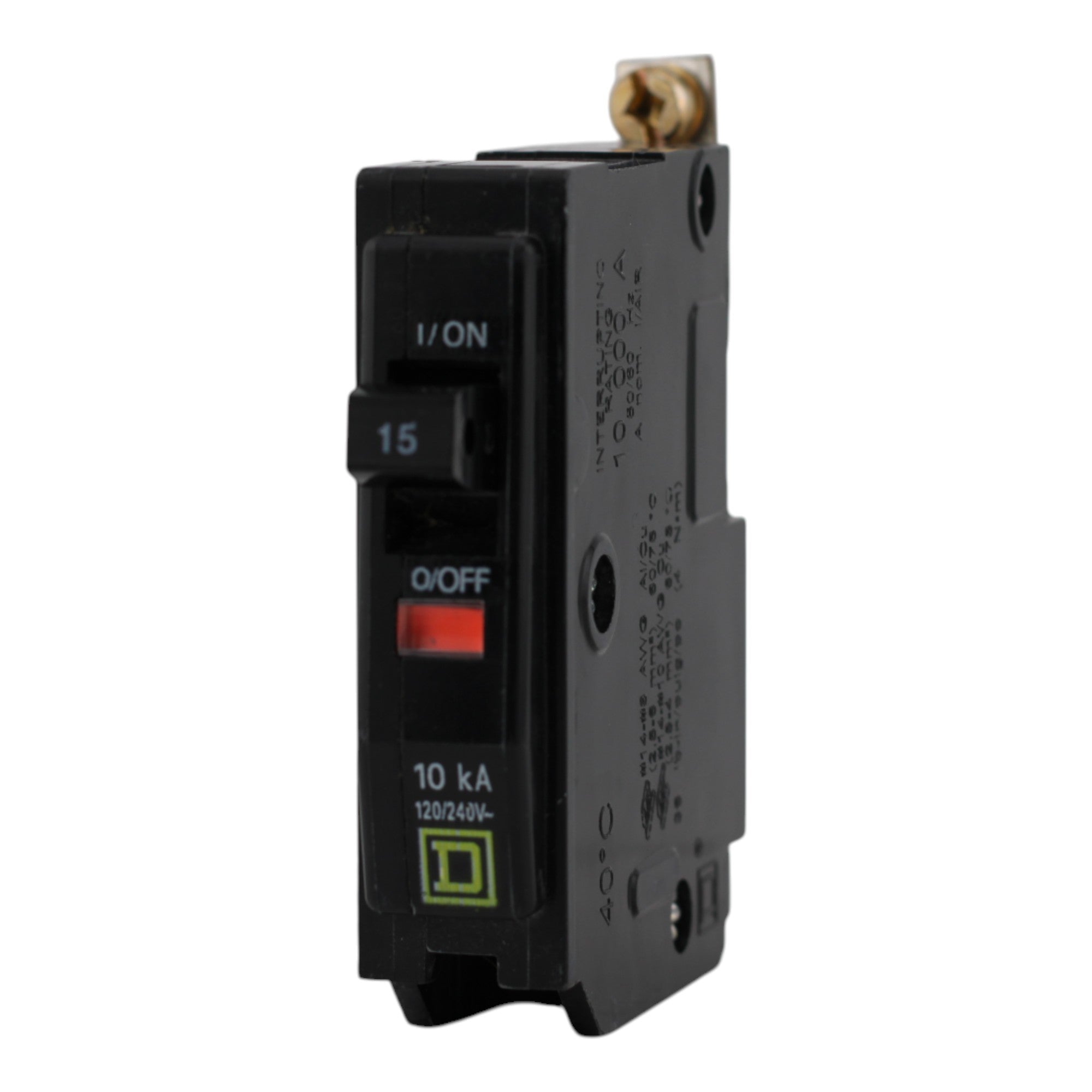

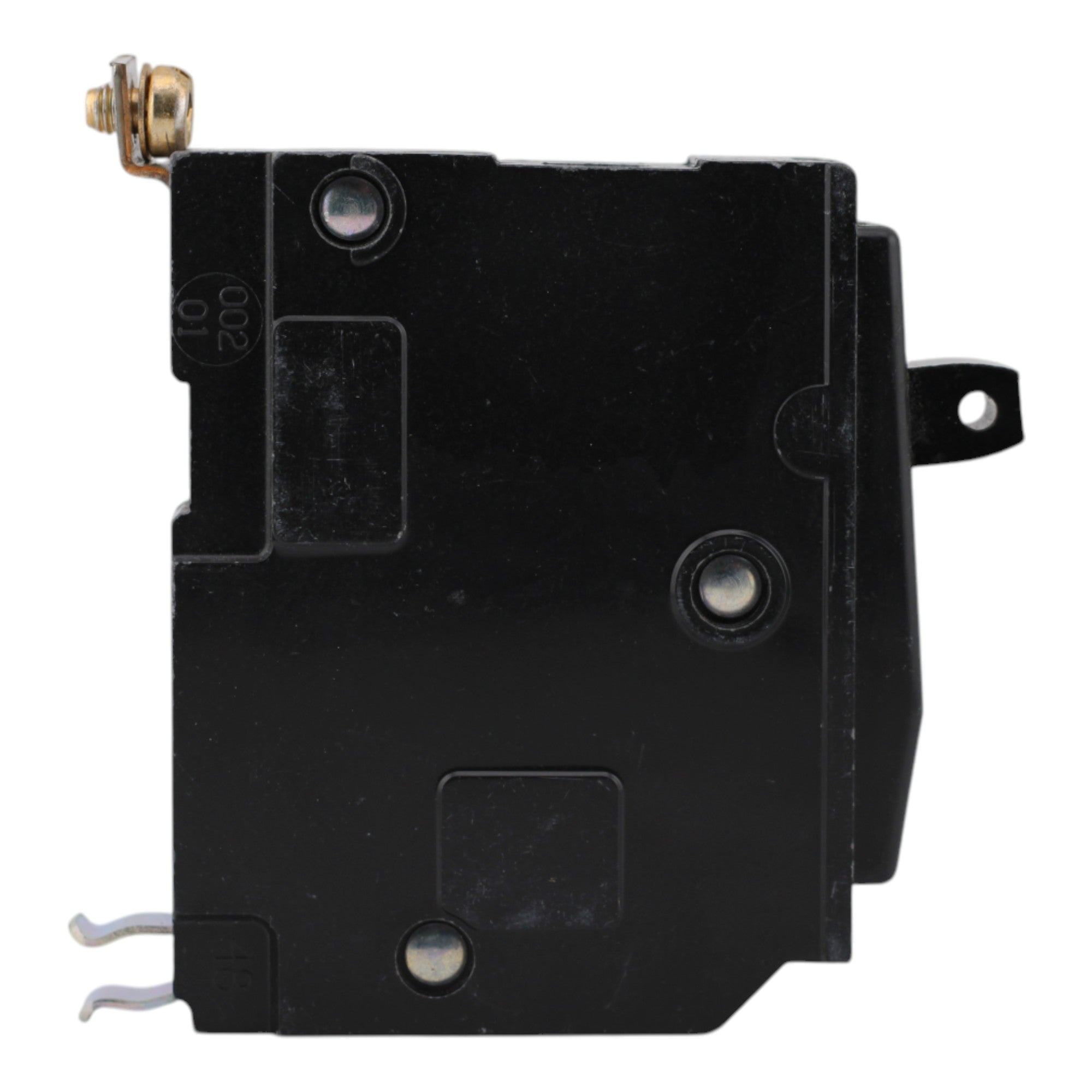

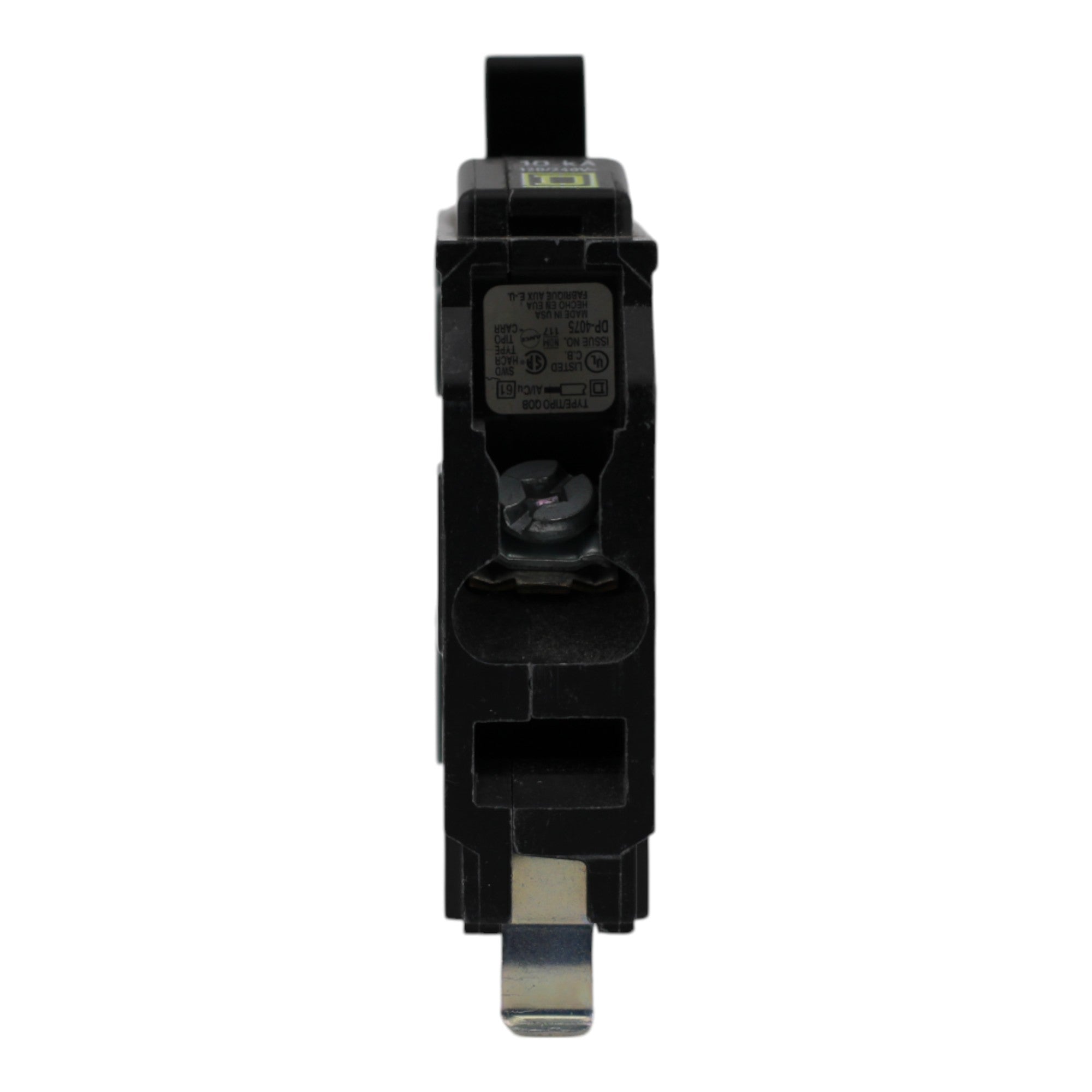

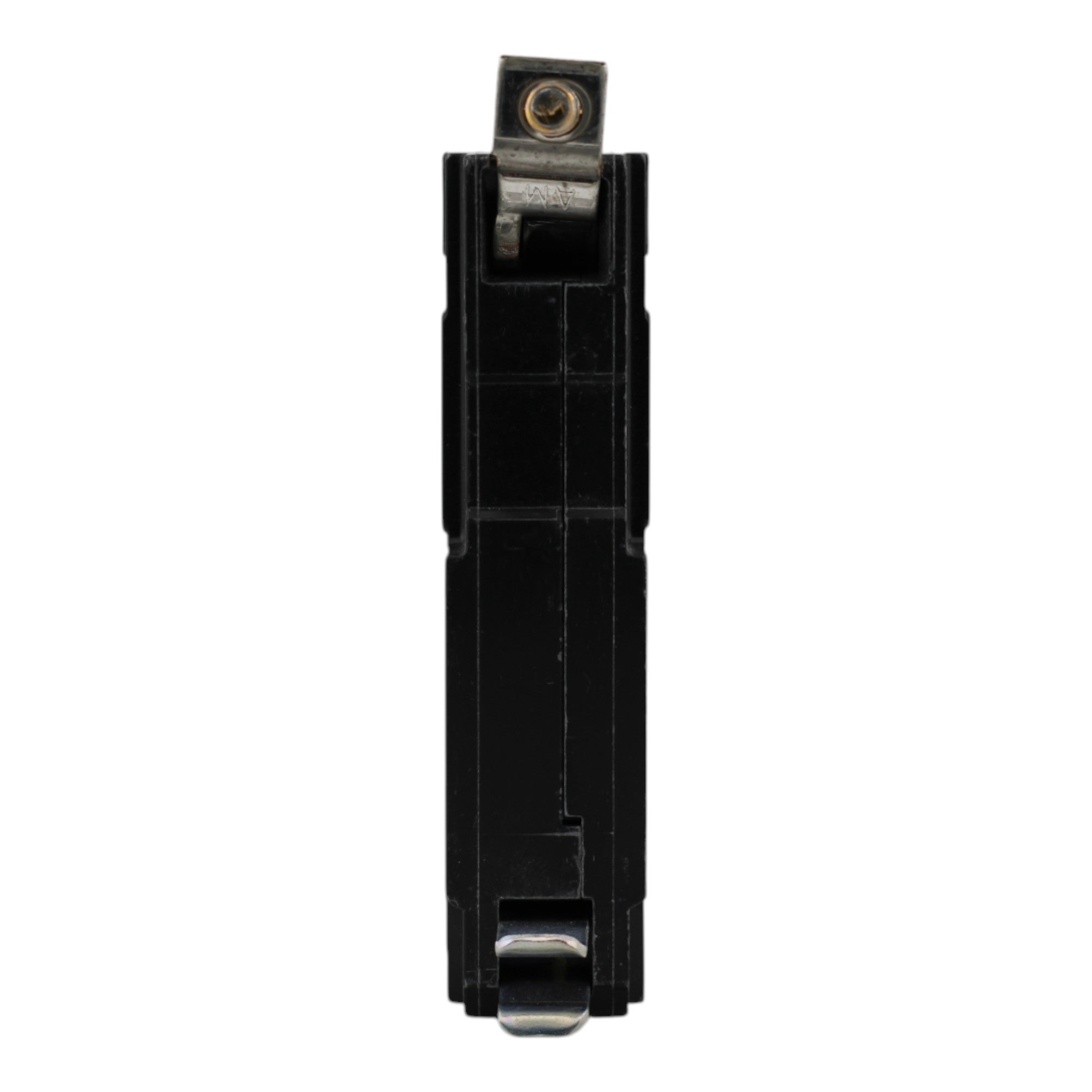

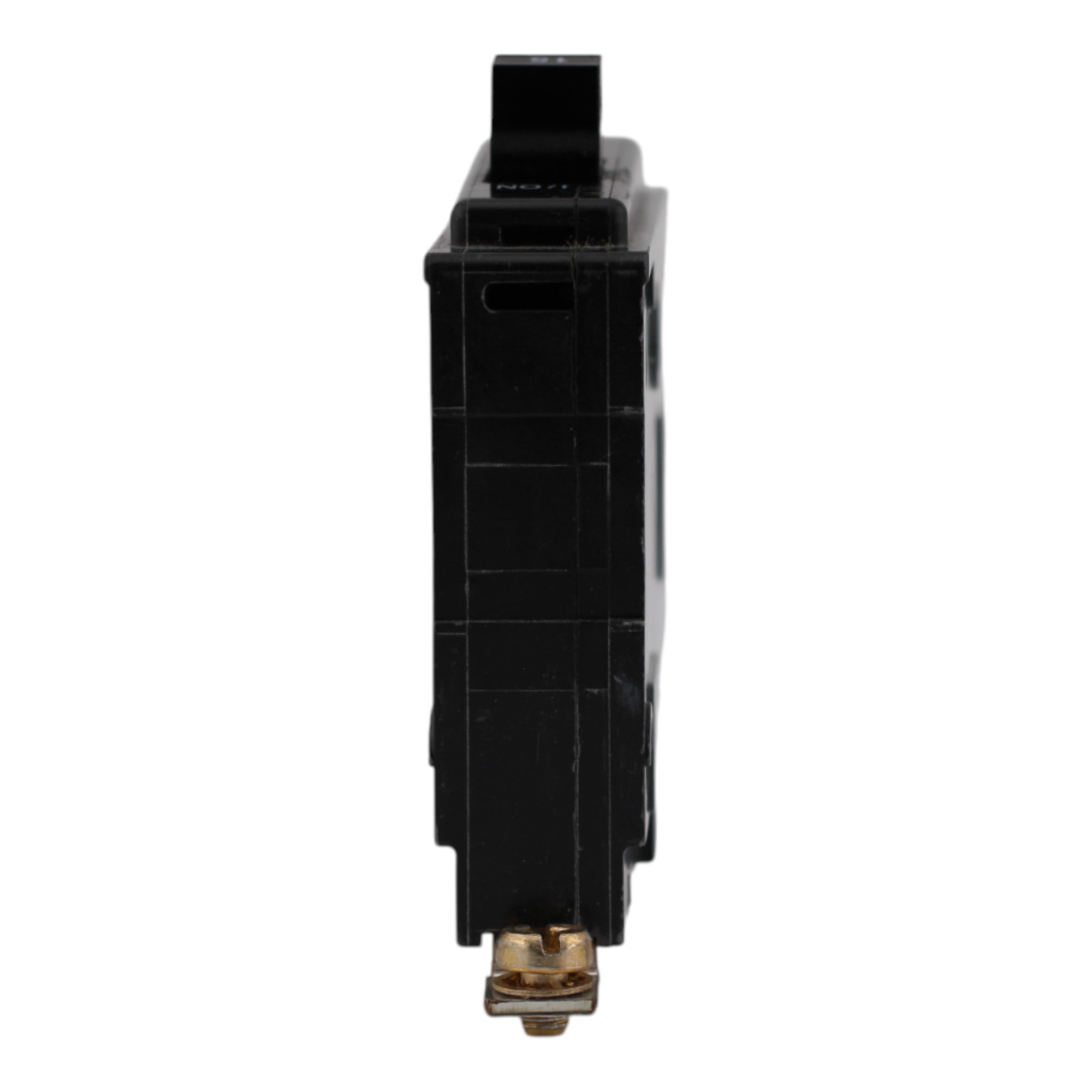

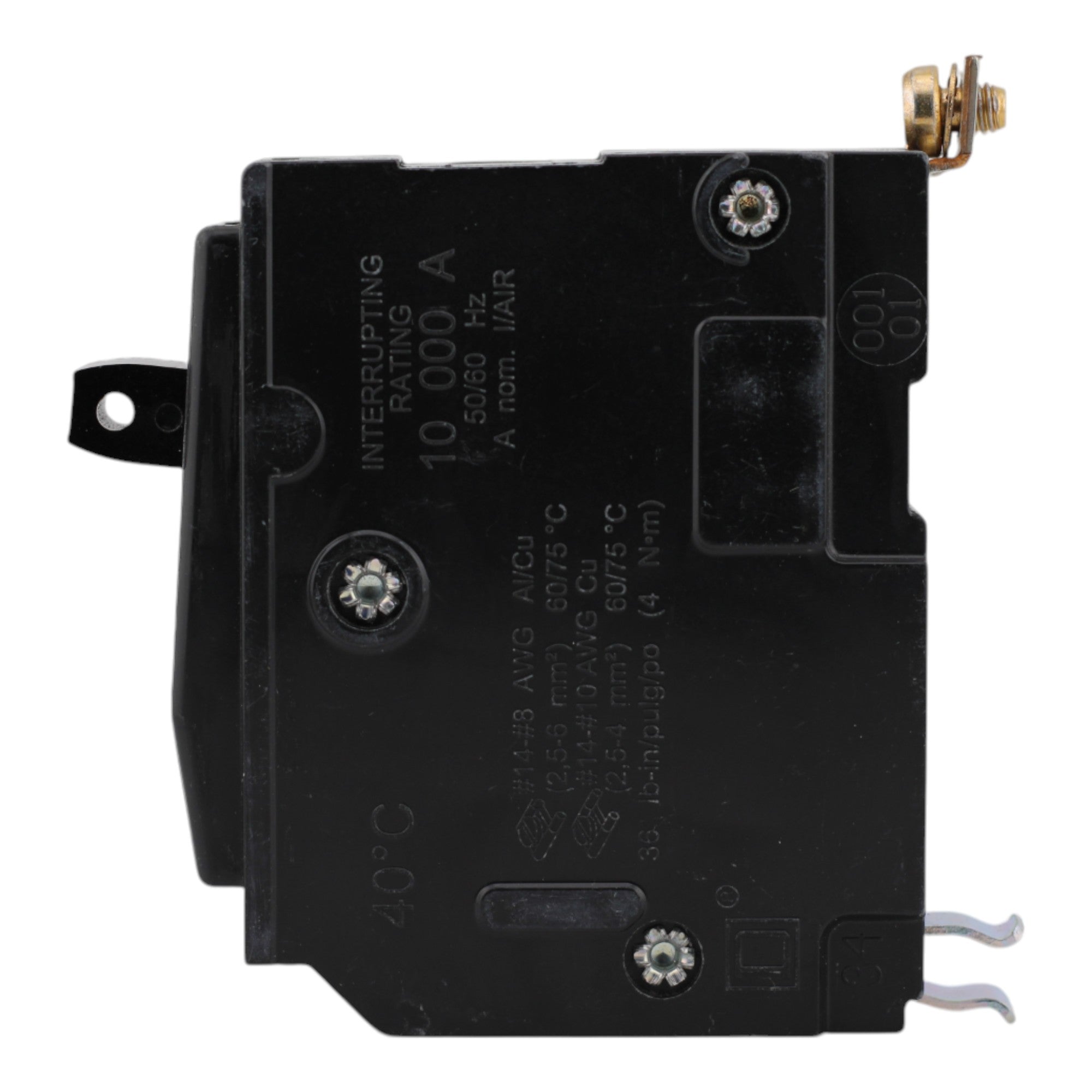

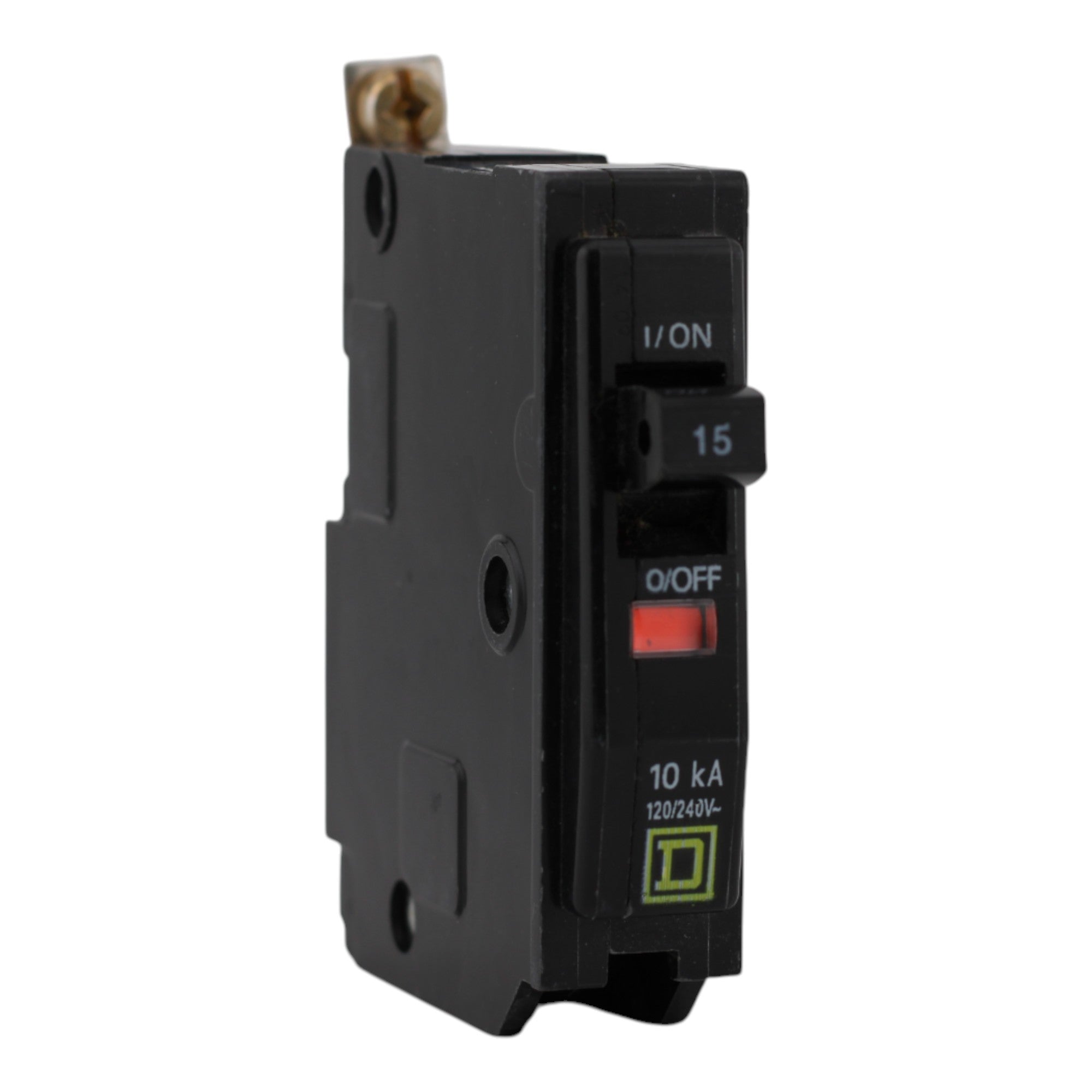

Square D QOB115 15A 1P 120/240V Circuit Breaker

Square D QOB115: 15A 1P standard breaker, 120/240V, 10kA SCCR, bolt-on mount for QO panels, UL listed, CSA certified, HACR and Switching Duty rated.

Product Specifications

• Manufacturer: Schneider Electric
• Brand: Square D
• UPC: 785901416708
• Model Number: QOB115
• Product Type: Standard Circuit Breaker
• Product Line: QO Series
• Amperage Rating: 15A
• Voltage Rating: 120/240V AC
• Number of Poles: 1-Pole
• Short Circuit Current Rating: 10 kA
• Mounting Type: Bolt-on
• Connection Type: Pressure plate
• Wire Size Compatibility: 14-8 AWG (copper or aluminum)
• Tightening Torque: 35.4 lbf.in (4 N.m)
• Dimensions: Height: 3.0 in; Width: 0.7 in; Depth: 2.9 in
• Weight: 0.28 lb
• Certifications: UL Listed, CSA Certified
• Ratings: HACR and Switching Duty rated
• Features: VisiTrip trip indication

There is a $15 charge for delivery under $250 orders. Additional charges will be imposed by our couriers for delivery to remote areas, a surcharge may be levied to cover carriage to these areas.

Warranty Coverage

We stand behind every product we sell. Coverage depends on the condition of the item at time of purchase:

• New: 12-month warranty
• New Open Box: 10-month warranty
• Reconditioned: 90-day warranty

Warranty coverage begins on the date of delivery and covers manufacturing and functional defects under normal use. It does not cover damage from misuse, improper installation, or unauthorized repair. To make a warranty claim, contact us at support@breakersmart.com with your order number and a description of the issue.
