| Specification | Detail |
|---|---|
| Brand | Square D |
| Manufacturer | Schneider Electric |
| Model Number | QOB230 |
| UPC | 785901416906 |
| Amperage Rating | 30 A |
| Voltage Rating | 120/240 V AC |
| Number of Poles | 2 |
| Breaker Type | Thermal magnetic |
| Connection Type | Bolt-on |
| Mounting Type | Bolt-on |
| Compatibility | QOB panelboards and load centers |
| Certifications | UL Listed, CSA Certified |
| Interrupt Rating | 10 kAIC |
| Wire Size | AWG 14–8 (copper/aluminum) |
| Tightening Torque | 35.4 lbf.in (4 N.m) |
| Dimensions (H × W × D) | 3.0 × 1.5 × 2.9 in |
| Weight | 0.549 lb |

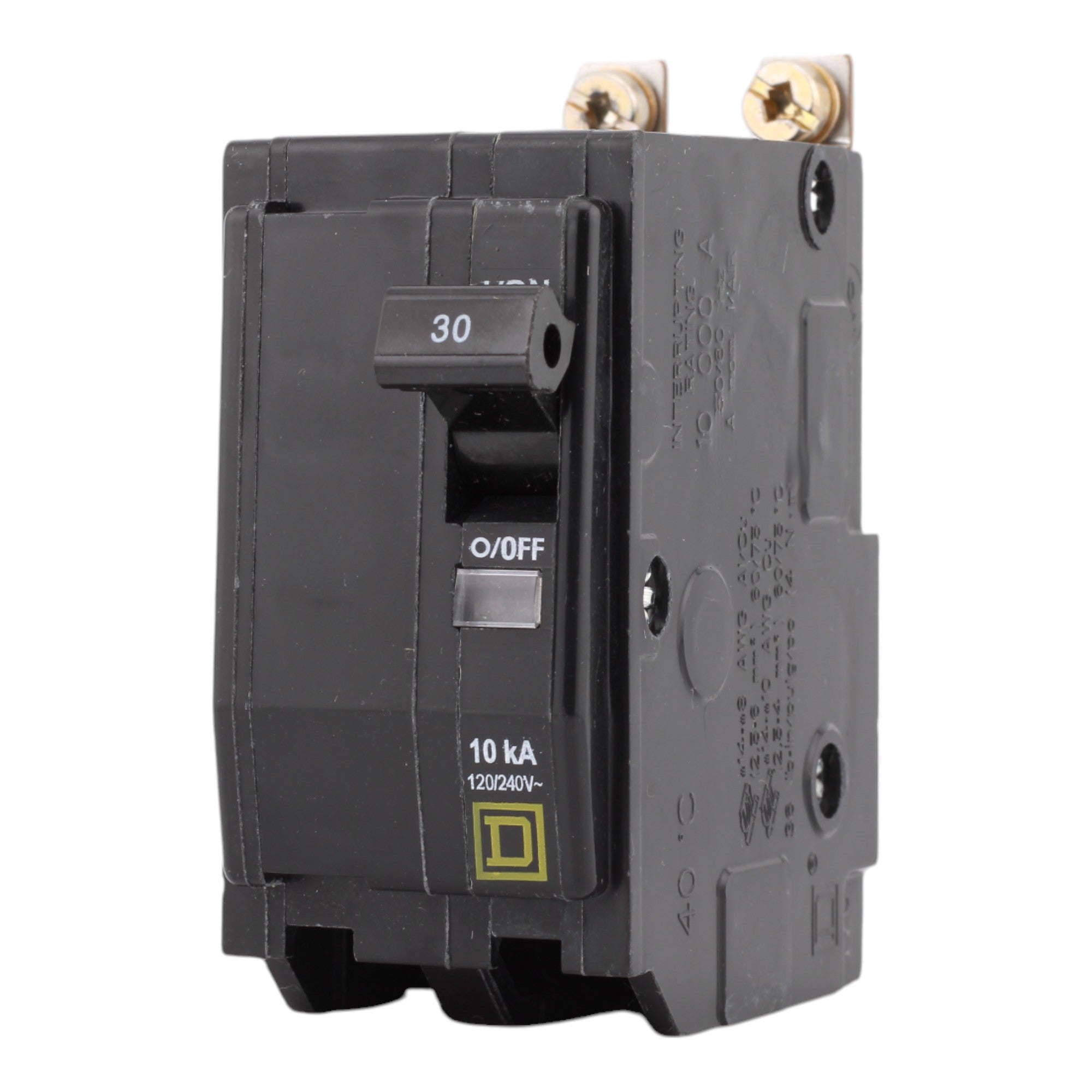

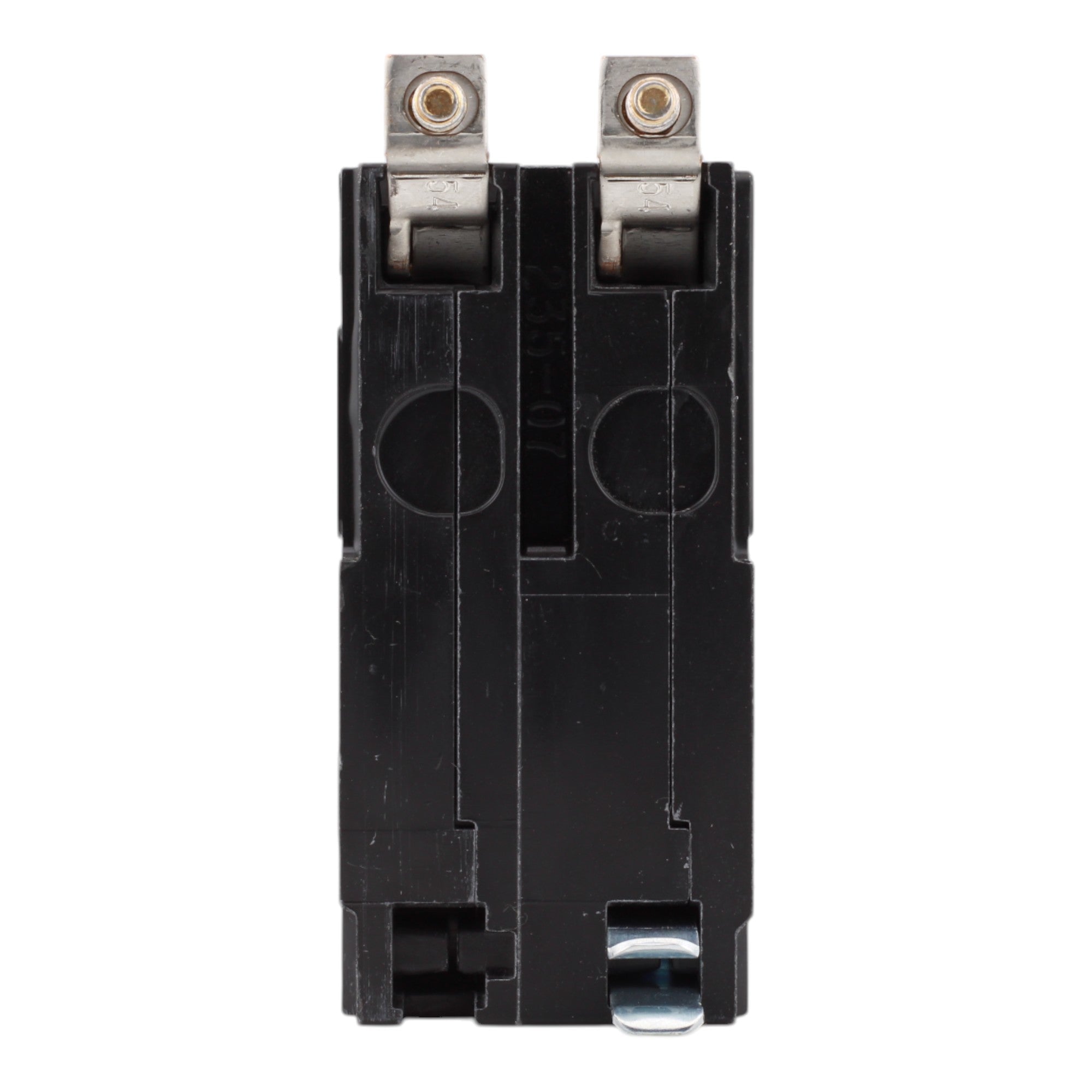

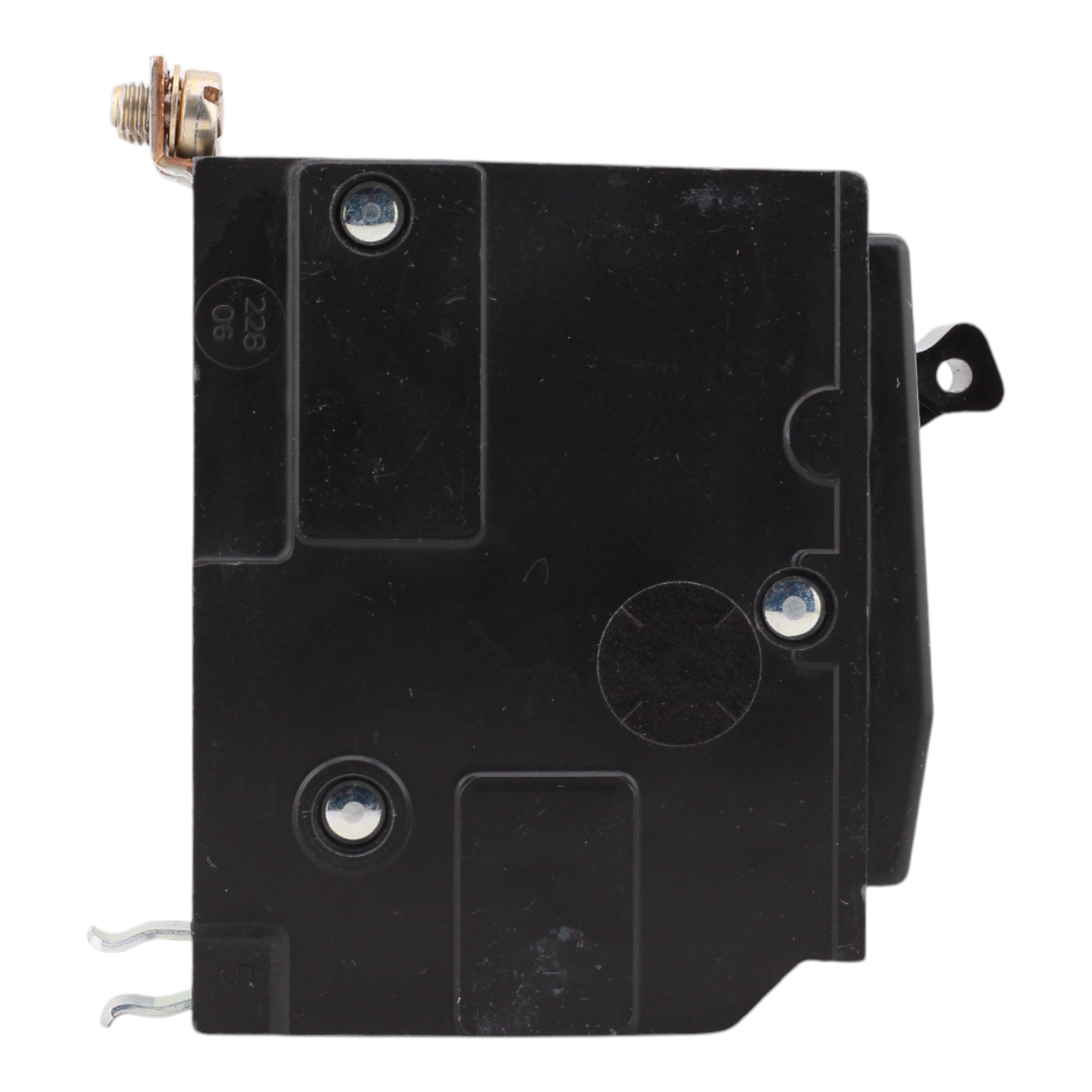

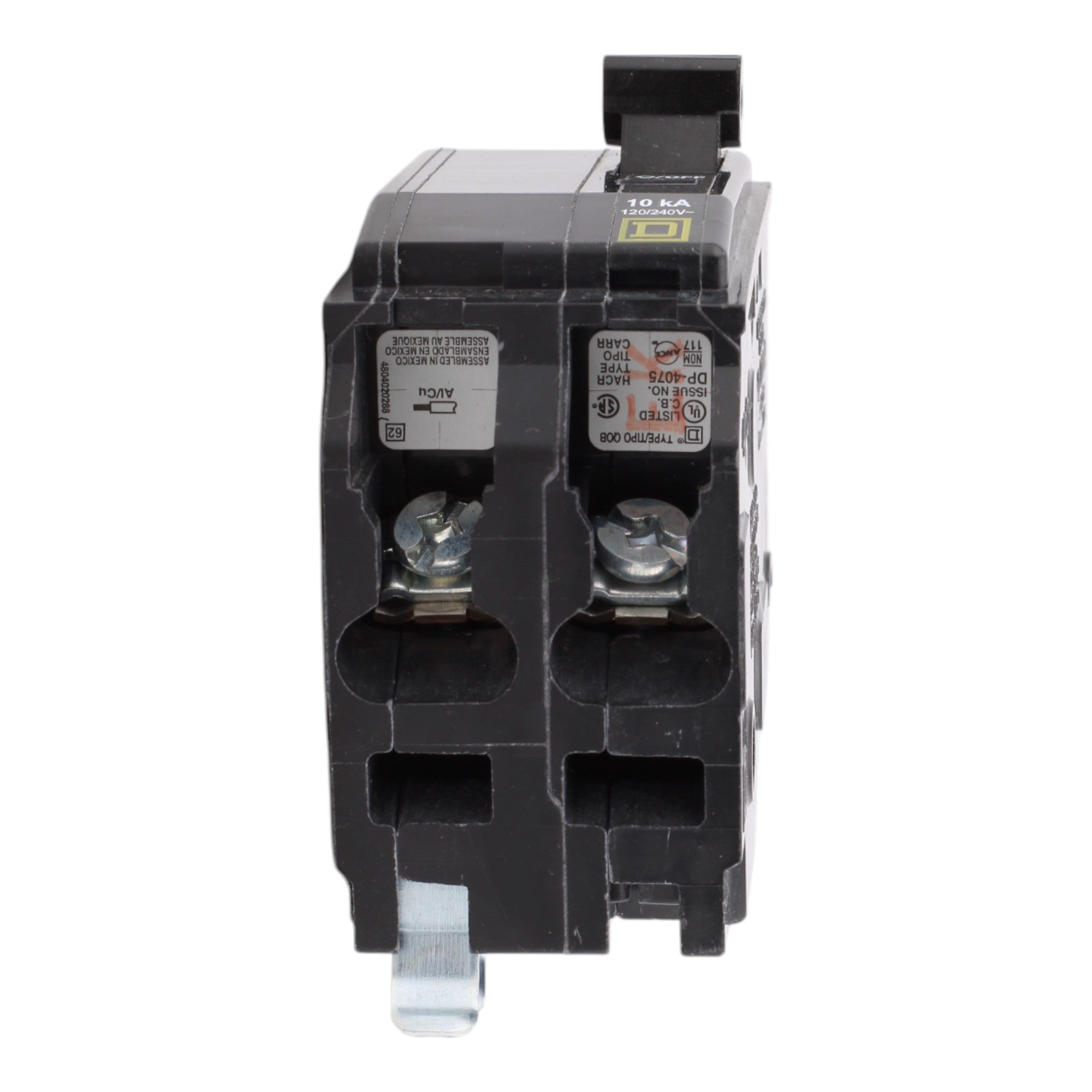

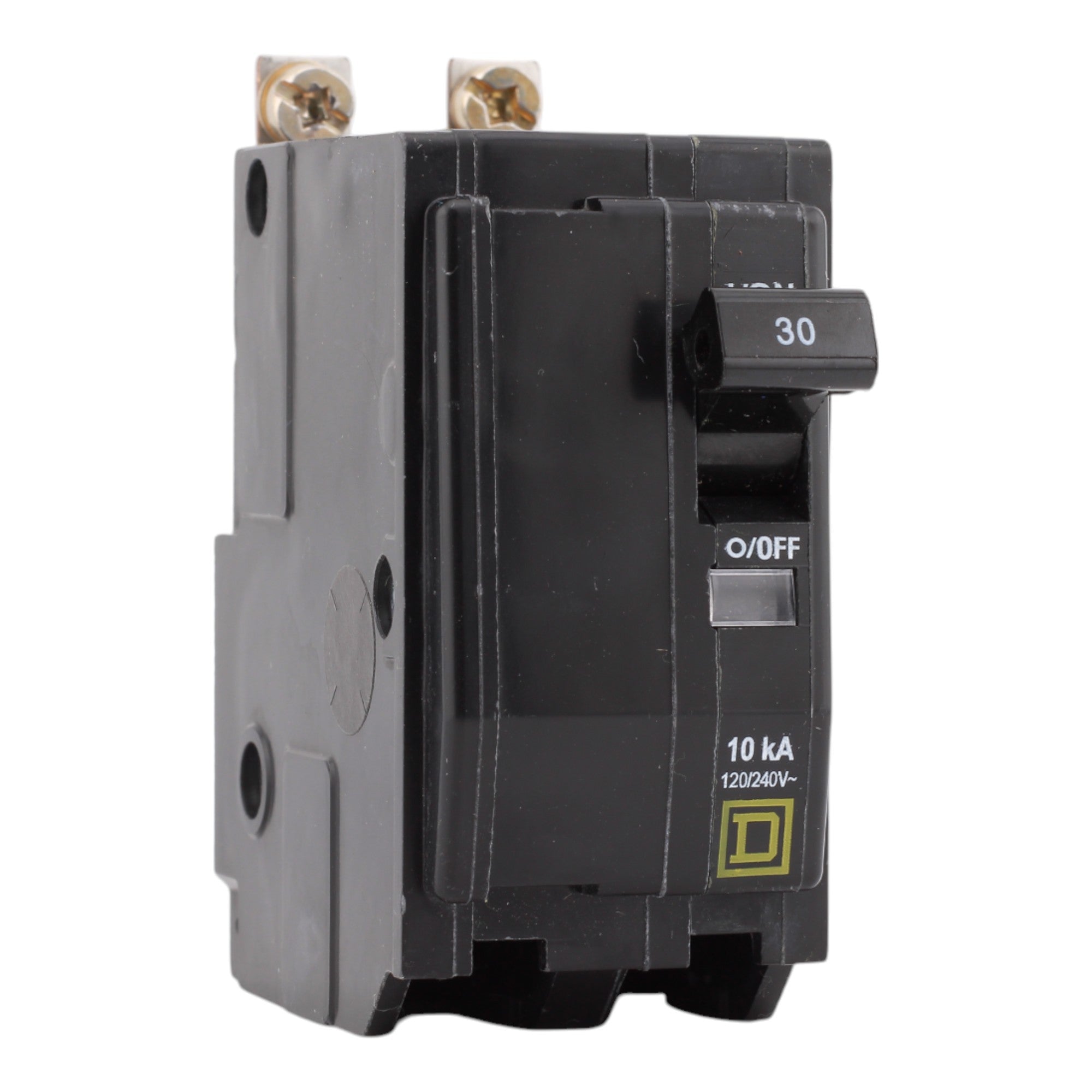

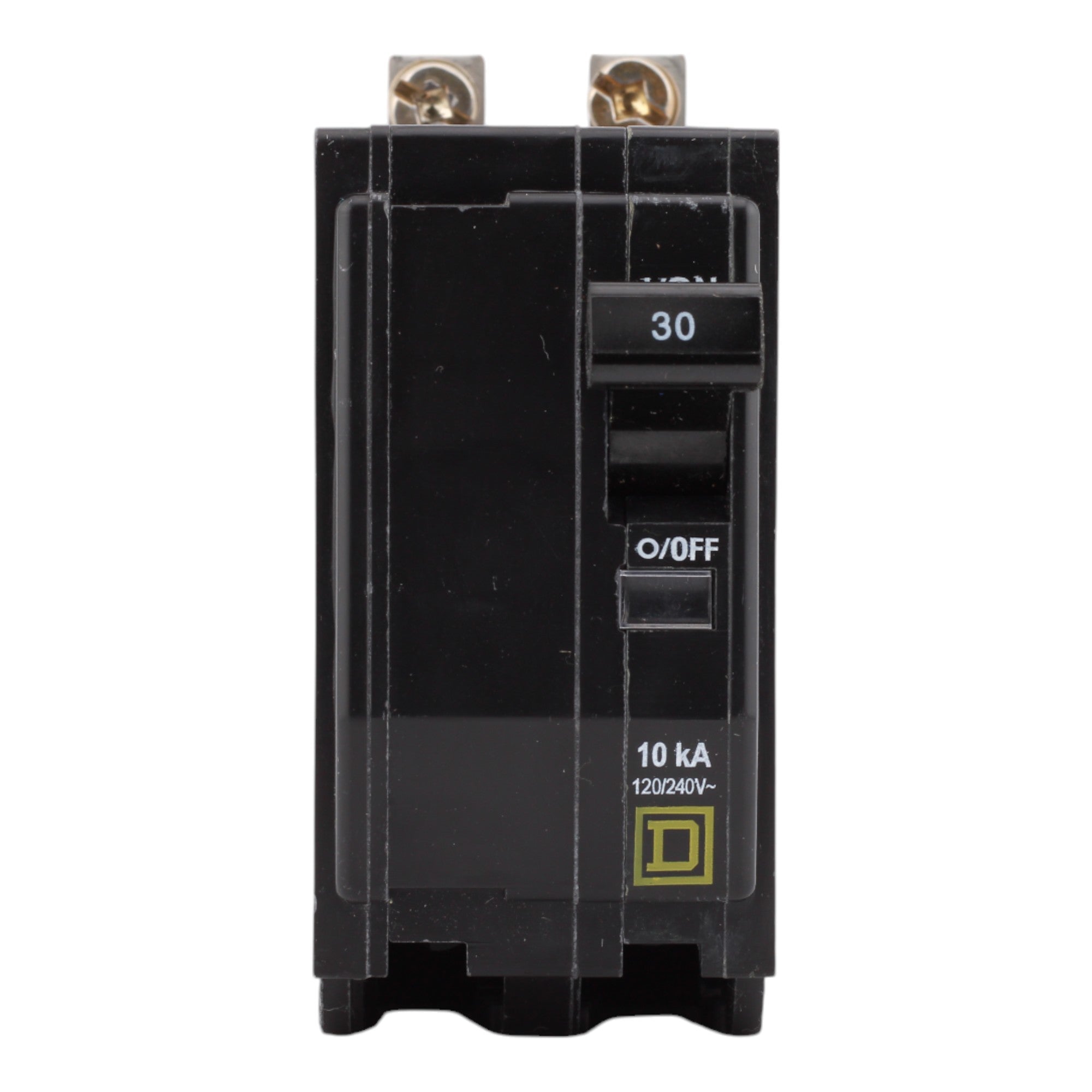

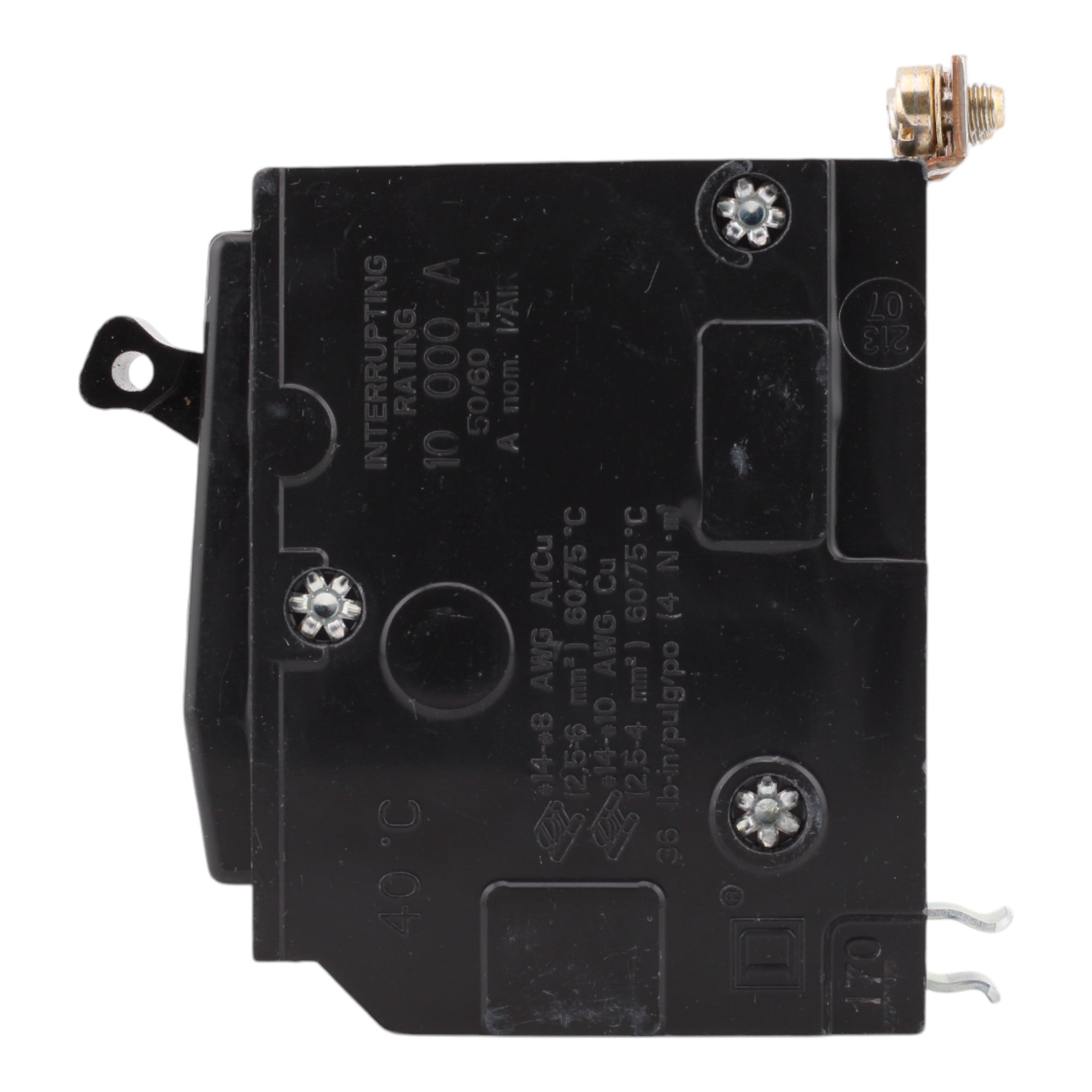

Square D's QOB230 30A, 120/240V, 2-pole miniature circuit breaker with bolt-on mounting, suitable for QOB panelboards and load centers, UL Listed, CSA Certified.
