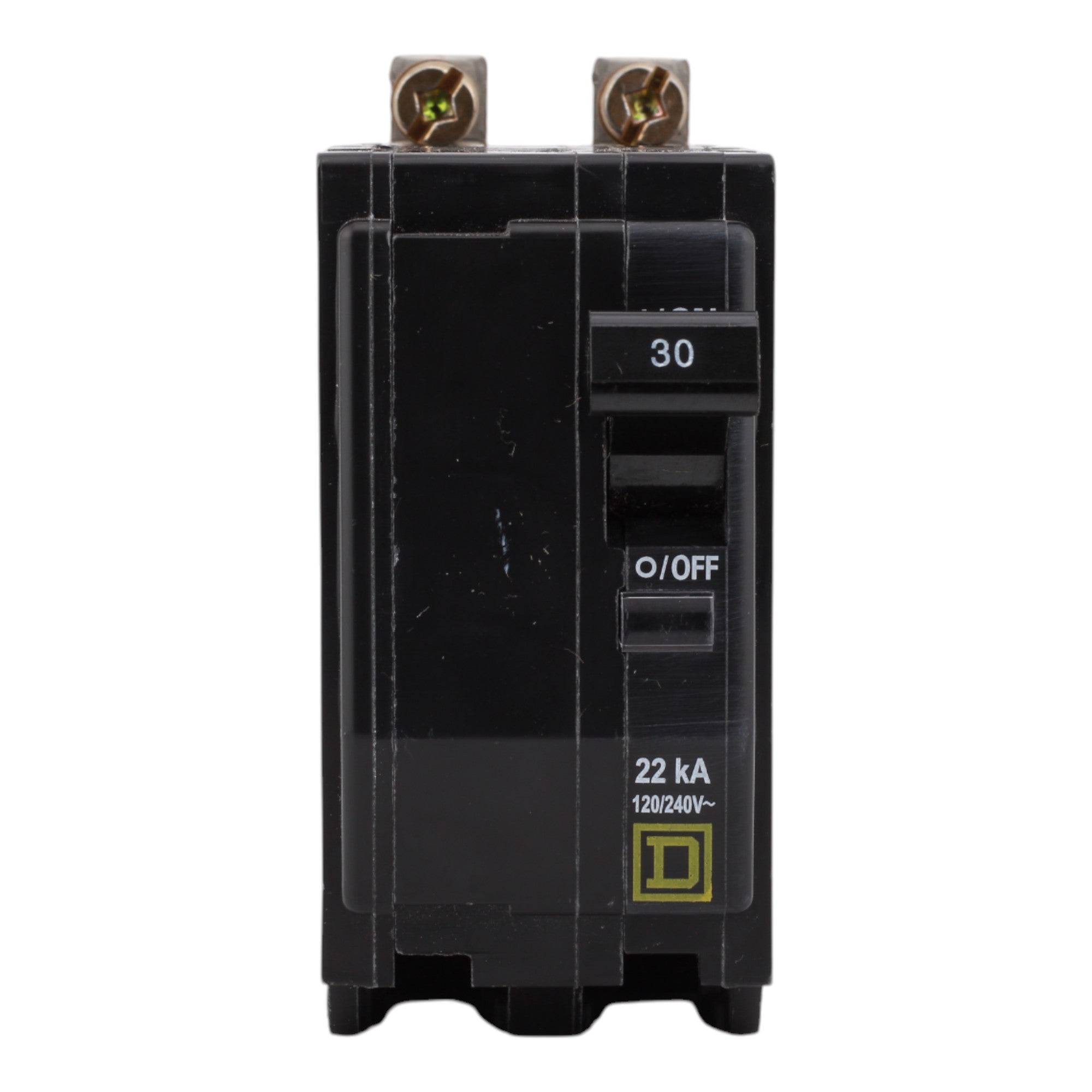

Square D QOB230VH, 30A, 120/240V, 2-Pole, Bolt-On Circuit Breaker, Standard Trip, for Square D Load Centers - Image 3

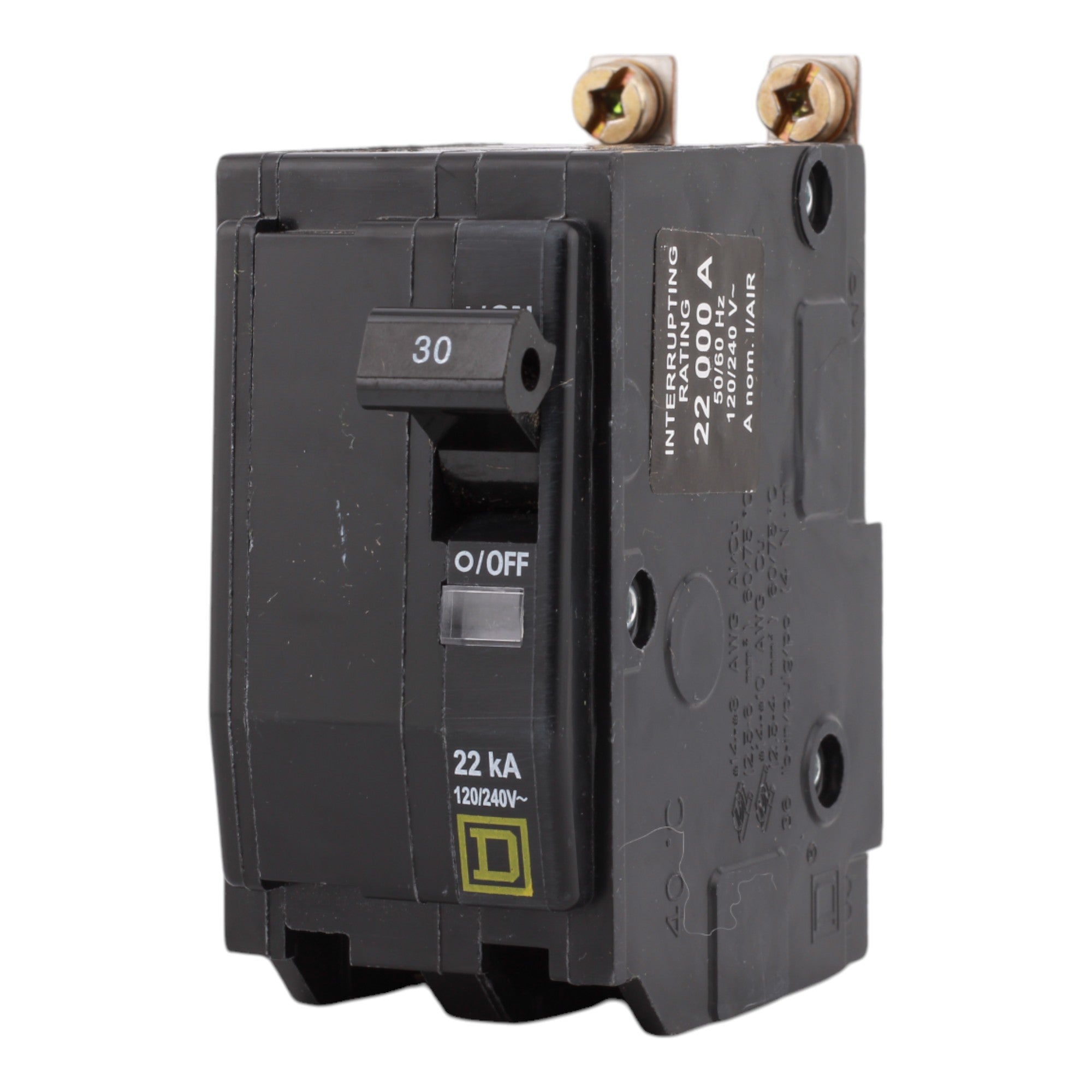

Square D QOB230VH, 30A, 120/240V, 2-Pole, Bolt-On Circuit Breaker, Standard Trip, for Square D Load Centers - Image 4

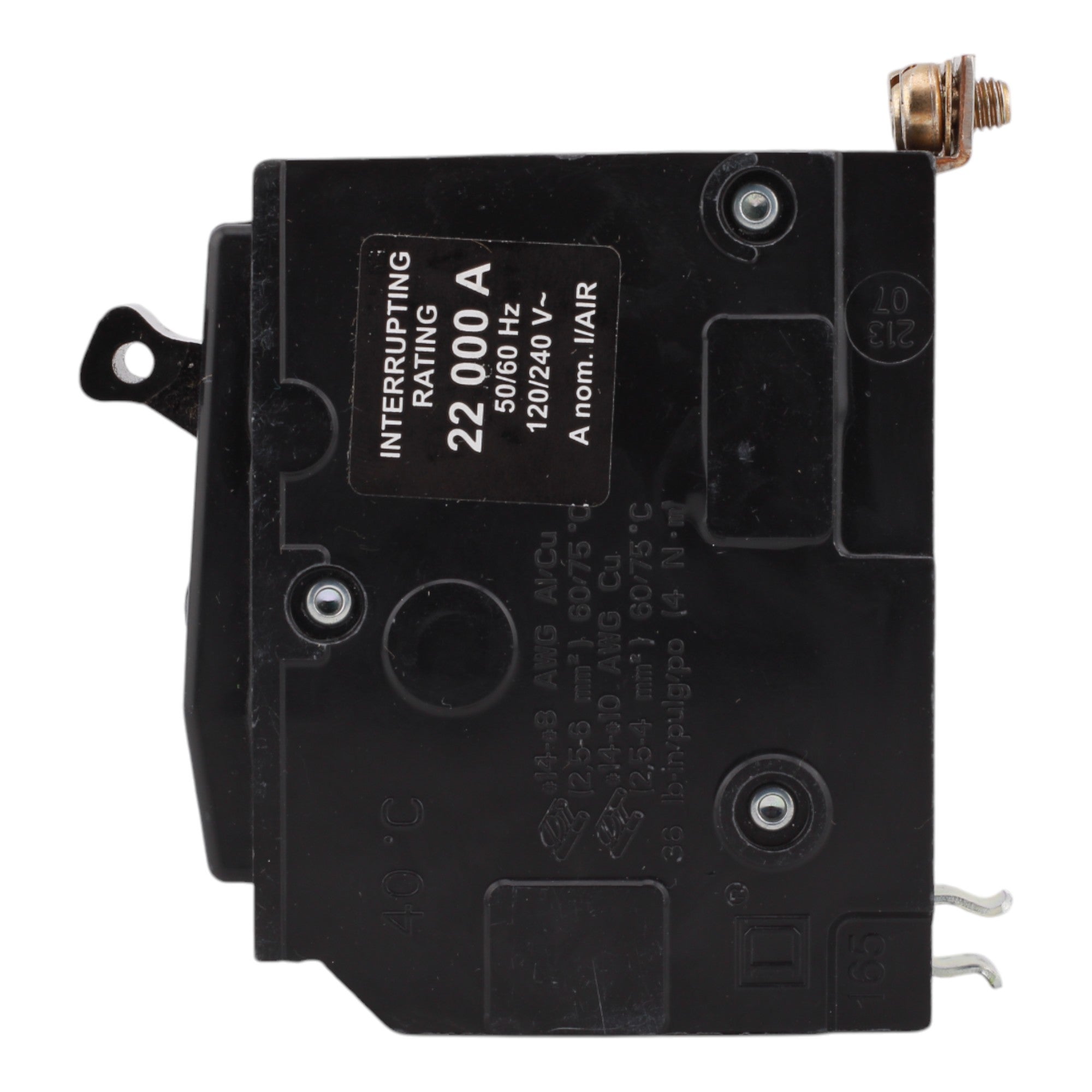

Square D QOB230VH, 30A, 120/240V, 2-Pole, Bolt-On Circuit Breaker, Standard Trip, for Square D Load Centers - Image 5
Square D QOB230VH, 30A, 120/240V, 2-Pole, Bolt-On Circuit Breaker, Standard Trip, for Square D Load Centers - Image 6
Square D QOB230VH, 30A, 120/240V, 2-Pole, Bolt-On Circuit Breaker, Standard Trip, for Square D Load Centers - Image 7
Square D QOB230VH, 30A, 120/240V, 2-Pole, Bolt-On Circuit Breaker, Standard Trip, for Square D Load Centers
Square D QOB230VH, 30A, 120/240V, 2-Pole, Bolt-On Circuit Breaker, Standard Trip, for Square D Load Centers - Image 2
Square D QOB230VH, 30A, 120/240V, 2-Pole, Bolt-On Circuit Breaker, Standard Trip, for Square D Load Centers - Image 3
Square D QOB230VH, 30A, 120/240V, 2-Pole, Bolt-On Circuit Breaker, Standard Trip, for Square D Load Centers - Image 4

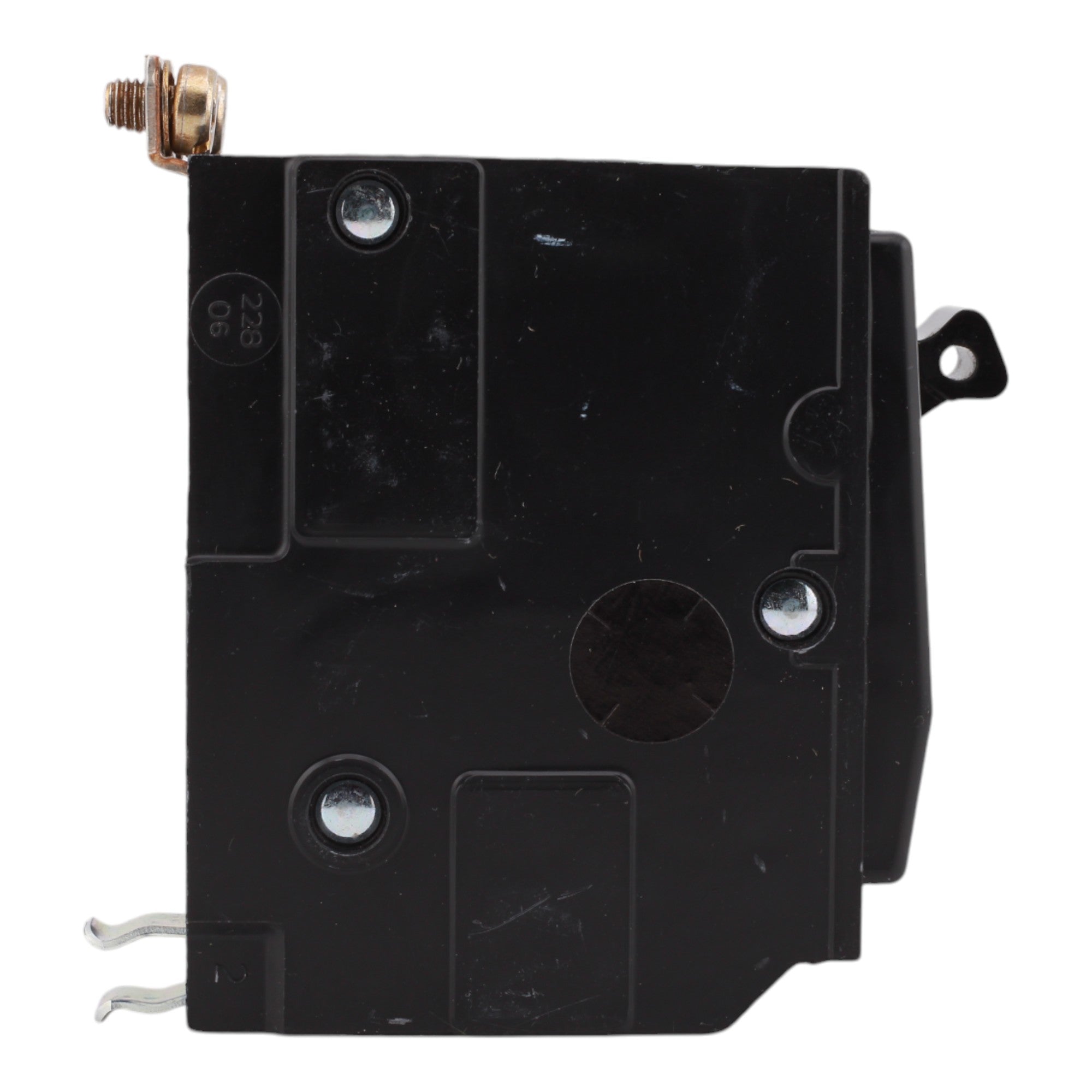

Square D QOB230VH, 30A, 120/240V, 2-Pole, Bolt-On Circuit Breaker, Standard Trip, for Square D Load Centers - Image 5

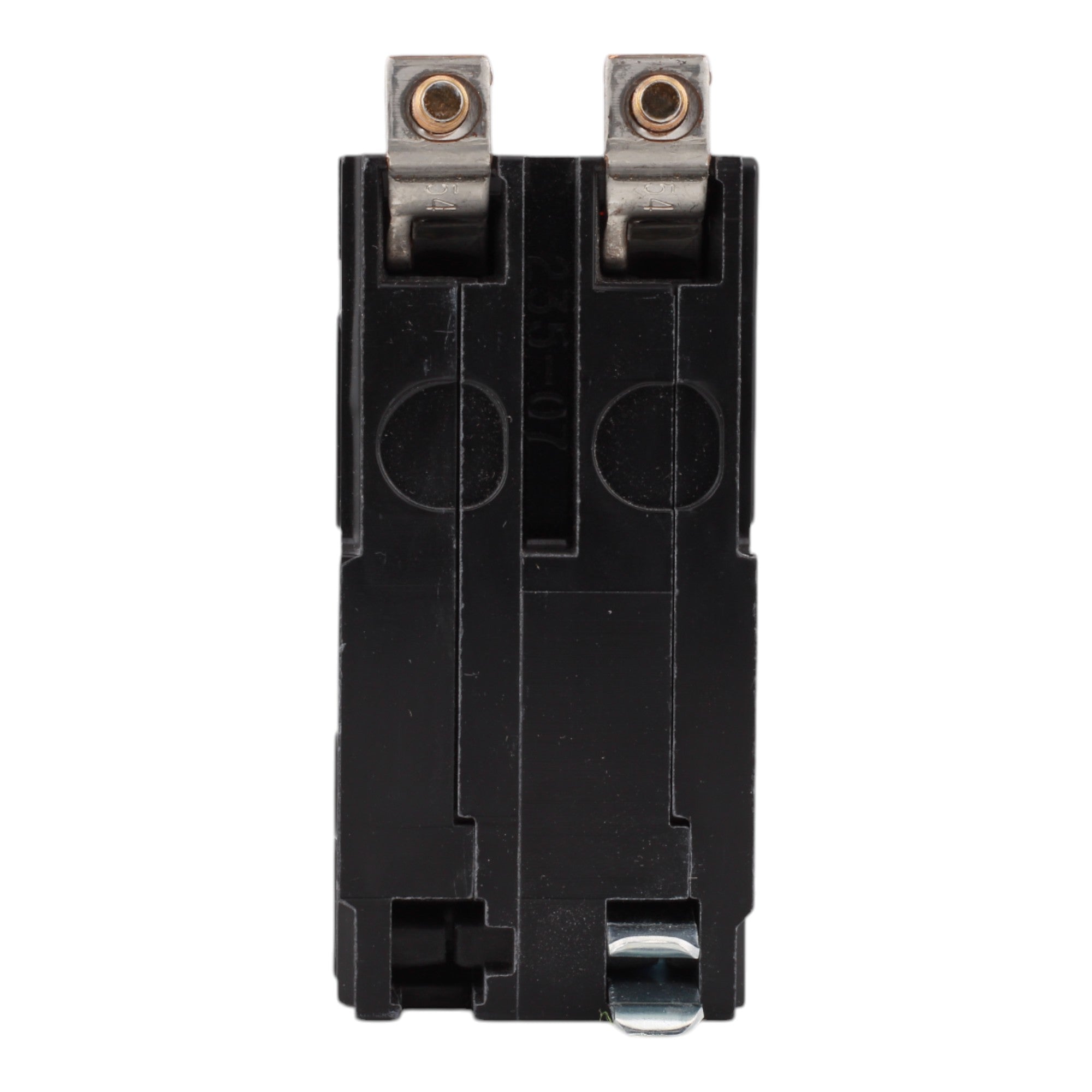

Square D QOB230VH, 30A, 120/240V, 2-Pole, Bolt-On Circuit Breaker, Standard Trip, for Square D Load Centers - Image 6

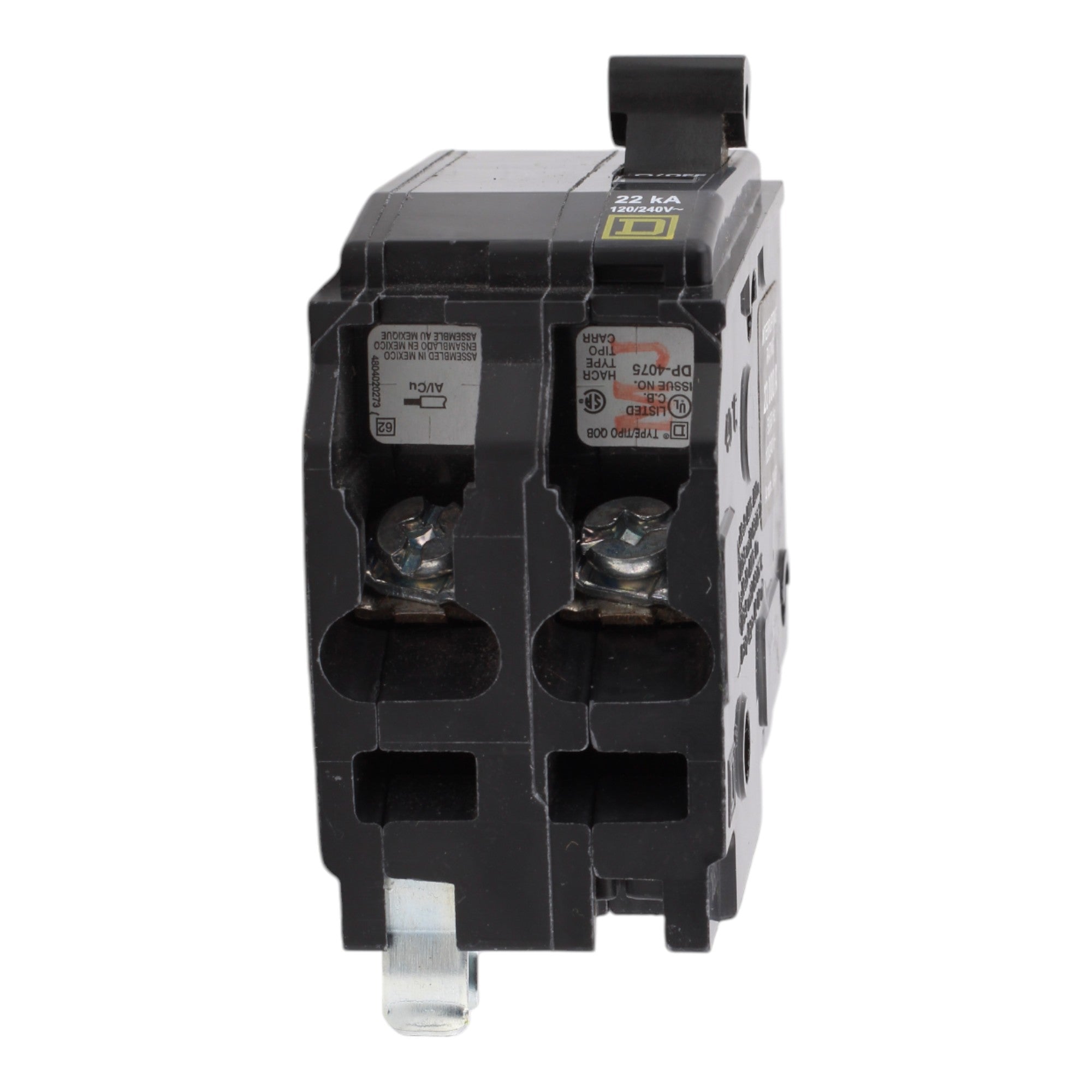

Square D QOB230VH, 30A, 120/240V, 2-Pole, Bolt-On Circuit Breaker, Standard Trip, for Square D Load Centers - Image 7

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Square D

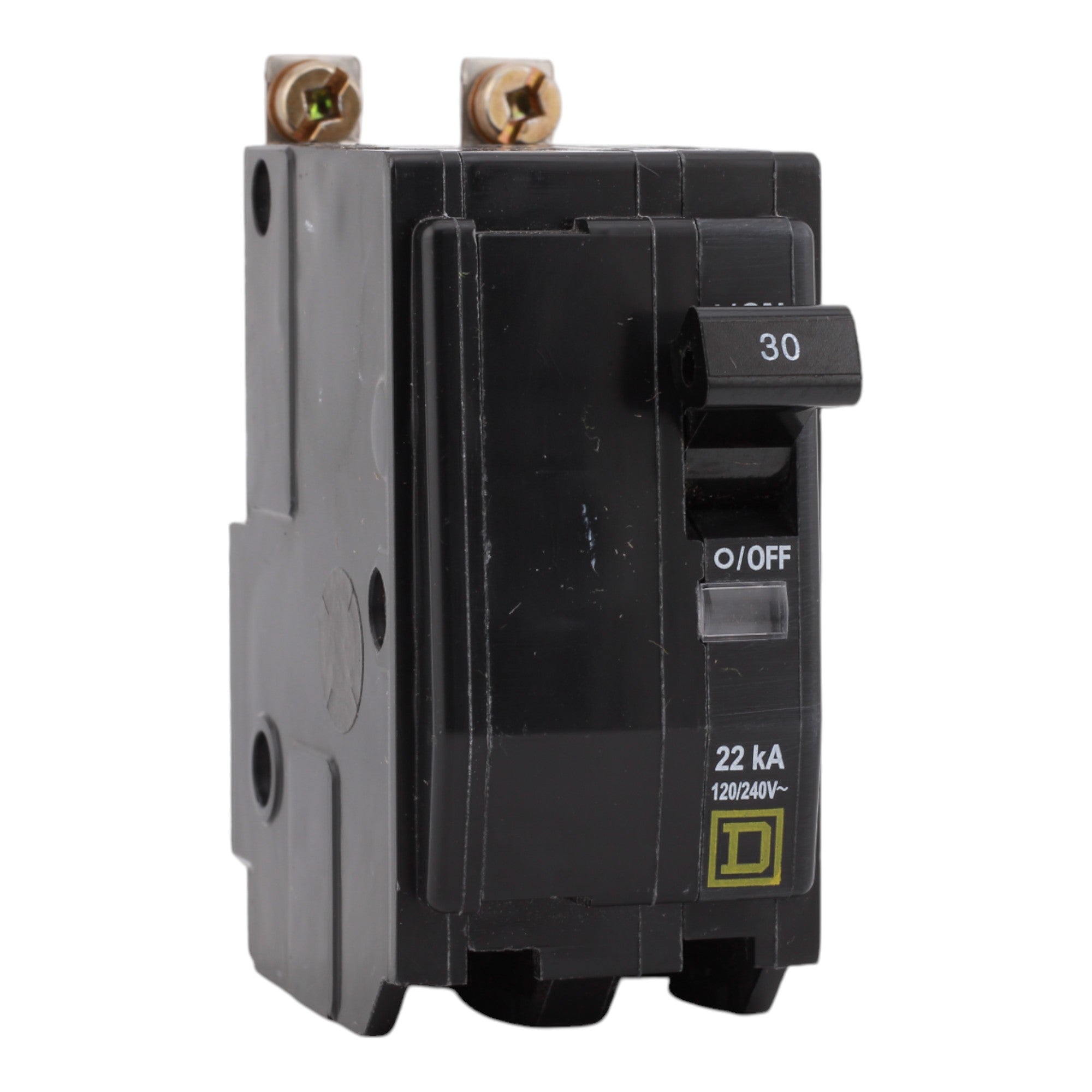

Square D QOB230VH, 30A, 120/240V, 2-Pole, Bolt-On Circuit Breaker, Standard Trip, for Square D Load Centers

SKU: QOB230VH
(0)
$32.00
-33% $48.00 $32.00
Out of stock
Condition
  • Brand: Square D
  • Manufacturer: Schneider Electric
  • Model Number: QOB230VH
  • UPC Number: 785901371946
  • Type: Miniature Circuit Breaker
  • Amperage Rating: 30 Amps
  • Voltage Rating: 120/240 Volts AC
  • Number of Poles: Double Pole (2-Pole)
  • Breaker Technology: Thermal Magnetic
  • Connection Type: Bolt-On
  • Short Circuit Current Rating: 22 kAIC
  • Applications: Compatible with Square D Load Centers
  • Certifications: UL Listed, CSA Certified
  • Wire Size: 14 AWG to 8 AWG (Copper or Aluminum)
  • Tightening Torque: 40.7 lbf.in (4.6 N.m)
  • Dimensions (H × W × D): 3.0 in × 1.5 in × 2.9 in
  • Weight: 0.58 lb

There is a $15 charge for delivery under $250 orders. Additional charges will be imposed by our couriers for delivery to remote areas, a surcharge may be levied to cover carriage to these areas.

Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
