Square D

Square D QOM2125VH 125 Amp Double Pole Main Circuit Breaker, 120/240V, Bolt-On, UL Listed

Out of stock
SKU: QOM2125VH UPC: 785901021971
(0)
$84.95
-31% $124.00 $84.95
Out of stock
Condition

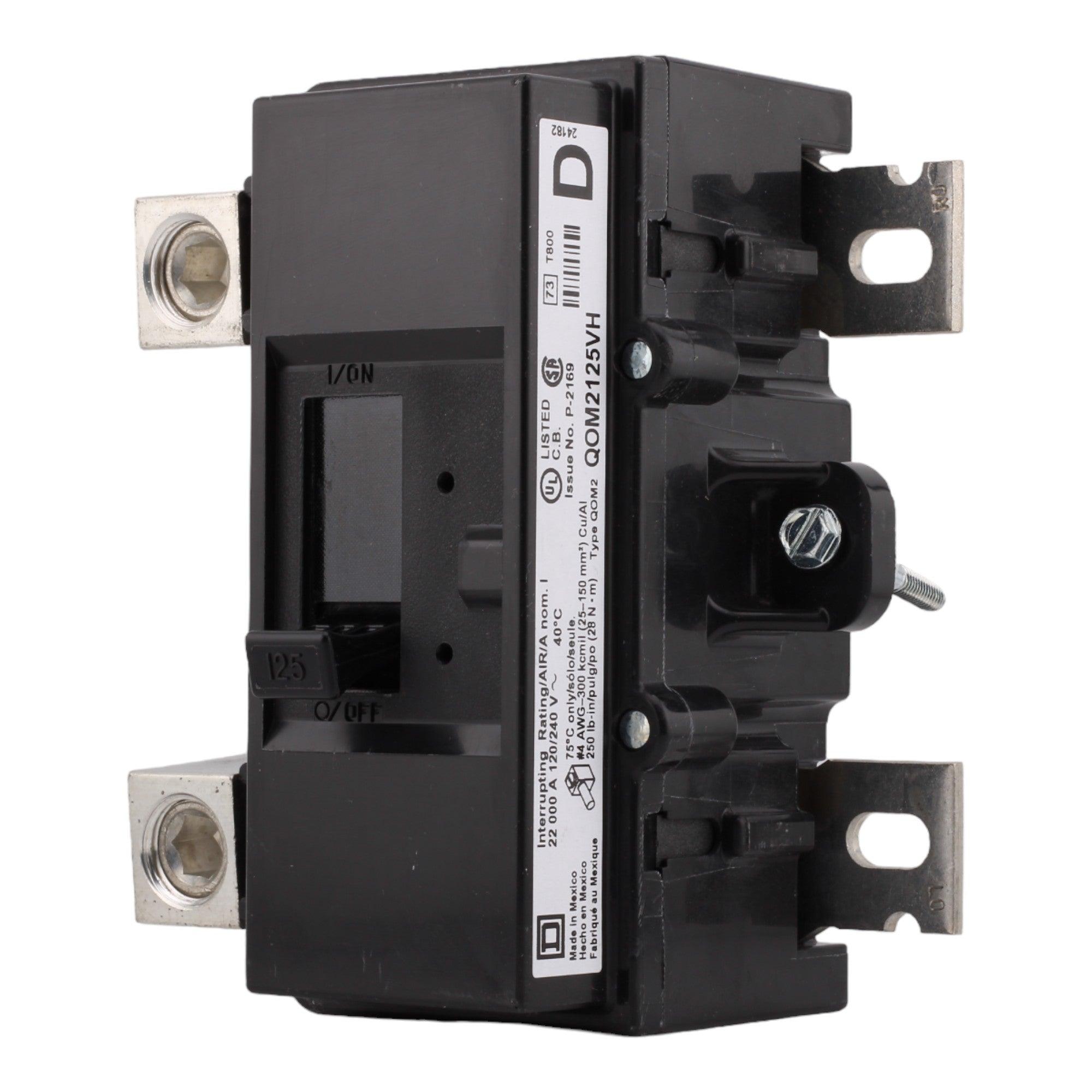

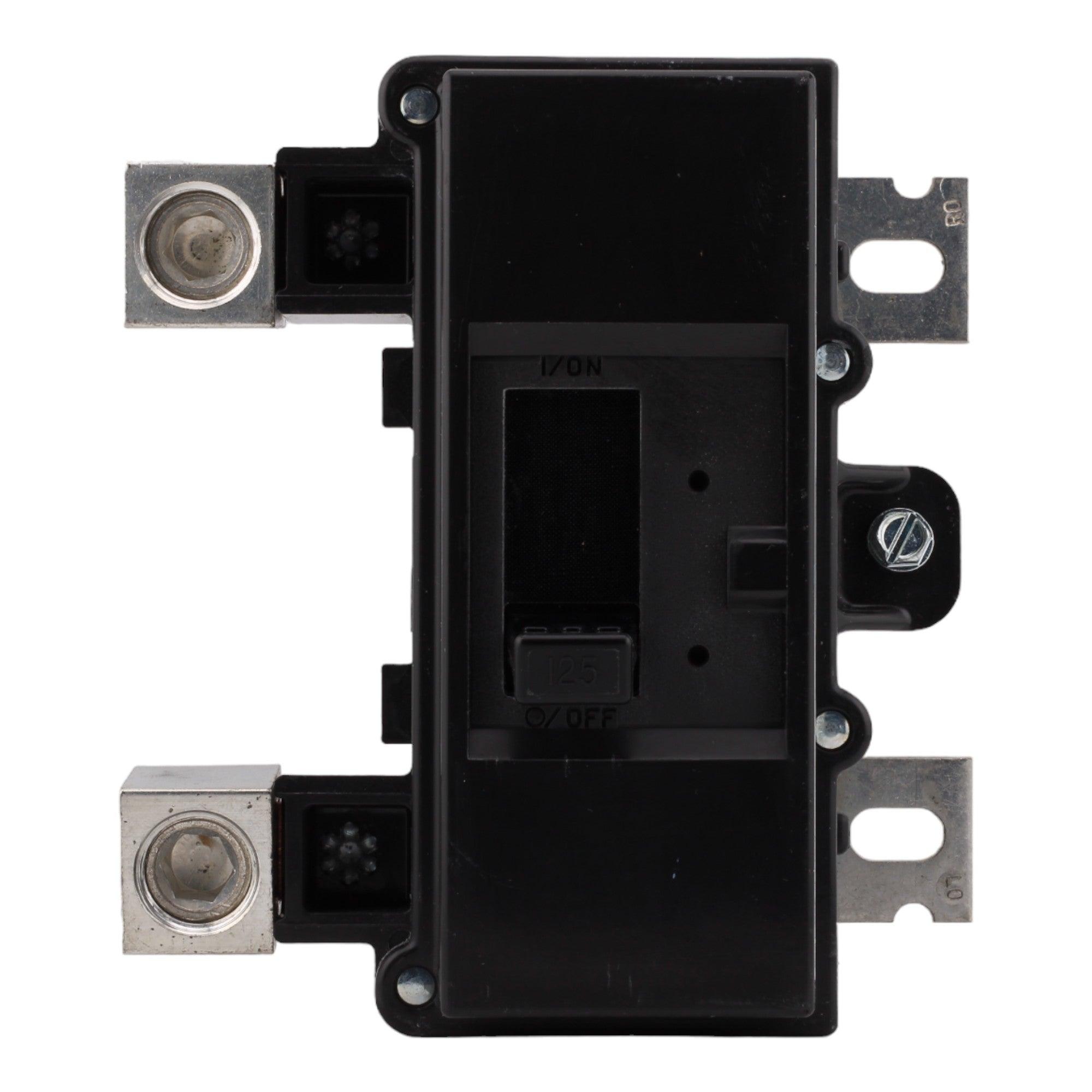

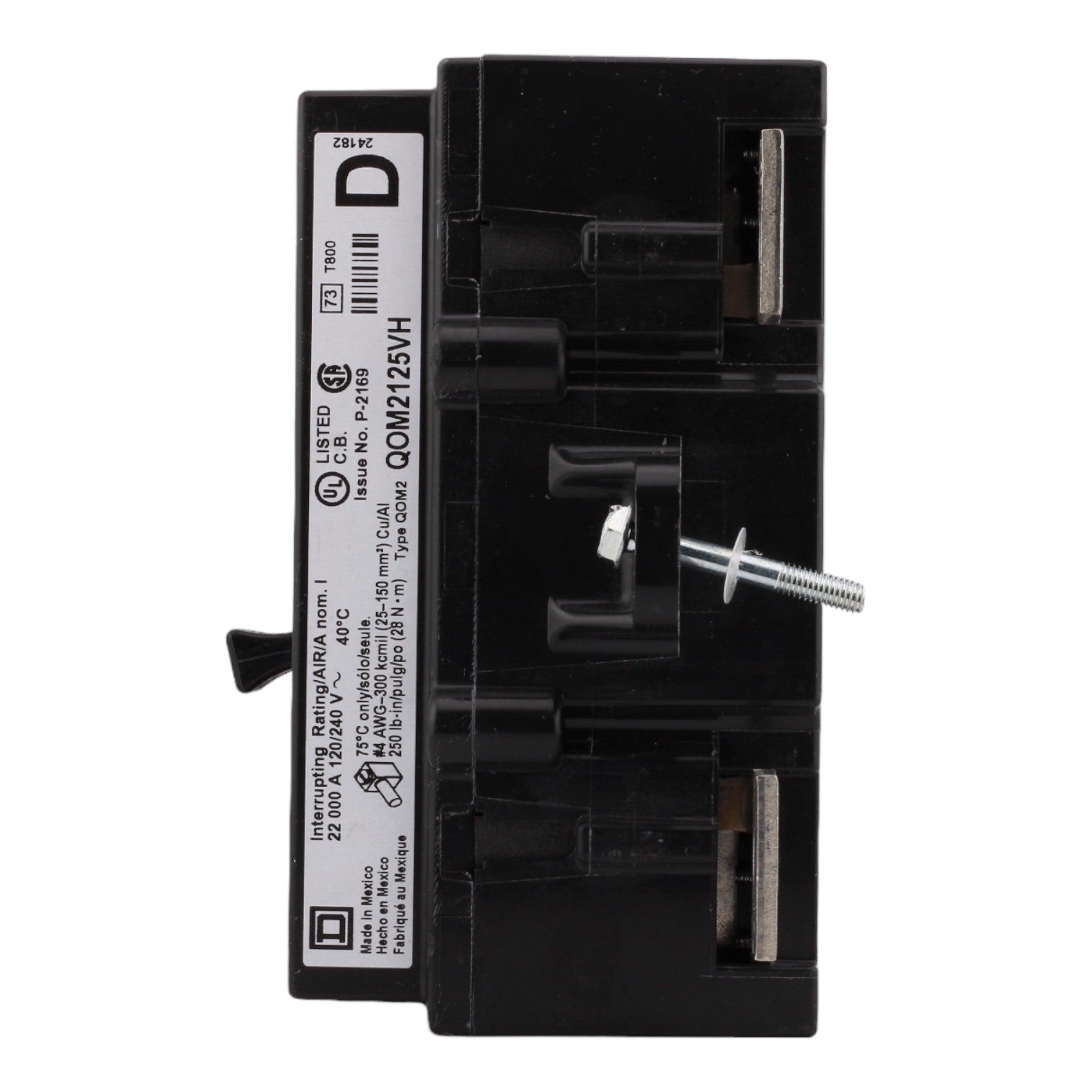

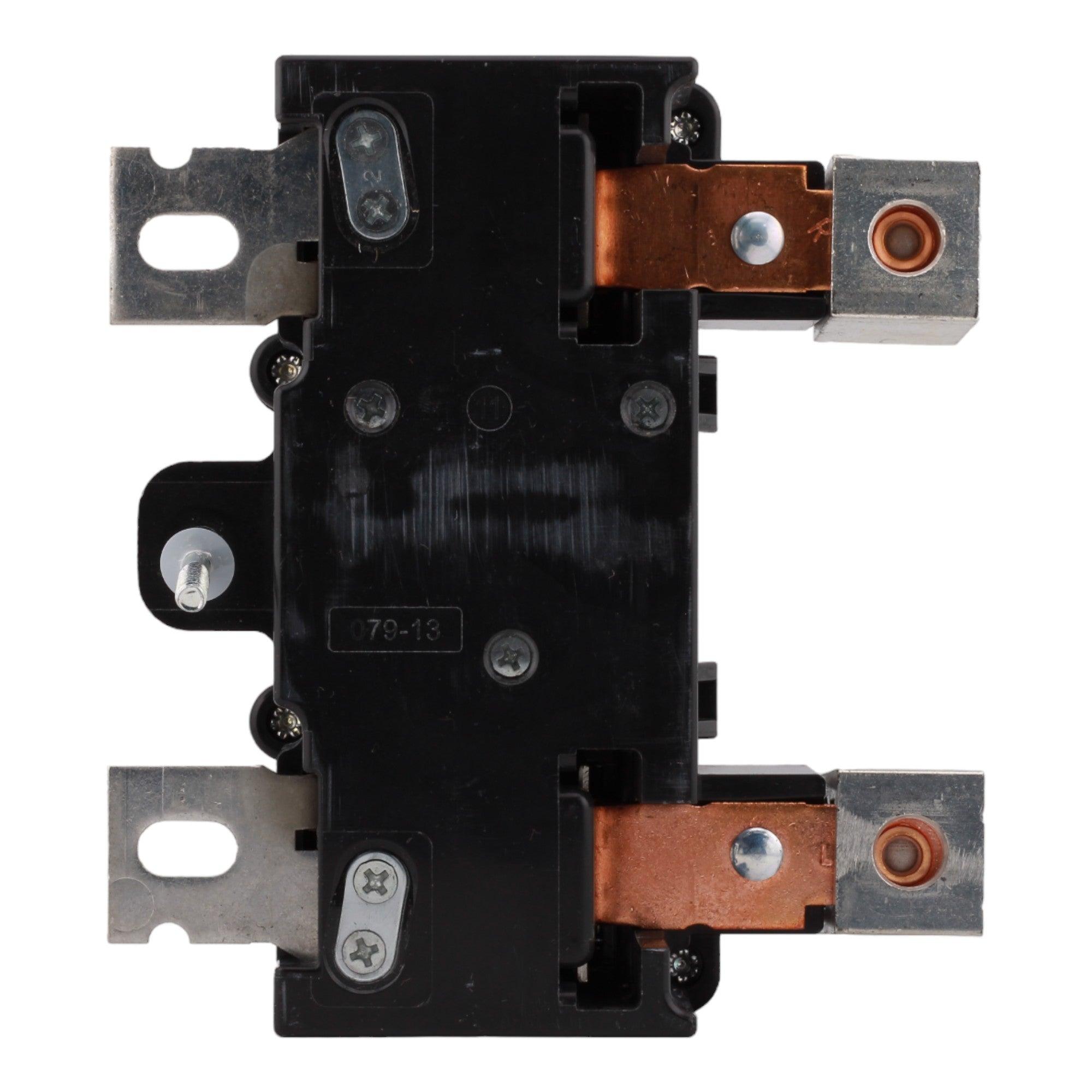

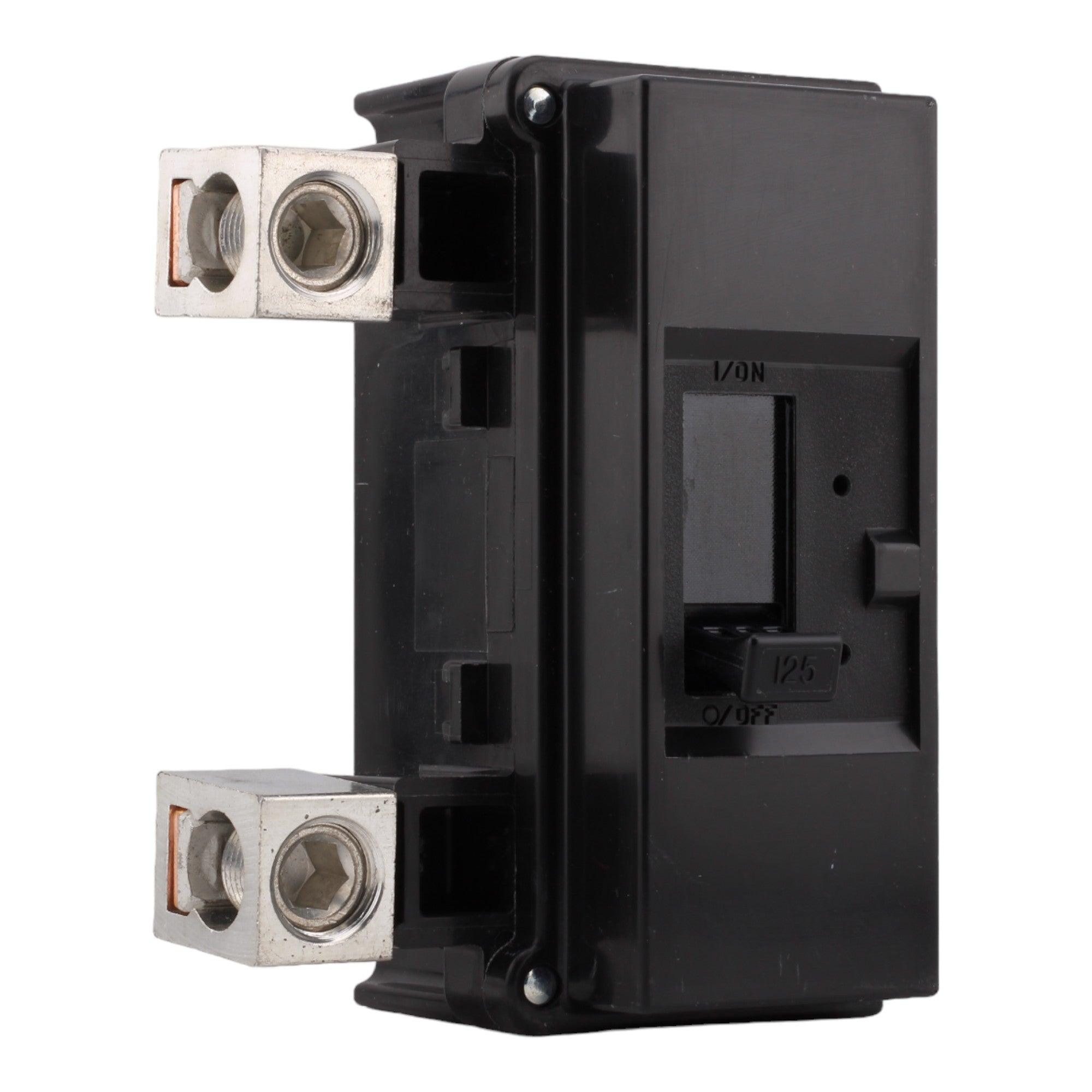

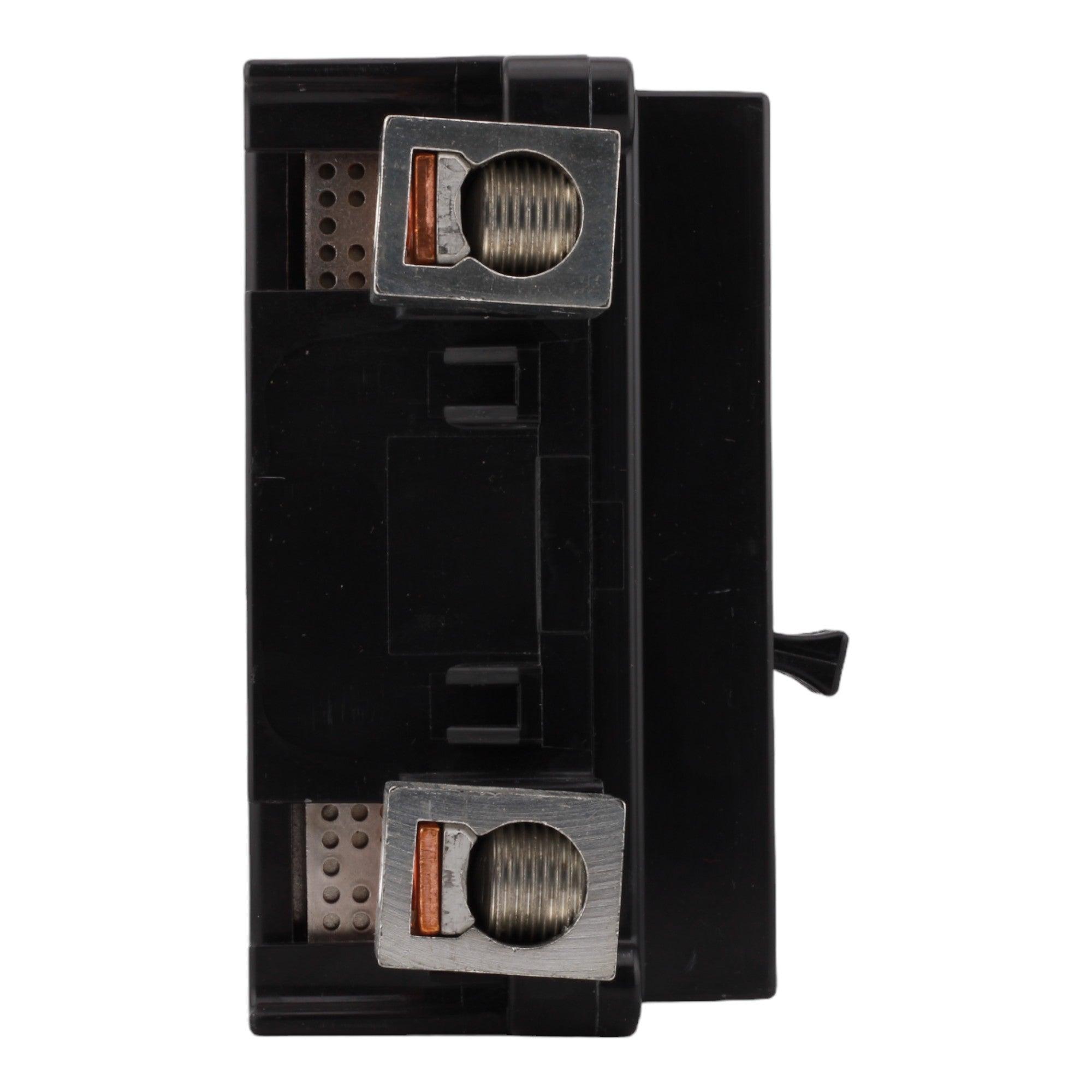

QOM2125VH Square D 125 Amp Double Pole Main Circuit Breaker, 120/240V, Bolt-On, UL Listed.

QOM2125VH specifications

Specifications:

  • Manufacturer: Square D by Schneider Electric
  • Model Number: QOM2125VH
  • Type: Main Circuit Breaker
  • Amperage: 125 Amp
  • Voltage: 120/240 Volt
  • Poles: 2 Pole
  • Interrupt Rating: 22 Kilo-Amp (22kA)
  • Mounting Type: Bolt-On
  • Trip Type: Thermal Magnetic
  • Frame Size: QOM2
  • Wire Size: #4 to #2/0 AWG (Copper or Aluminum)
  • Dimensions (H x W x L): 6.47" x 3.75" x 2.98"
  • Certification: UL Listed, CSA Certified
  • UPC: 785901021971
