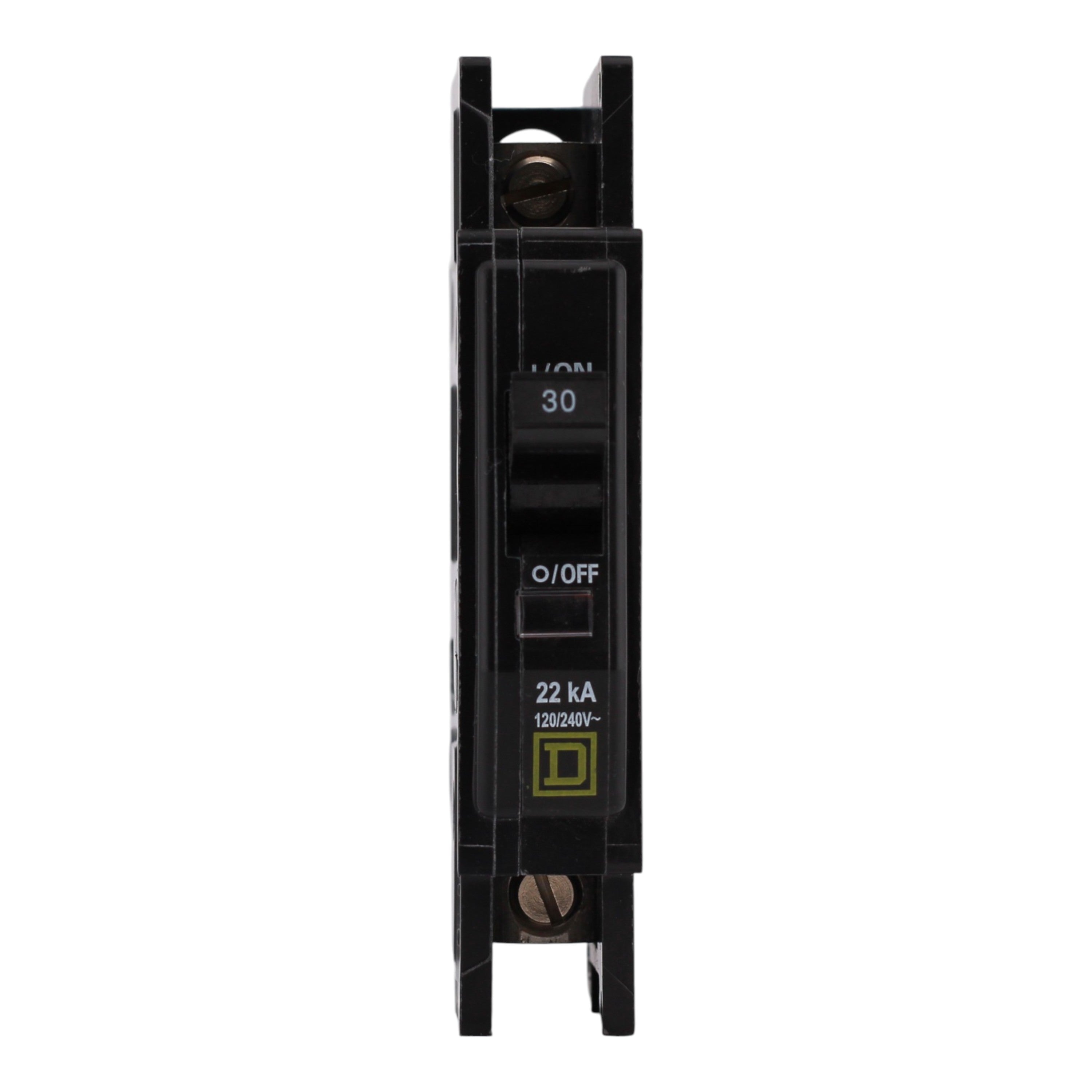

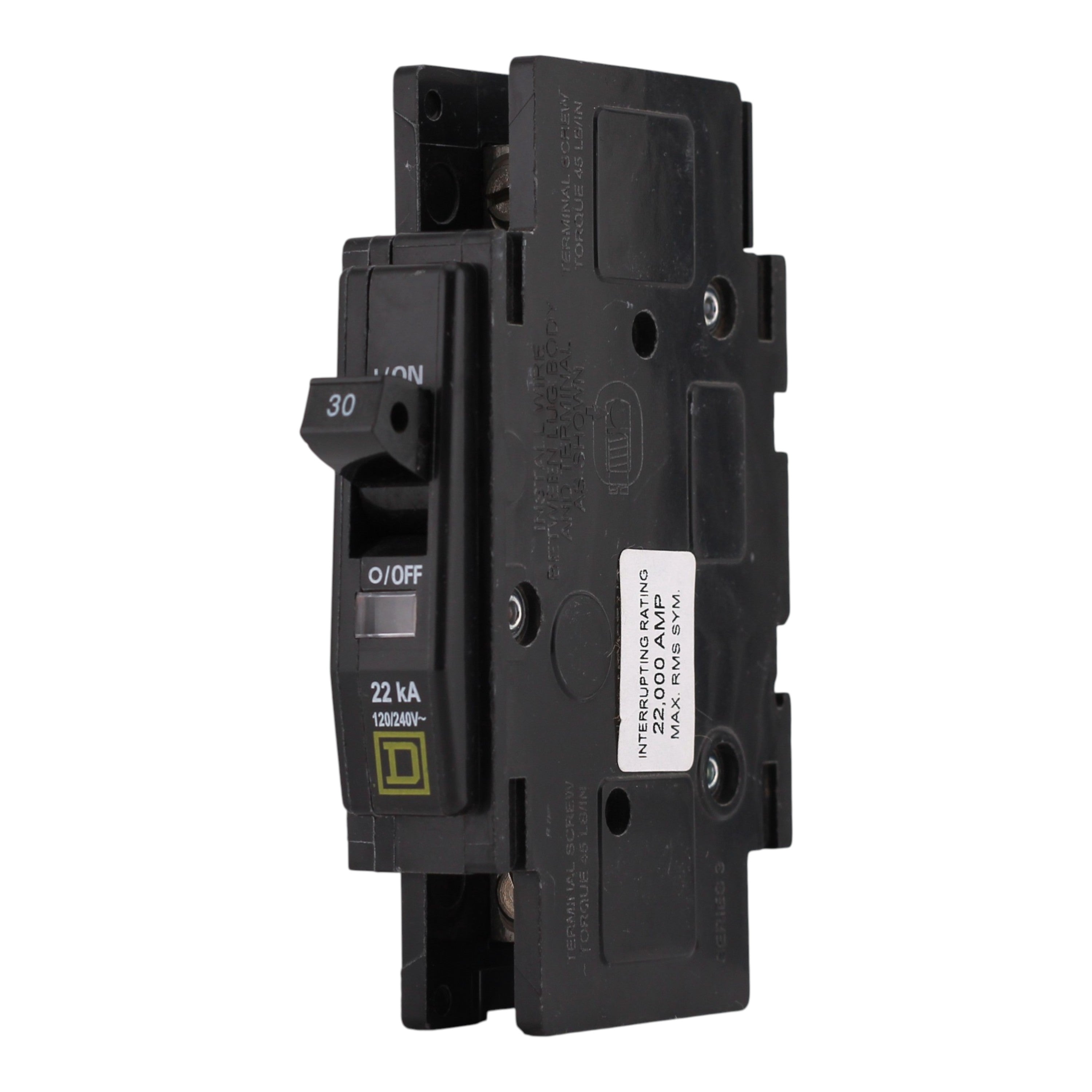

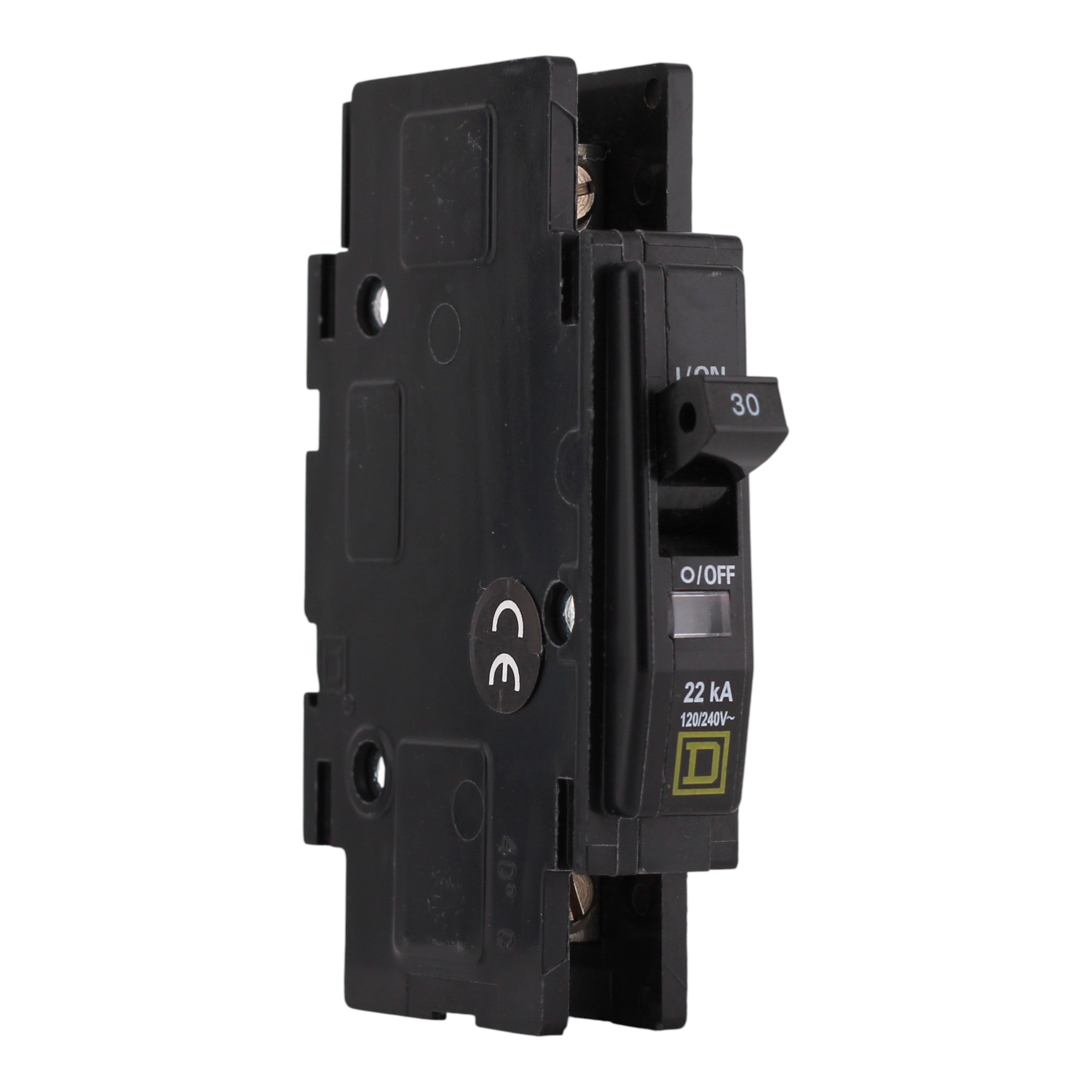

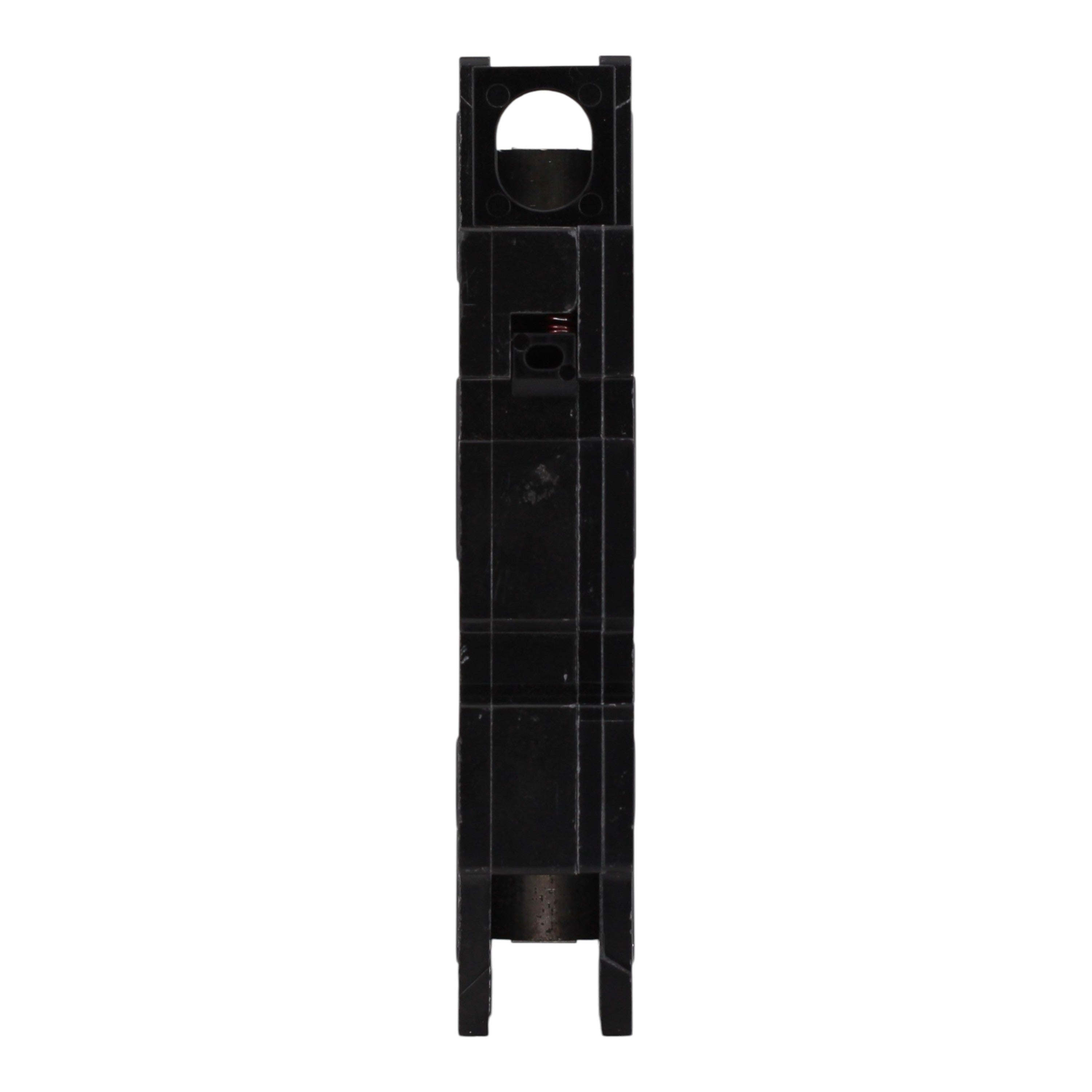

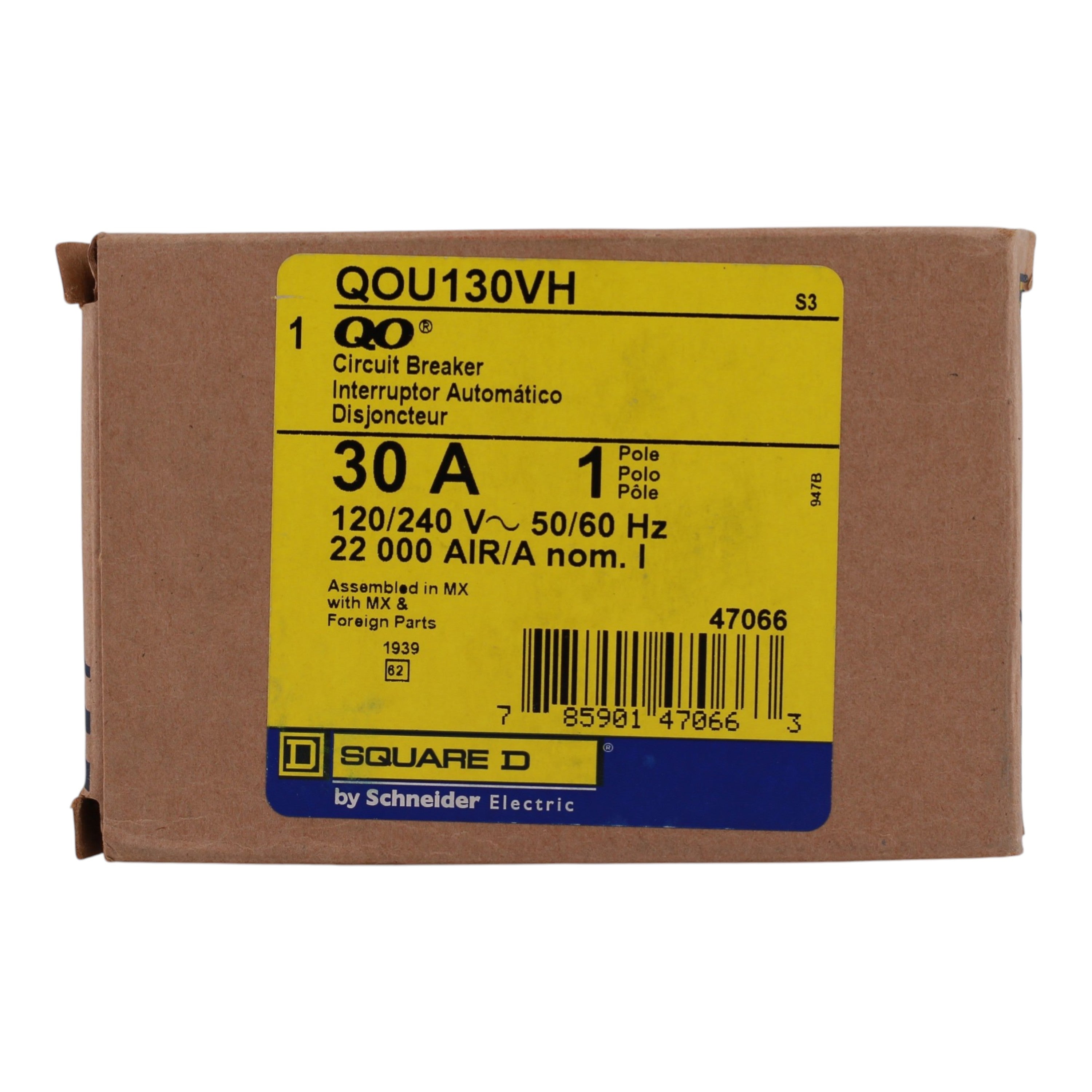

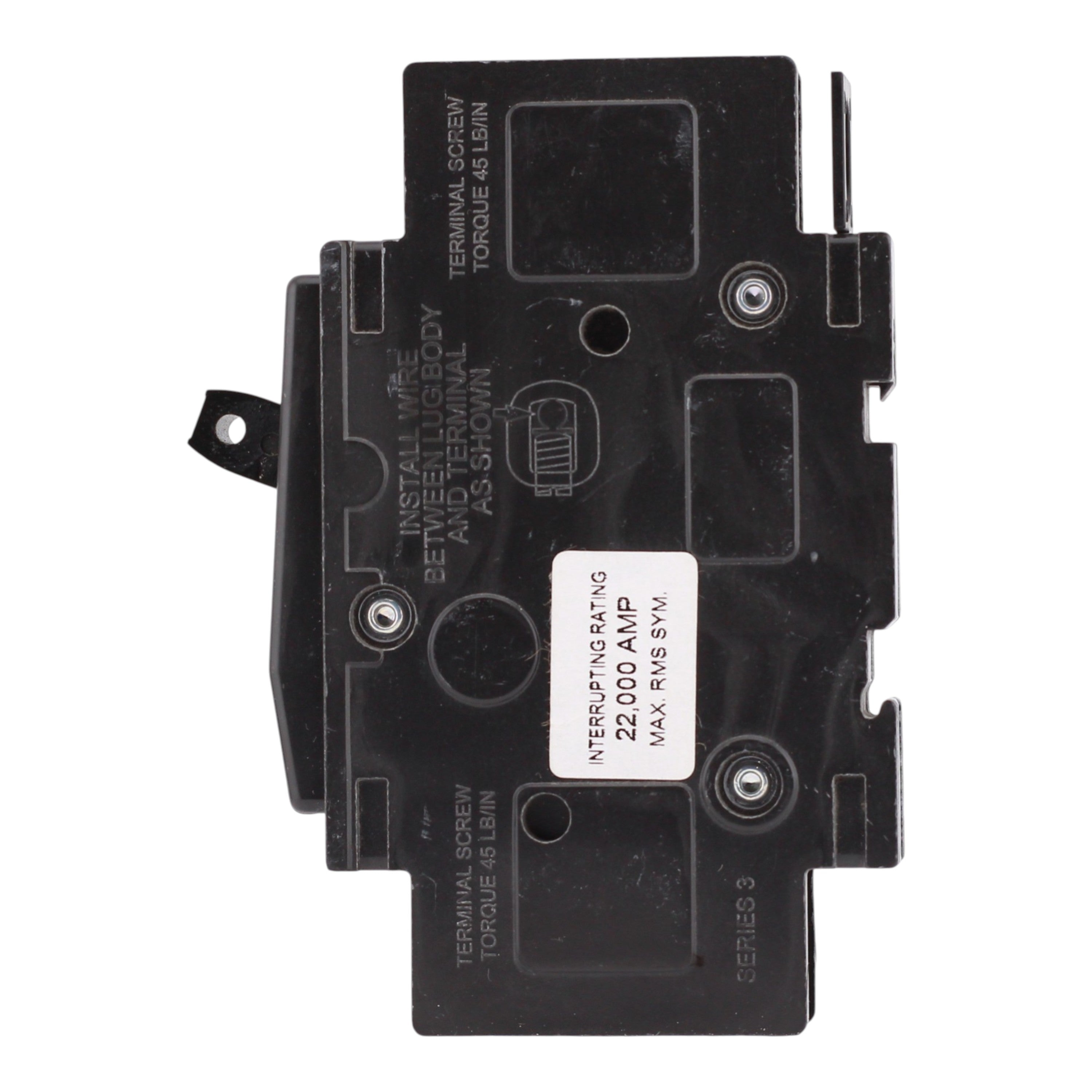

Square D QOU, QOU130VH, 30A, 1P, 120/240V, Unit Mount, Circuit Breaker

Square D QOU130VH: 30 Amp, 1-Pole, Standard thermal magnetic circuit breaker, 120/240V, 22kA interrupt, unit mount, UL Listed, CSA Certified.

Specifications

• Manufacturer: Schneider Electric
• Brand: Square D
• Product Range: QOU (Unit Mount Miniature Circuit Breakers)
• UPC: 785901470663
• Model Number: QOU130VH
• Breaker Type: Standard Thermal Magnetic
• Amperage: 30 Amps
• Poles: 1-Pole
• Voltage: 120/240 Volts AC
• Interrupt Rating: 22 kAIC

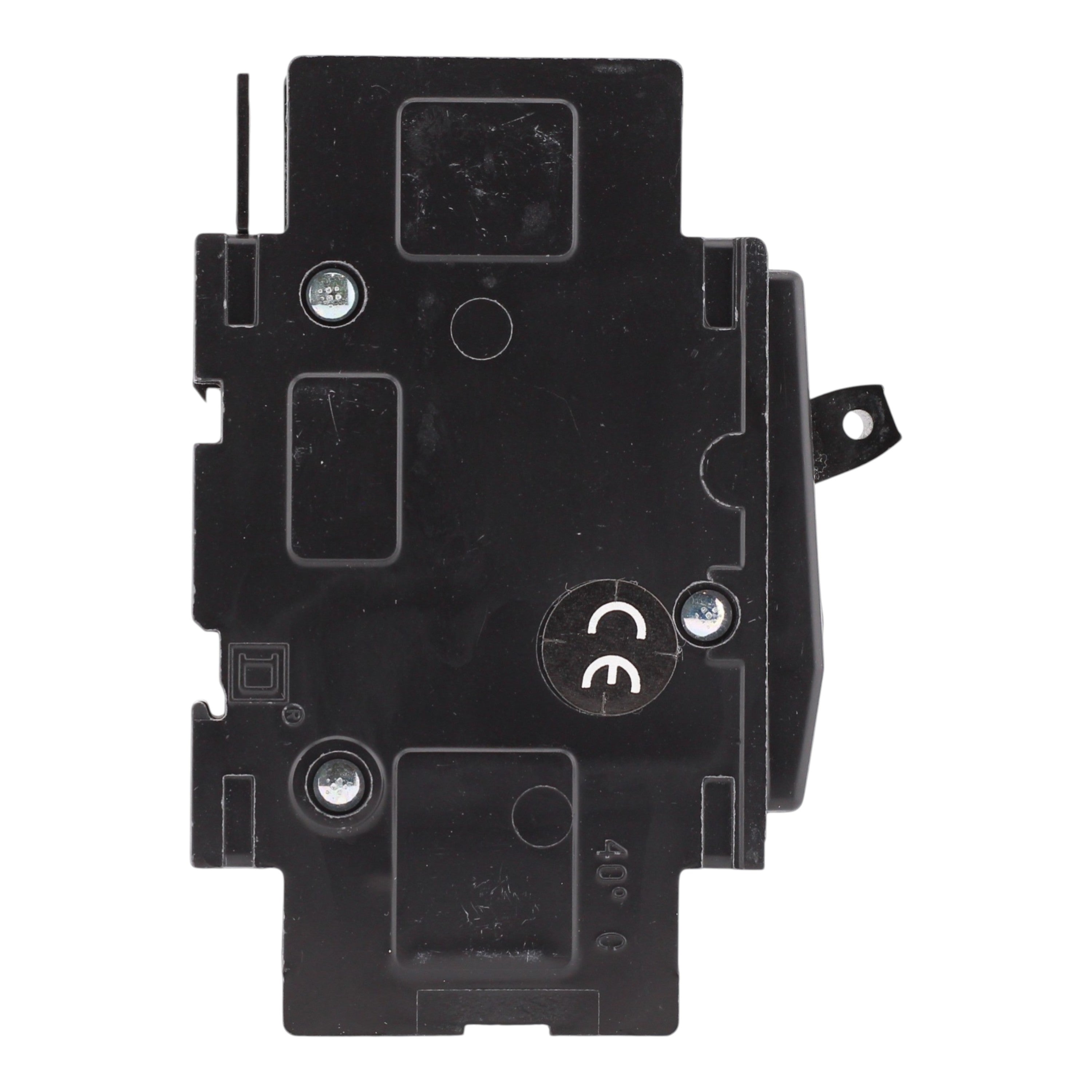

• Mounting Mode: Unit Mount (DIN Rail, Surface, or Flush Mount)

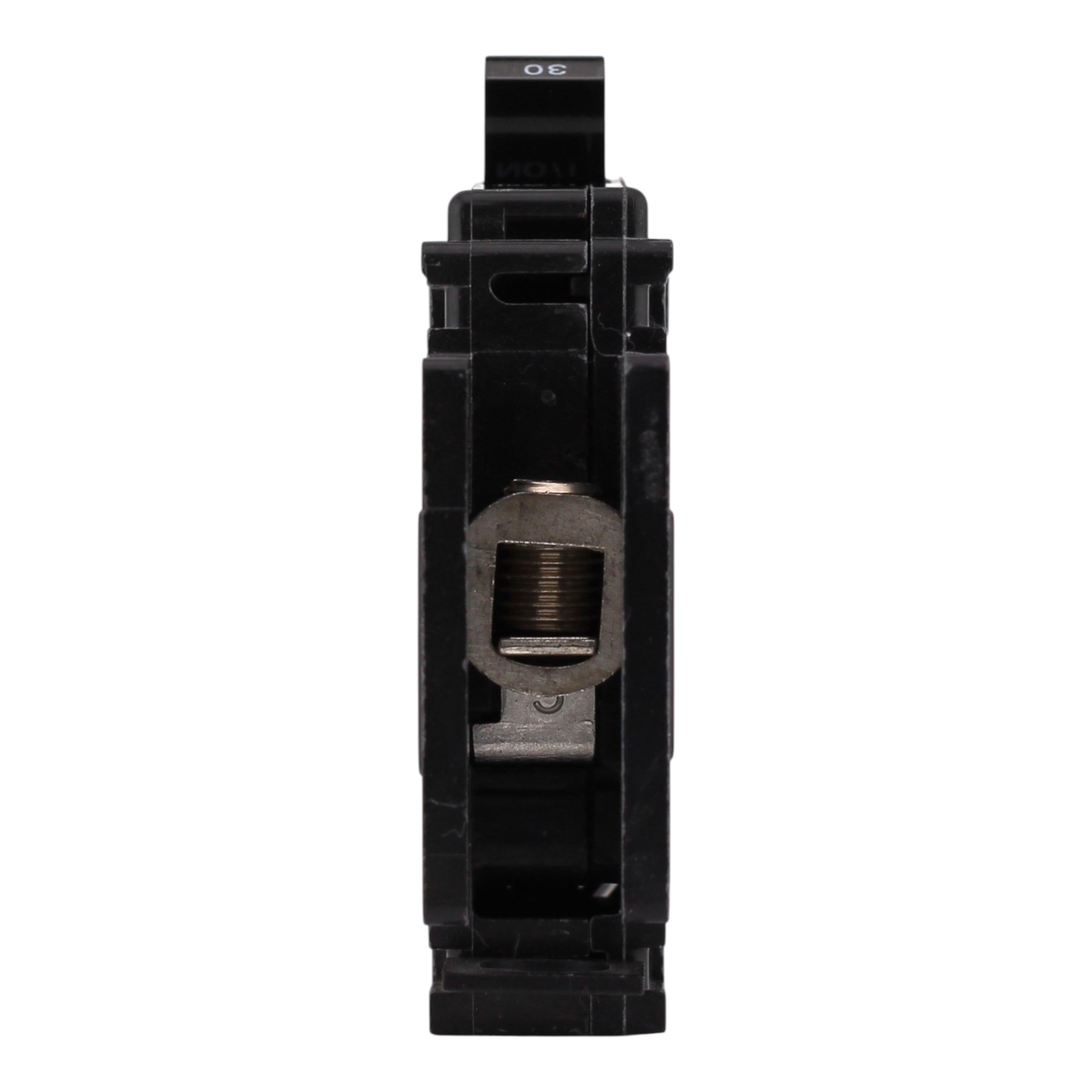

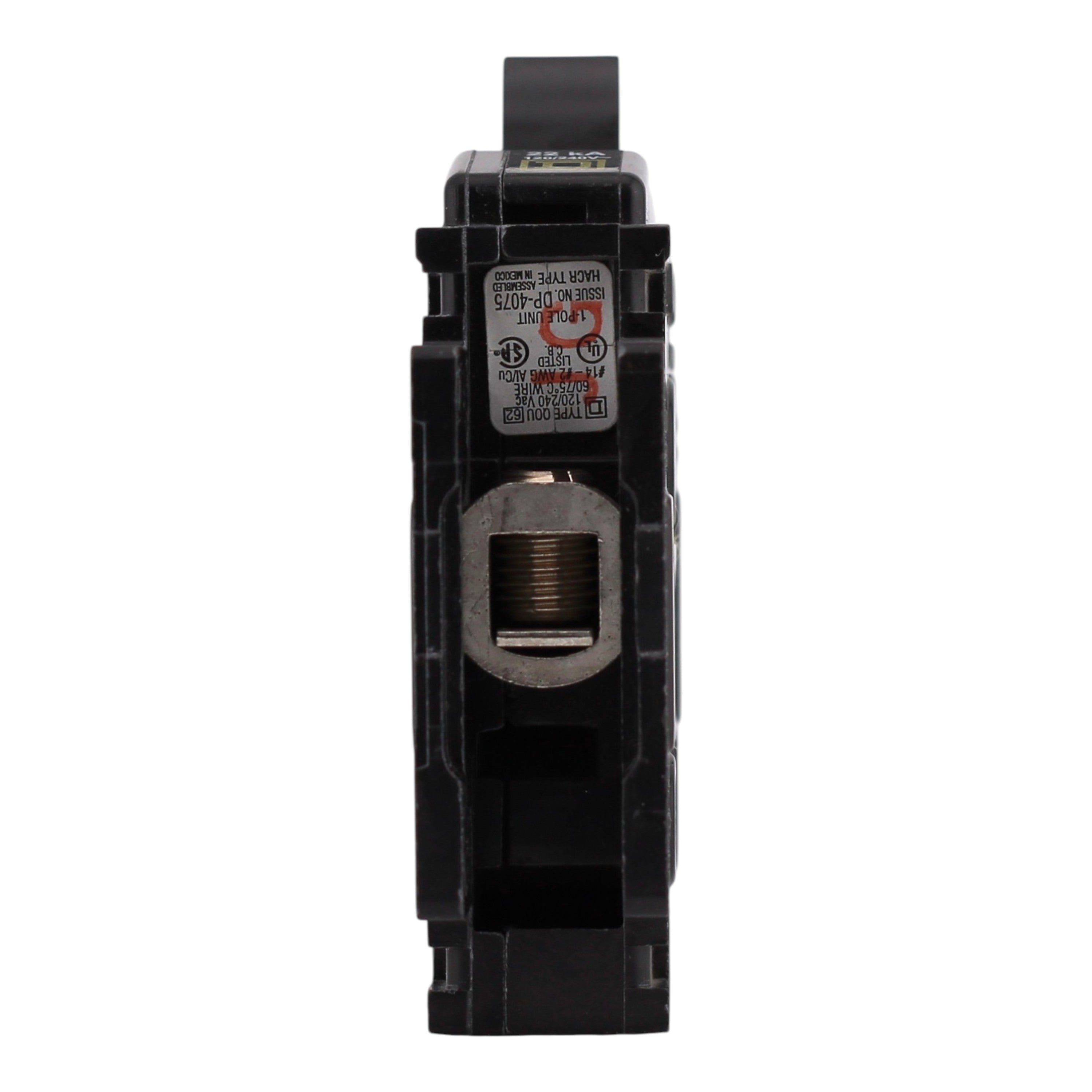

• Connections Terminals: Slotted Box Lugs, Line and Load Side
• Wire Size: #14–2 AWG Copper/Aluminum
• Tightening Torque: 45 lb-in
• Dimensions: Height: 4.05 in; Width: 0.75 in; Depth: 2.95 in
• Weight: 0.370 lbs
• Certifications: UL Listed, HACR Rated, CSA Certified

This Square D QOU130VH thermal magnetic circuit breaker delivers dependable 30 Amp, 1-Pole protection for 120/240V circuits. Designed for unit mount installation with 22kA interrupt rating, it supports OEM, residential, and commercial applications requiring DIN rail, surface, or flush mounting.
