Square D

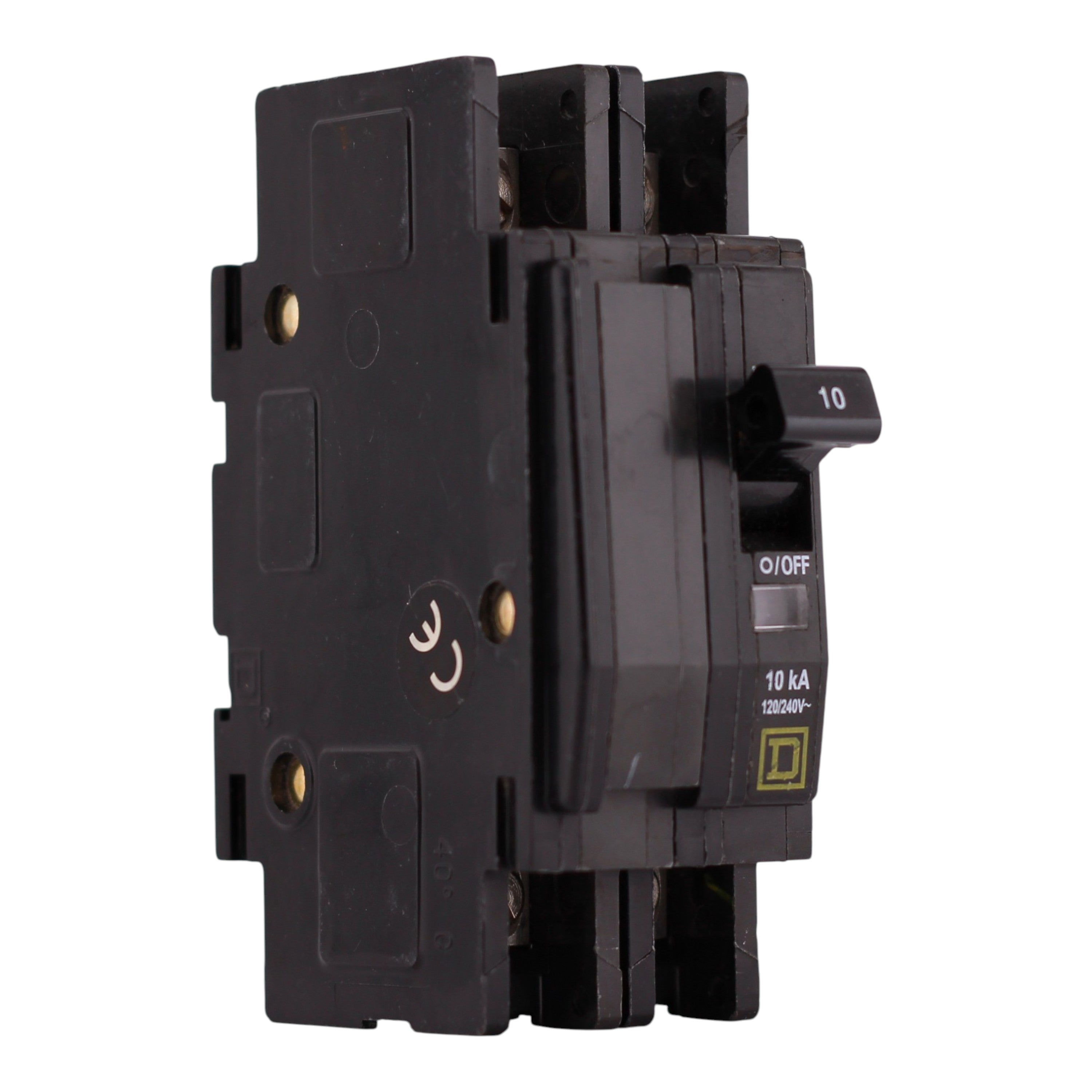

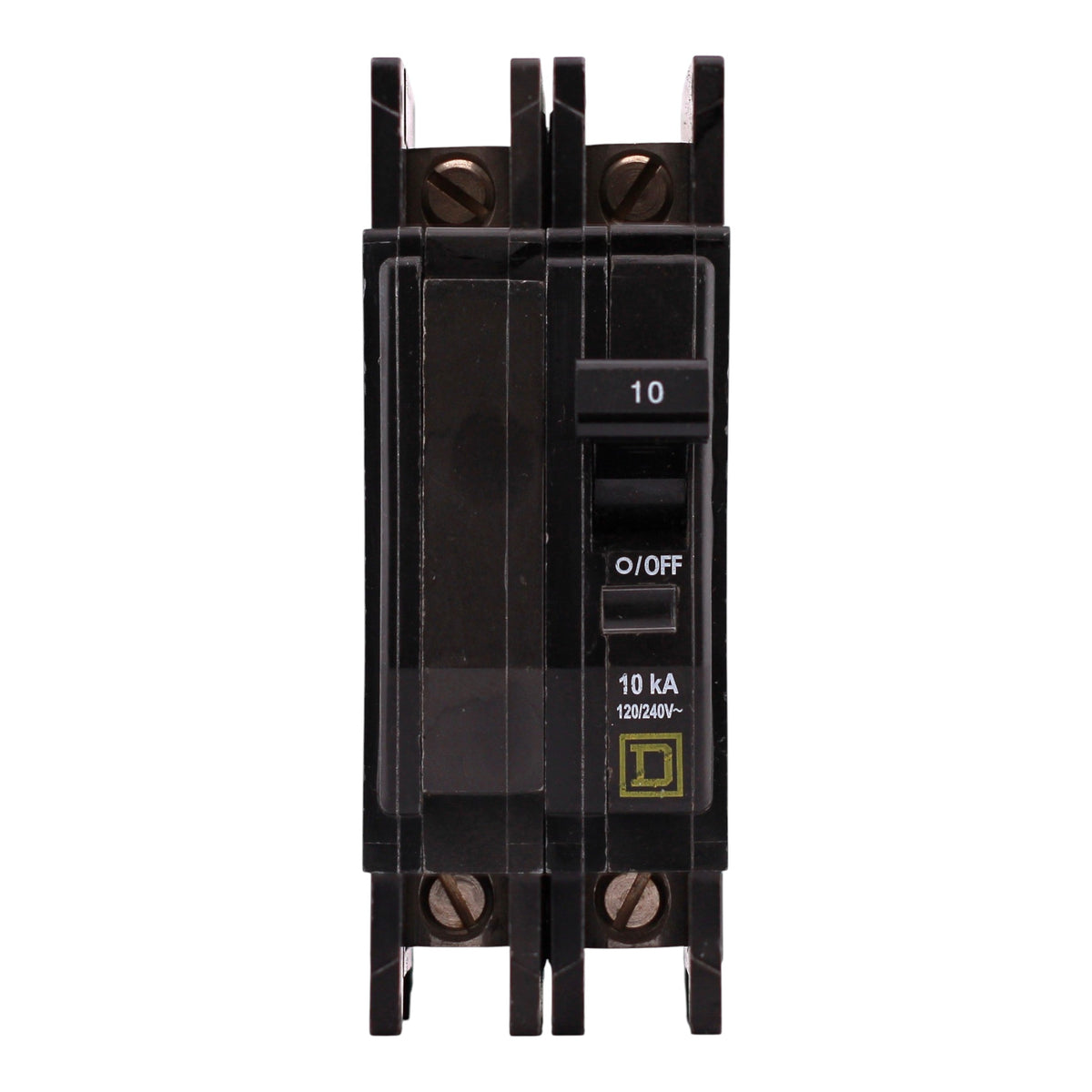

Square D QOU, QOU210, 10A, 2P, 120/240VAC, Unit Mount, Miniature Circuit Breaker

SKU: QOU210
(0)
$32.00
-65% $92.46 $32.00
Out of stock
Condition

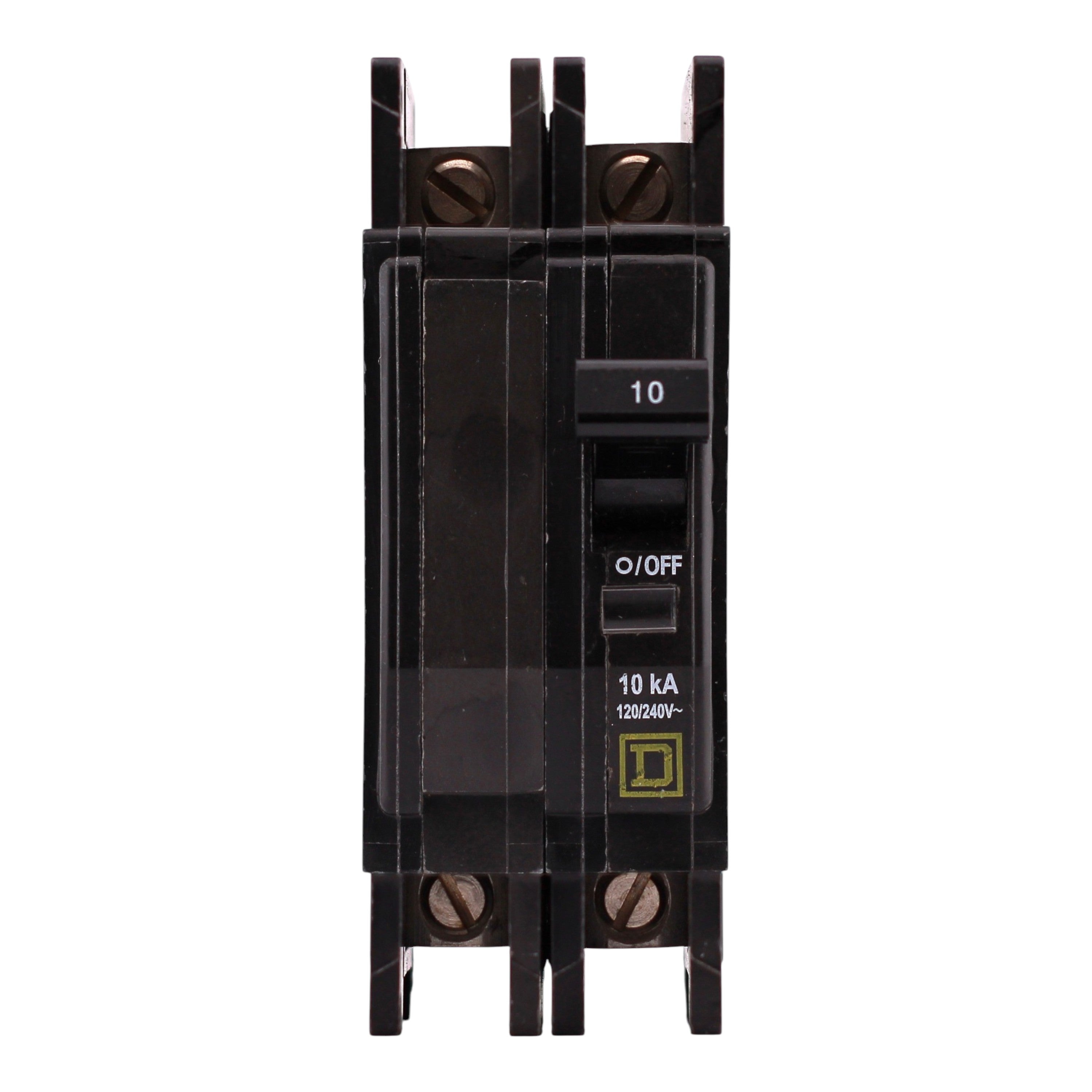

Square D QOU210: 10 Amp, 2-Pole, miniature circuit breaker, 120/240V AC, 10kA interrupt rating, unit mount, UL listed.

  • Manufacturer: Schneider Electric
  • Brand: Square D
  • Product Range: QOU (for unit mount miniature circuit breaker applications in residential and commercial installations)
  • UPC: 785901477457
  • Model Number: QOU210
  • Breaker Type: Miniature Circuit Breaker
  • Amperage: 10 Amps
  • Poles: 2-Pole
  • Voltage: 120/240 Volts AC or 120 Volts AC or 48 Volts DC
  • Interrupt Rating: 10 kAIC at 120/240V AC, 10 kAIC at 120V AC, 5 kAIC at 48V DC
  • Mounting Mode: Unit Mount (surface, flush, or DIN rail)

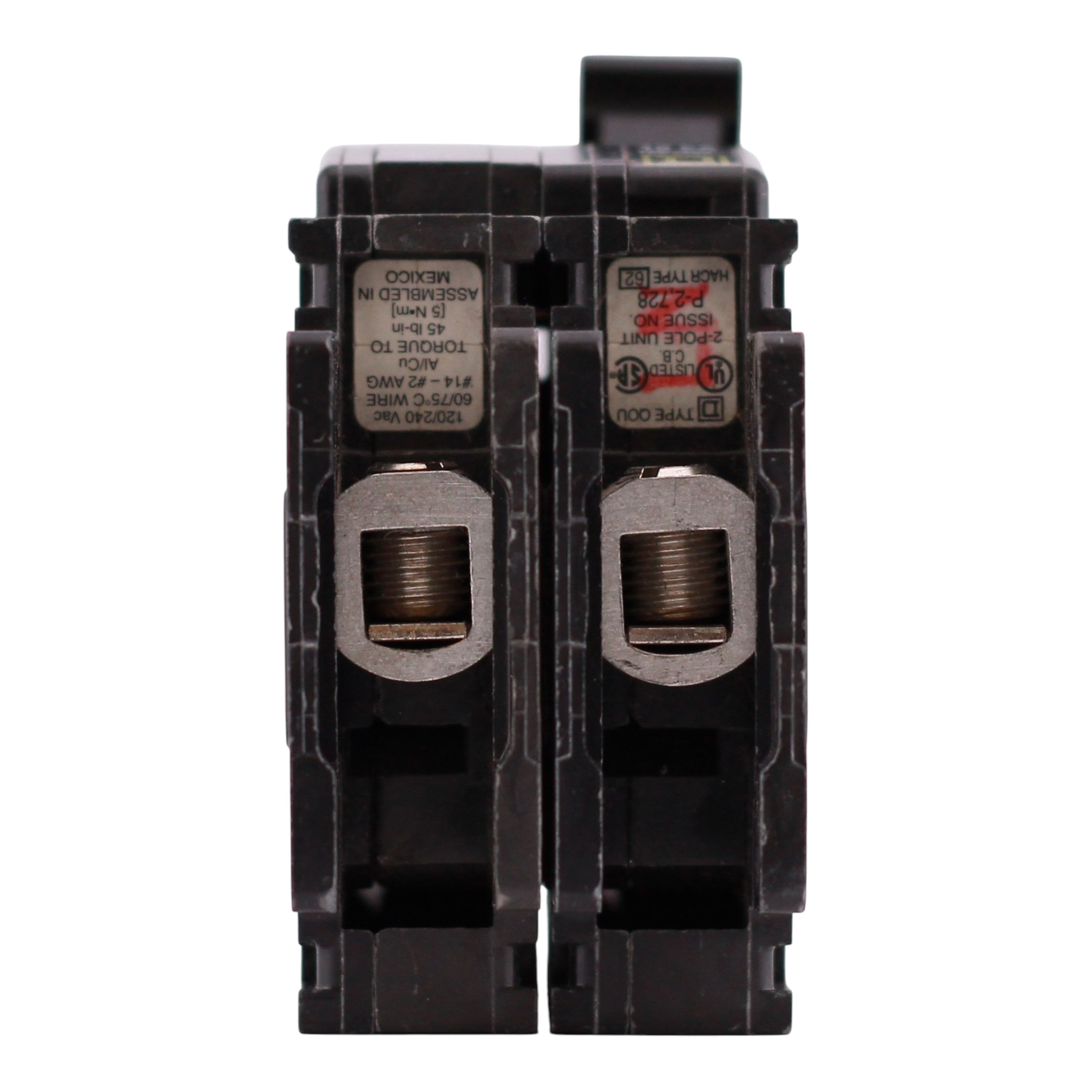

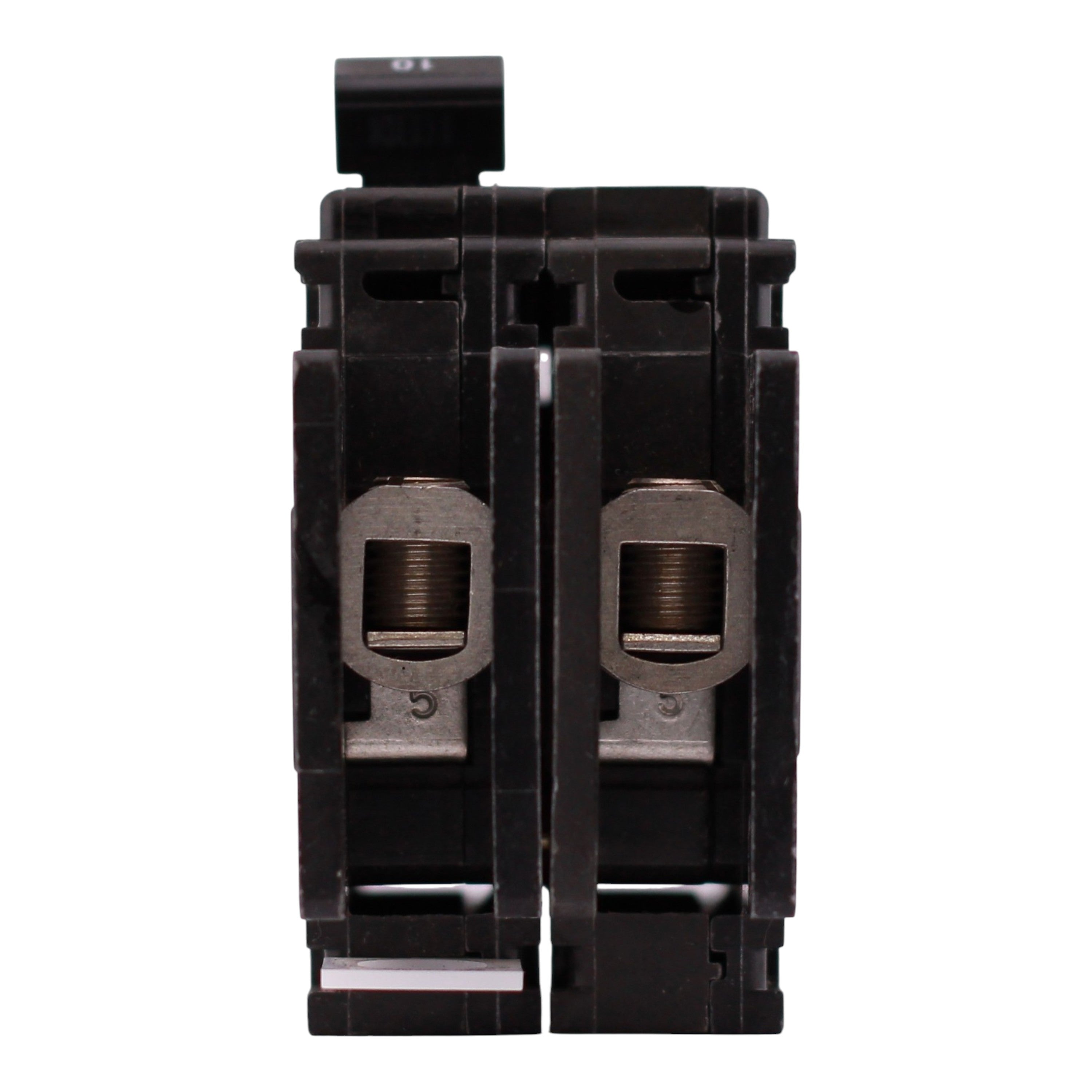

  • Connections Terminals: Slotted Box Lugs (line and load sides, reversible)
  • Wire Size: #14-2 AWG copper/aluminum
  • Tightening Torque: 45 lb-in for #14-2 AWG
  • Dimensions: Height: 4.45 in; Width: 1.5 in; Depth: 2.95 in
  • Weight: 0.74 lbs
  • Certifications: UL Listed, CSA Certified, IEC, HACR Rated

This Square D QOU210 miniature circuit breaker delivers dependable 10 Amp, 2-Pole protection for 120/240V AC circuits in residential and commercial applications. Designed for unit mount installation with 10kA interrupt rating and VisiTrip trip indication, it supports surface, flush, or DIN rail mounting for versatile installation options.
