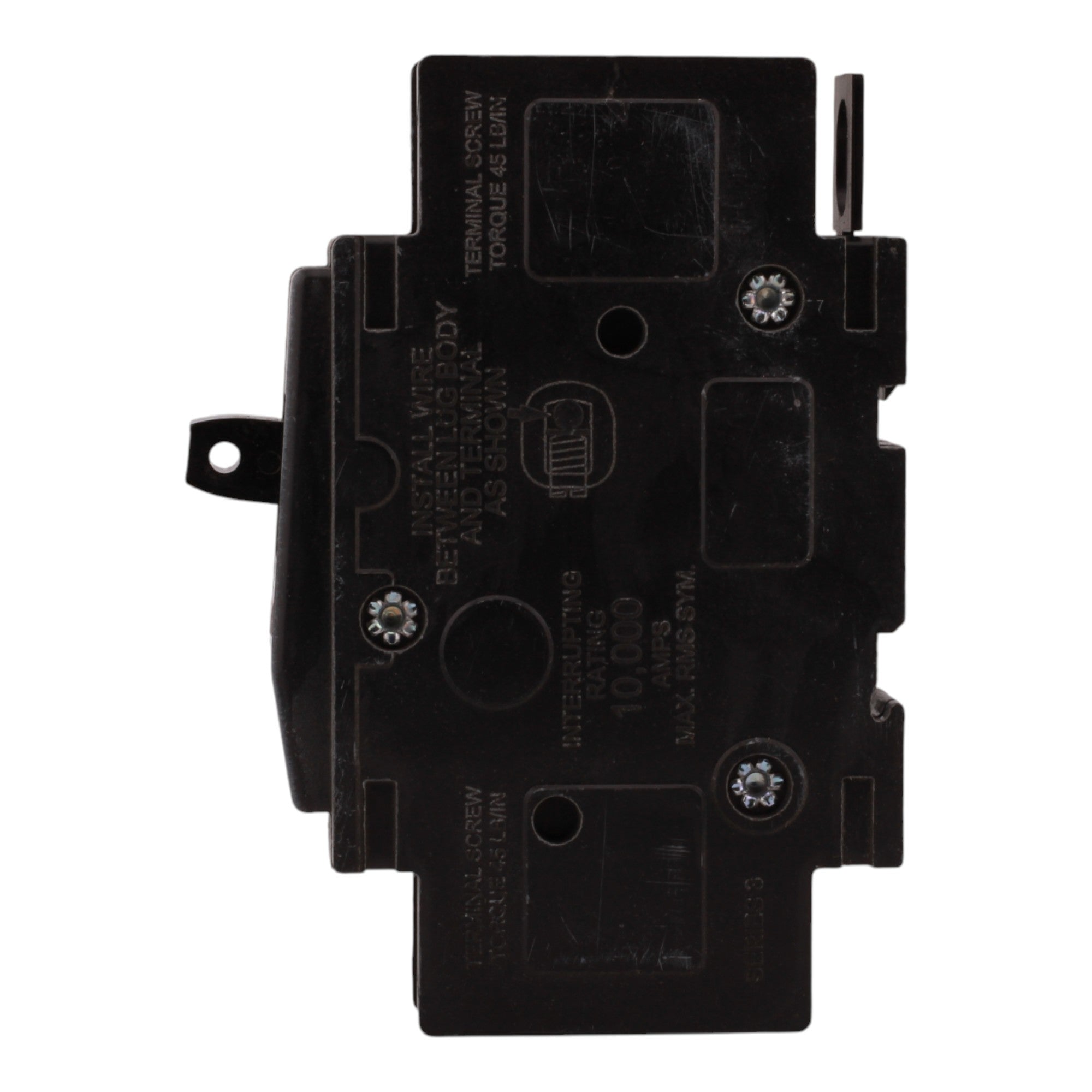

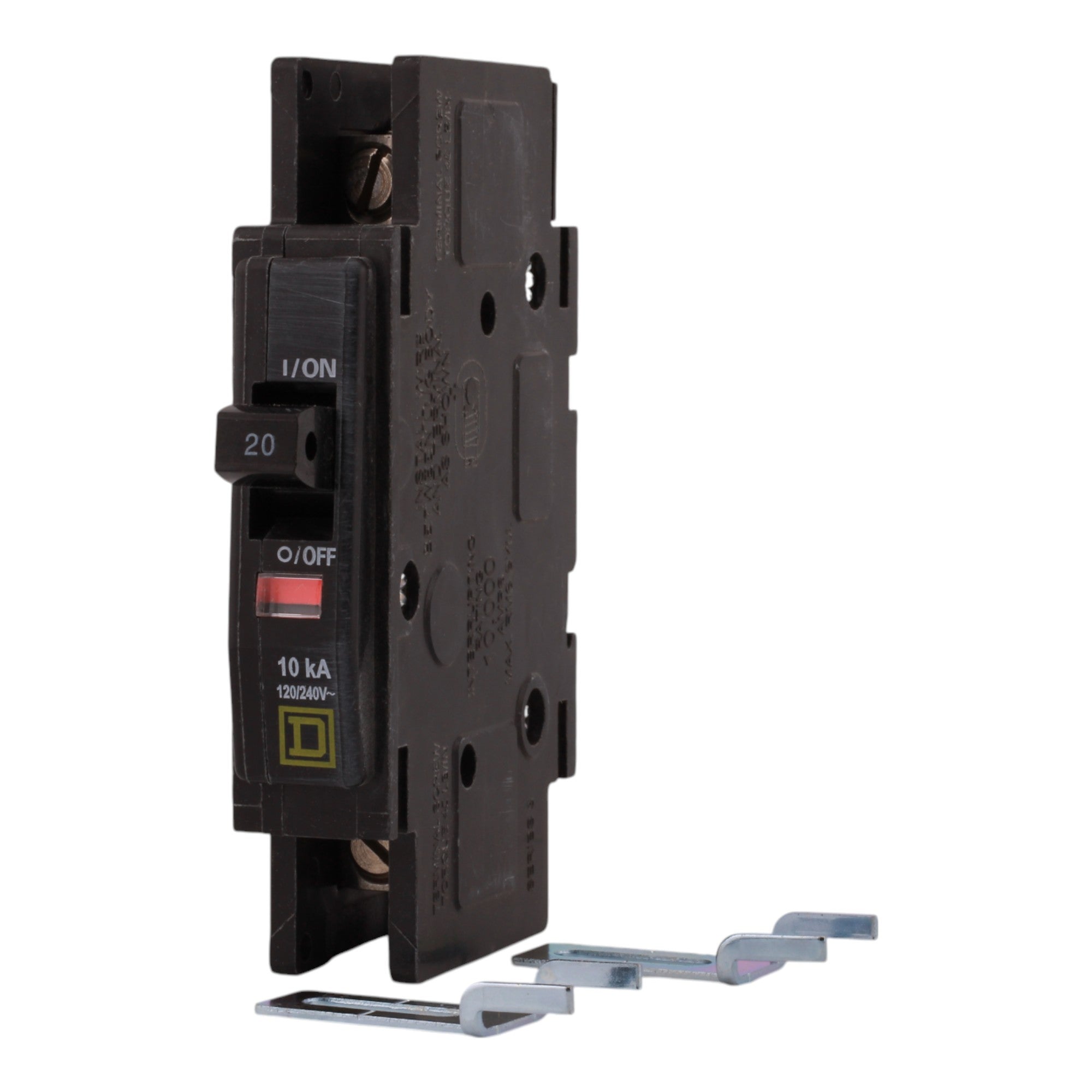

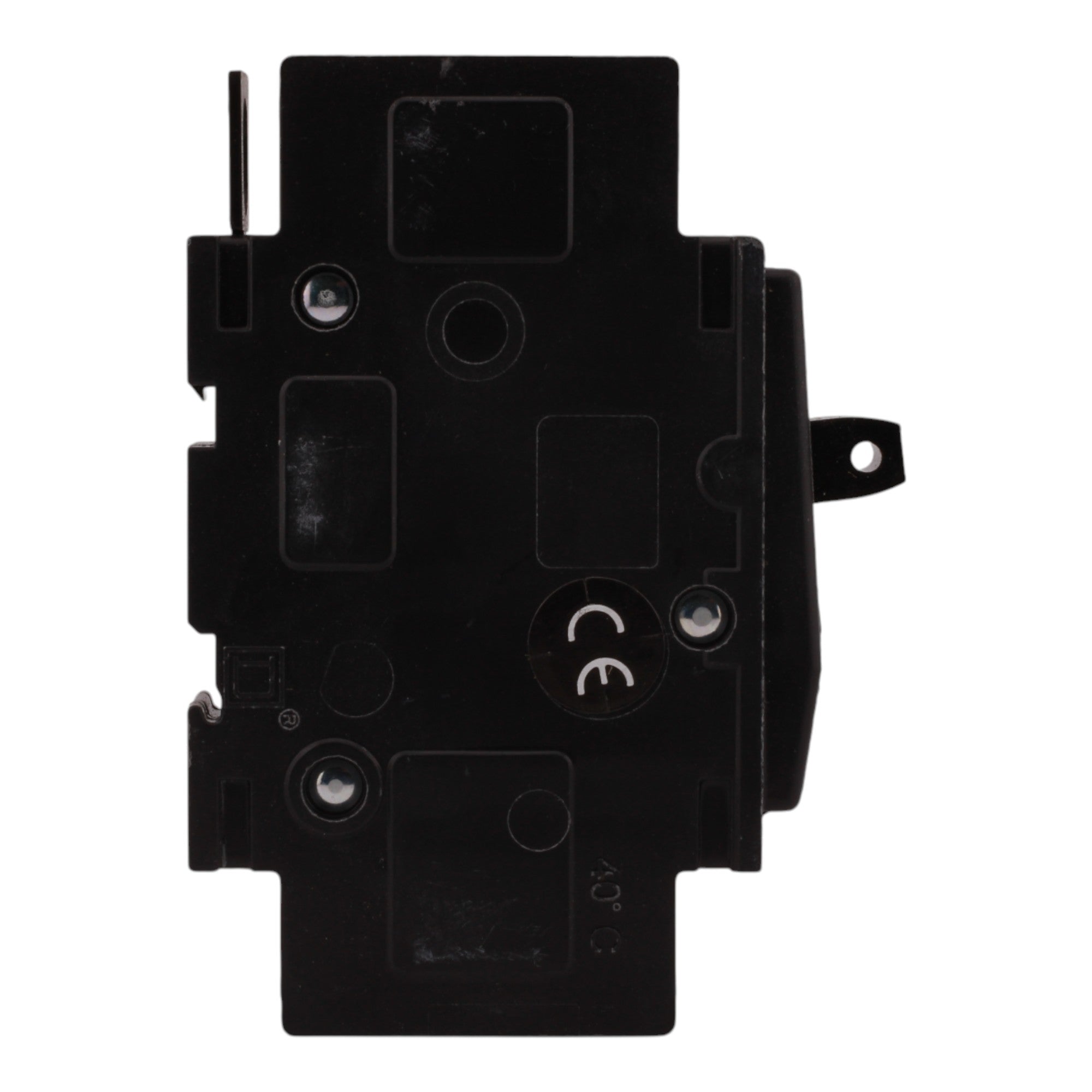

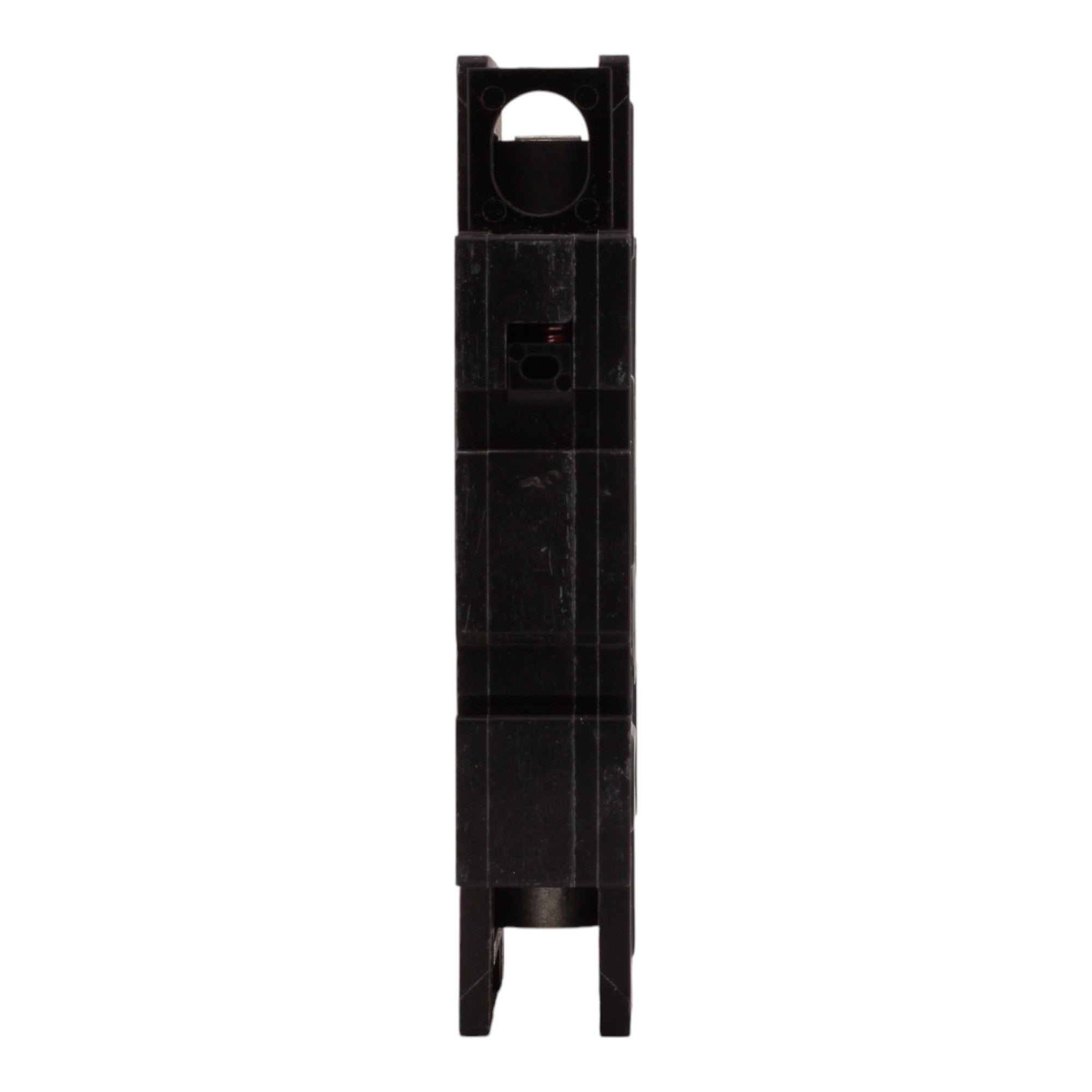

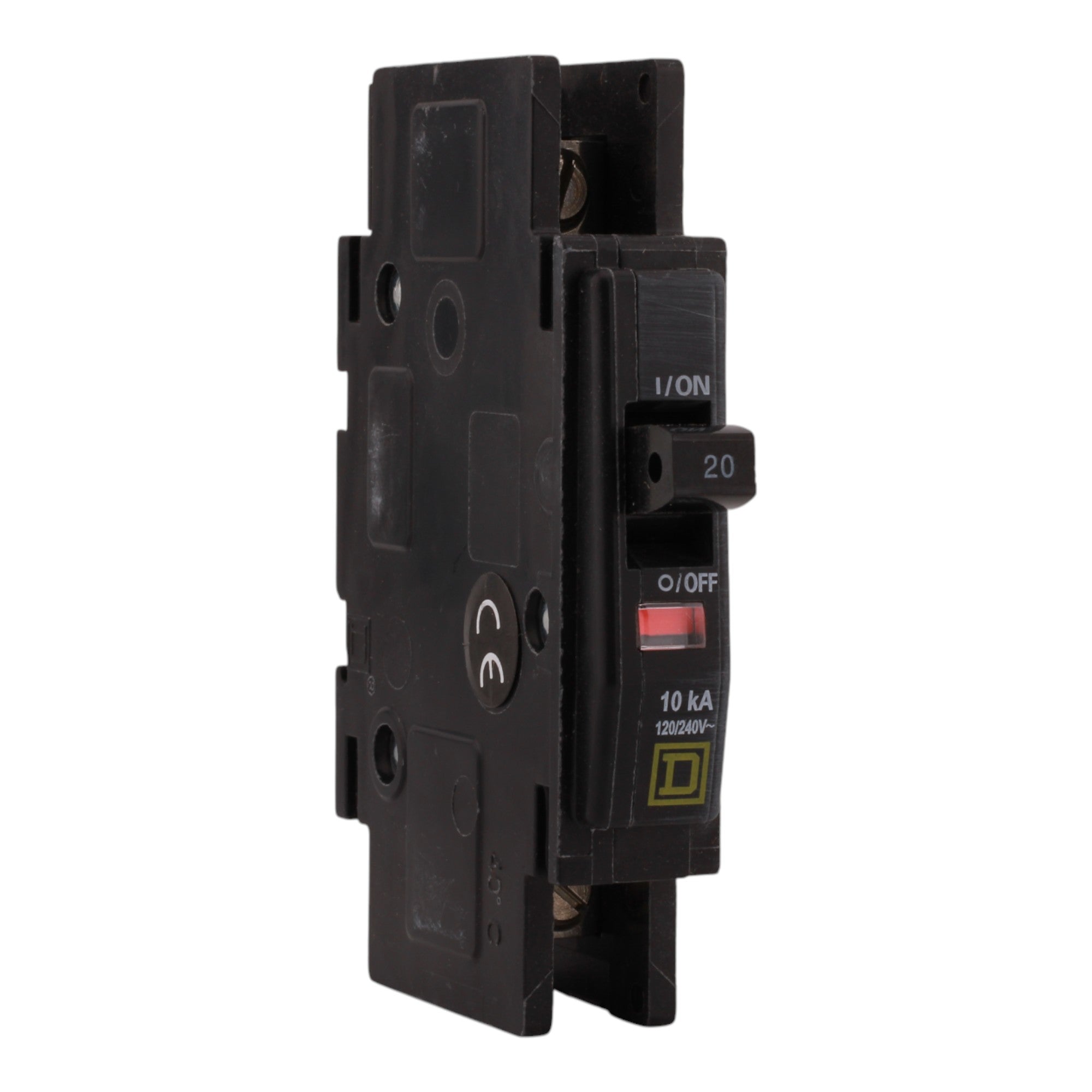

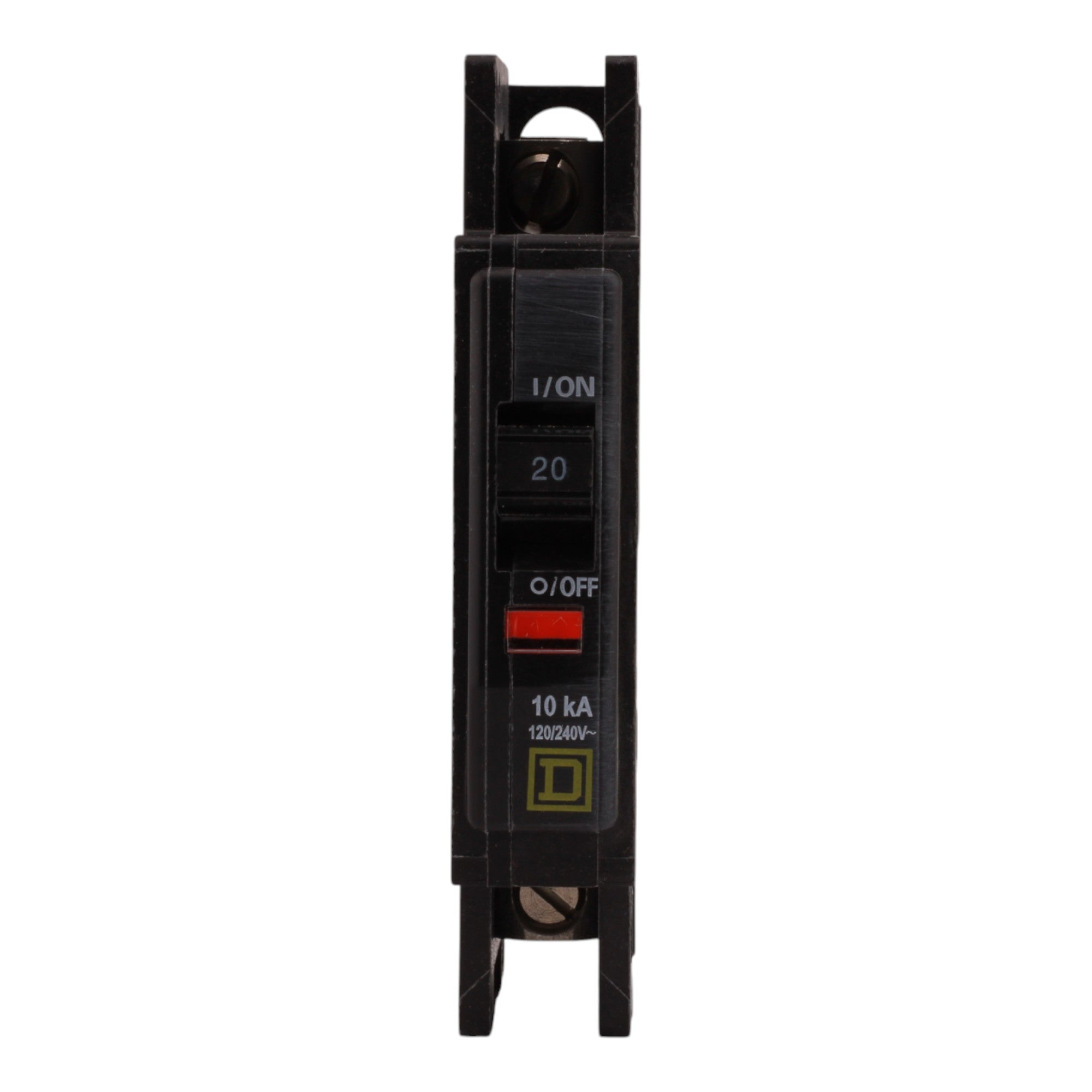

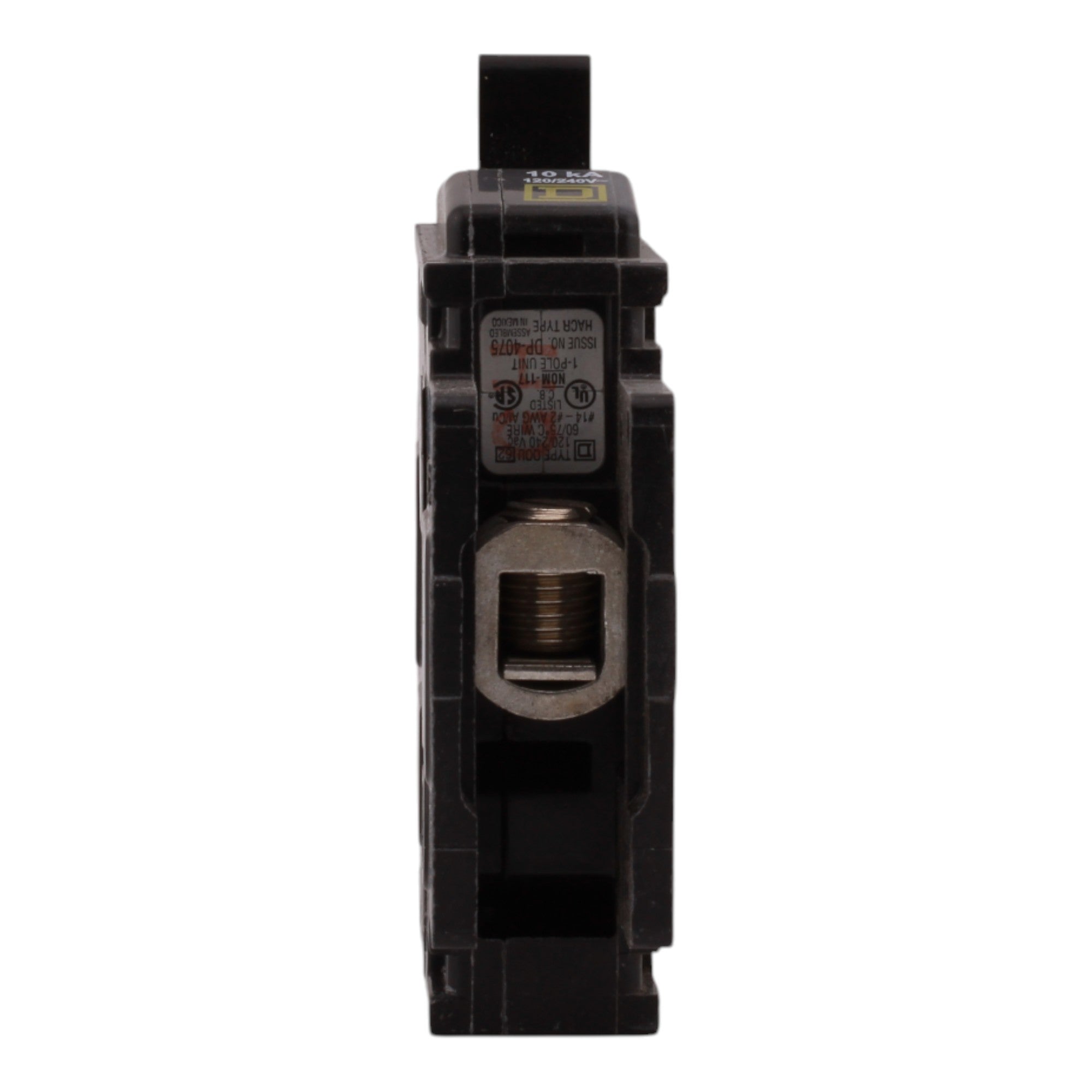

Square D QOU120 20A 1P 120/240V 10kA Miniature Circuit Breaker

Schneider Electric QOU120: 20 Amp Single-Pole Miniature Circuit Breaker, 120/240V AC, 10kA, HACR Rated, UL Listed

Product Specifications

• Manufacturer: Schneider Electric
• Model Number: QOU120
• UPC: 785901418535
• Product Type: Miniature Circuit Breaker (MCB)
• Series: QOU
• Circuit Breaker Type: Standard
• Amperage Rating: 20 Amps
• Poles: Single-Pole
• Voltage Rating:
  • 120/240V AC
  • 48V DC
• Interrupt Rating: 10 kA
• Application: HACR Rated
• Mounting Mode: Unit Mount
• Wire Compatibility:
  • AWG 14 to AWG 2 (Aluminum/Copper)
• Electrical Connections:

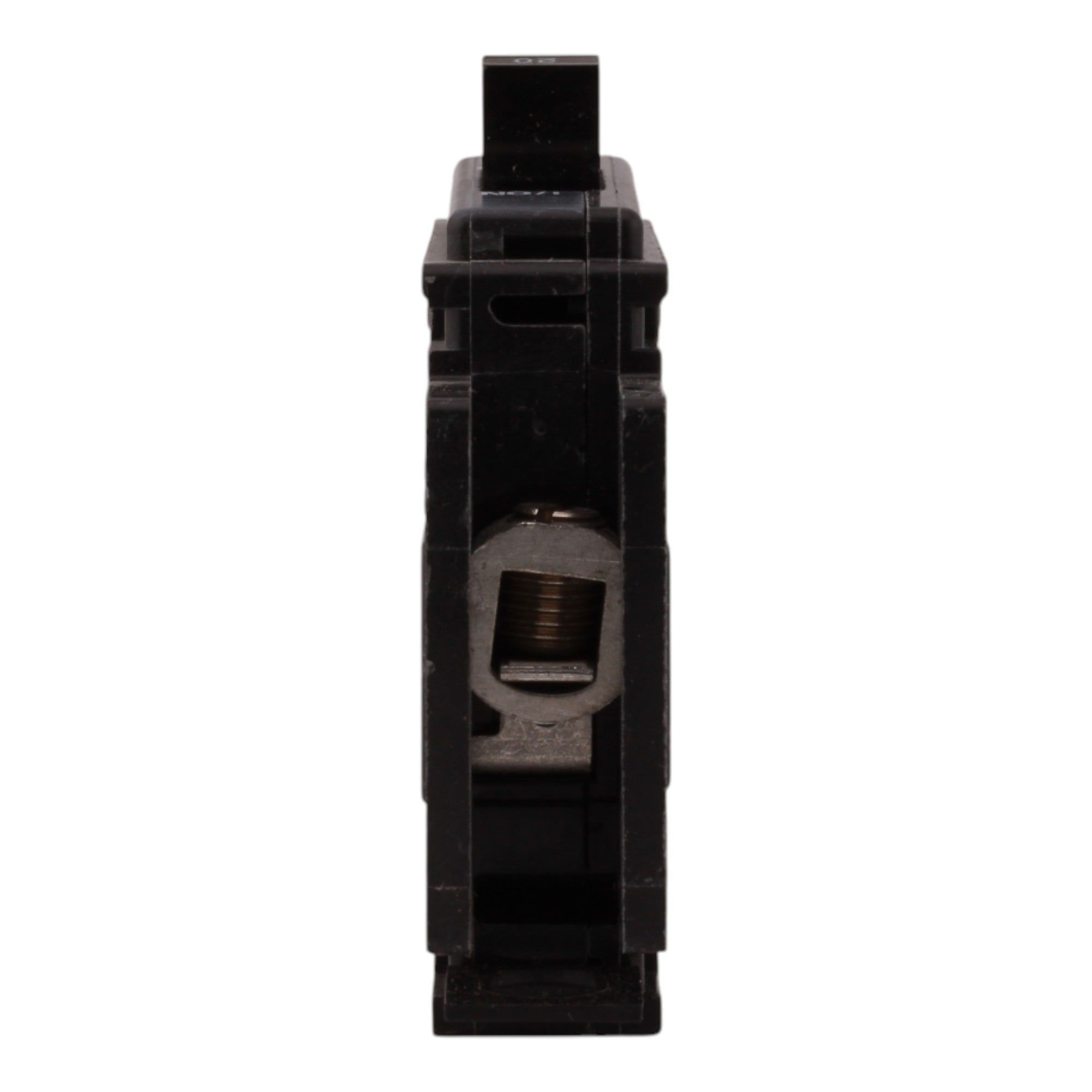

  • Slotted Box Lugs (Line Side)
  • Slotted Box Lugs (Load Side)
• Dimensions:
  • Height: 4.05 in (102.87 mm)
  • Width: 0.75 in (19.05 mm)
  • Depth: 2.95 in (74.93 mm)
• Tightening Torque: 45 lbf.in (5.08 N.m)
• Certifications:
  • UL Listed
  • CSA Certified
  • IEC Compliant
• Country of Origin: United States
• Warranty: 18 Months

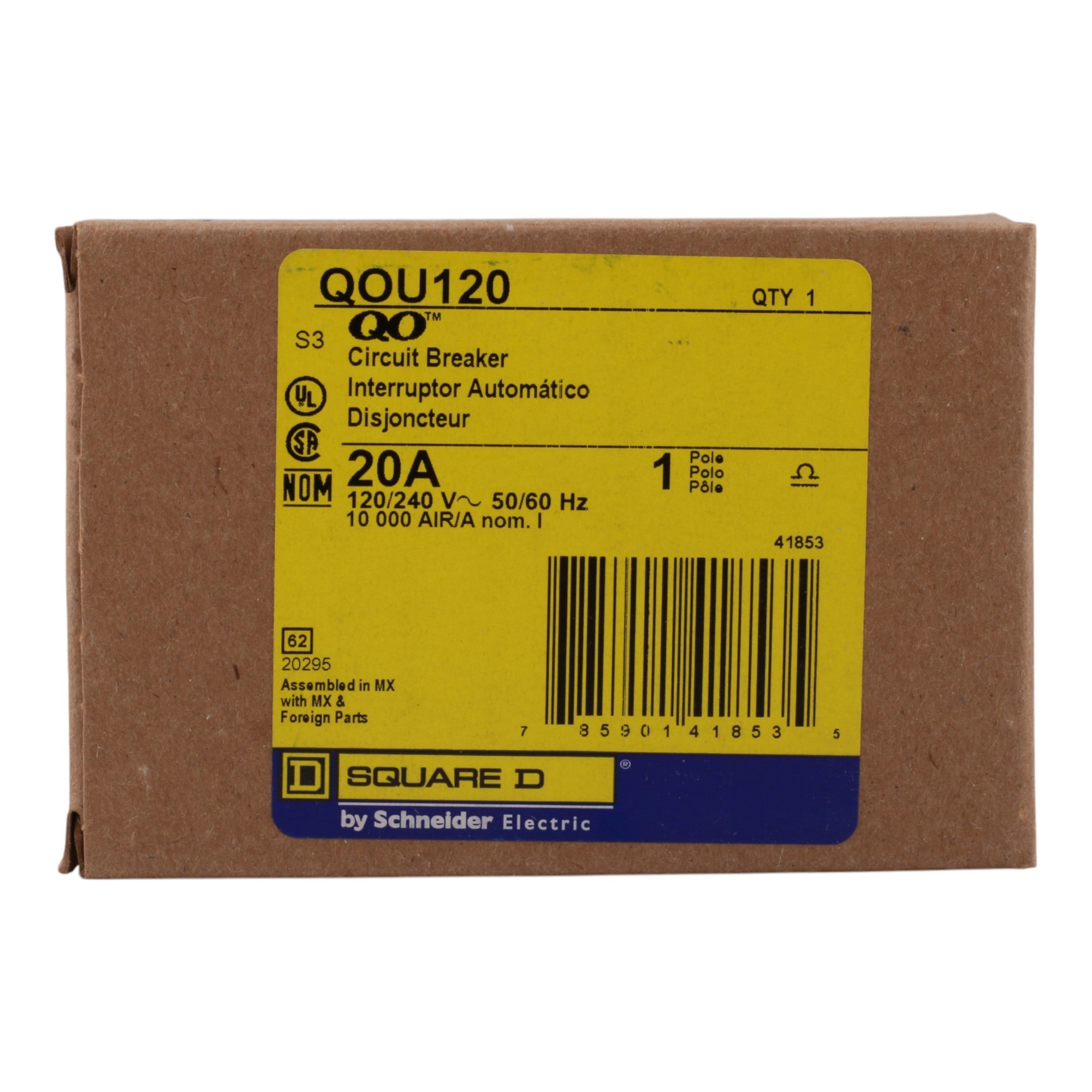

• Packaging:
  • Units per Package: 1
  • Package Dimensions: 4.50 x 1.00 x 3.10 in
  • Package Weight: 5.920 oz (167.829 g)
