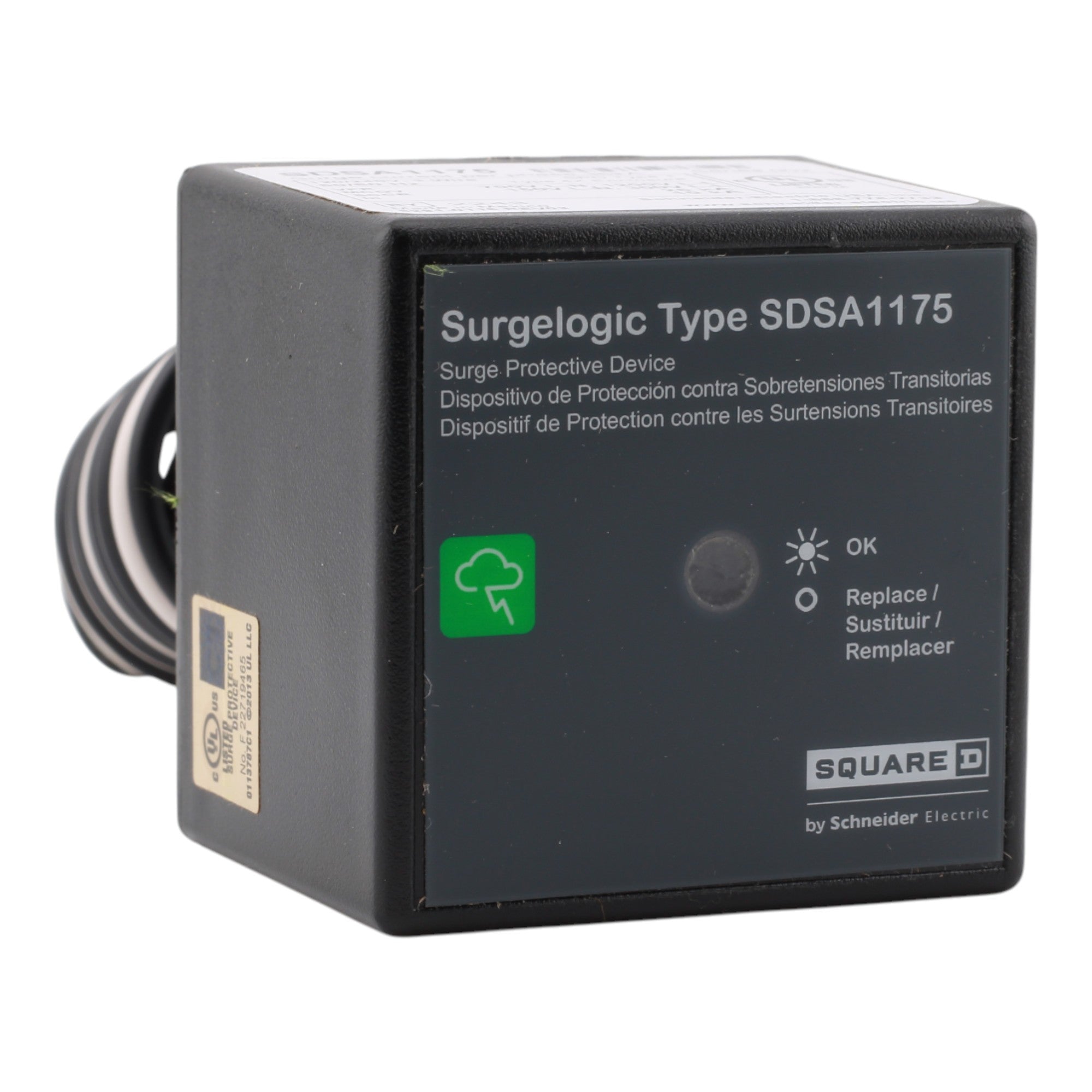

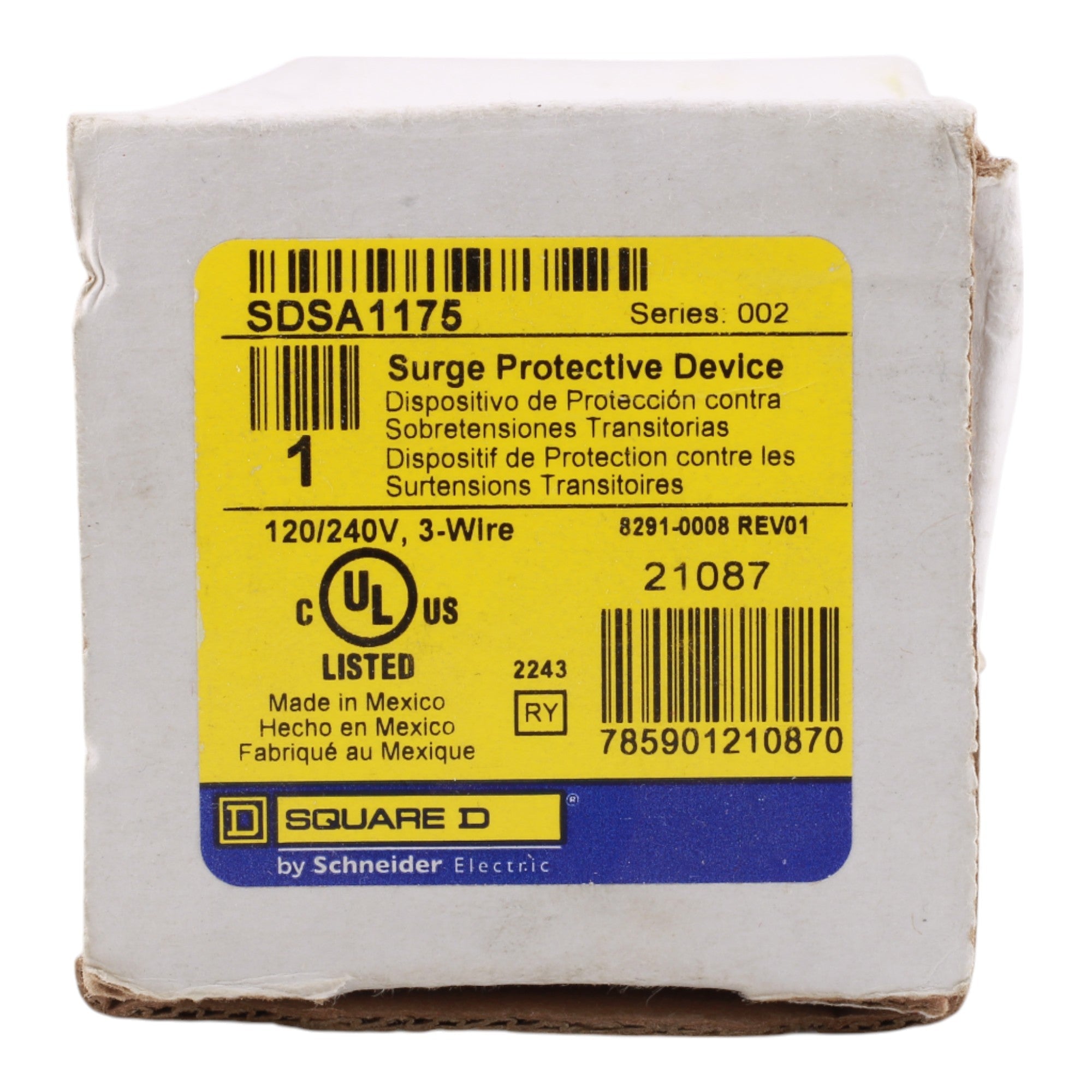

Square D Surgelogic SDSA1175 36kA 120/240V Type 1 SPD

Square D SDSA1175: Type 1 surge protection device, 36kA per phase, 120/240V AC single-phase, NEMA 4X rated, 25kA SCCR, LED status indicator, for indoor/outdoor use.

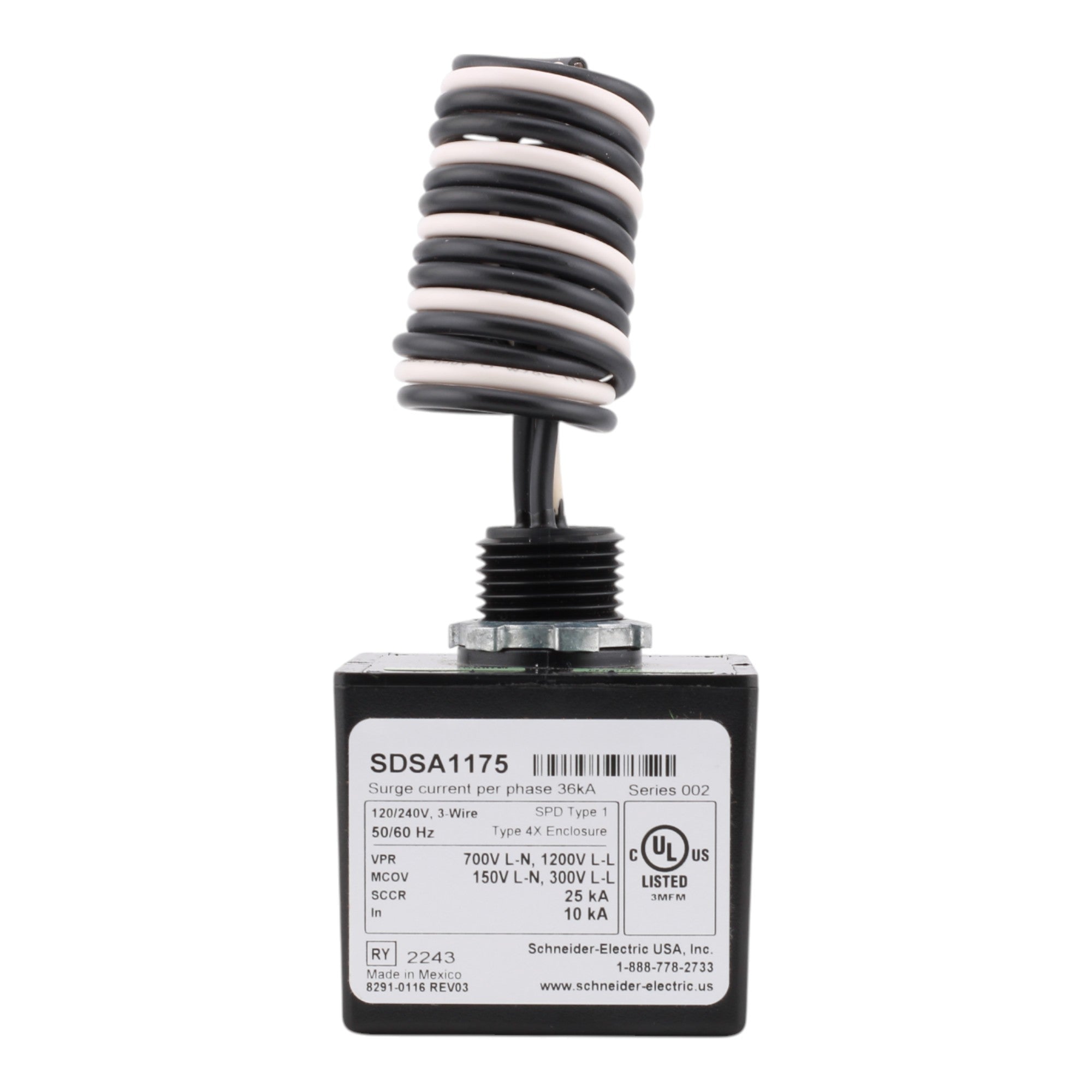

SDSA1175 specifications

• Manufacturer: Schneider Electric
• Brand: Square D
• Model Number: SDSA1175
• UPC: 785901210870
• Product Type: Type 1 Surge Protection Device
• Product Line: Surgelogic
• Voltage Rating: 120/240V AC
• Maximum Continuous Operating Voltage: 150V
• Surge Current: 36kA per phase
• Nominal Discharge Current: 10kA
• Short Circuit Current Rating: 25kA
• Number of Phases: 1 phase
• Wiring Configuration: 3-wire

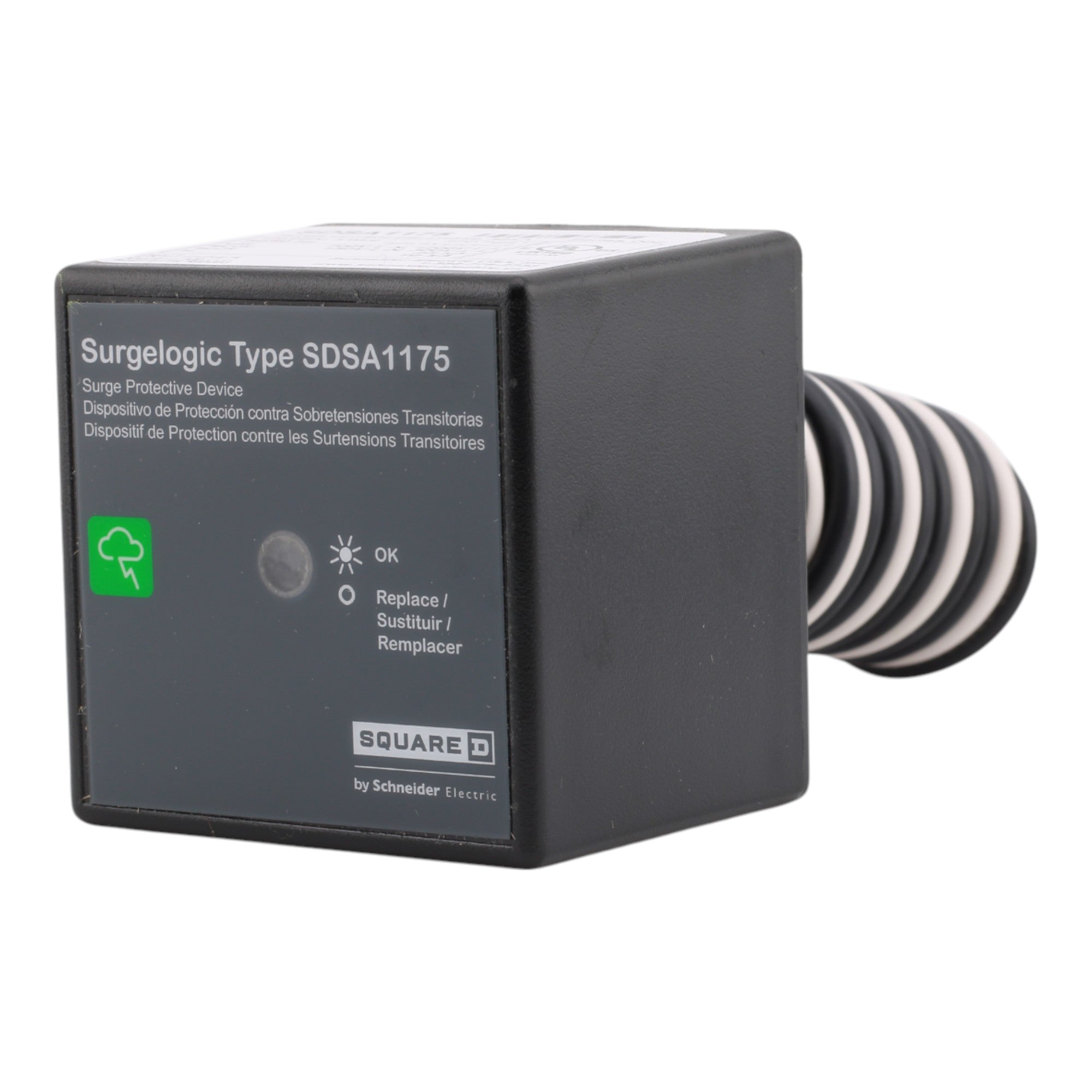

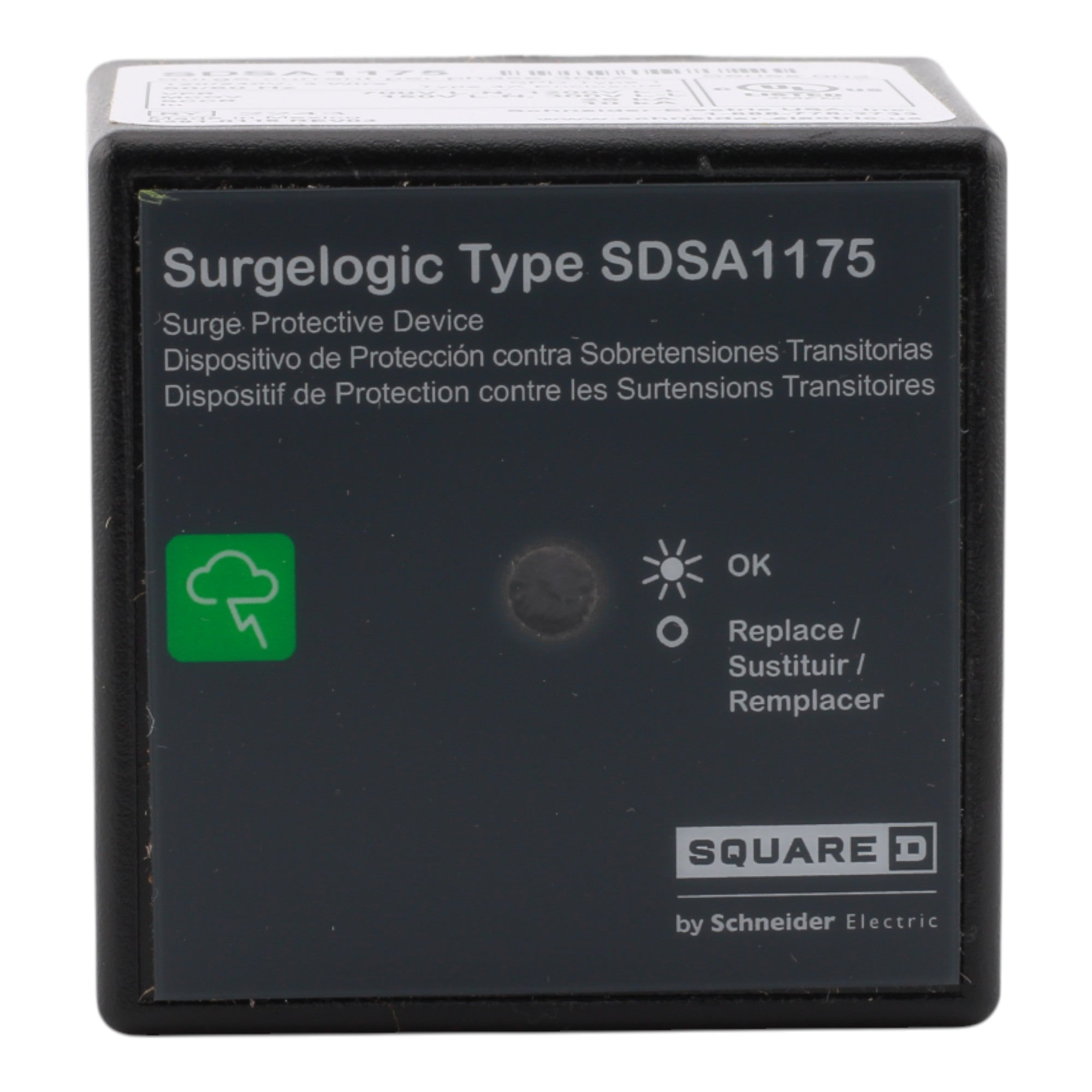

• Indicator: Status LED (green for normal operation)

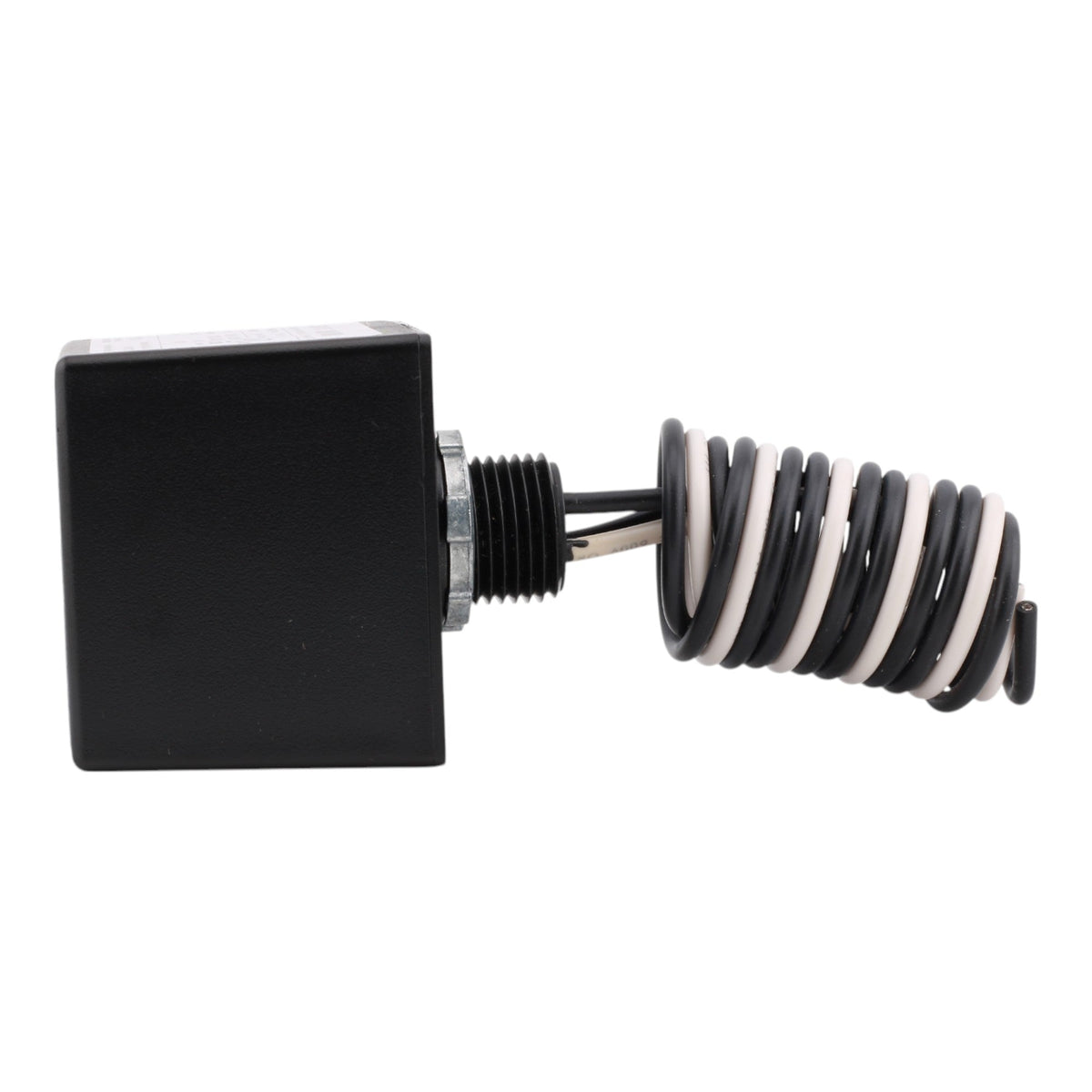

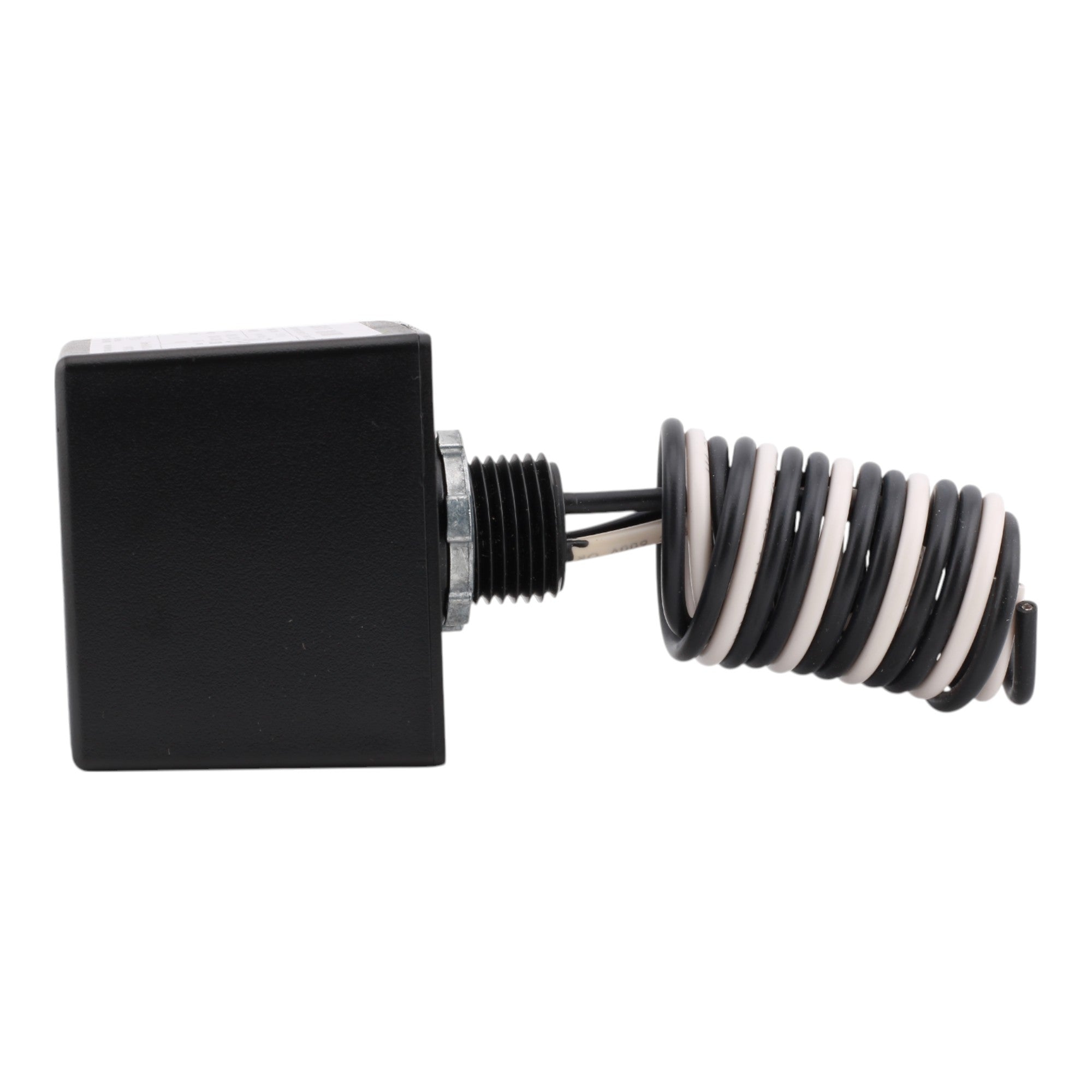

• Cable Length: 24 in
• Enclosure Rating: NEMA 4X
• Enclosure Material: Black Plastic
• Dimensions: Height: 2.25 in; Width: 2.25 in; Depth: 2.7 in
• Weight: 11.68 oz

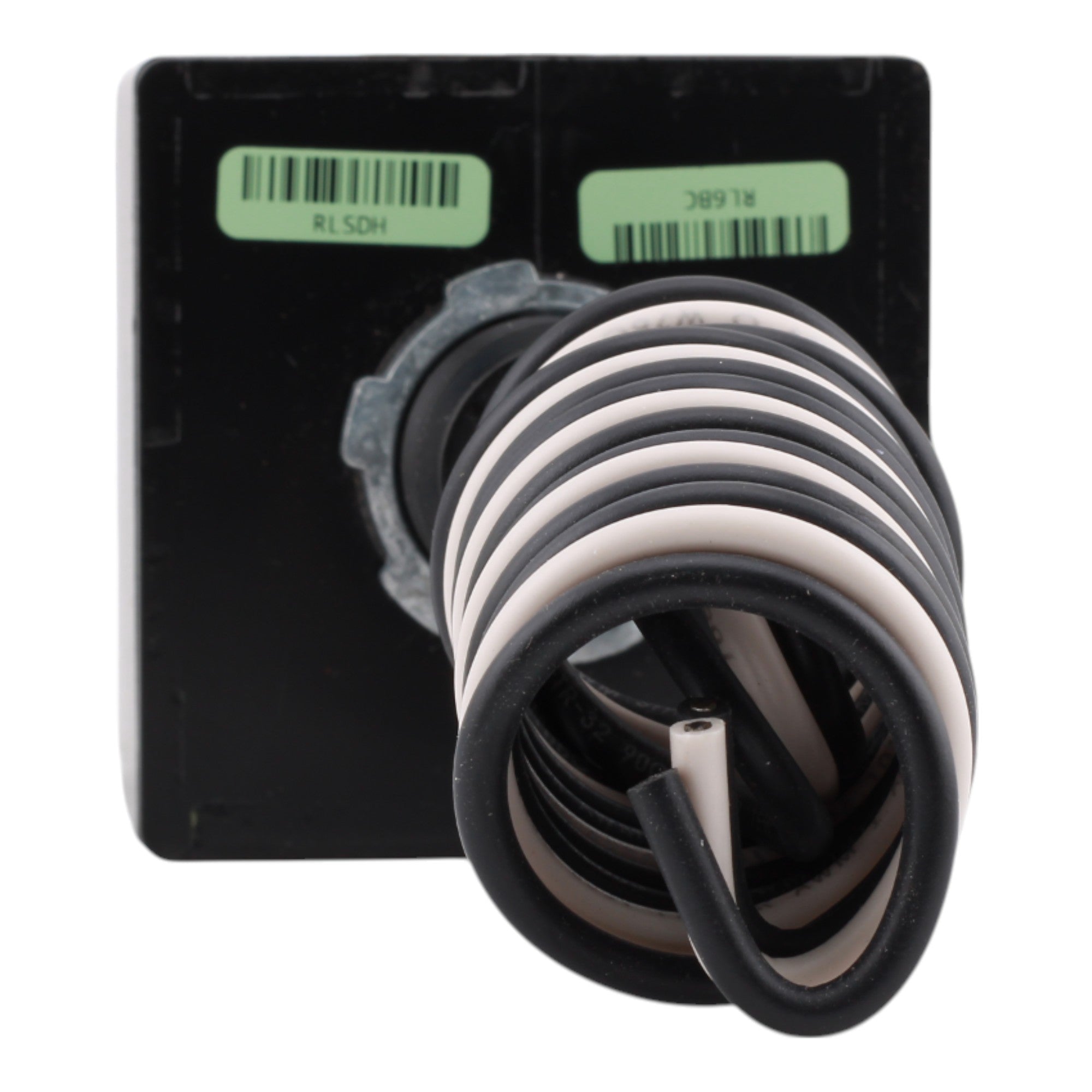

• Mounting: Back nipple mounting
• Operating Temperature: Up to 149°F (65°C)

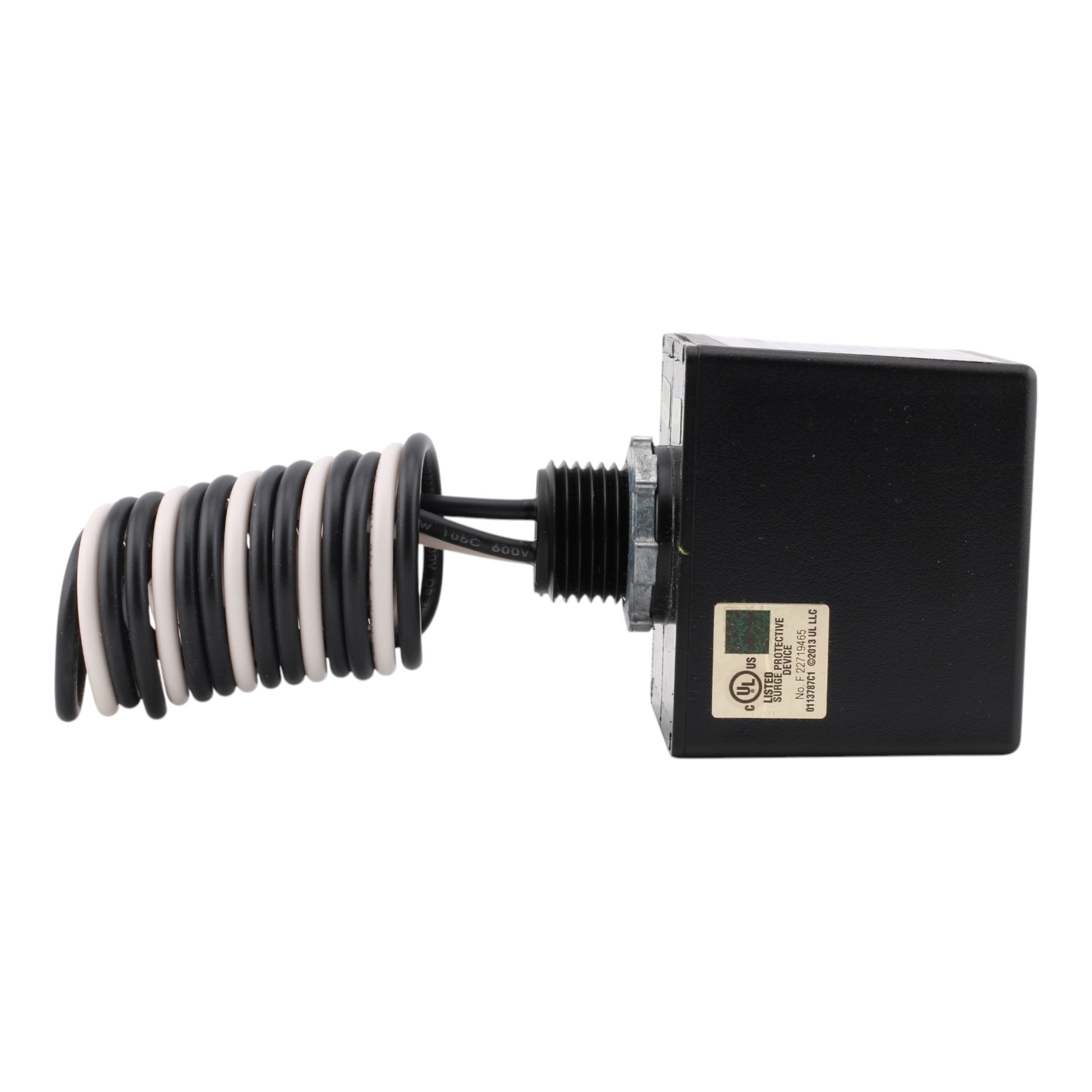

• Standards: UL 1449


  . 4: type 1, NEC 285, CSA C22.2 No 8
• Application: Indoor or outdoor use
