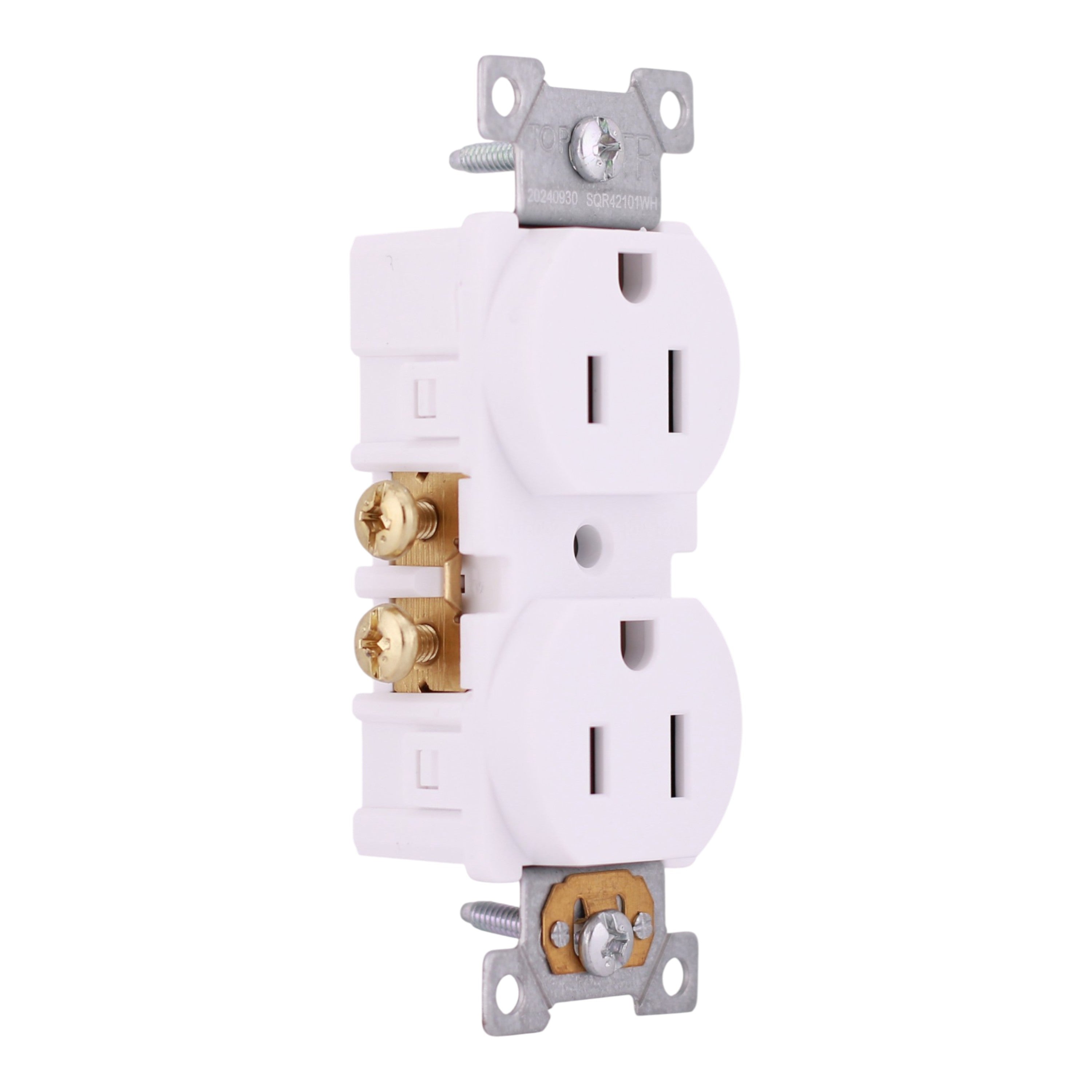

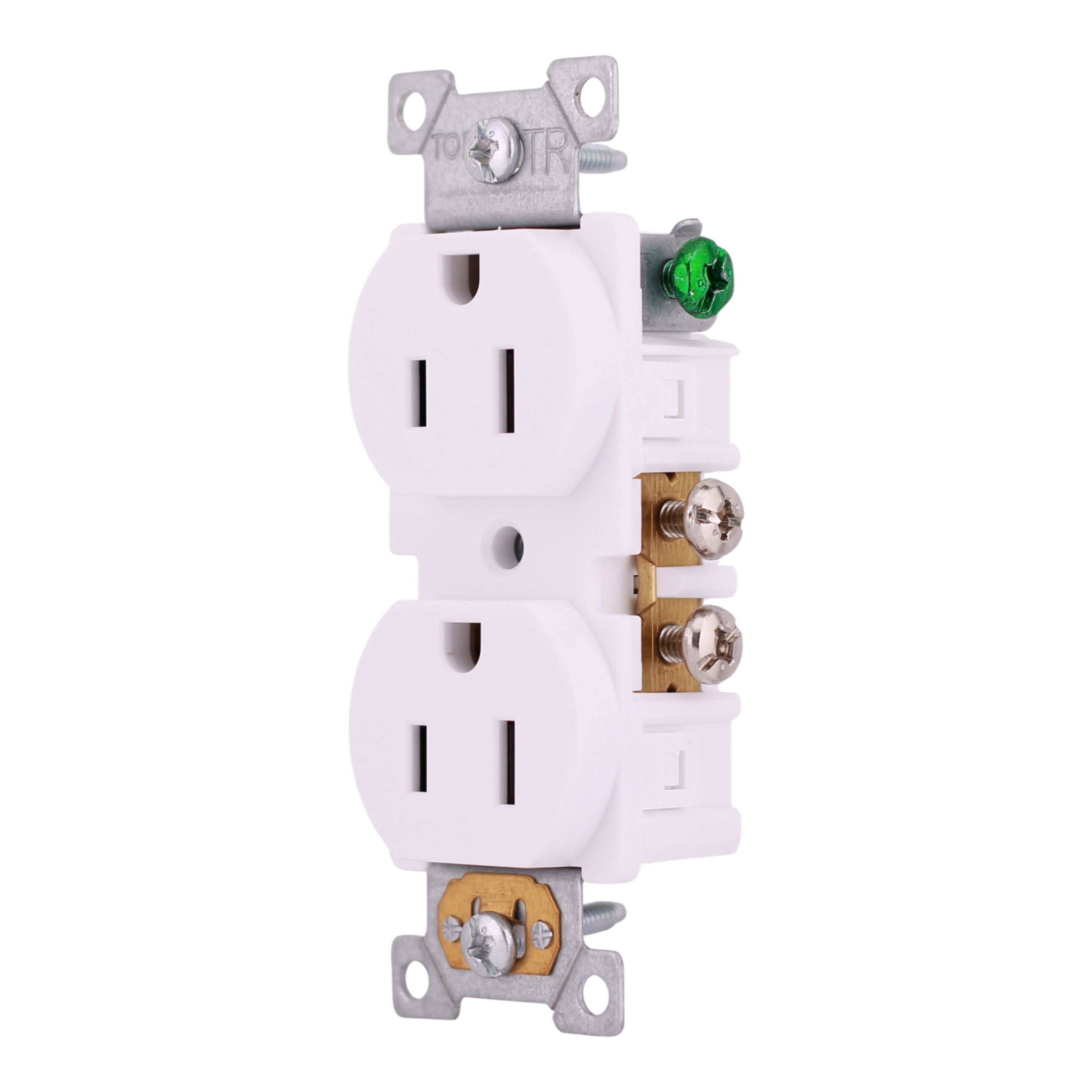

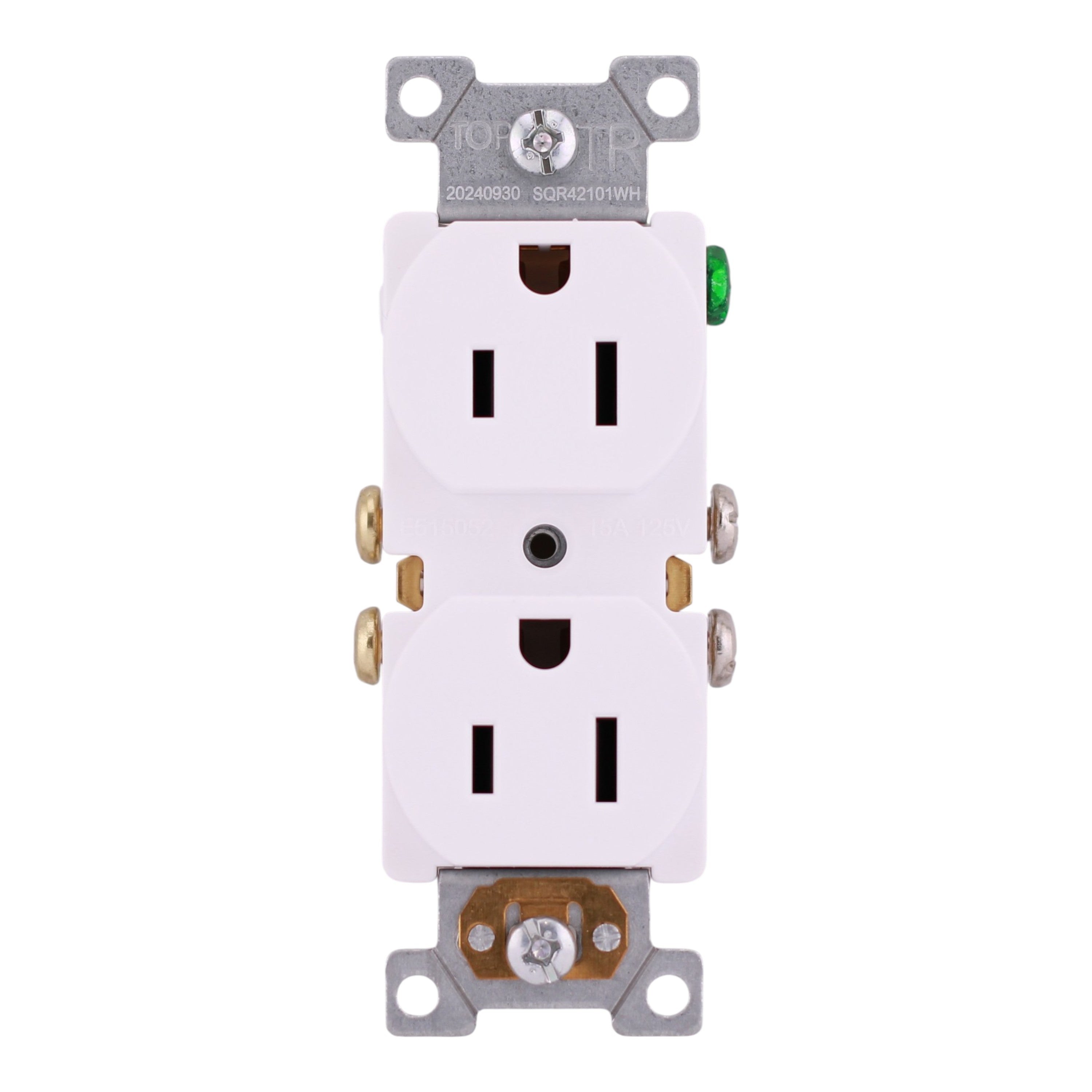

Square D X Series, SQR42101WH, 15A, 125V, TR, Standard Duplex Receptacle, White

SQR42101WH specifications

• Manufacturer: Schneider Electric
• Brand: Square D (Schneider Electric)
• Product Range: X Series Wiring Devices
• UPC: 785901535270
• Model Number: SQR42101WH
• Device Type: Duplex Standard Receptacle (Socket-Outlet)
• Amperage: 15 Amps
• Voltage: 125 Volts AC
• Outlet Standard: NEMA 5-15R
• Poles/Configuration: 2P + E (2-Pole with Ground)
• Number of Outlets: 2
• Number of Gangs: 1-Gang
• Safety Features: Tamper Resistant (TR)

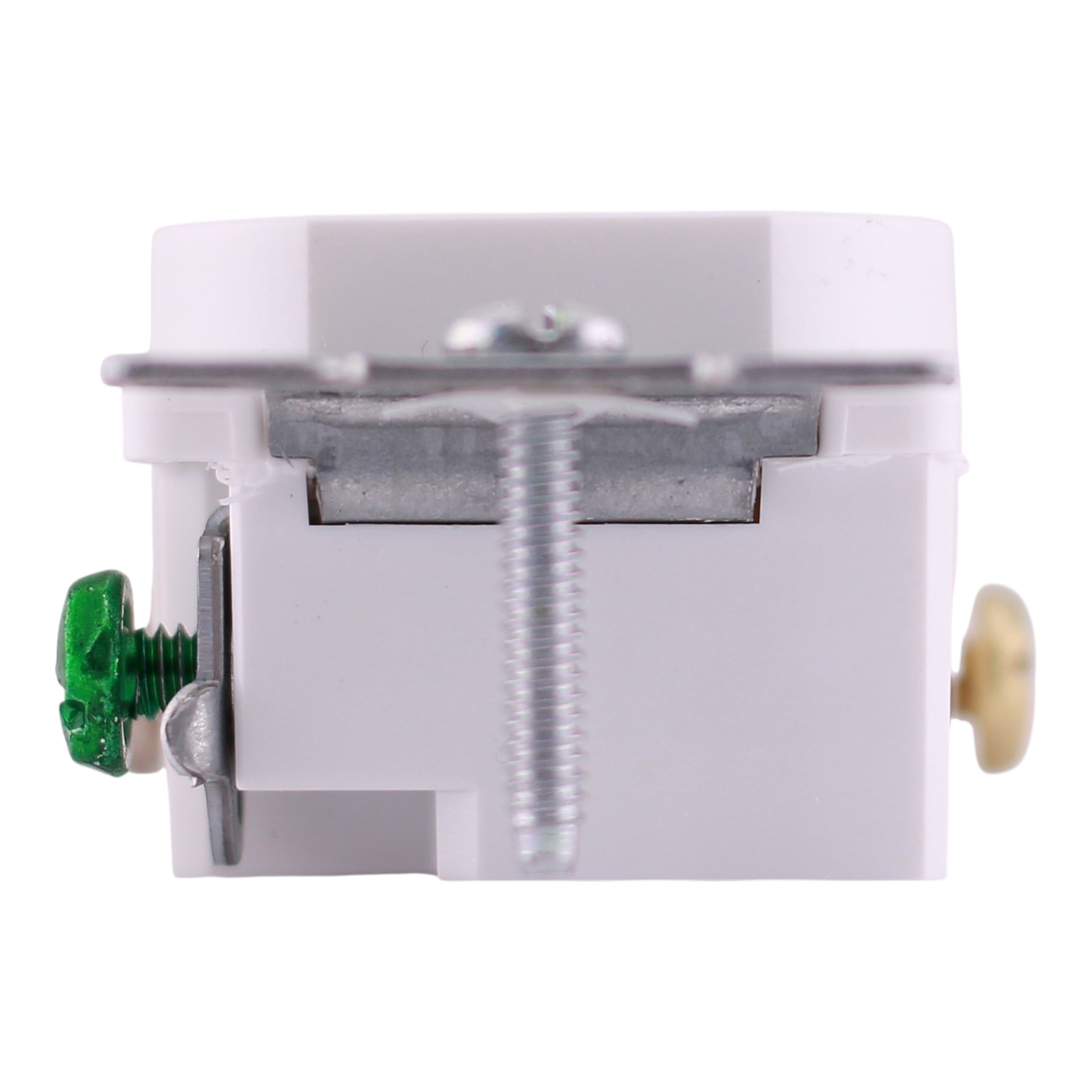

• Grounding: Self-grounding

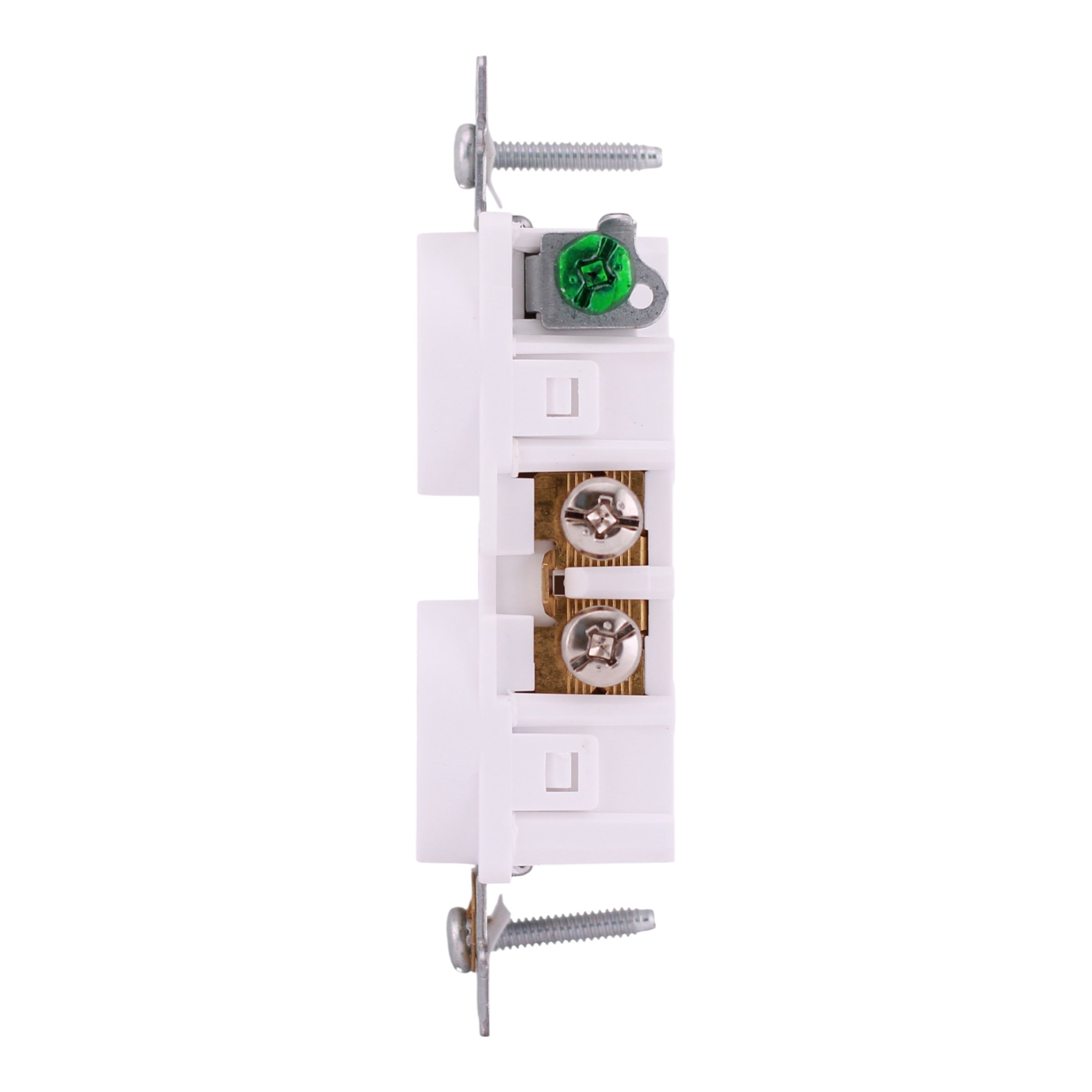

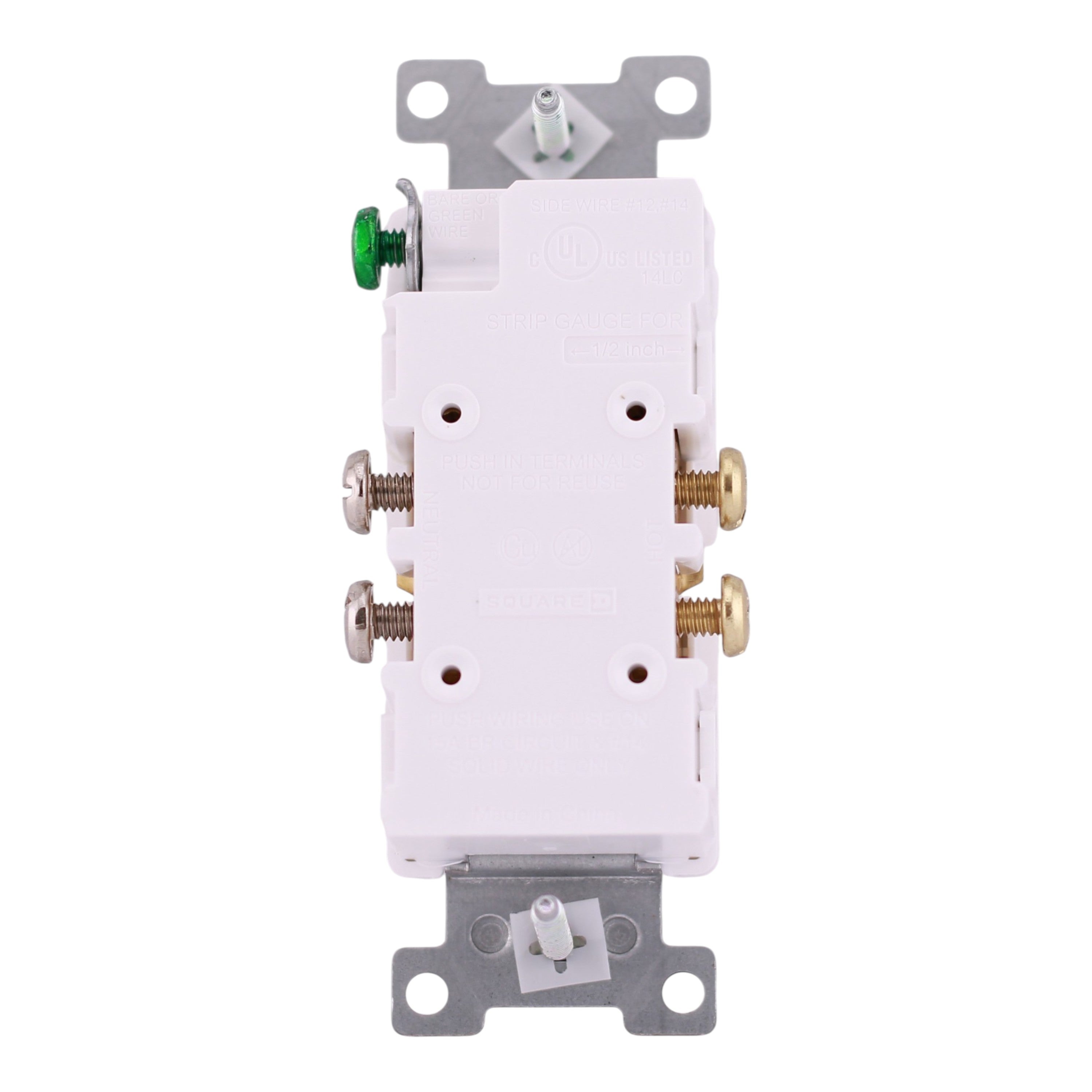

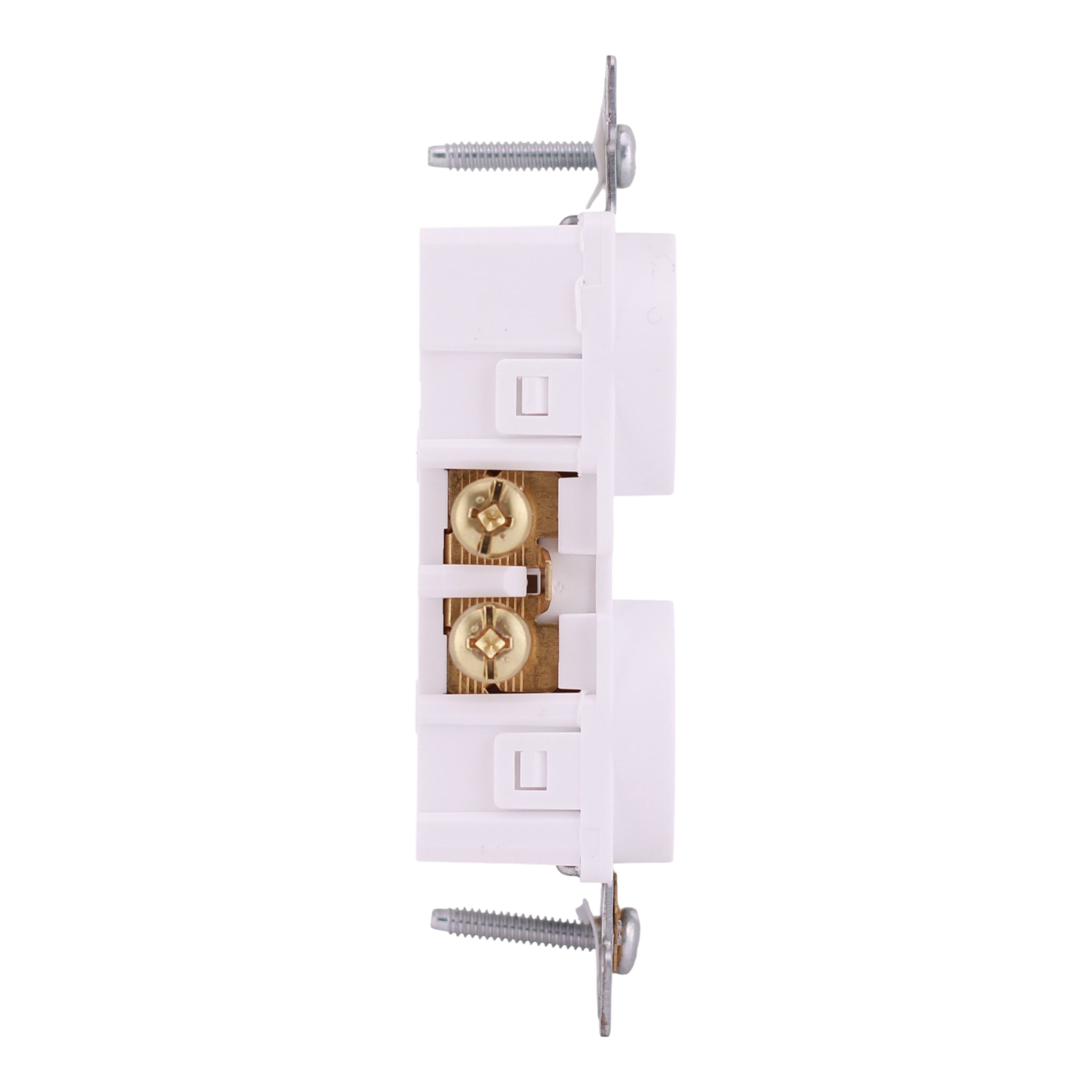

• Connections: Phase & neutral — 4 screw terminals (#14–12 AWG Cu) or 4 push-in terminals (#14 AWG solid Cu); Earth — 1 screw terminal
• Color: White, Matte Finish
• Material: Impact-resistant thermoplastic
• Wall Plate: Required, sold separately
• Dimensions: Height: 4.06 in; Width: 1.5 in; Depth: 1.06 in
• Weight: 2.6 oz (0.16 lbs)
• Certifications: cULus Certified, UL 498, NEMA 5-15R

This Square D SQR42101WH tamper resistant standard duplex receptacle delivers reliable 15A, 125V power supply for residential indoor applications in X Series 1-gang installations. With push-in terminals, self-grounding clip, and discrete tamper-resistant shutters, it ensures fast, safe installation in living areas, bedrooms, and hallways.
