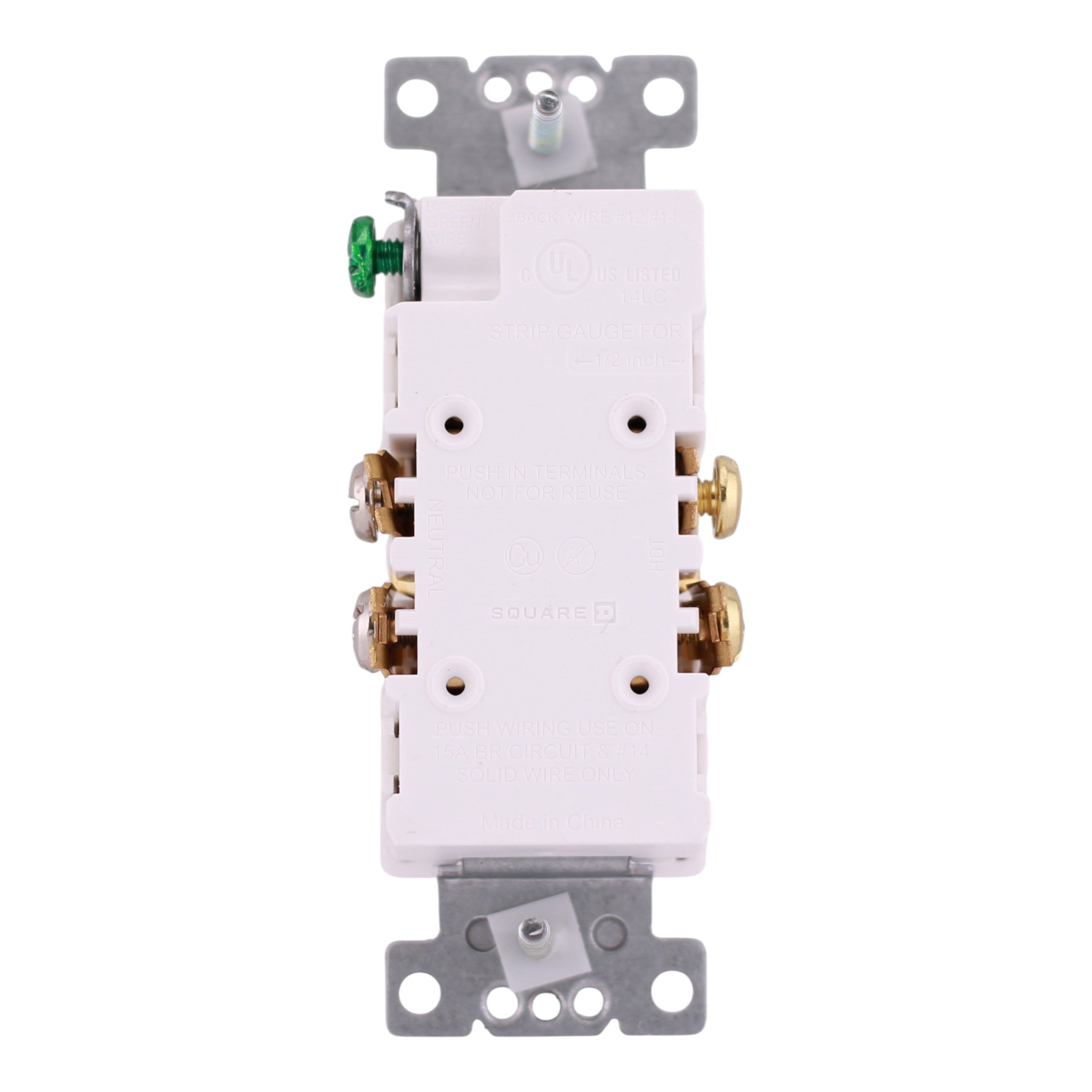

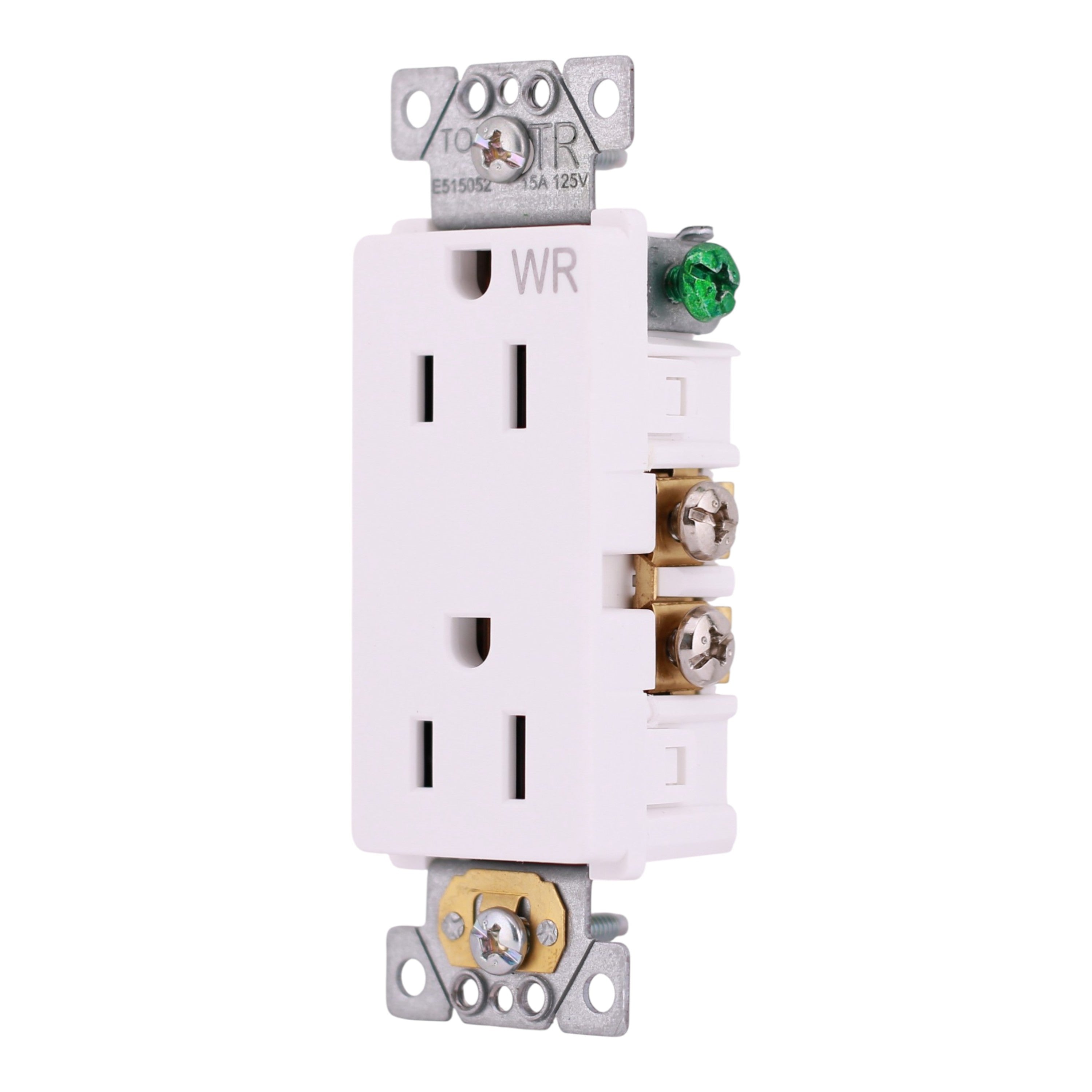

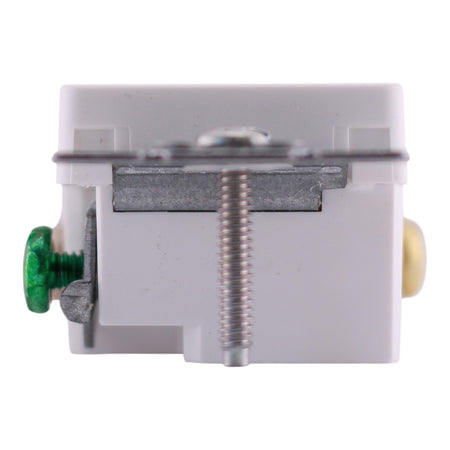

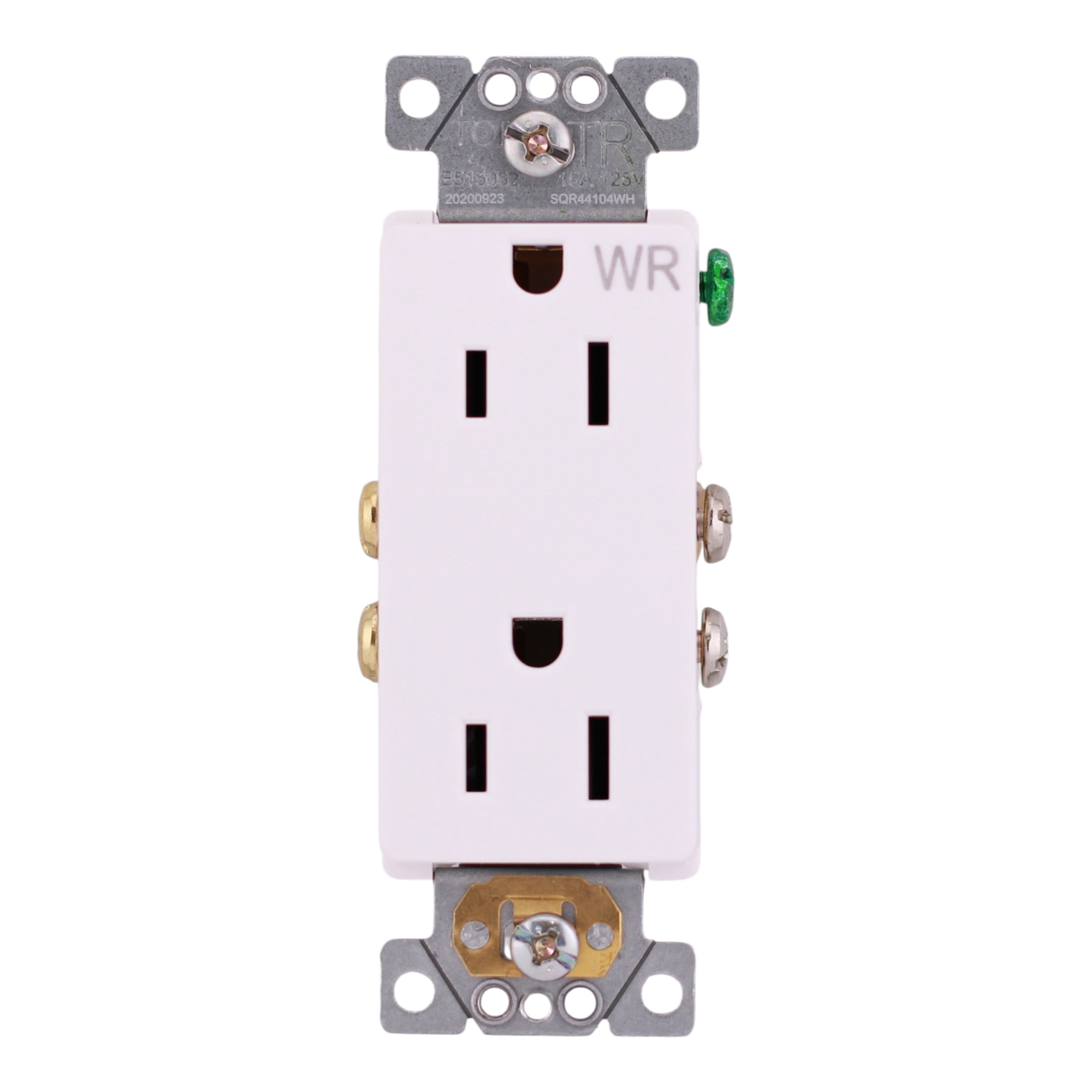

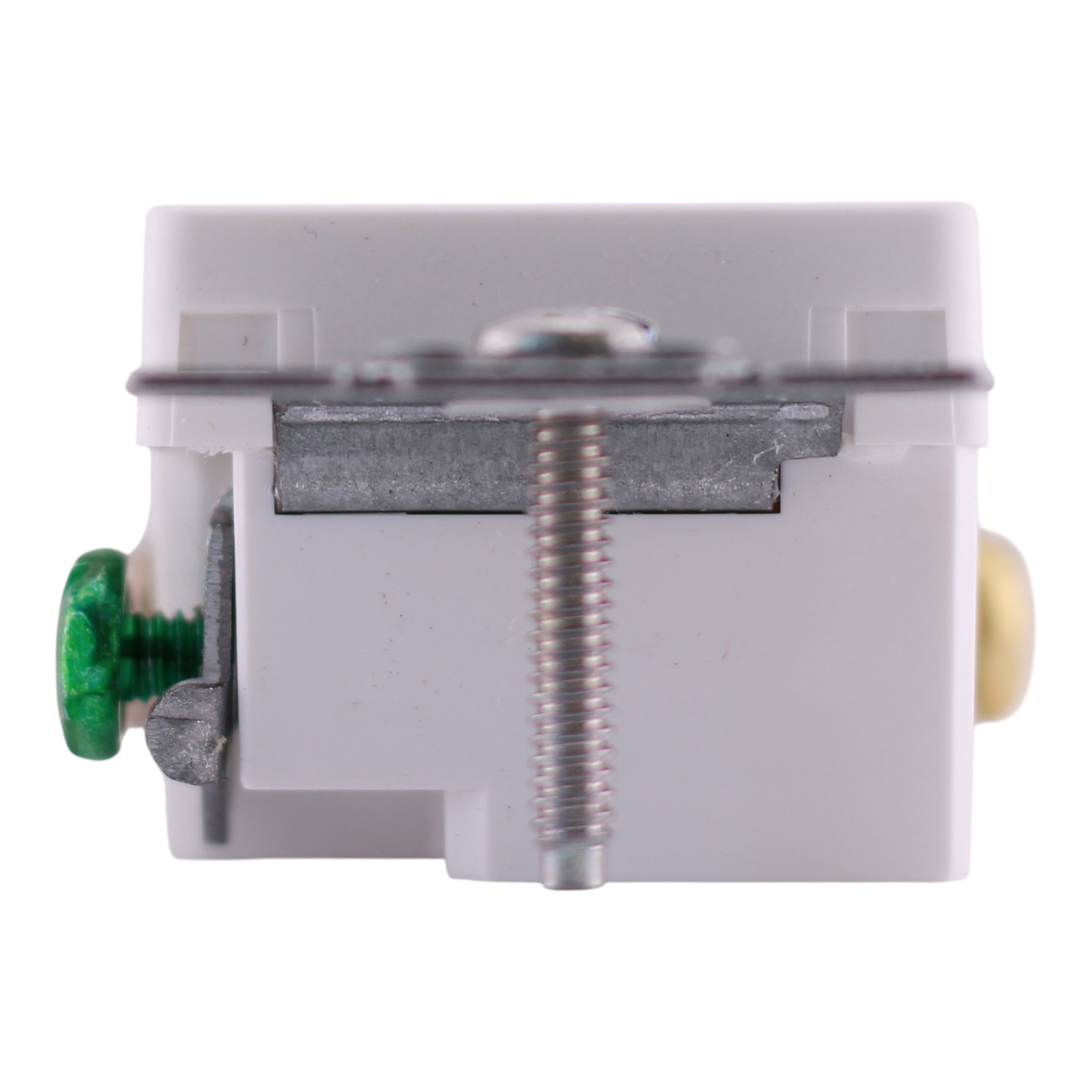

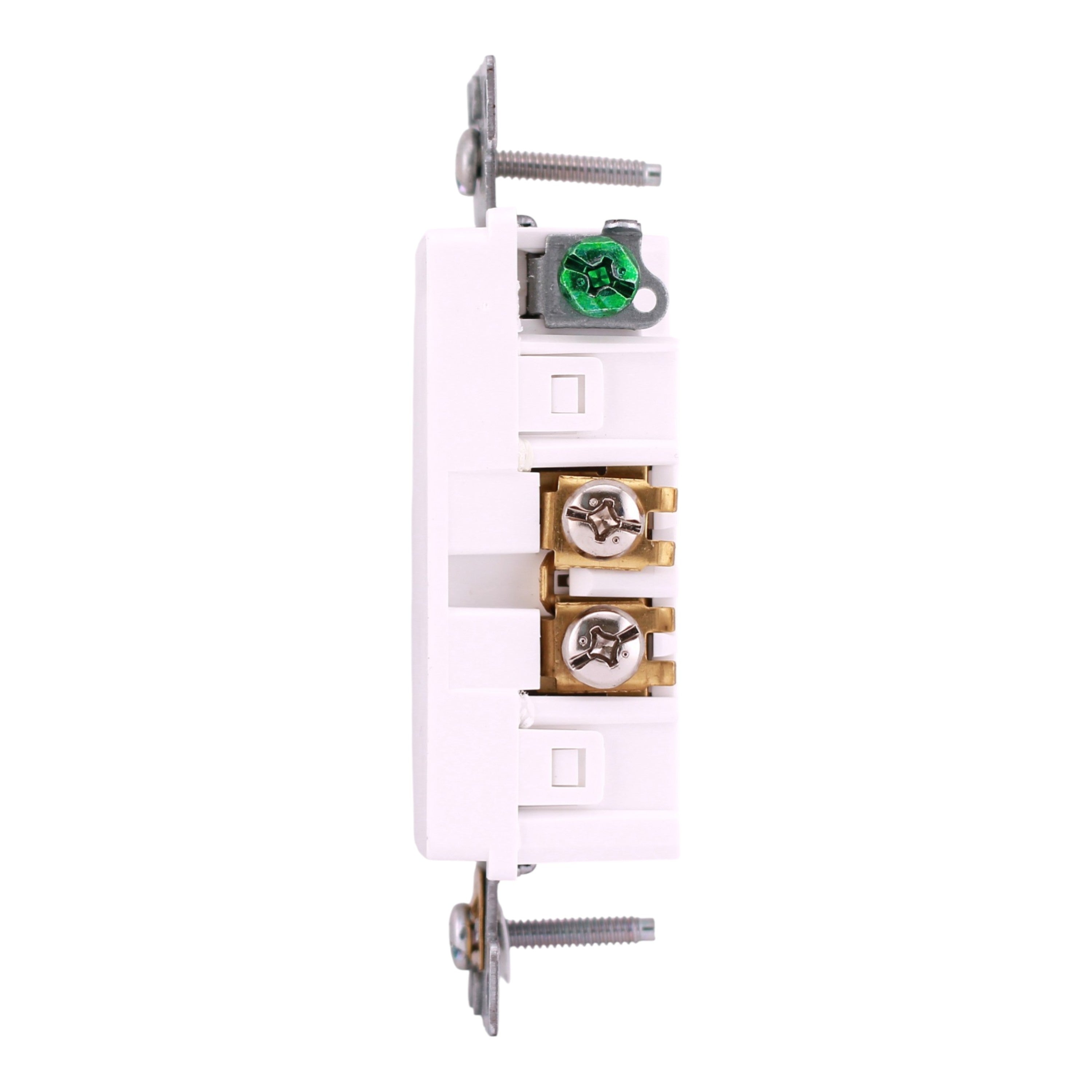

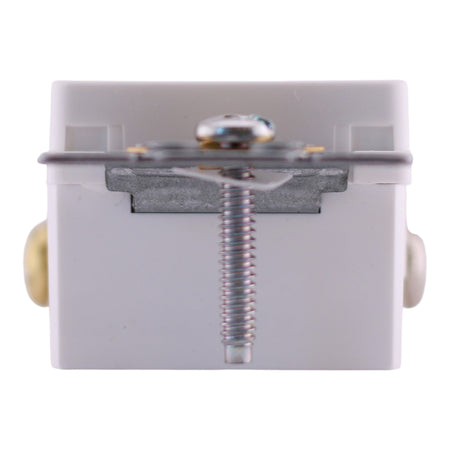

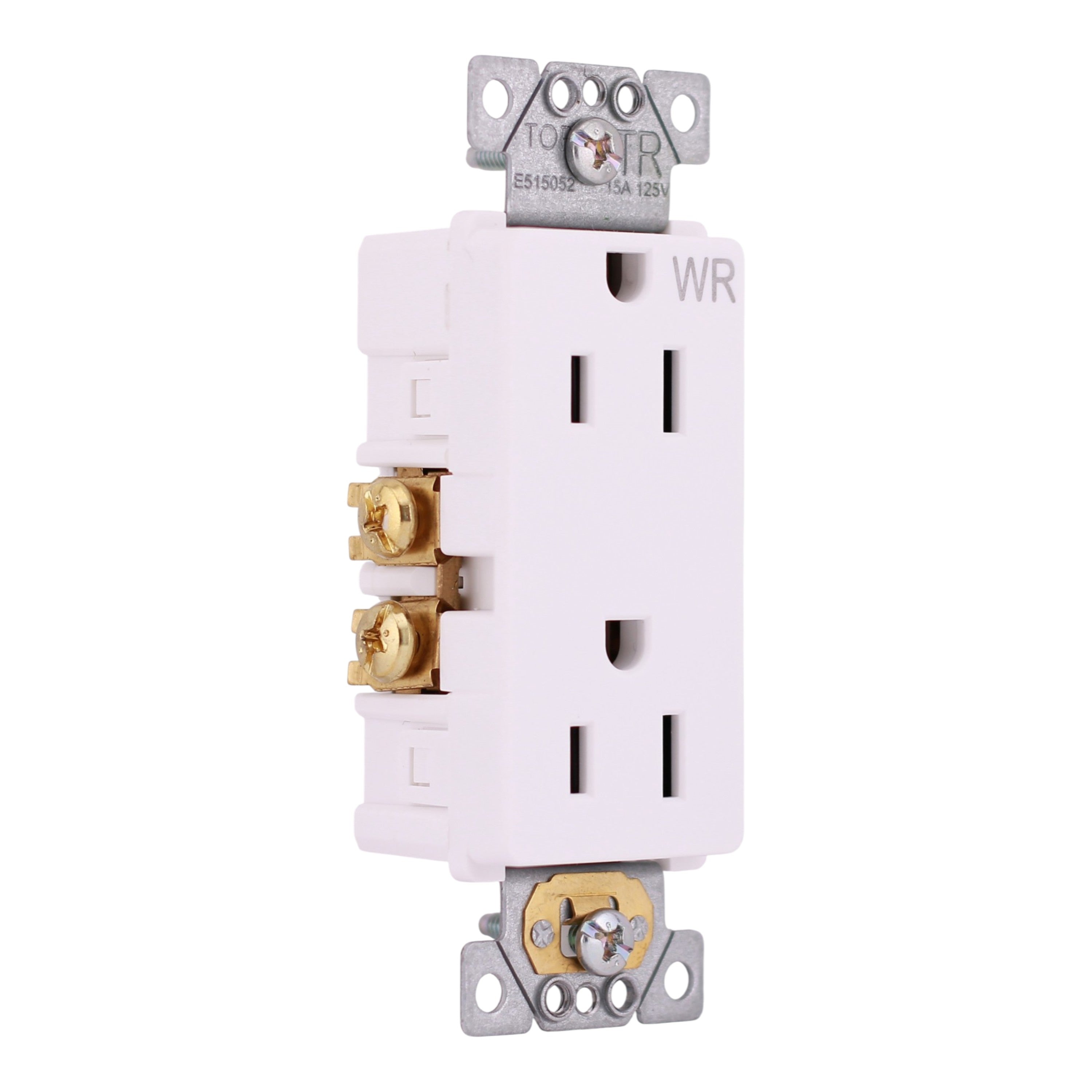

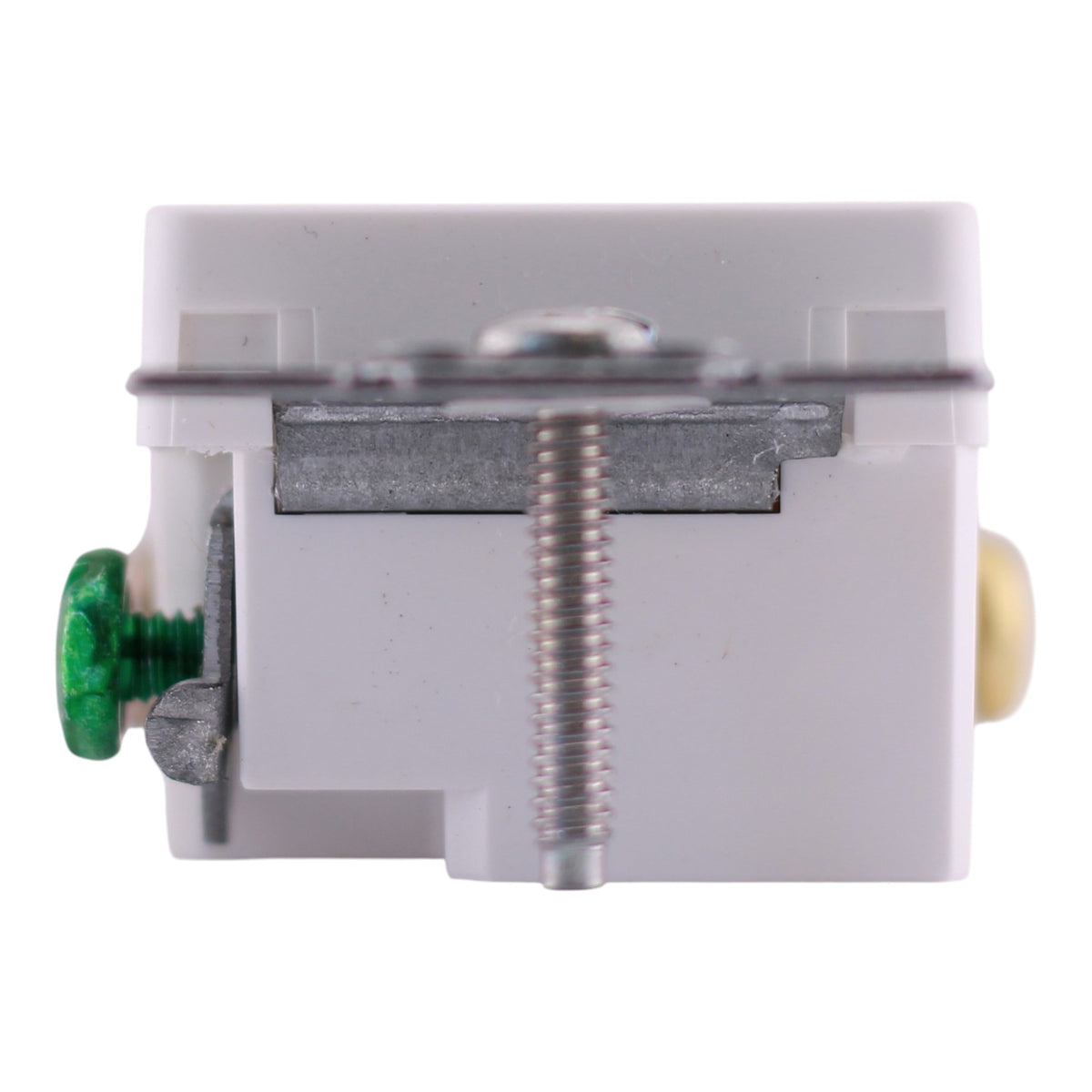

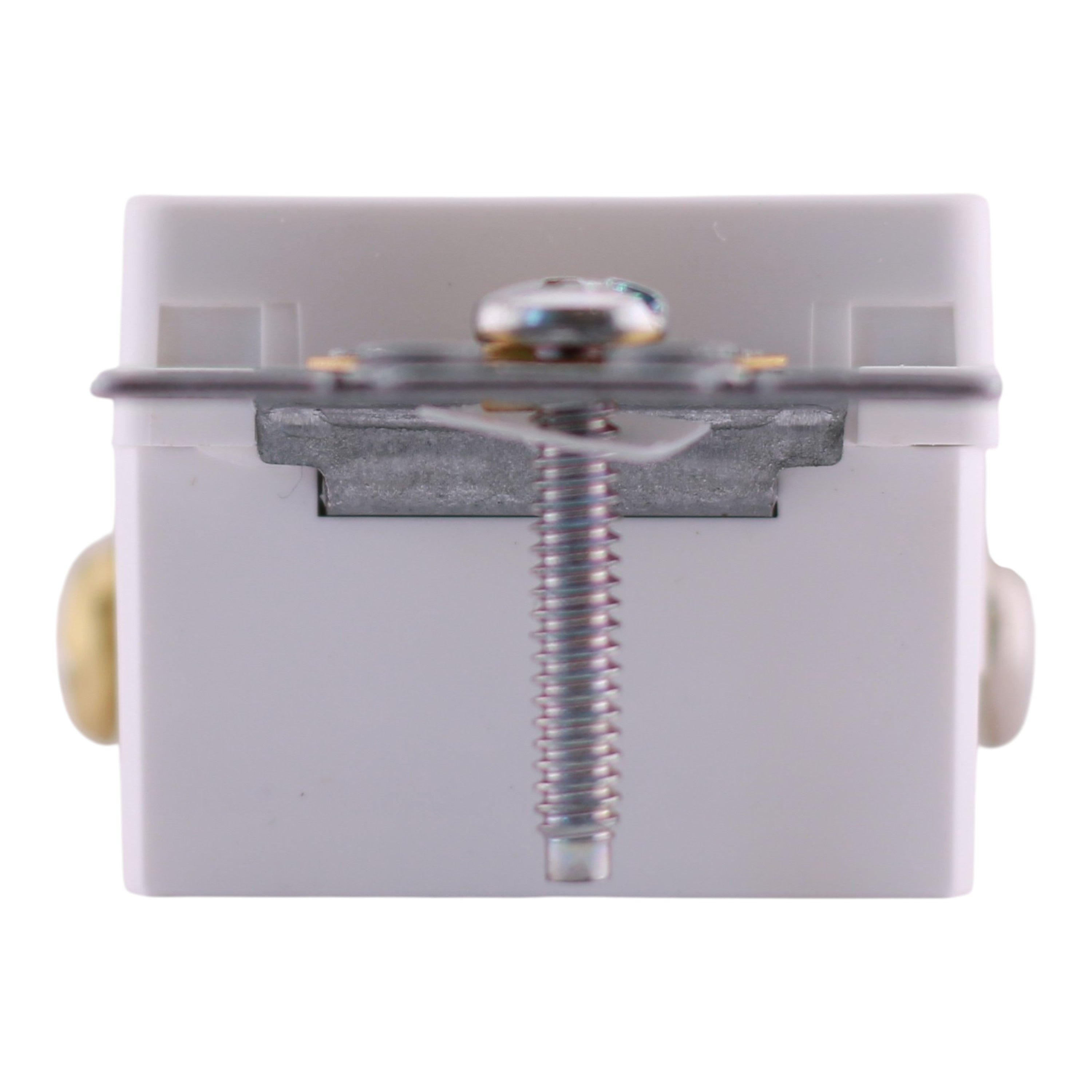

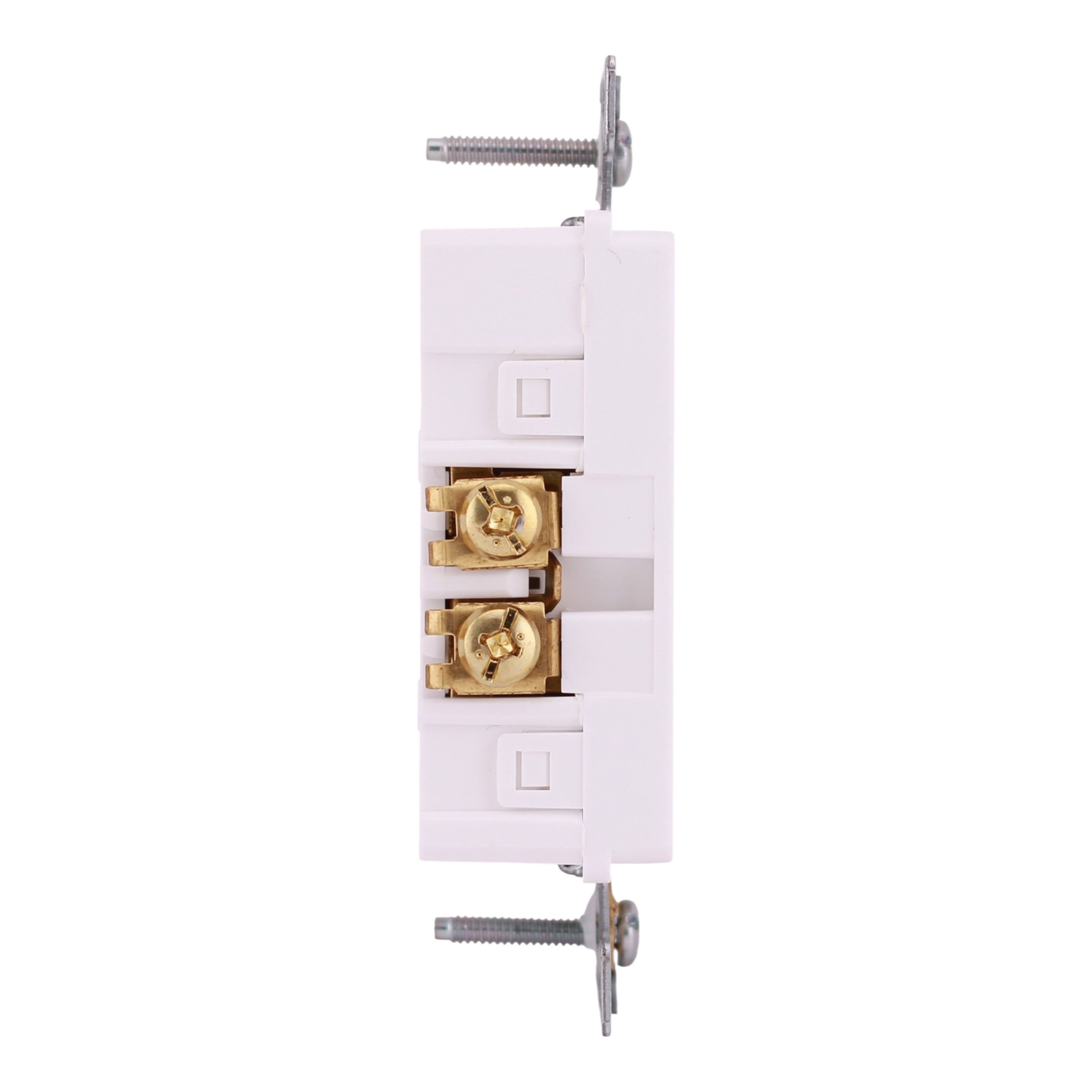

Square D X Series, SQR44104WH, 15A, 125V, TR/WR, Decorator Duplex Receptacle, White

SQR44104WH specifications

• Manufacturer: Schneider Electric
• Brand: Square D (Schneider Electric)
• Product Range: X Series Wiring Devices
• UPC: 785901542568
• Model Number: SQR44104WH
• Device Type: Duplex Decorator Receptacle (Socket-Outlet)
• Amperage: 15 Amps
• Voltage: 125 Volts AC
• Outlet Standard: NEMA 5-15R
• Poles/Configuration: 2P + E (2-Pole with Ground)
• Number of Outlets: 2
• Number of Gangs: 1-Gang
• Safety Features: Tamper Resistant (TR), Weatherproof (WR)
• Grounding: Self-grounding with brass contact (eliminates need for ground screw in metal boxes)
• Connections: Phase & neutral — 4 screw terminals (#14–12 AWG Cu) or 4 push-in terminals (#14 AWG solid Cu); Earth — 1 screw terminal
• Color: White, Matte Finish
• Material: Impact-resistant thermoplastic
• Wall Plate: Required, sold separately
• Dimensions: Height: 4.06 in; Width: 1.4 in; Depth: 1.06 in
• Weight: 3.4 oz (0.21 lbs)
• Certifications: cULus Certified, UL 498, NEMA 5-15R

This Square D SQR44104WH tamper and weather resistant decorator duplex receptacle delivers reliable 15A, 125V power supply for indoor and outdoor residential applications in X Series 1-gang installations. With self-grounding brass contact, push-in side wire clamps, and discrete tamper-resistant shutters, it ensures safe and efficient installation in kitchens, bathrooms, and outdoor locations.
