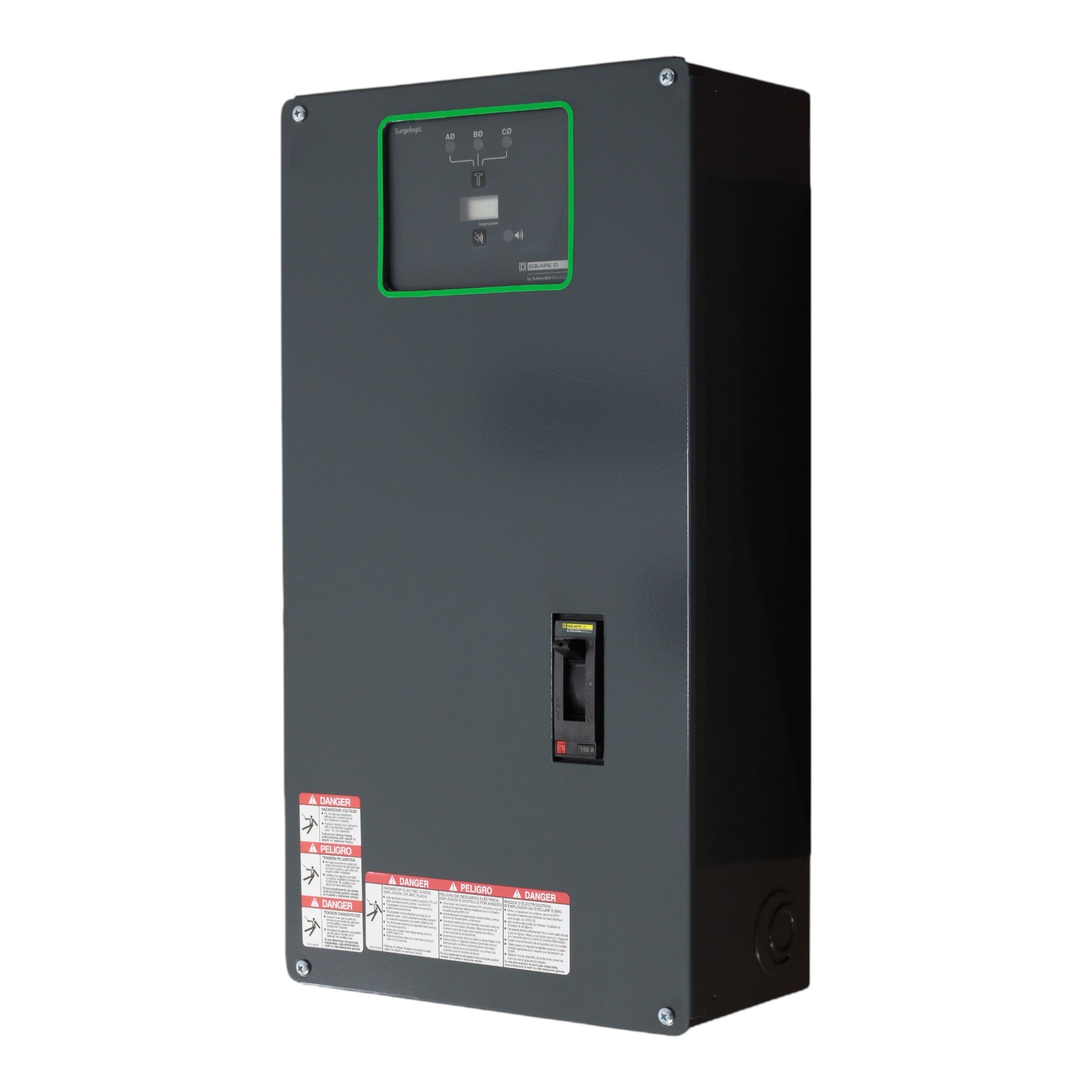

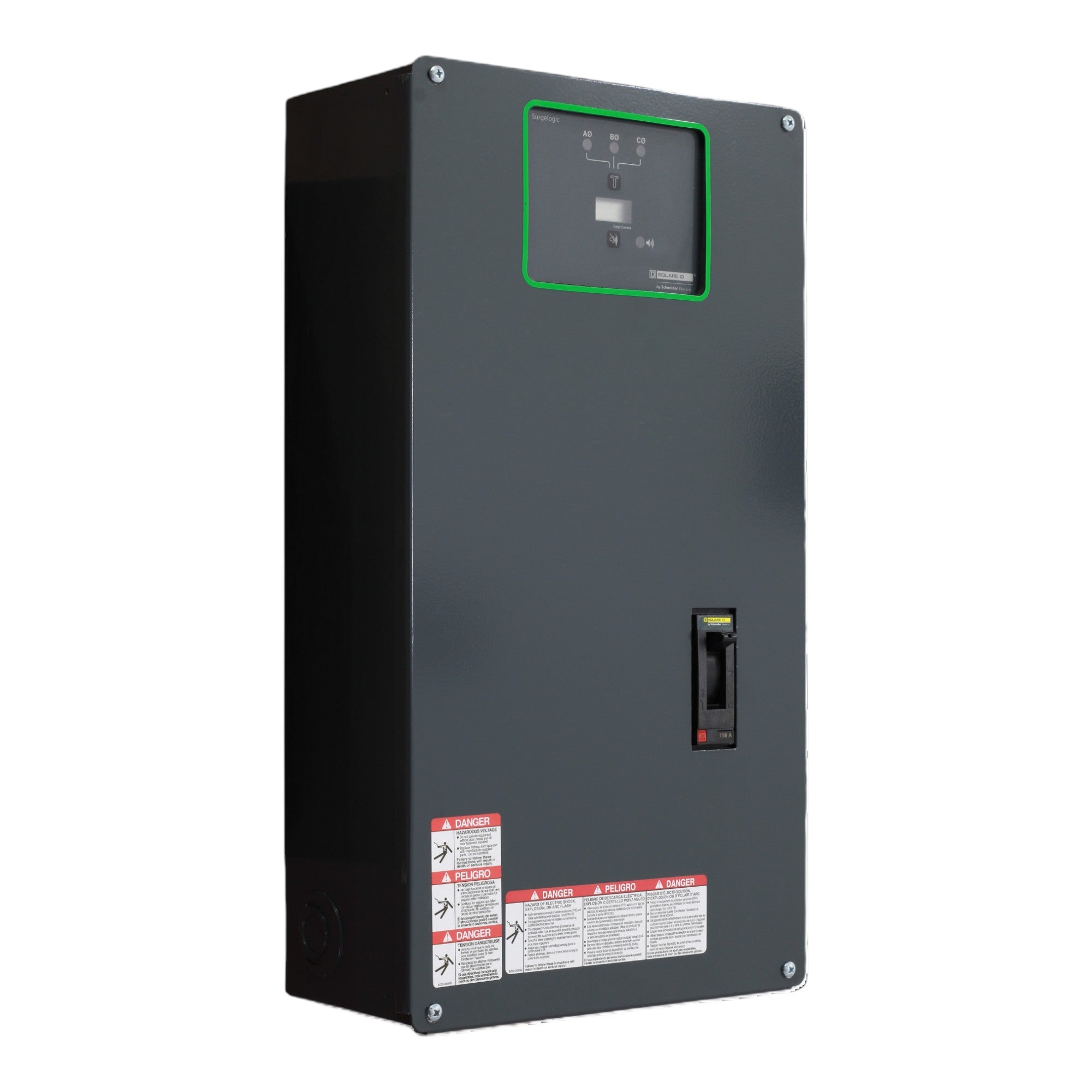

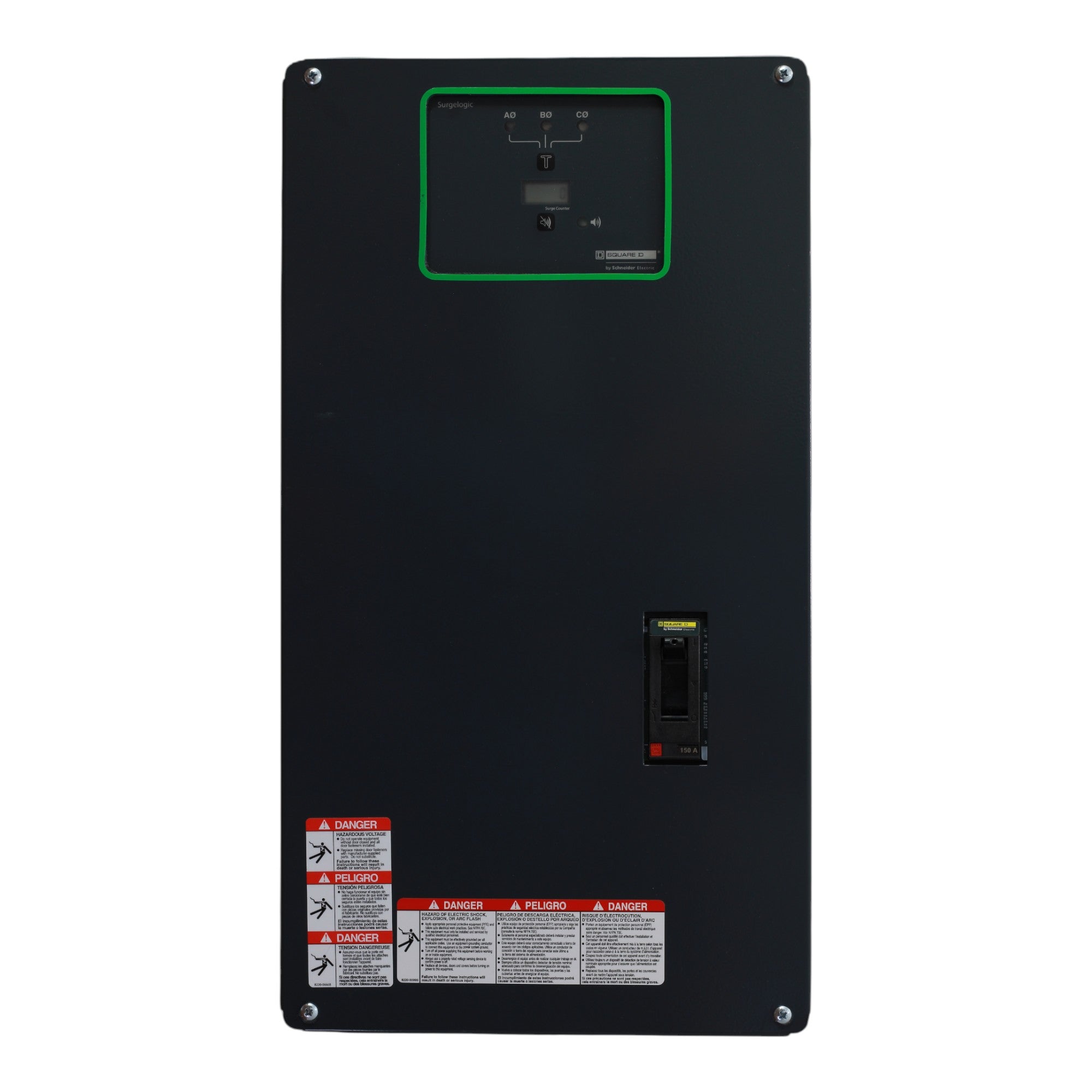

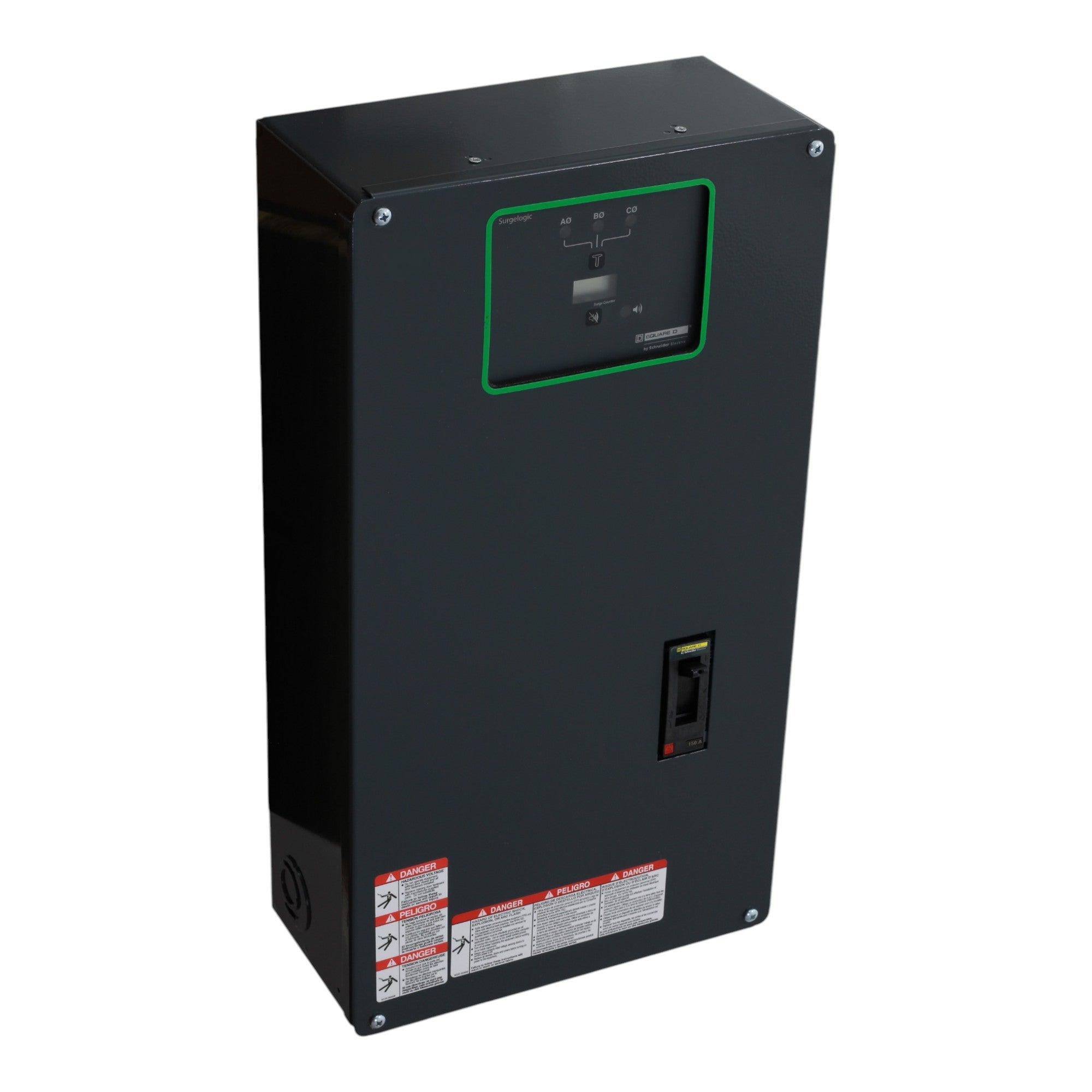

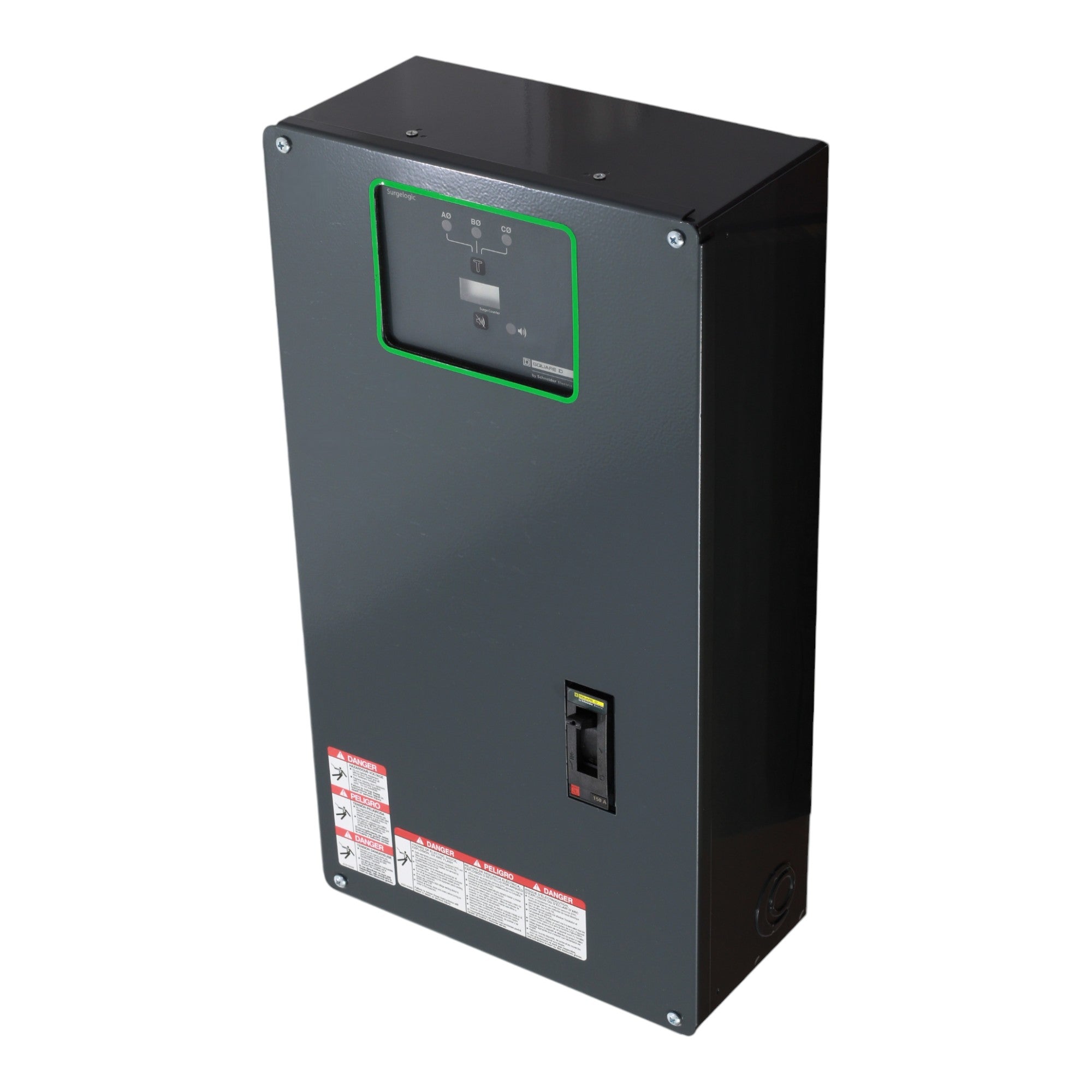

Surgelogic SSP02EMA16DF: 160kA Surge Protective Device, 208Y/120V, 3-Phase, 4-Wire, NEMA 1, with Disconnect Switch and Enhanced EMI/RFI Filter, UL and CSA Certified
-
Manufacturer: Schneider Electric
-
Brand: Square D
-
Product Range: Surgelogic (for distribution and branch panel applications)
-
UPC: 3606486148525
-
Model Number: SSP02EMA16DF
-
Product Type: Surge Protective Device
-
Surge Current: 160 kA
-
Voltage Rating: 208Y/120 Volts AC
-
Nominal Discharge Current: 20 kA
-
Maximum Continuous Operating Voltage (MCOV): 150 Volts
-
Short Circuit Current Rating (SCCR): 200 kA
-
Number of Phases: 3-Phase
-
Wiring Configuration: 4-Wire
-
Poles: 3
-
Connection: Lugs AWG 10...AWG 3/0 Copper
-
Tightening Torque: 35.4 lb-in
-
Mounting Mode: Surface
-

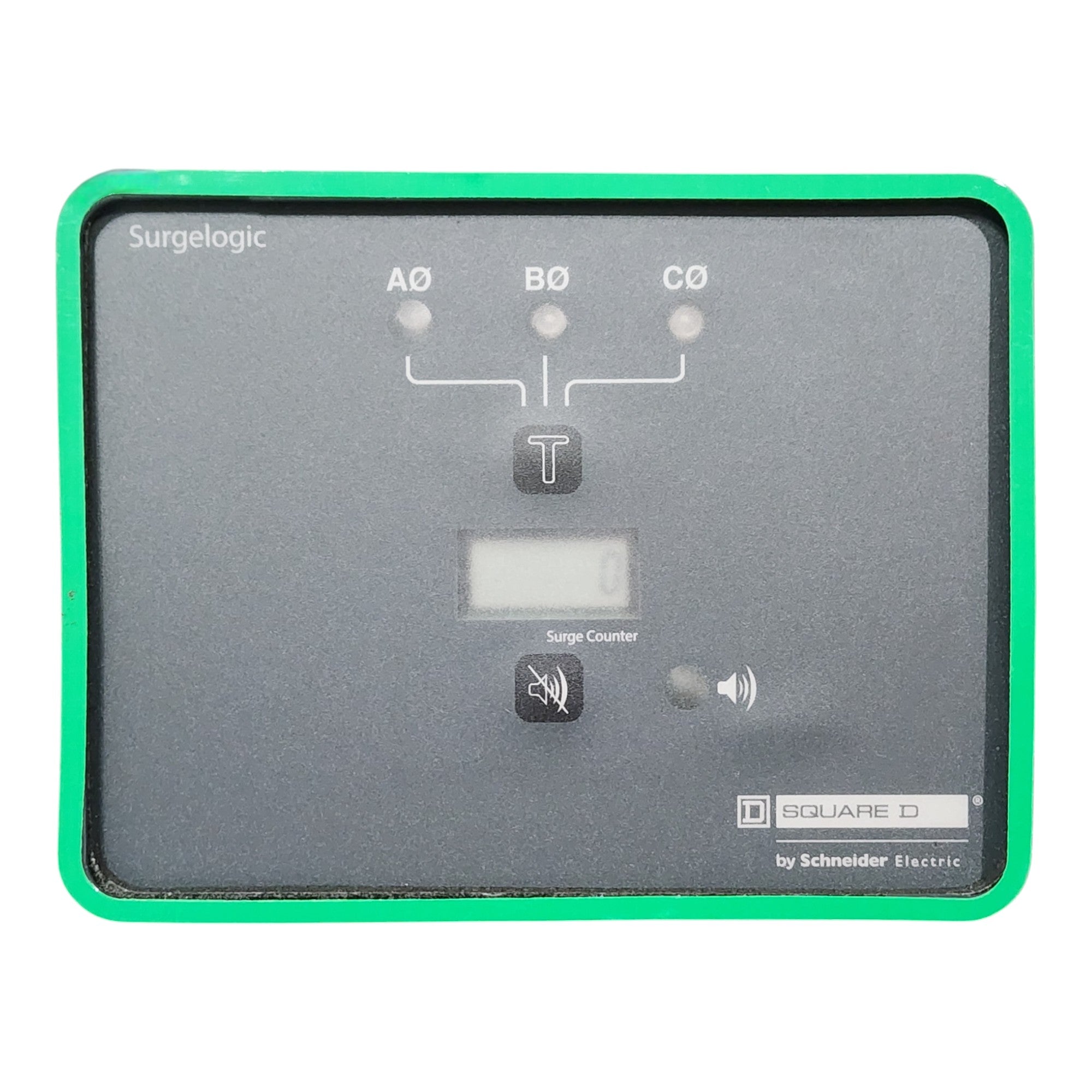

Local Signaling: Status LED Green per Phase (Normal Operation), Status LED Red per Phase (Fault)
-
Provided Equipment: Alarm Enable/Disable Switch, Disconnect Switch, Surge Counter, Sine Wave Tracking Module, Dry Contacts
-
Cable Length: 19.02 in
-
Dimensions: Height: 19.5 in; Width: 9.9 in; Depth: 5.3 in
-
Weight: 20.501 lbs
-
Enclosure Rating: NEMA 1
-
Enclosure Material: Gray Painted Sheet Steel
-
Certifications: UL Listed, CSA Certified
-
EMI/RFI Filtering: -54 dB at 100 kHz
-
Ambient Operating Temperature: 149 °F
This Square D Surgelogic SSP02EMA16DF surge protective device delivers robust 160kA surge protection for 208Y/120V, 3-phase, 4-wire systems in distribution and branch panel applications. Featuring a NEMA 1 enclosure, disconnect switch, and enhanced EMI/RFI filtering at -54 dB, it ensures reliable performance. UL and CSA certified, it includes status LEDs, surge counter, and dry contacts for advanced monitoring, ideal for protecting critical electrical equipment.
