System Sensor

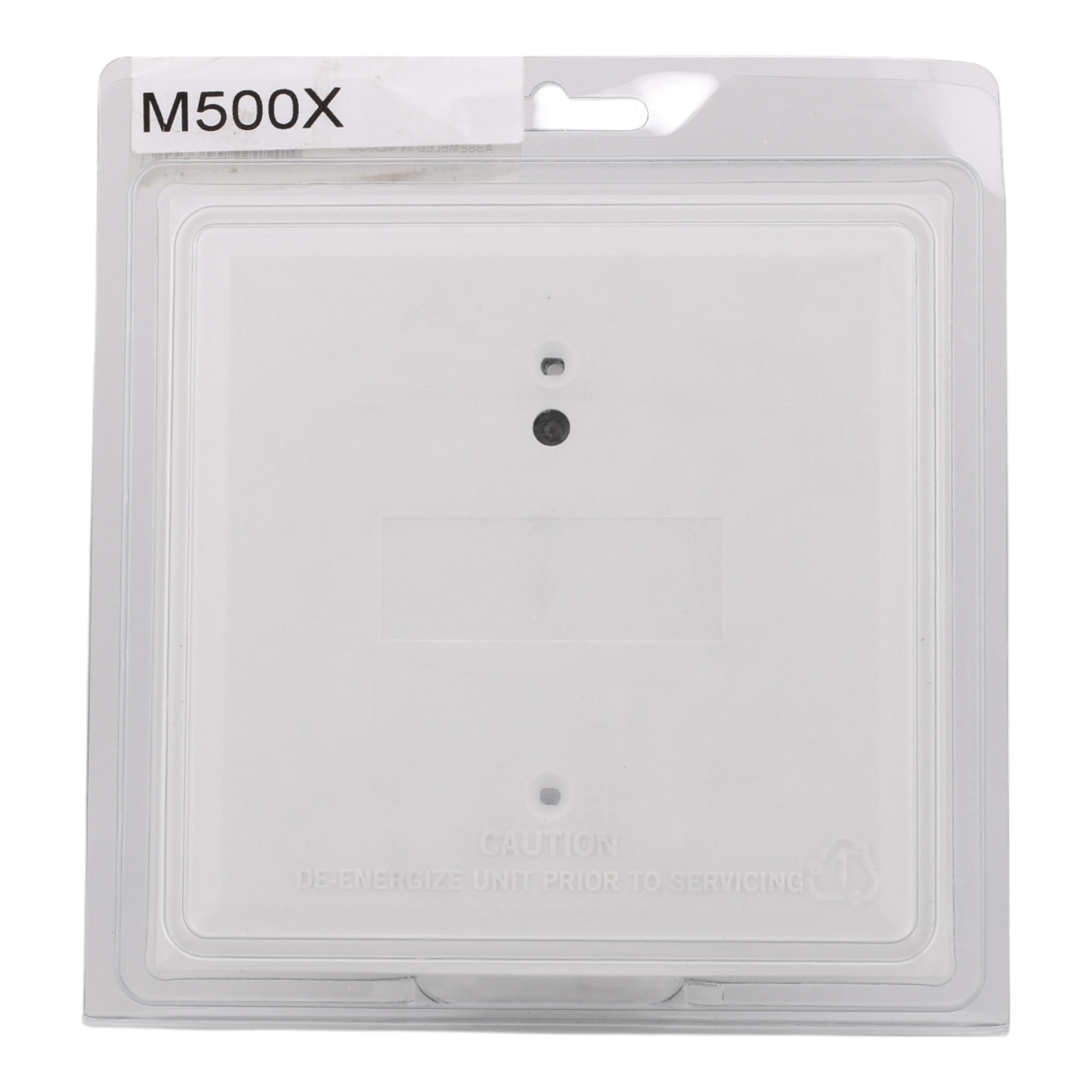

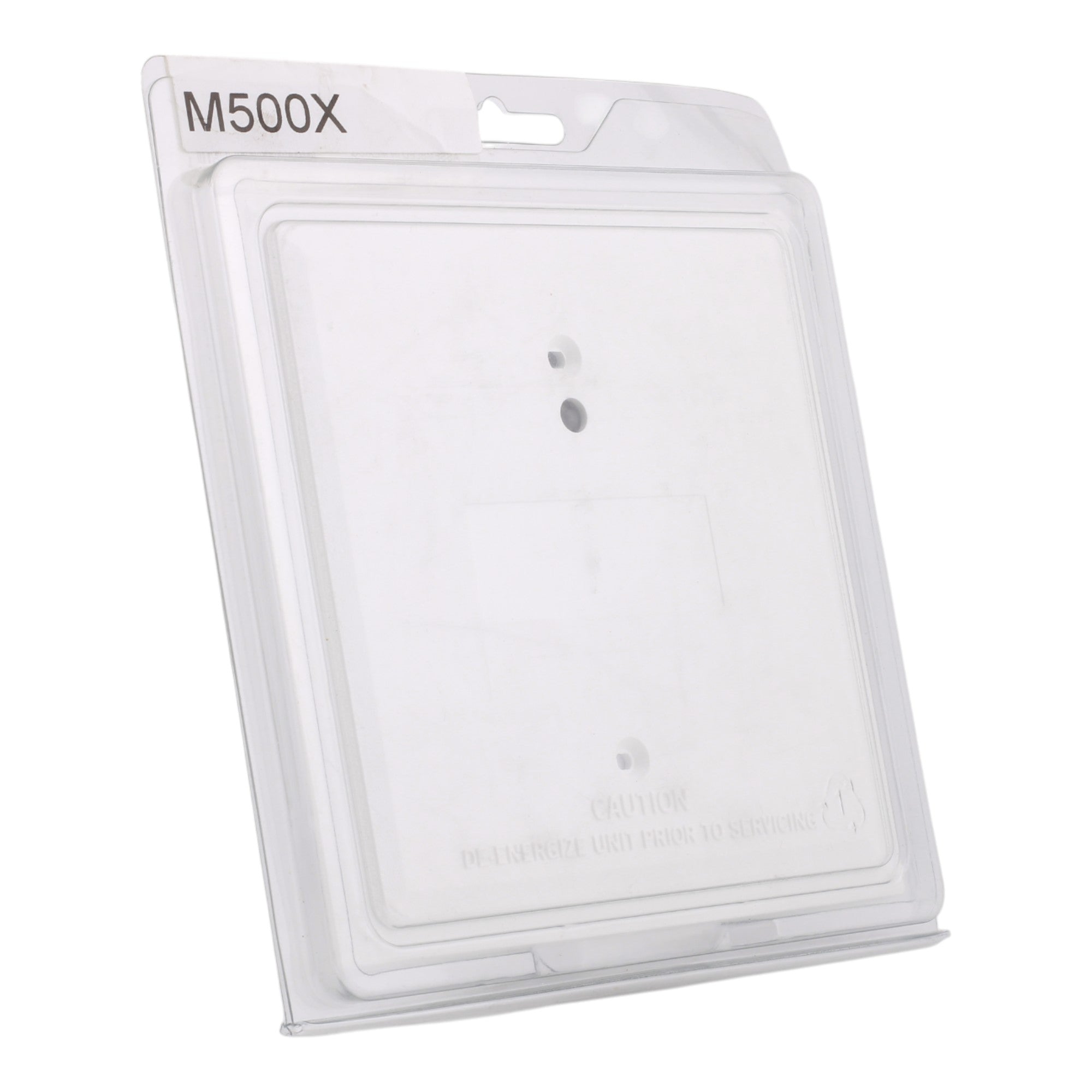

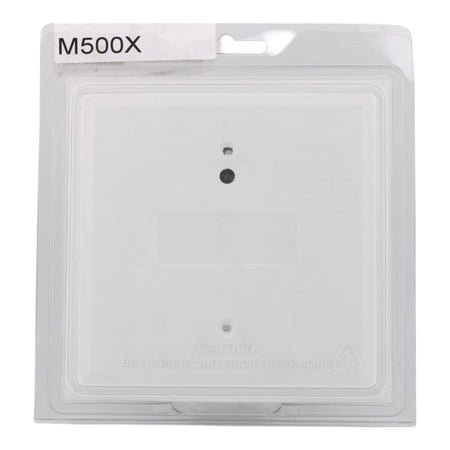

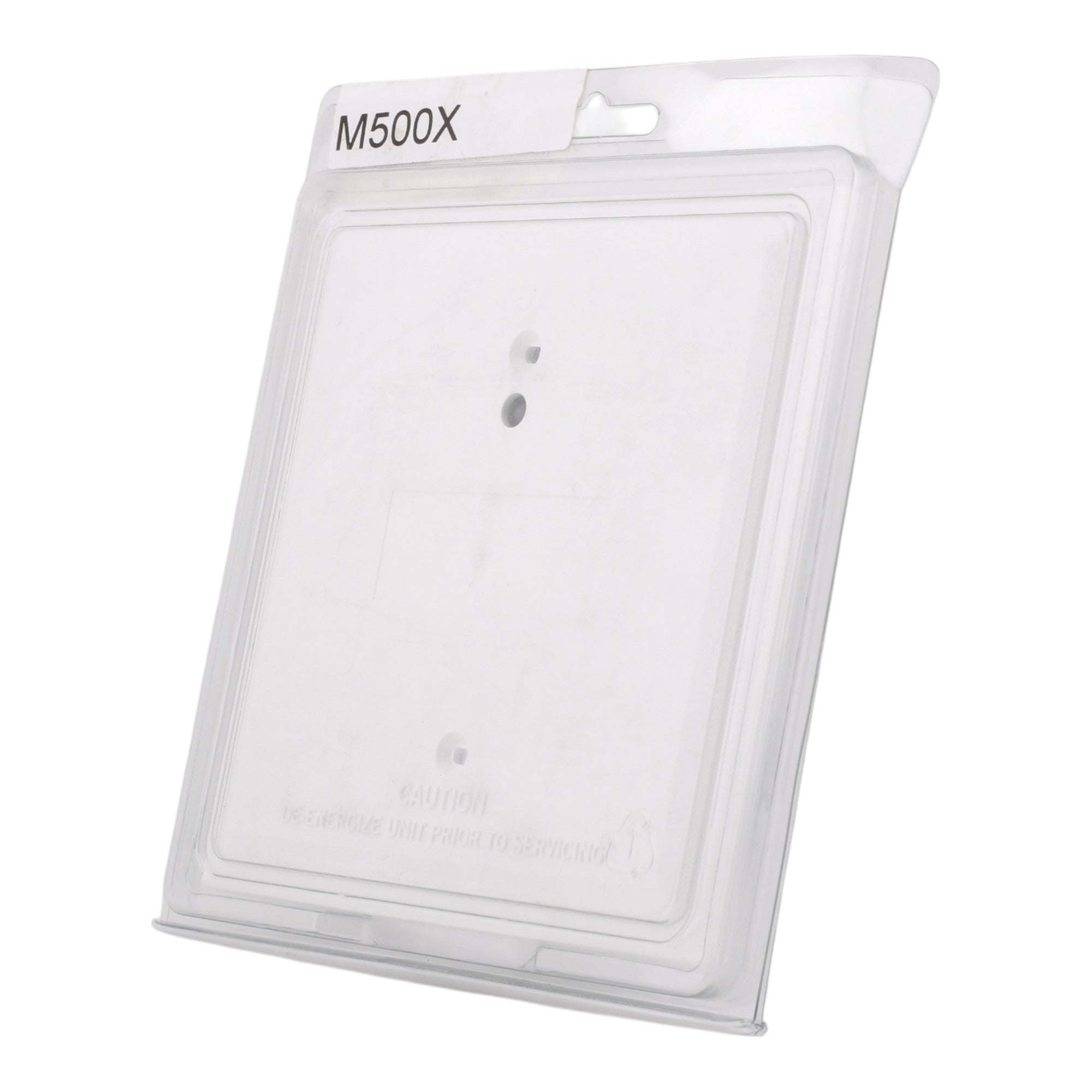

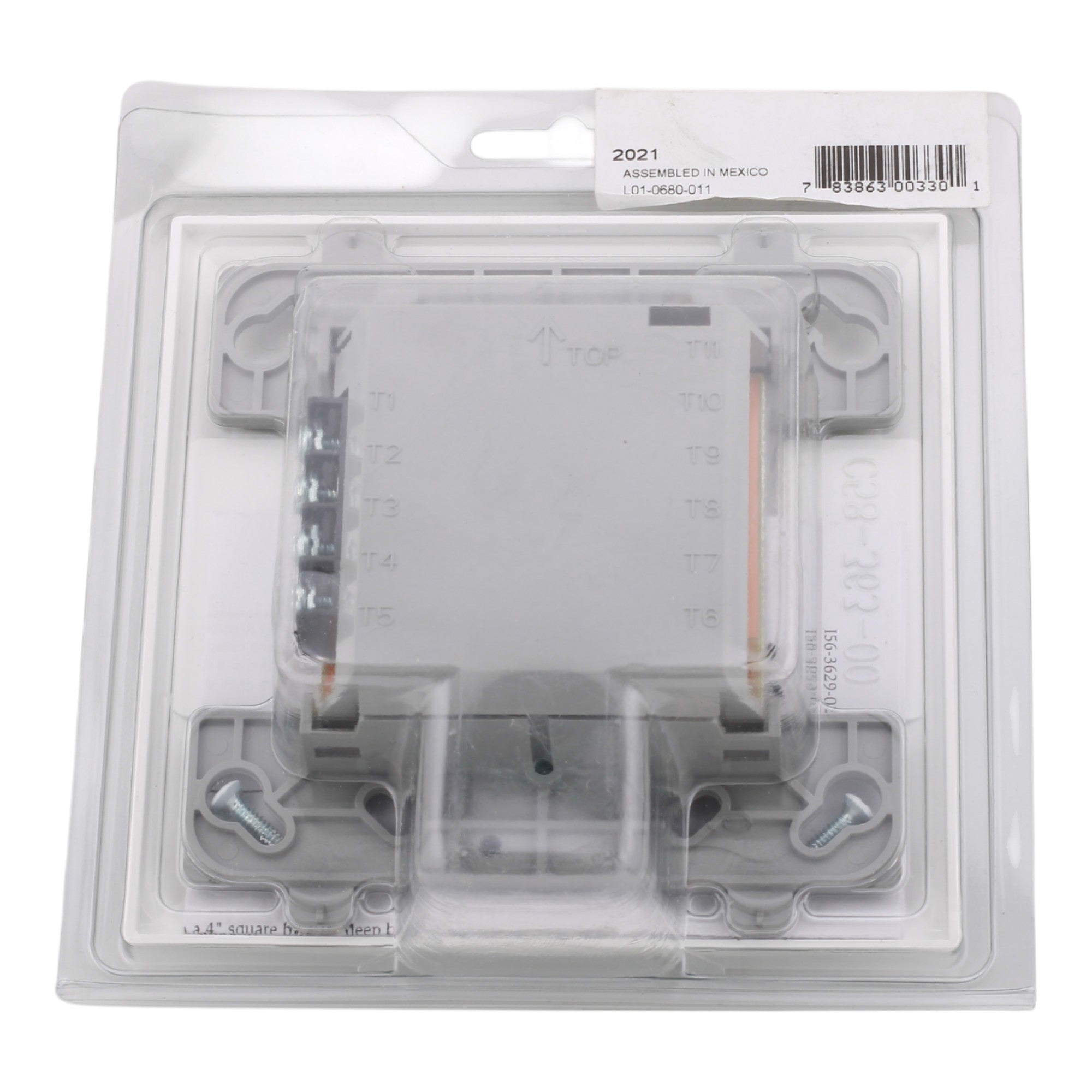

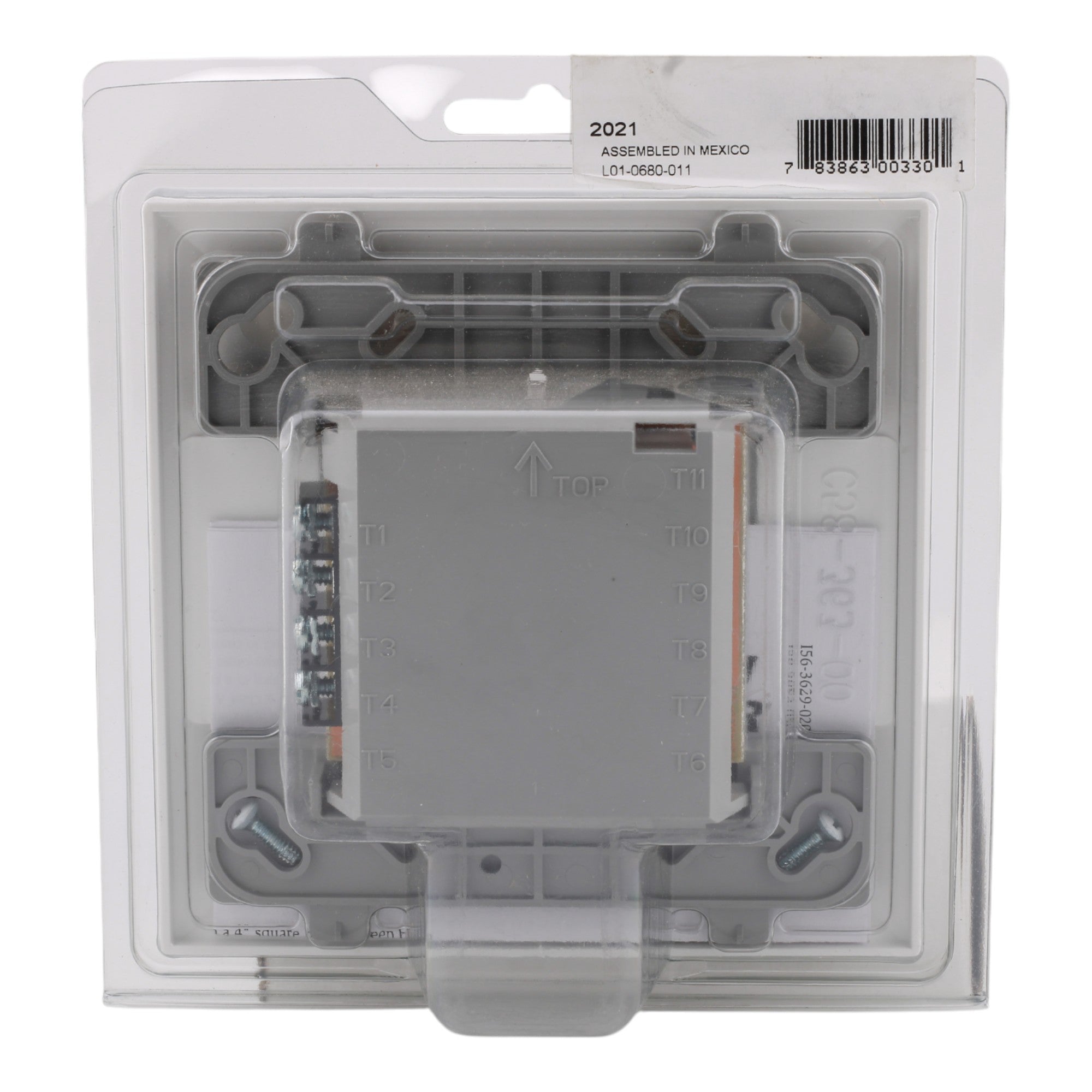

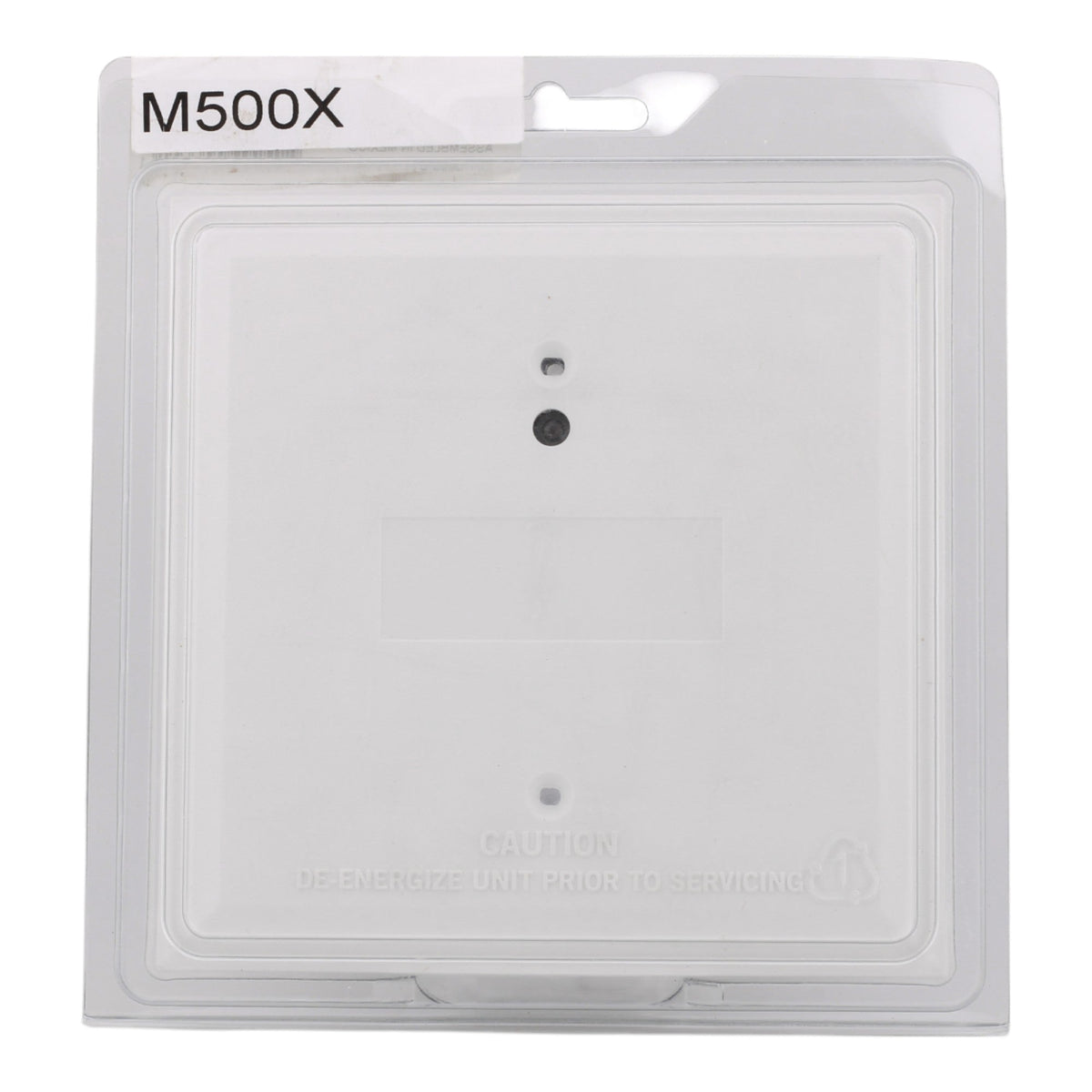

System Sensor M500X Style 7 Fault Isolator Module

Out of stock
SKU: M500X UPC: 783863003301
(0)
$29.69
-18% $36.00 $29.69
Out of stock
Condition

System Sensor M500X: Fault isolator module for fire alarm systems, isolates short circuits, LED status indicator, low standby current, mounts in 4" junction box, UL listed.

Product Specifications

  • Manufacturer: Honeywell
  • Brand: System Sensor
  • Model Number: M500X
  • UPC: 783863003301
  • Product Type: Style 7 Fault Isolator Module
  • Function: Enables part of communications signaling line circuit to continue operating when a short circuit occurs
  • Operation: Automatic switch that opens when line voltage drops below four volts
  • Standby Current: 0.00045 amps max
  • Voltage Range: 15-32 VDC
  • Isolation Current: 5 mA max
  • Communication Line Impedance: 40 Ohms
  • Fault Detection: 4 volts threshold, 250 ms min delay
  • Line Restoration: 7 volts threshold
  • LED Indicator: Flashes in normal condition, solid during short circuit condition
  • Capacity: Up to 20 addressable devices may be grouped between isolator modules
  • Dimensions: Height: 4.5 in; Width: 4 in; Depth: 0.25 in
  • Mounting: Fits standard 4" square by 2.8" deep junction box
  • Operating Temperature: 32°F to 120°F (0°C to 49°C)
  • Humidity Range: 10% to 93% non-condensing
  • Certifications: UL Listed (S1949), FM Approved, CSFM (7300-1653:0103), ULC Listed, ISO 9001
