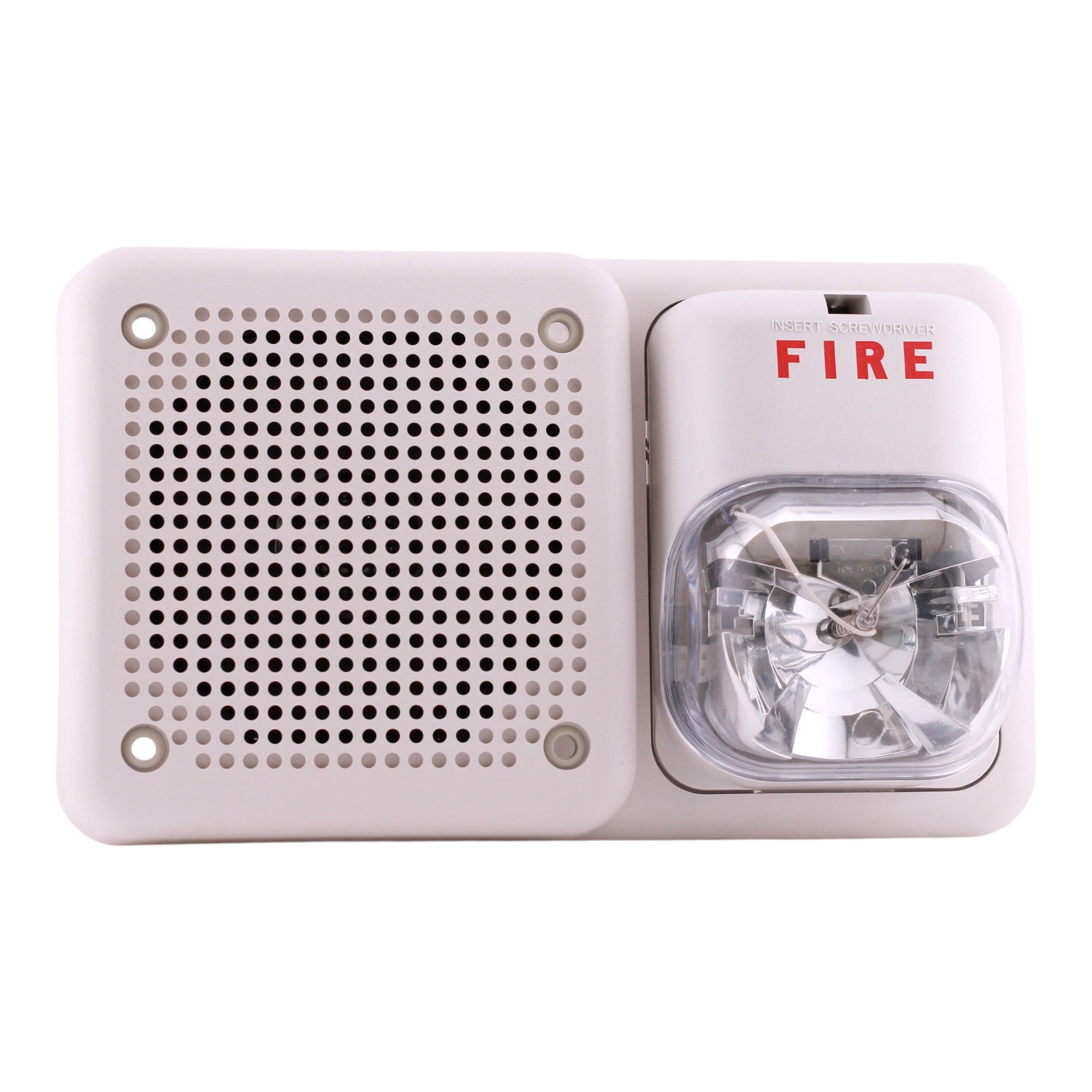

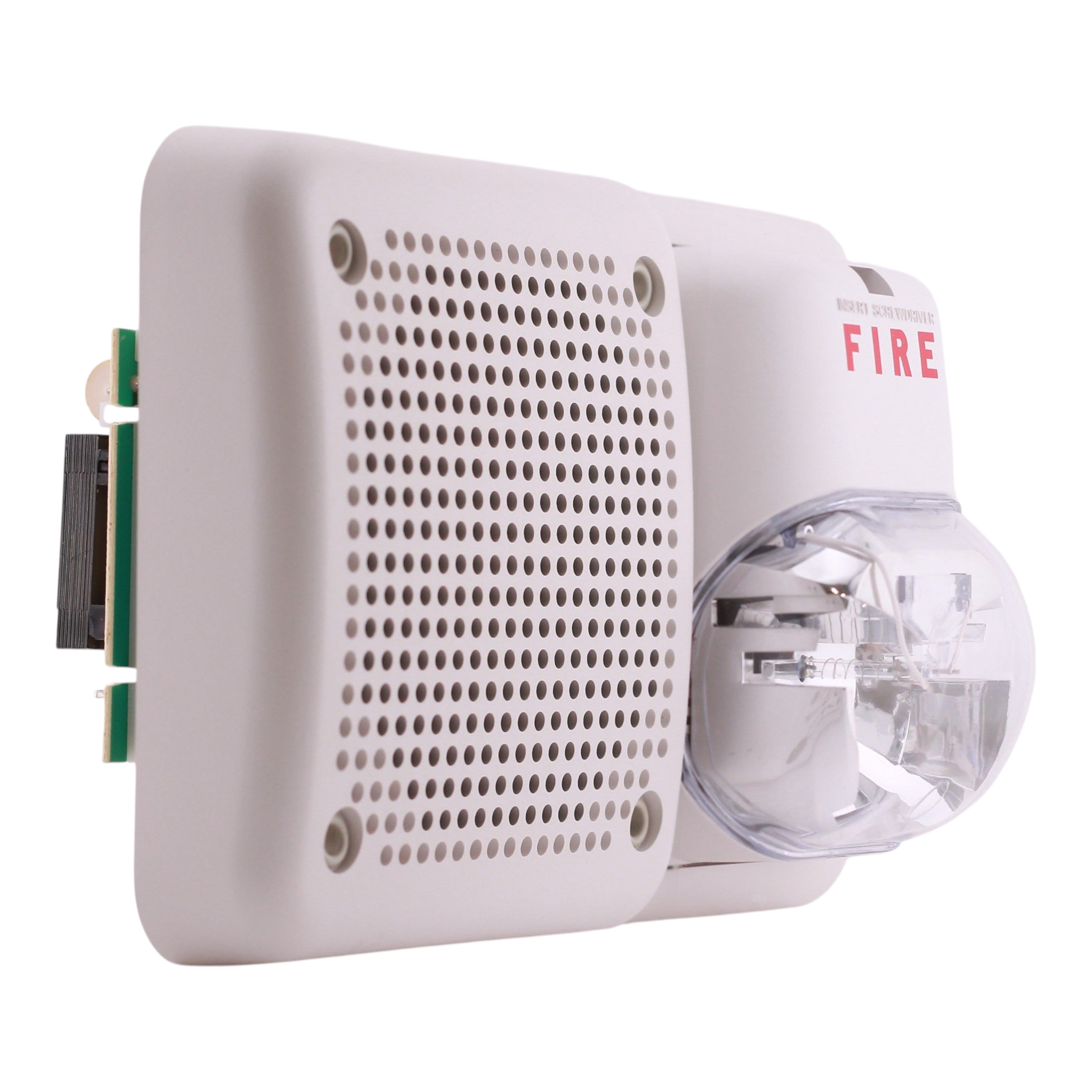

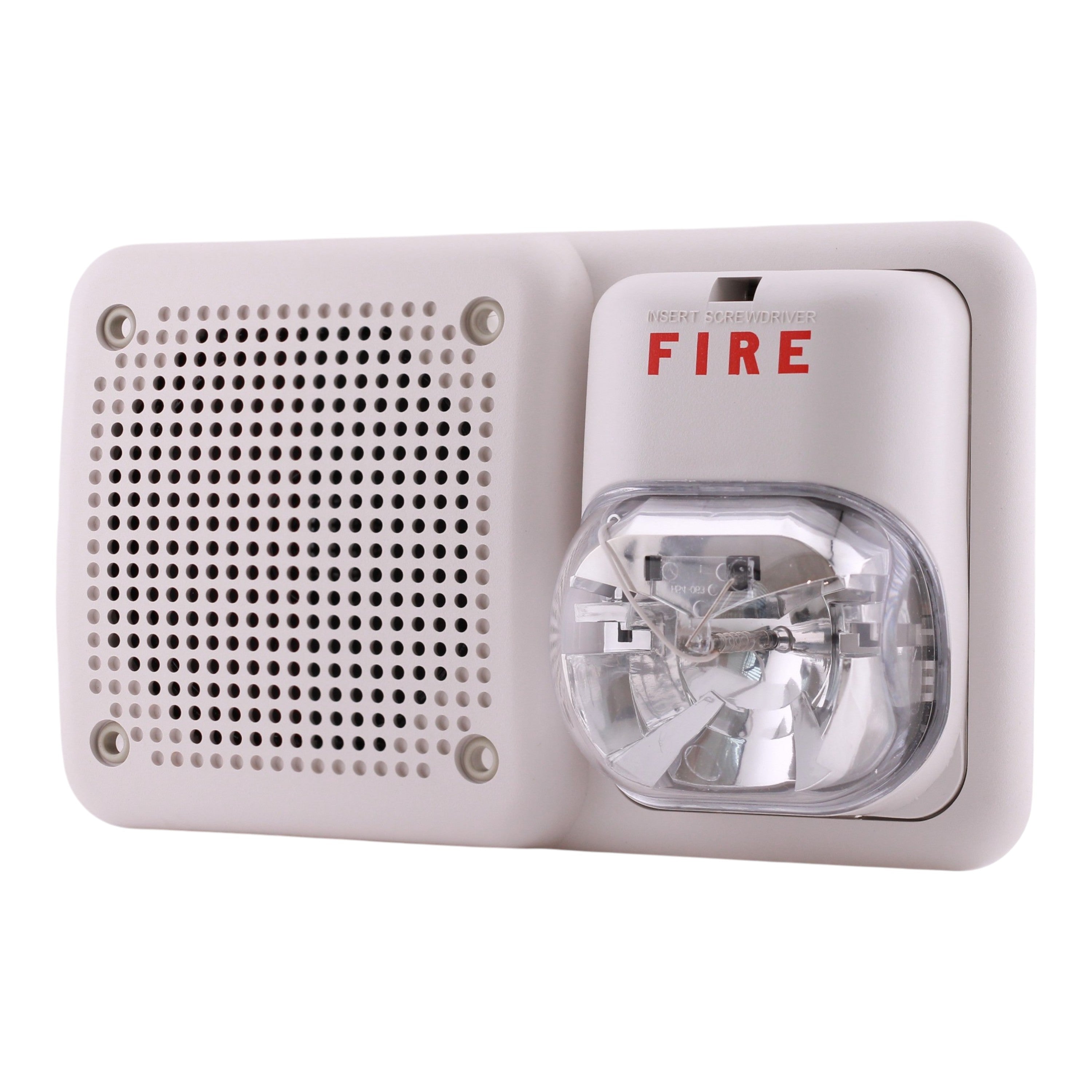

System Sensor SP2W1224MC: Wall Speaker/Strobe, Selectable Output, 12/24V DC/FWR, 15–110 Candela, White, UL 1480, UL 1971 Listed.
-
Manufacturer: Honeywell (System Sensor)
-
Brand: System Sensor
-
Product Range: SpectrAlert SP2 Series
-
Model Number: SP2W1224MC
-
Product Type: Wall-Mount Speaker/Strobe
-
Color: White
-
Status: Discontinued by Manufacturer (Replacement: SPSW)
-
Voltage: 12/24 Volts DC or Full-Wave Rectified (FWR); auto-selecting
-
Strobe Voltage Range: 8–17.5V (12V) / 16–33V (24V)
-
Strobe Voltage Range w/ Sync Module: 9–17.5V (12V) / 17–33V (24V)
-
Selectable Candela Output: 12/24V: 15 or 15/75 cd; 24V only: 15, 15/75, 30, 75, 110 cd (manual slide switch)
-
Flash Rate: 1 flash per second
-
Speaker Input Voltage: 25V or 70.7V RMS (nominal)
-

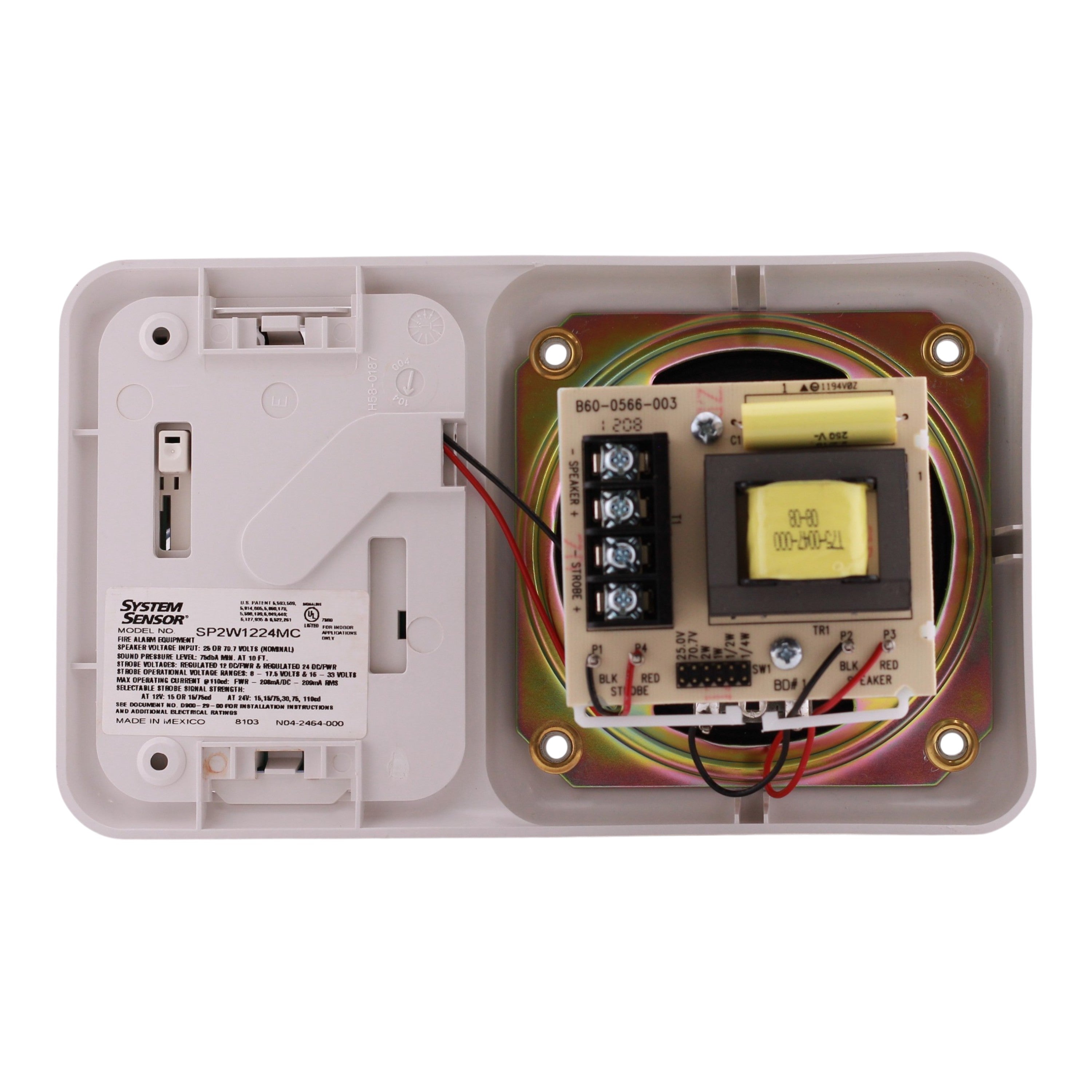

Speaker Power Taps: ¼, ½, 1, 2 Watts (field-selectable)
-
Speaker Size: 4 in (101 mm)
-
Frequency Range: 400–4,000 Hz
-
Maximum Supervisory Voltage (Speaker): 50 VDC
-
Wire Size: #12–18 AWG
-
Synchronization: Compatible with MDL Sync•Circuit Module
-
Mounting: Wall Mount; mounts to 4 × 4 × 2⅛ in back box
-
Dimensions: 8.25 in × 4.9 in (overall)
-
Weight: 1.60 lbs
-
Operating Temperature: 32°F to 120°F (0°C to 49°C)
-
Storage Temperature: –20°C to 70°C
-
Humidity Range: 10–93% RH (non-condensing)
-
Environment: Suitable for dry and damp locations
-
Certifications: UL Listed (UL 1480, UL 1971), CSFM, MEA; compliant with NFPA, ADA, NEC 760, ANSI/UL 1480
This System Sensor SP2W1224MC white wall speaker/strobe delivers selectable-output AFCI-compatible notification for 12/24V fire alarm systems in the SpectrAlert SP2 Series. With auto-adjusting dual voltage and field-selectable candela, it suits residential and commercial fire protective signaling applications.
