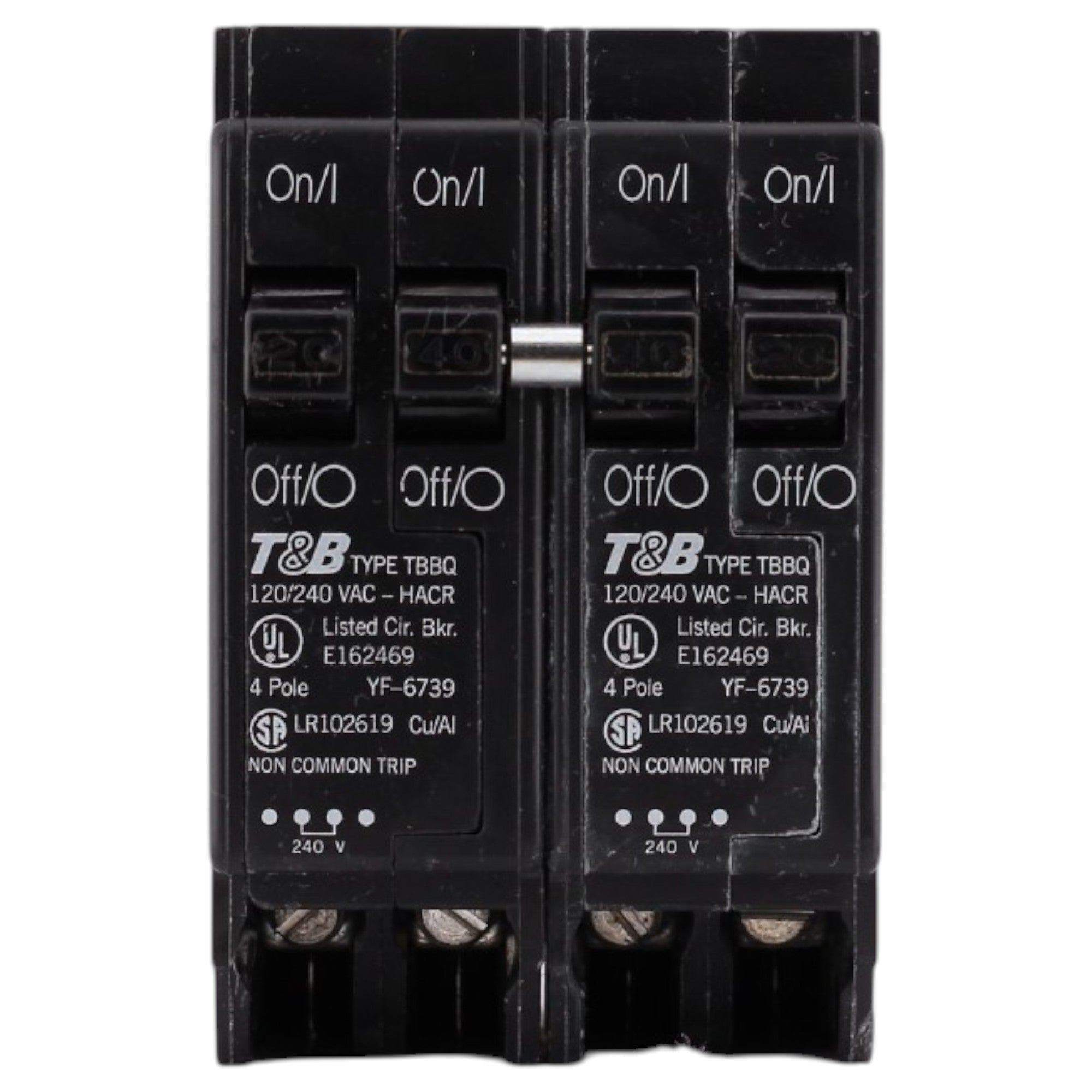

Thomas & Betts TBBQ, TBBQ2402120, 20A/40A, 4P, 120/240V, 10kAIC, CTL Quadplex, Plug-On, Circuit Breaker - Image 2
Thomas & Betts TBBQ, TBBQ2402120, 20A/40A, 4P, 120/240V, 10kAIC, CTL Quadplex, Plug-On, Circuit Breaker - Image 3
Thomas & Betts TBBQ, TBBQ2402120, 20A/40A, 4P, 120/240V, 10kAIC, CTL Quadplex, Plug-On, Circuit Breaker - Image 4
Thomas & Betts TBBQ, TBBQ2402120, 20A/40A, 4P, 120/240V, 10kAIC, CTL Quadplex, Plug-On, Circuit Breaker - Image 5
Thomas & Betts TBBQ, TBBQ2402120, 20A/40A, 4P, 120/240V, 10kAIC, CTL Quadplex, Plug-On, Circuit Breaker - Image 6
Thomas & Betts TBBQ, TBBQ2402120, 20A/40A, 4P, 120/240V, 10kAIC, CTL Quadplex, Plug-On, Circuit Breaker - Image 7
Thomas & Betts TBBQ, TBBQ2402120, 20A/40A, 4P, 120/240V, 10kAIC, CTL Quadplex, Plug-On, Circuit Breaker - Image 8

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Thomas & Betts

Thomas & Betts TBBQ, TBBQ2402120, 20A/40A, 4P, 120/240V, 10kAIC, CTL Quadplex, Plug-On, Circuit Breaker

Out of stock
SKU: TBBQ2402120 UPC: 786676371650
(0)
$26.00
-48% $50.00 $26.00
Out of stock
Condition

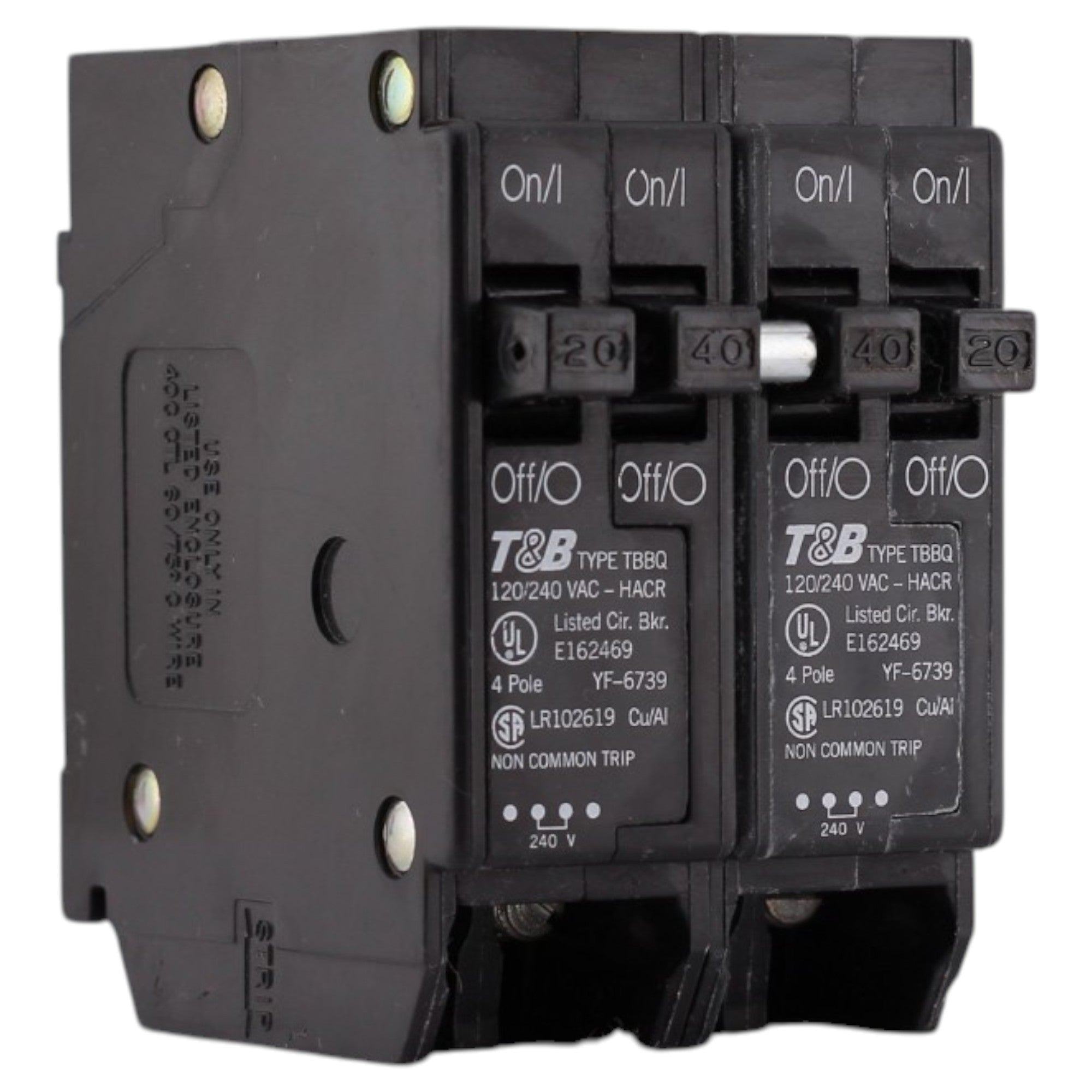

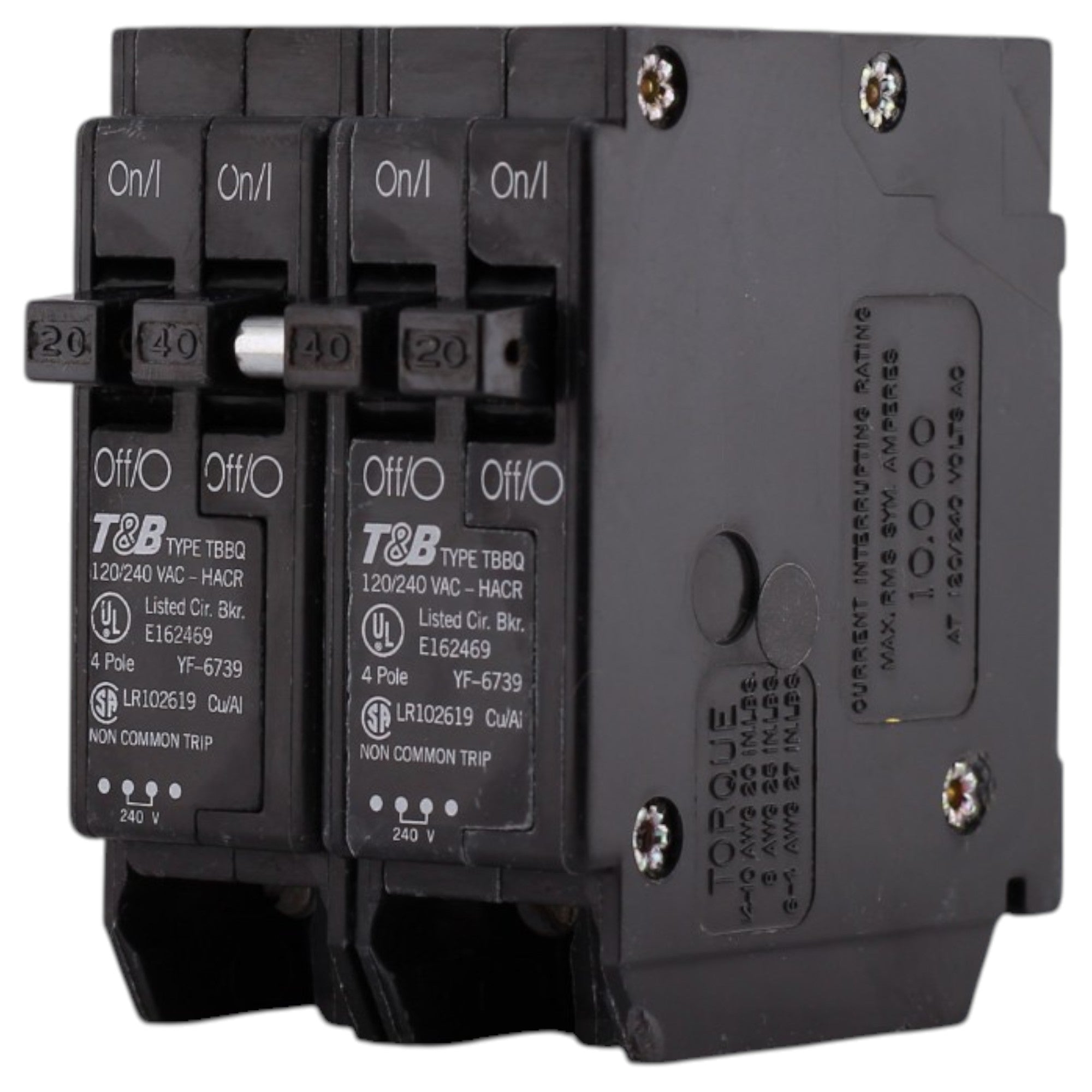

Thomas & Betts TBBQ2402120: 4-Pole CTL Quadplex Circuit Breaker, (2) 20A 1-Pole / (1) 40A 2-Pole, 120/240V, 10kA, plug-on, independent trip, HACR, UL listed.

  • Manufacturer: Thomas & Betts (ABB/Eaton lineage)
  • Brand: Thomas & Betts
  • Product Range: TBBQ Series (for Thomas & Betts labeled residential loadcenters and panelboards)
  • UPC: 786210131566
  • Model Number: TBBQ2402120
  • Breaker Type: CTL Quadplex Thermal Magnetic Circuit Breaker
  • Configuration: (2) Single-Pole 20A (outer) + (1) Two-Pole 40A (center) — 4 poles total in a 2-pole footprint
  • Amperage: 20A (outside poles) / 40A (center 2-pole)
  • Poles: 4-Pole
  • Voltage: 120/240 Volts AC
  • Interrupt Rating: 10 kAIC
  • Mounting Mode: Plug-on (CTL, with rejection tab feature)
  • Trip Type: Non-Interchangeable (LI — Long-Time and Instantaneous); Independent trip
  • Wire Size: #14–4 AWG Cu/Al
  • Calibration Temperature: 40°C
  • Certifications: UL Listed, CSA Certified, HACR Rated
  • Weight: 0.76 lbs

This Thomas & Betts TBBQ2402120 CTL quadplex circuit breaker combines two independent 20A single-pole and one 40A two-pole breaker in a standard 2-pole footprint for 120/240V Thomas & Betts labeled loadcenters. With 10 kAIC interrupt rating, CTL rejection tab, independent trip, and HACR rating, it supports space-saving residential and light commercial panel installations.
