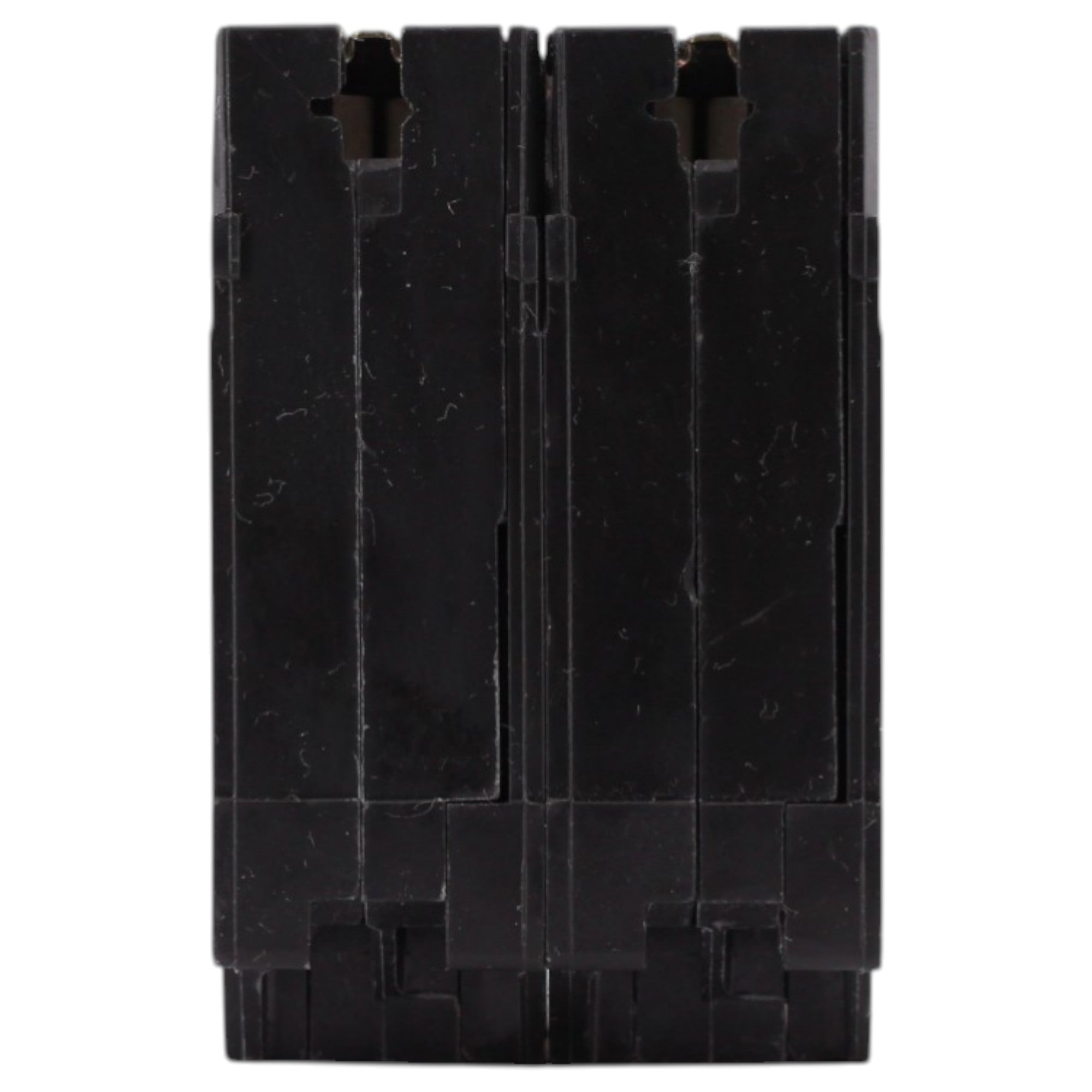

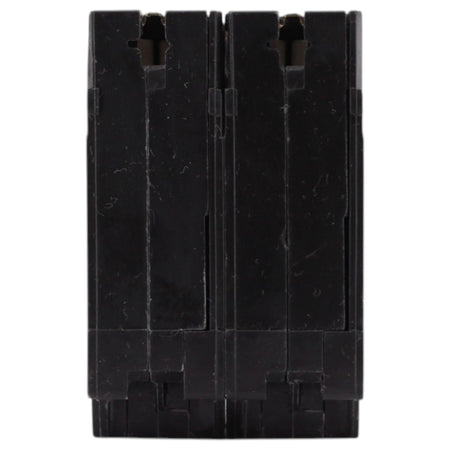

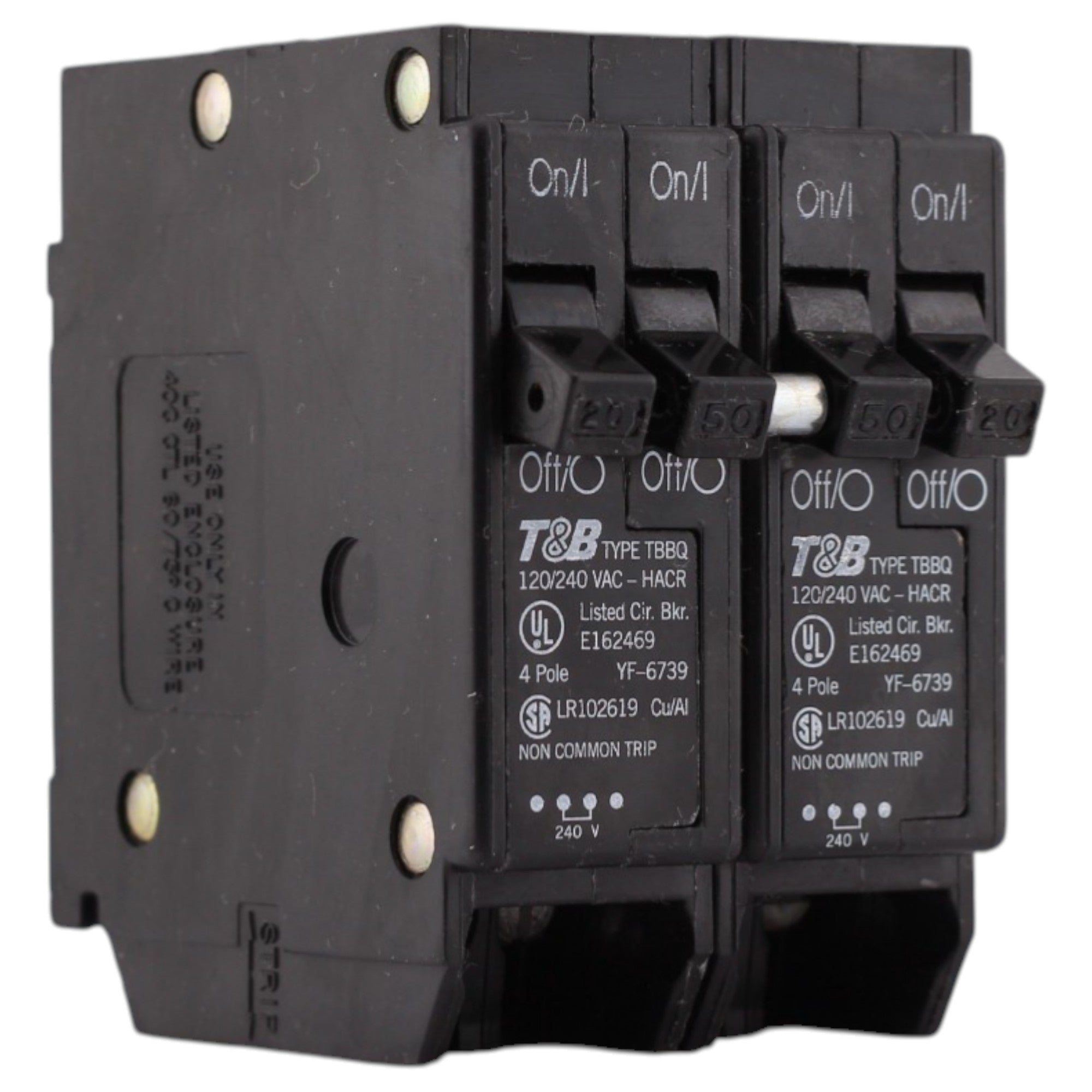

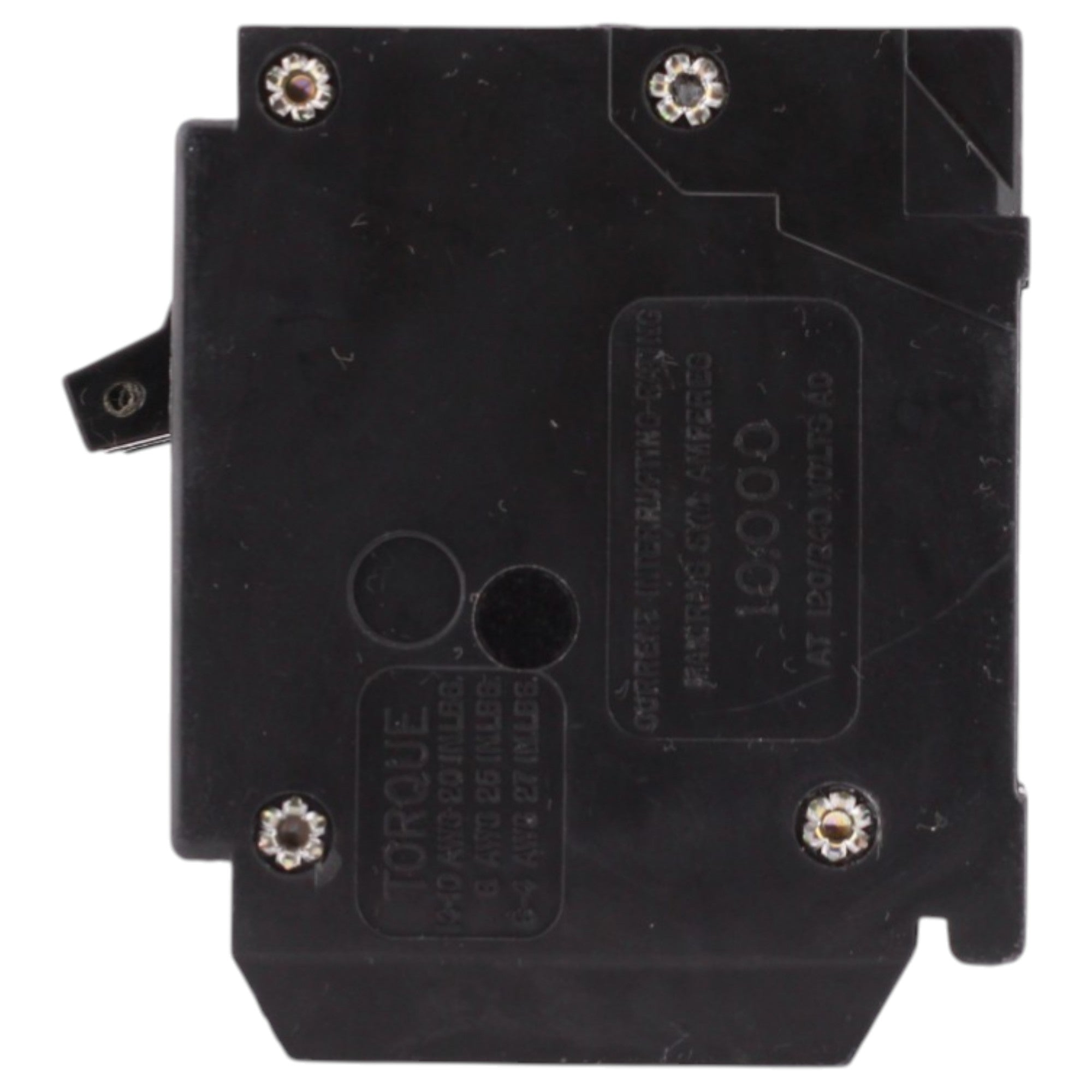

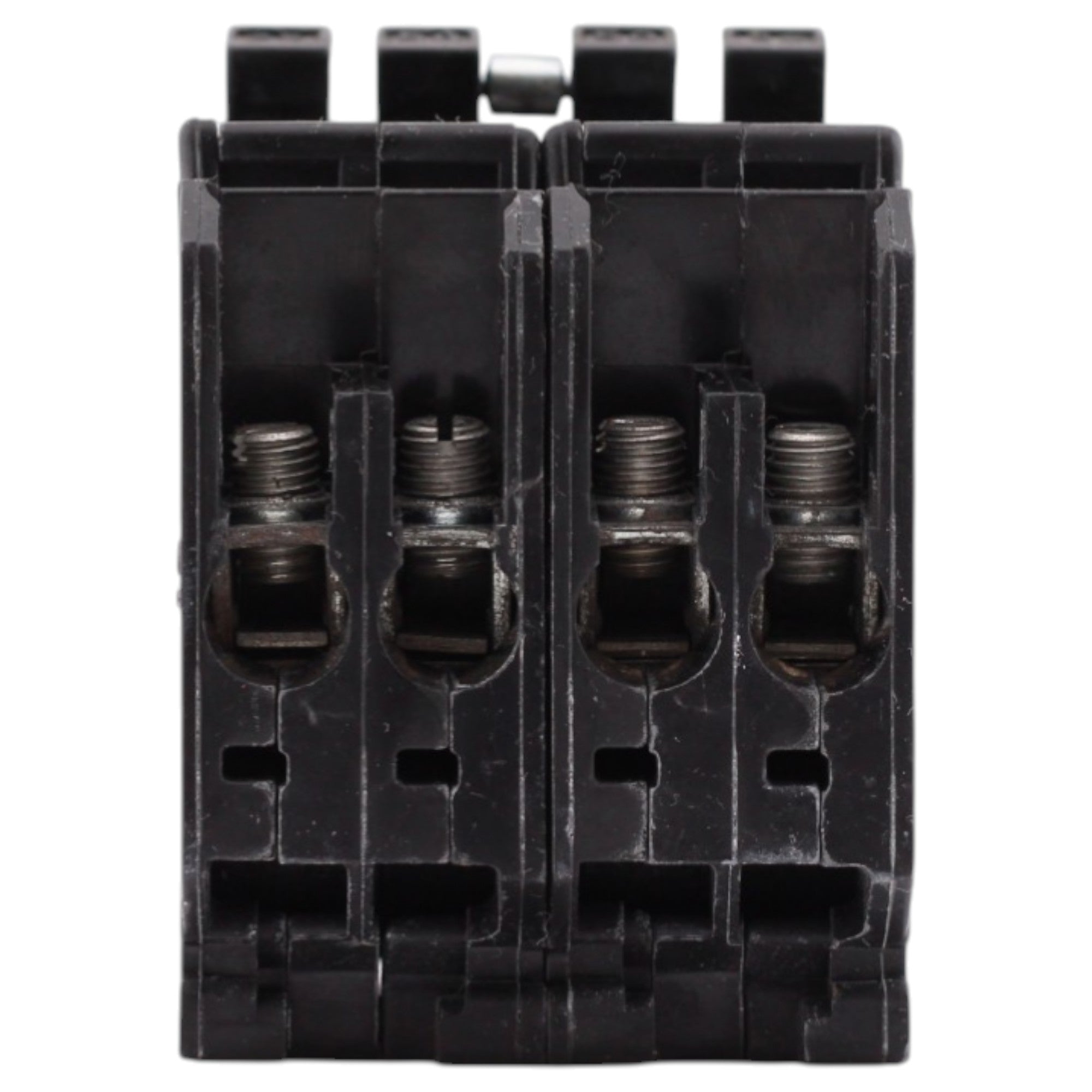

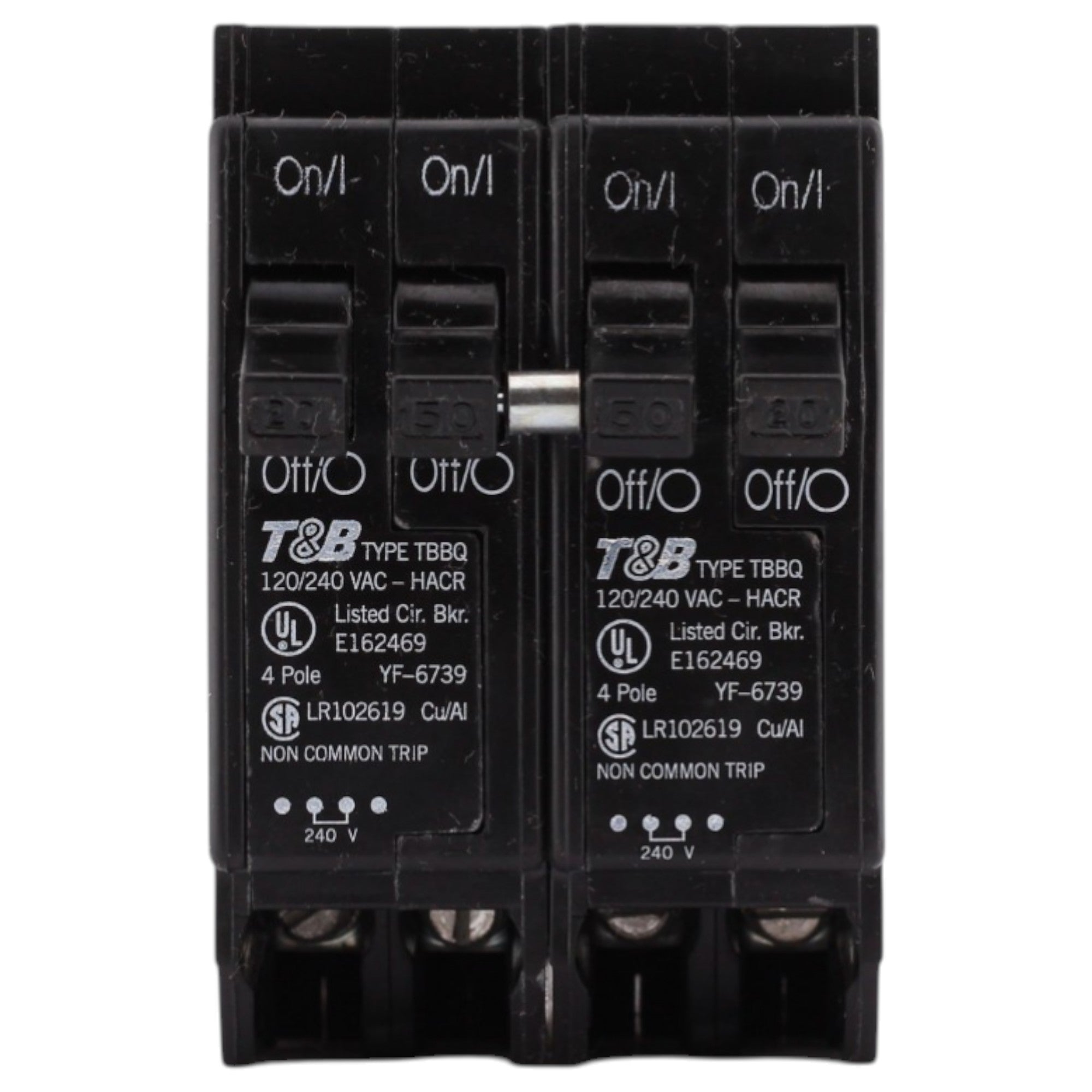

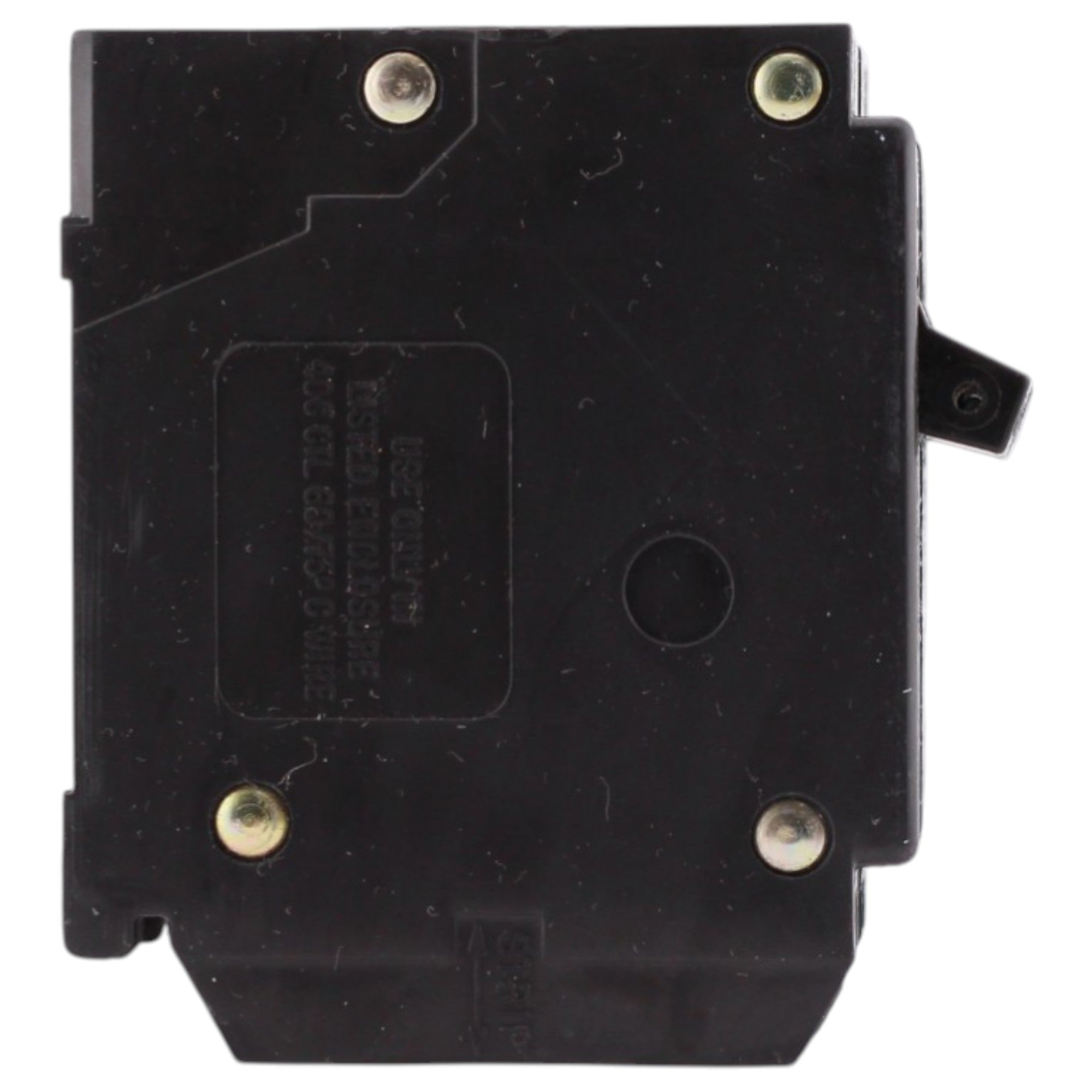

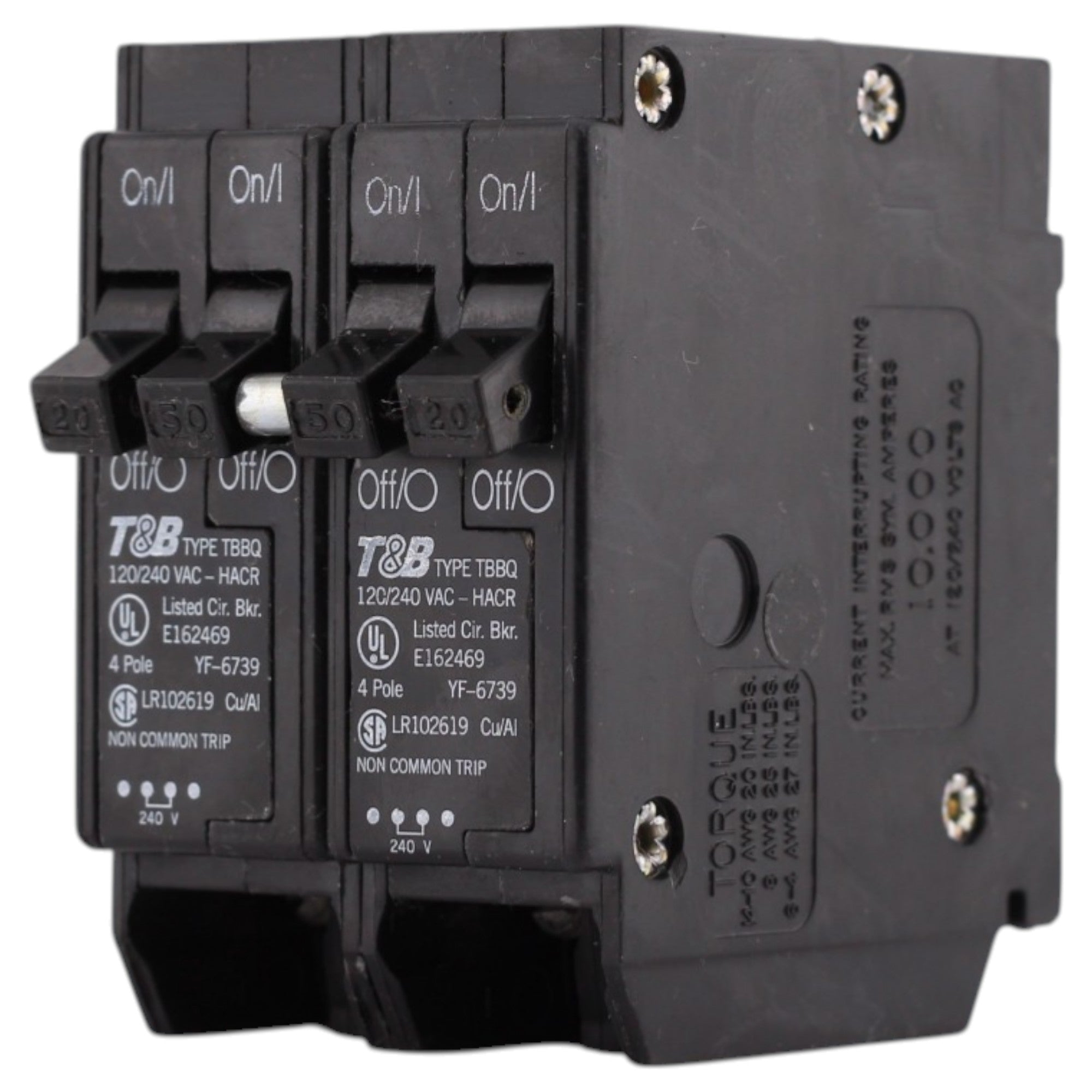

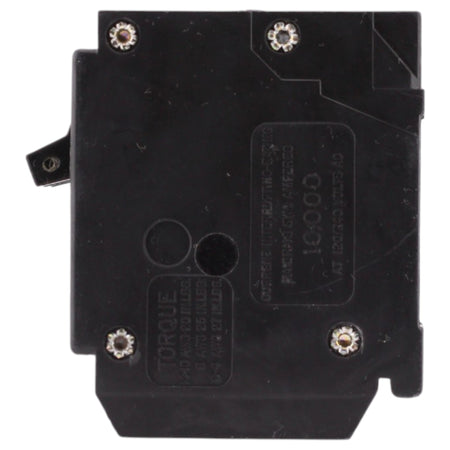

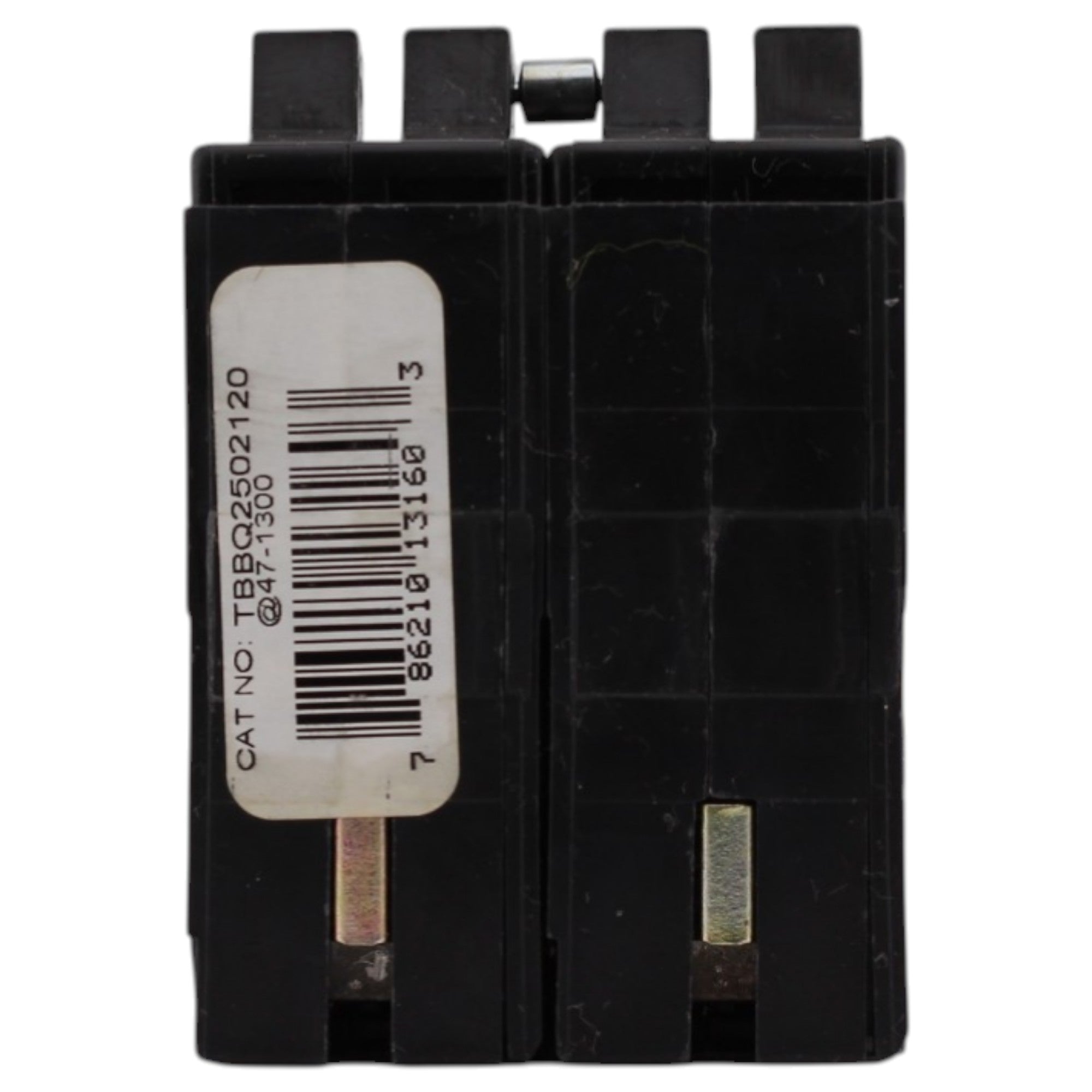

Thomas & Betts TBBQ, TBBQ2502120, 20A/50A, 4P, 120/240V, Quadplex, Circuit Breaker

Thomas & Betts TBBQ2502120: 20 Amp/50 Amp, 4-Pole, Thermal Magnetic Quadplex circuit breaker, 120/240V, 10kA, independent trip, UL listed, HACR rated.

• Manufacturer: Thomas & Betts
• Brand: Thomas & Betts
• Product Range: TBBQ Series (for Thomas & Betts and compatible loadcenters)
• Model Number: TBBQ2502120
• Breaker Type: Thermal Magnetic Quadplex Circuit Breaker
• Configuration: Quadplex - (2) Single-Pole 20 Amps, (1) Two-Pole 50 Amps
• Amperage: 20 Amps (single-pole), 50 Amps (two-pole)
• Poles: 4-Pole (quadplex configuration)
• Voltage: 120/240 Volts AC
• Interrupt Rating: 10 kAIC at 240V
• Mounting Mode: Plug-in
• Trip Type: Independent Trip
• Trip Functions: Long-Time and Instantaneous (LI)
• Wire Size: #14-4 AWG Cu/Al
• Temperature Rating: 40°C
• Weight: 0.75 lb
• Certifications: UL Listed, HACR Rated

This Thomas & Betts TBBQ2502120 quadplex breaker combines two 1-pole 20A breakers and one 2-pole 50A breaker in a compact 4-pole design for 120/240V circuits in Thomas & Betts loadcenters. Ideal for space-saving residential panels requiring both standard branch circuit protection and higher-amperage two-pole applications such as water heaters or large appliances.
