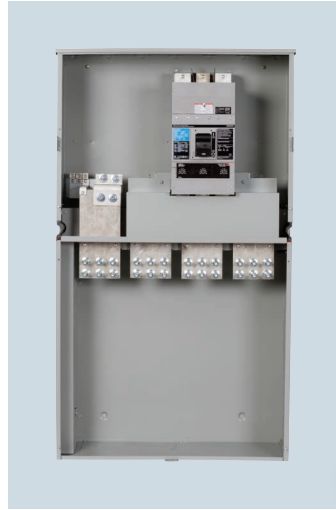

The Siemens WEBV1800B is a PowerMod WEBV standard circuit breaker main for a 1-phase, 3-wire, 120/240V system. It is rated 800A with an 85 kA interrupting capacity and includes a 2-pole 3VA55-frame breaker in a NEMA 3R outdoor enclosure. The module is configured for underground service feed and meets EUSERC requirements.
| Brand | Siemens |
|---|---|
| Series | PowerMod WEBV |
| Manufacturer Part Number | WEBV1800B |
| Alternate Catalog Number | US2:WEBV1800B |
| UPC | 195125499102 |
| GTIN-14 | 00195125499102 |
| Type | 3-wire low-voltage standard circuit breaker main module |
| Amperage Rating | 800A |
| Voltage Rating | 120/240V AC |
| Phase / Wires | 1 phase, 3 wire |
| Number of Poles | 2 |
| Breaker Frame | 3VA55 |
| Interrupt Rating | 85 kAIC |
| Enclosure | NEMA Type 3R outdoor |
| Service Feed | Underground (UG) |
| Main Bus Rating | 1200A maximum, 240V AC maximum |
| Approx. Dimensions (H × W × D) | 59.54 × 26.84 × 14.4 in |
| Included | 800A, 2-pole 3VA55-frame breaker |
| Compliance | Meets EUSERC requirements |
| UNSPSC | 39121102 |
Application: Outdoor modular metering and service entrance installations requiring an 800A single-phase breaker main. Confirm utility approval, conductor requirements, and required lug kit before installation.
